TM-192

< UNIT DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F09B]

TORQUE CONVERTER

UNIT DISASSEMBLY AND ASSEMBLY

TORQUE CONVERTER

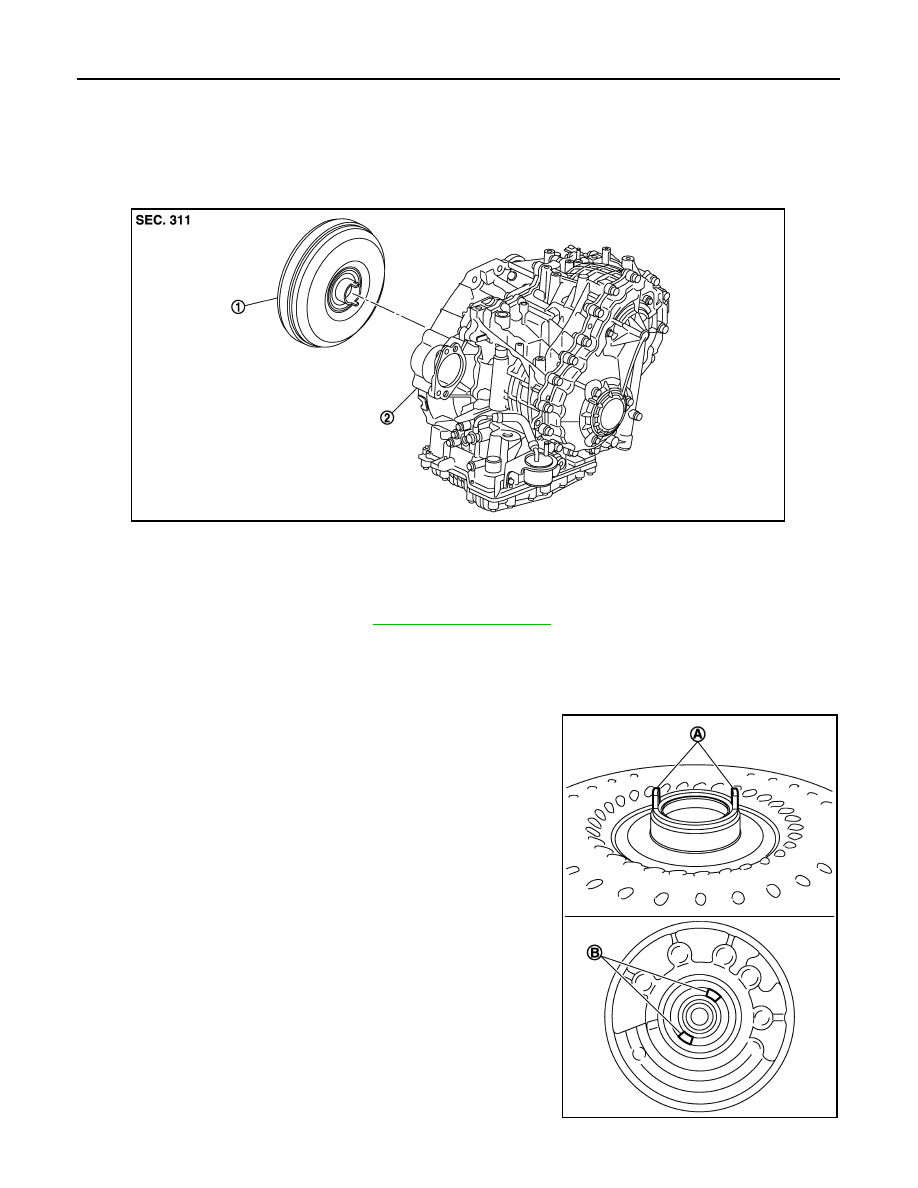

Exploded View

INFOID:0000000010114259

Disassembly

INFOID:0000000010114260

1. Remove transaxle assembly. Refer to

TM-188, "Exploded View"

.

2. Remove torque converter from transaxle assembly.

Assembly

INFOID:0000000010114261

Note the following, and install in the reverse order of removal.

• Attach the pawl (A) of the torque converter to the inner gear hole

(B) on the oil pump side.

CAUTION:

Rotate the torque converter for installing torque converter.

1.

Torque converter

2.

Transaxle assembly

JPDIA0691ZZ

JPDIA0692ZZ

TORQUE CONVERTER

TM-193

< UNIT DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Inspection

INFOID:0000000010114262

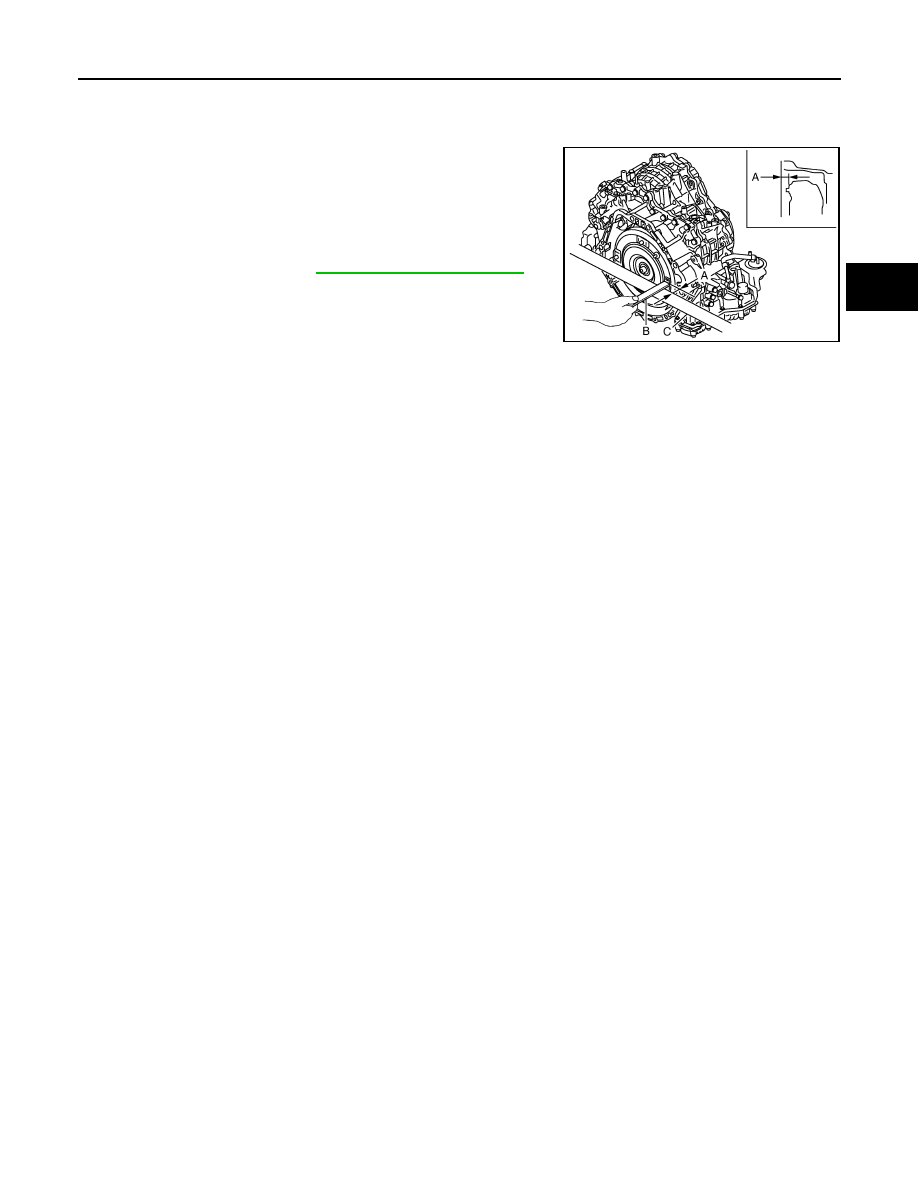

INSPECTION AFTER INSTALLATION

After inserting a torque converter to transaxle assembly, check

dimension (A) is within the reference value limit.

B

:  Scale

C

: Straightedge

Dimension A : Refer to

TM-195, "Torque Converter"

.

JPDIA0620ZZ

TM-194

< SERVICE DATA AND SPECIFICATIONS (SDS)

[CVT: RE0F09B]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000010114263

*1: Refer to

MA-15, "FOR USA AND CANADA : Fluids and Lubricants"

 (For United States and Canada),

MA-16, "FOR MEXICO : Fluids

and Lubricants"

 (For Mexico).

*2: The fluid capacity is the reference value. Check the fluid level with CVT fluid level gauge.

Vehicle Speed When Shifting Gears

INFOID:0000000010114264

Numerical value data are reference values.

Unit: rpm

CAUTION:

Lock-up clutch is engaged when vehicle speed is approximately 18 km/h (11 MPH) to 90 km/h (56 MPH).

Stall Speed

INFOID:0000000010114265

Line Pressure

INFOID:0000000010114266

Unit: kPa (kg/cm

2

, psi)

Applied model

VQ35DE

2WD

CVT model

RE0F09B

CVT assembly

Model code number

1XE3E

Transmission gear ratio

D range

Variable

Reverse

1.766

Final drive

5.173

Recommended fluid

Genuine NISSAN CVT Fluid NS-2

*1

Fluid capacity liter (US qt, Imp qt)

10.2 (10-3/4, 9)

*2

CAUTION:

• Use only Genuine NISSAN CVT Fluid NS-2. Never mix with other fluid.
• Using CVT fluid other than Genuine NISSAN CVT Fluid NS-2 will deteriorate in driveability and CVT durability, and may dam-

age the CVT, which is not covered by the NISSAN new vehicle limited warranty.

Throttle position

Shift pattern

Engine speed

At 40 km/h (25 MPH)

At 60 km/h (37 MPH)

8/8

“D” position

3,200 – 4,100

4,700 – 5,600

2/8

“D” position

1,100 – 3,100

1,200 – 3,700

Stall speed

 2,700 – 3,500 rpm

Engine speed

Line pressure

“R” and “D” positions

At idle

700 (7.13, 101.5)

At stall

5,700 (58.14, 826.5)

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-195

< SERVICE DATA AND SPECIFICATIONS (SDS)

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Solenoid Valves

INFOID:0000000010114267

CVT Fluid Temperature Sensor

INFOID:0000000010114268

Primary Speed Sensor

INFOID:0000000010114269

Secondary Speed Sensor

INFOID:0000000010114270

Step Motor

INFOID:0000000010114271

Torque Converter

INFOID:0000000010114272

Name

Resistance (Approx.)

Pressure control solenoid valve B (secondary pressure solenoid valve)

3.0 – 9.0

Ω

Pressure control solenoid valve A (line pressure solenoid valve)

Torque converter clutch solenoid valve

Lock-up select solenoid valve

6.0 – 19.0

Ω

Name

Condition

CONSULT “DATA MONI-

TOR” (Approx.)

Resistance (Approx.)

CVT fluid temperature sensor

When CVT fluid temperature is 20

°C (68°F)

1.9 – 2.2 V

6.5 k

Ω

When CVT fluid temperature is 80

°C (176°F)

0.8 – 1.1 V

0.9 k

Ω

Name

Condition

Data (Approx.)

Primary speed sensor

When driving [“M

1

” position, 20 km/h (12 MPH)]

695 Hz

Name

Condition

Data (Approx.)

Secondary speed sensor

When driving [“D” position, 20 km/h (12 MPH)]

390 Hz

Name

Resistance (Approx.)

Step motor A

15.0

Ω

Step motor B

15.0

Ω

Step motor C

15.0

Ω

Step motor D

15.0

Ω

Dimension between end of converter housing and torque converter

14.0 mm (0.55 in)
