REMOVAL AND INSTALLATION

DUCTS AND GRILLES

Exploded View

INFOID:0000000009466243

Ducts

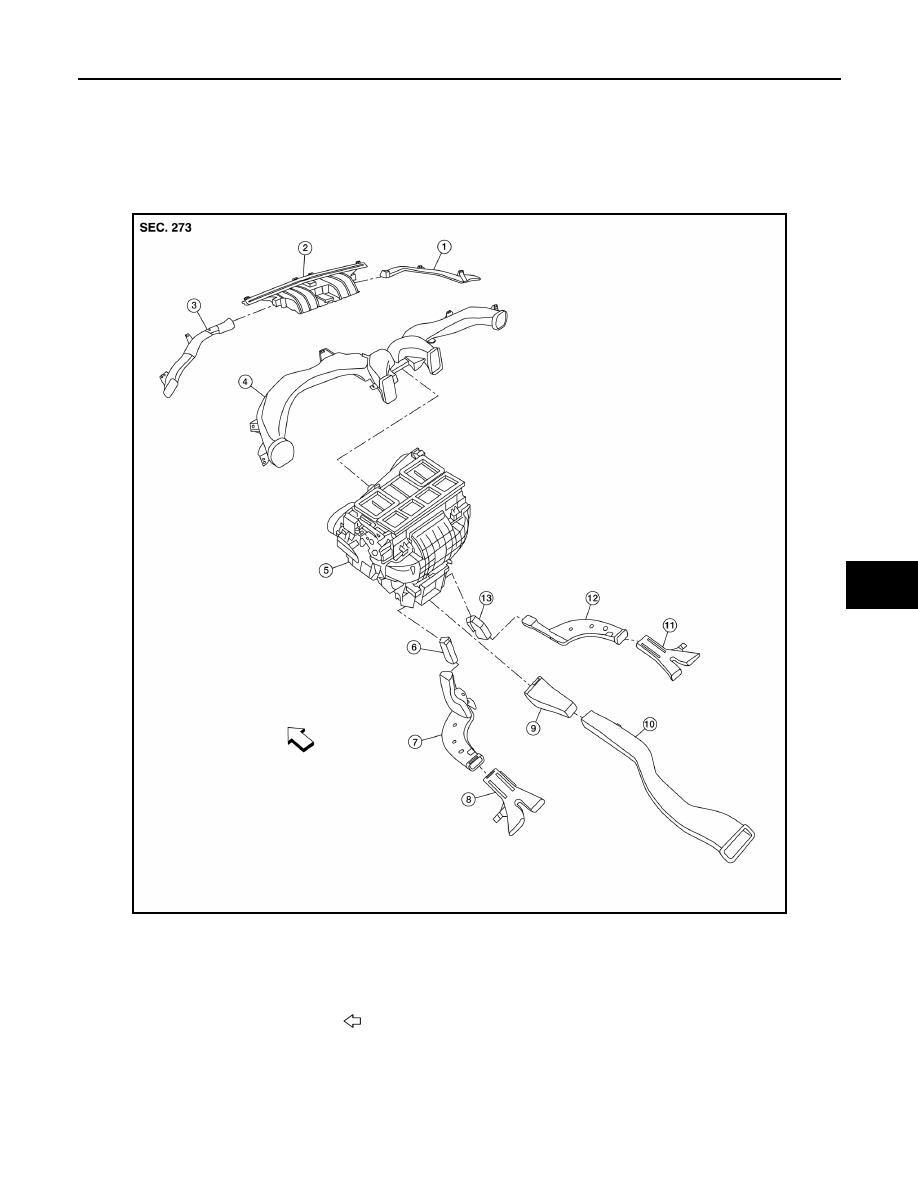

AWIIA1526ZZ

1.

Side defroster nozzle (RH)

2.

Front defroster nozzle

3.

Side defroster nozzle (LH)

4.

Upper ventilator duct

5.

Heater and cooling unit assembly

6.

Connector duct (LH)

7.

Floor ventilator duct (LH)

8.

Rear floor duct (LH)

9.

Connector duct (center)

10. Rear ventilator duct (center)

11. Rear floor duct (RH)

12. Floor ventilator duct (RH)

13. Connector duct (RH)

Front

VTL-10

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

Grilles

FRONT DEFROSTER NOZZLE
FRONT DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000009466244

REMOVAL

CAUTION:

Before servicing, turn the ignition switch off, disconnect both battery terminals and wait at least three

minutes.
1. Disconnect the battery negative and positive terminals. Refer to

PG-67, "Removal and Installation (Bat-

tery)"

.

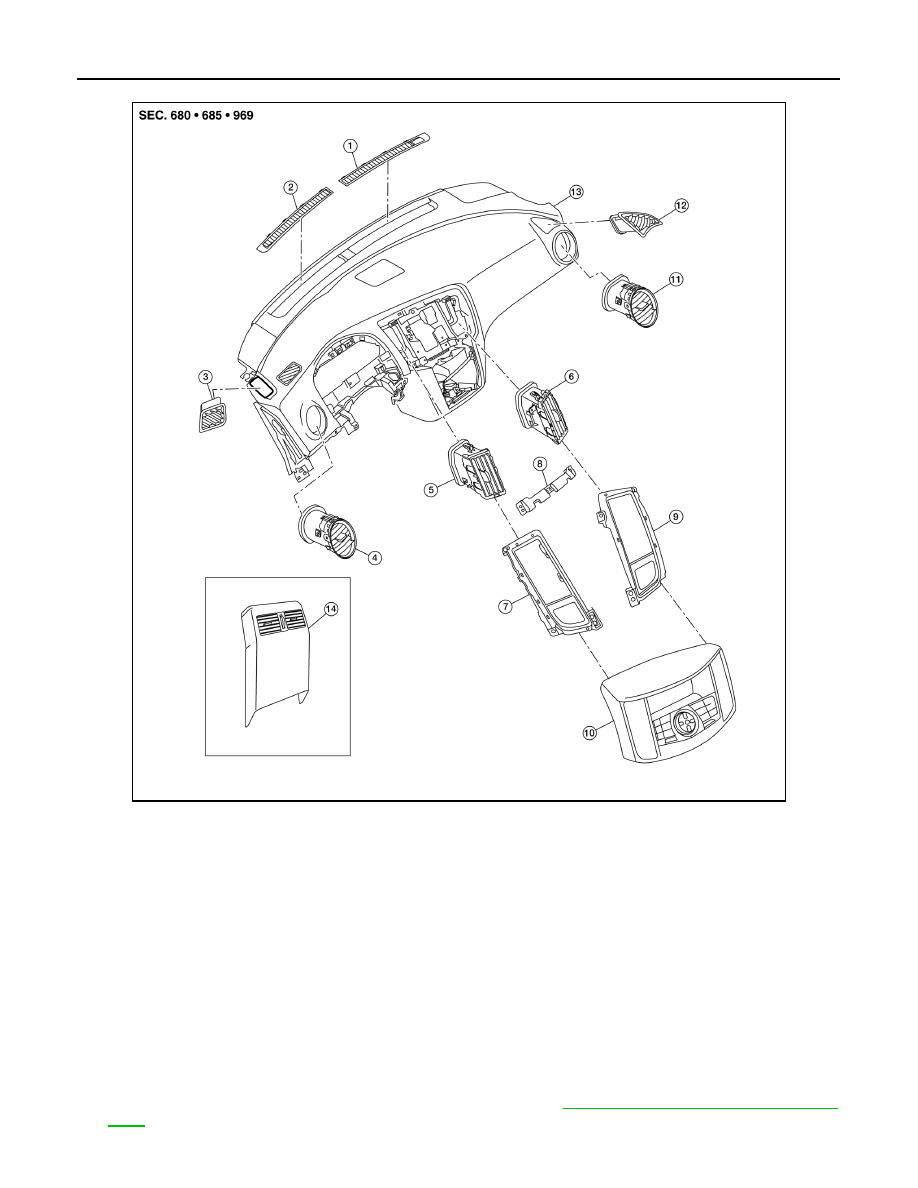

AWIIA1527ZZ

1.

Front defroster grille (RH)

2.

Front defroster grille (LH)

3.

Side defroster grille (LH)

4.

Side ventilator grille (LH)

5.

Center ventilator grille (LH)

6.

Center ventilator grille (RH)

7.

Center ventilator grille finisher (LH)

8.

Cluster lid D support

9.

Center ventilator grille finisher (RH)

10. Cluster lid D

11. Side ventilator grille (RH)

12. Side defroster grille (RH)

13. Instrument panel

14. Rear ventilator grille (part of rear

console finisher)

DUCTS AND GRILLES

VTL-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

2. Remove the instrument panel. Refer to

IP-11, "Removal and Installation"

.

3. Remove the front defroster nozzle.

INSTALLATION

Installation is in the reverse order of removal.

UPPER VENTILATOR DUCT
UPPER VENTILATOR DUCT : Removal and Installation

INFOID:0000000009466245

REMOVAL

CAUTION:

Before servicing, turn the ignition switch off, disconnect both battery terminals and wait at least three

minutes.
1. Disconnect the battery negative and positive terminals. Refer to

PG-67, "Removal and Installation (Bat-

tery)"

.

2. Remove the instrument panel. Refer to

IP-11, "Removal and Installation"

.

3. Remove the upper ventilator duct.

INSTALLATION

Installation is in the reverse order of removal.

SIDE DEFROSTER NOZZLE
SIDE DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000009466246

REMOVAL

CAUTION:

Before servicing, turn the ignition switch off, disconnect both battery terminals and wait at least three

minutes.
1. Disconnect the battery negative and positive terminals. Refer to

PG-67, "Removal and Installation (Bat-

tery)"

.

2. Remove the instrument panel. Refer to

IP-11, "Removal and Installation"

.

3. Remove the front defroster nozzle.
4. Remove the side defroster nozzle (LH/RH).

INSTALLATION

Installation is in the reverse order of removal.

REAR FLOOR DUCTS
REAR FLOOR DUCTS : Removal and Installation

INFOID:0000000009466247

REAR FLOOR DUCT (LH/RH)

Removal

1. Remove the rear ventilator duct (center). Refer to

VTL-12, "REAR VENTILATOR DUCTS : Removal and

Installation"

.

2. Remove the rear floor duct (LH/RH) clips.
3. Remove the rear floor ducts (LH/RH).

Installation

Installation is in the reverse order of removal.

FLOOR VENTILATOR DUCT (LH/RH)

Removal

1. Remove the connector duct. Refer to

VTL-11, "REAR FLOOR DUCTS : Removal and Installation"

.

2. Remove the rear ventilator duct (LH/RH) clips.
3. Remove the rear ventilator ducts (LH/RH).

Installation

VTL-12

< REMOVAL AND INSTALLATION >

DUCTS AND GRILLES

Installation is in the reverse order of removal.

CONNECTOR DUCT

Removal

1. Remove the center console. Refer to

IP-14, "Removal and Installation"

.

2. Remove the connector duct (LH/RH).

Installation

Installation is in the reverse order of removal.

REAR VENTILATOR DUCTS
REAR VENTILATOR DUCTS : Removal and Installation

INFOID:0000000009466248

CONNECTOR DUCT (CENTER)

Removal

1. Remove the center console. Refer to

IP-14, "Removal and Installation"

.

2. Remove the rear ventilator duct (center).
3. Remove the connector duct (center).

Installation

Installation is in the reverse order of removal.

REAR VENTILATOR DUCT (CENTER)

Removal

1. Remove the center console. Refer to

IP-14, "Removal and Installation"

.

2. Remove the rear ventilator duct (center).

Installation

Installation is in the reverse order of removal.

FRONT DEFROSTER GRILLE
FRONT DEFROSTER GRILLE : Removal and Installation

INFOID:0000000009466249

REMOVAL

Remove the front defroster grille from the instrument panel.

CAUTION:

Use a suitable tool to remove the grille to avoid damage to the instrument panel.

INSTALLATION

Installation is in the reverse order of removal.

CENTER VENTILATOR GRILLES
CENTER VENTILATOR GRILLES : Removal and Installation

INFOID:0000000009466250

REMOVAL

1. Remove cluster lid D. Refer to

IP-18, "Removal and Installation"

.

2. Remove the A/C switch assembly or the multifunction switch from cluster lid D.
3. Remove the cluster lid D support.
4. Remove the center ventilator grilles with finisher.
5. Remove the center ventilator grille from the finisher.

INSTALLATION

Installation is in the reverse order of removal.
