TM-156

< PERIODIC MAINTENANCE >

[CVT: RE0F09B]

CVT FLUID

Check CVT fluid condition.

• If CVT fluid is very dark or smells burned, check operation of CVT.

Flush cooling system after repair of CVT.

• If CVT fluid contains frictional material (clutches, brakes, etc.),

inspect and clean the CVT fluid cooler mounted in the radiator and

flush cooler line using cleaning solvent and compressed air after

repair of CVT. Refer to

TM-157, "Cleaning"

.

Changing

INFOID:0000000010113958

CAUTION:

Replace a O-ring with new ones at the final stage of the operation when installing.
1. Remove drain plug from oil pan.
2. Remove O-ring from drain plug and discard the O-ring.
3. Install a new O-ring on drain plug.

CAUTION:

Never reuse O-ring.

4. Install drain plug in oil pan. Refer to

TM-177, "Exploded View"

.

5. Fill CVT fluid from CVT fluid charging pipe to the specified level.

CAUTION:

• Use only Genuine NISSAN CVT Fluid NS-2. Never mix with other fluid.

• Using CVT fluid other than Genuine NISSAN CVT Fluid NS-2 will deteriorate in driveability and

CVT durability, and may damage the CVT, which is not covered by the warranty.

• When filling CVT fluid, take care not to scatter heat generating parts such as exhaust.

• Sufficiently shake the container of CVT fluid before using.

• Delete CVT fluid deterioration date with CONSULT after changing CVT fluid. Refer to

TM-38,

"CONSULT Function"

.

6. With the engine warmed up, drive the vehicle in an urban area.

NOTE:

When ambient temperature is 20

°C (68°F), it takes about 10 minutes for the CVT fluid to warm up to 50°

to 80

°C (122° to 176°F).

7. Check CVT fluid level and condition.
8. Repeat steps 1 to 5 if CVT fluid has been contaminated.

Fluid status

Conceivable cause

Required operation

Varnished (viscous
varnish state)

CVT fluid becomes
degraded due to
high temperatures.

Replace the CVT fluid and check the
CVT main unit and the vehicle for
malfunctions (wire harnesses, cool-
er pipes, etc.)

Milky white or
cloudy

Water in the fluid

Replace the CVT fluid and check for
places where water is getting in.

Large amount of
metal powder mixed
in

Unusual wear of
sliding parts within
CVT

Replace the CVT fluid and check for
improper operation of the CVT.

ATA0022D

CVT fluid

: Refer to

TM-194, "General Specification"

.

Fluid capacity

: Refer to

TM-194, "General Specification"

.

CVT FLUID COOLER SYSTEM

TM-157

< PERIODIC MAINTENANCE >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CVT FLUID COOLER SYSTEM

Cleaning

INFOID:0000000010113959

Whenever an automatic transaxle is repaired, overhauled, or replaced, the CVT fluid cooler mounted in the

radiator must be inspected and cleaned.

Metal debris and friction material, if present, can be trapped or be deposited in the CVT fluid cooler. This

debris can contaminate the newly serviced CVT or, in severe cases, can block or restrict the flow of CVT fluid.

In either case, malfunction of the newly serviced CVT may occur.

Debris, if present, may deposit as CVT fluid enters the cooler inlet. It will be necessary to back flush the cooler

through the cooler outlet in order to flush out any built up debris.

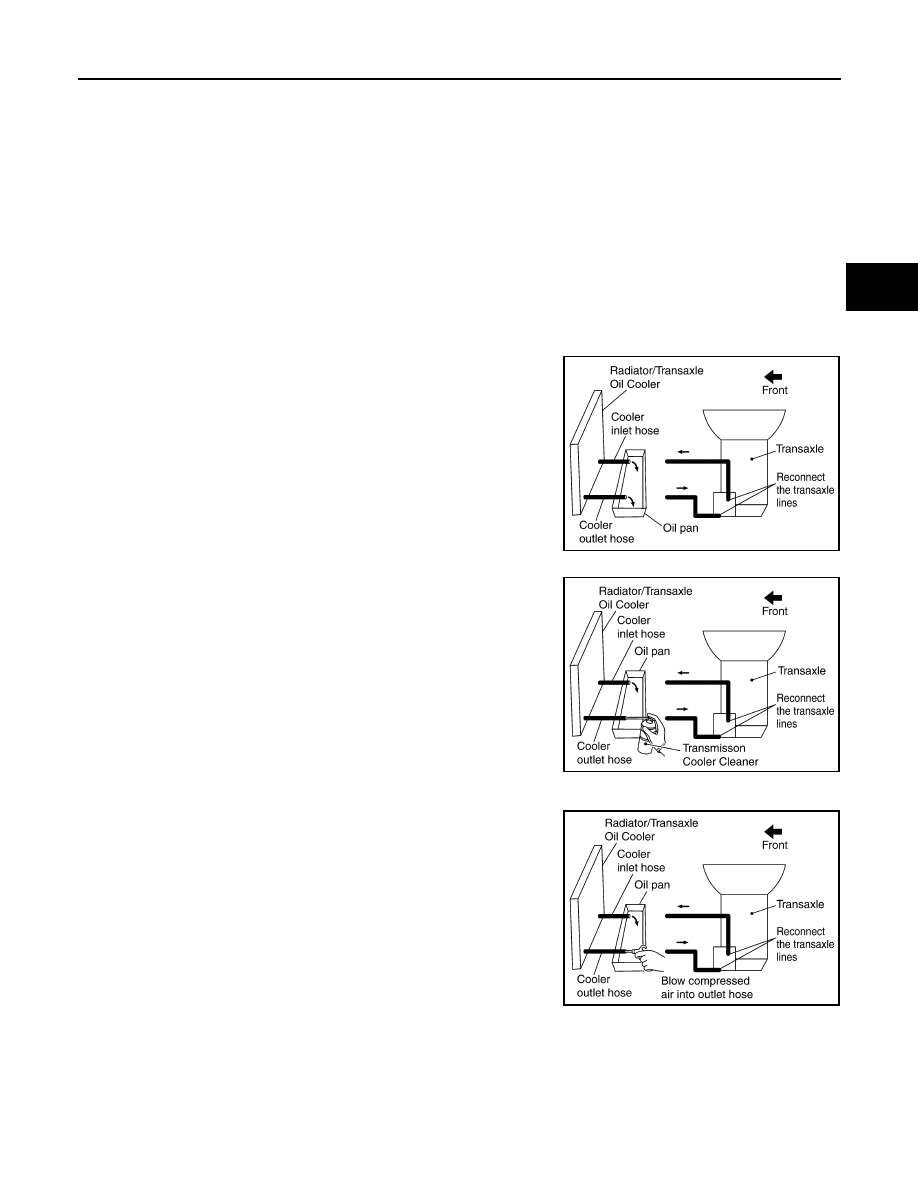

CVT FLUID COOLER CLEANING PROCEDURE

1. Position an oil pan under the transaxle's inlet and outlet cooler hoses.
2. Identify the inlet and outlet fluid cooler hoses.
3. Disconnect the fluid cooler inlet and outlet rubber hoses from the

steel cooler tubes or bypass valve.

NOTE:

Replace the cooler hoses if rubber material from the hose

remains on the tube fitting.

4. Allow any CVT fluid that remains in the cooler hoses to drain into

the oil pan.

5. Insert the extension adapter hose of a can of Transmission

Cooler Cleaner (Nissan P/N 999MP-AM006) into the cooler out-

let hose.

CAUTION:

• Wear safety glasses and rubber gloves when spraying the

Transmission Cooler Cleaner.

• Spray Transmission Cooler Cleaner only with adequate

ventilation.

• Avoid contact with eyes and skin.

• Do not breath vapors or spray mist.

6. Hold the hose and can as high as possible and spray Transmis-

sion Cooler Cleaner in a continuous stream into the cooler outlet

hose until CVT fluid flows out of the cooler inlet hose for 5 seconds.

7. Insert the tip of an air gun into the end of the cooler outlet hose.
8. Wrap a shop rag around the air gun tip and end of the cooler

outlet hose.

9. Blow compressed air regulated to 5 to 9 kg/cm

2

 (70 to 130 psi)

through the cooler outlet hose for 10 seconds to force out any

remaining CVT fluid.

10. Repeat steps 5 through 9 three additional times.
11. Position an oil pan under the banjo bolts that connect the CVT

fluid cooler steel lines to the transaxle.

12. Remove the banjo bolts.
13. Flush each steel line from the cooler side back toward the tran-

saxle by spraying Transmission Cooler Cleaner in a continuous stream for 5 seconds.

14. Blow compressed air regulated to 5 to 9 kg/cm

2

 (70 to 130 psi) through each steel line from the cooler

side back toward the transaxle for 10 seconds to force out any remaining CVT fluid.

15. Ensure all debris is removed from the steel cooler lines.
16. Ensure all debris is removed from the banjo bolts and fittings.

SCIA4421E

SCIA4422E

SCIA4423E

TM-158

< PERIODIC MAINTENANCE >

[CVT: RE0F09B]

CVT FLUID COOLER SYSTEM

17. Perform “CVT FLUID COOLER DIAGNOSIS PROCEDURE”.

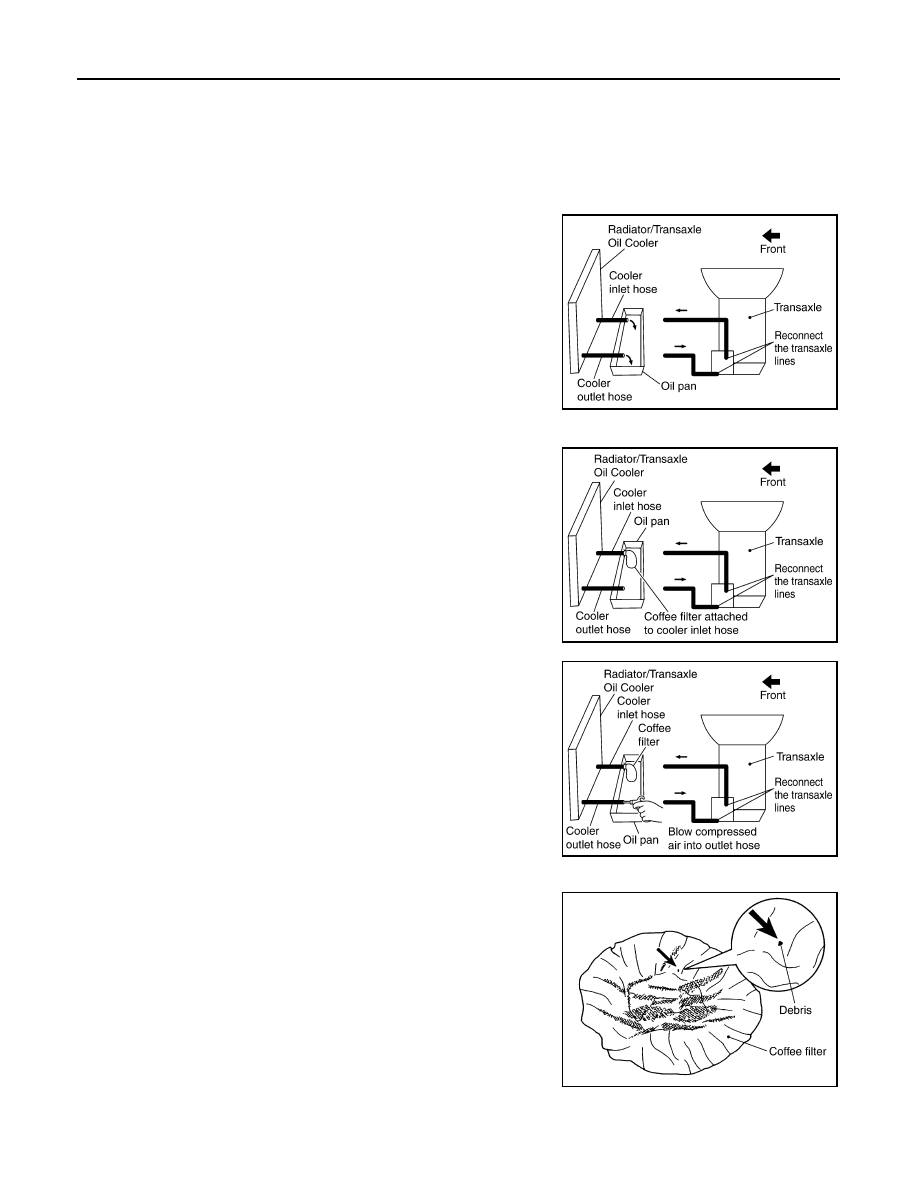

CVT FLUID COOLER DIAGNOSIS PROCEDURE

NOTE:

Insufficient cleaning of the cooler inlet hose exterior may lead to inaccurate debris identification.
1. Position an oil pan under the transaxle's inlet and outlet cooler hoses.
2. Clean the exterior and tip of the cooler inlet hose.
3. Insert the extension adapter hose of a can of Transmission

Cooler Cleaner (Nissan P/N 999MP-AM006) into the cooler out-

let hose.

CAUTION:

• Wear safety glasses and rubber gloves when spraying the

Transmission Cooler Cleaner.

• Spray Transmission Cooler Cleaner only with adequate

ventilation.

• Avoid contact with eyes and skin.

• Do not breath vapors or spray mist.

4. Hold the hose and can as high as possible and spray Transmis-

sion Cooler Cleaner in a continuous stream into the cooler outlet

hose until CVT fluid flows out of the cooler inlet hose for 5 seconds.

5. Tie a common white, basket-type coffee filter to the end of the

cooler inlet hose.

6. Insert the tip of an air gun into the end of the cooler outlet hose.
7. Wrap a shop rag around the air gun tip and end of cooler outlet

hose.

8. Blow compressed air regulated to 5 to 9 kg/cm

2

 (70 to 130 psi)

through the cooler outlet hose to force any remaining CVT fluid

into the coffee filter.

9. Remove the coffee filter from the end of the cooler inlet hose.
10. Perform “CVT FLUID COOLER INSPECTION PROCEDURE”.

CVT FLUID COOLER INSPECTION PROCEDURE

1. Inspect the coffee filter for debris.
a. If small metal debris less than 1 mm (0.040 in) in size or metal

powder is found in the coffee filter, this is normal. If normal

debris is found, the CVT fluid cooler/radiator can be reused and

the procedure is ended.

SCIA4421E

SCIA4424E

SCIA4425E

SCIA2967E

CVT FLUID COOLER SYSTEM

TM-159

< PERIODIC MAINTENANCE >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

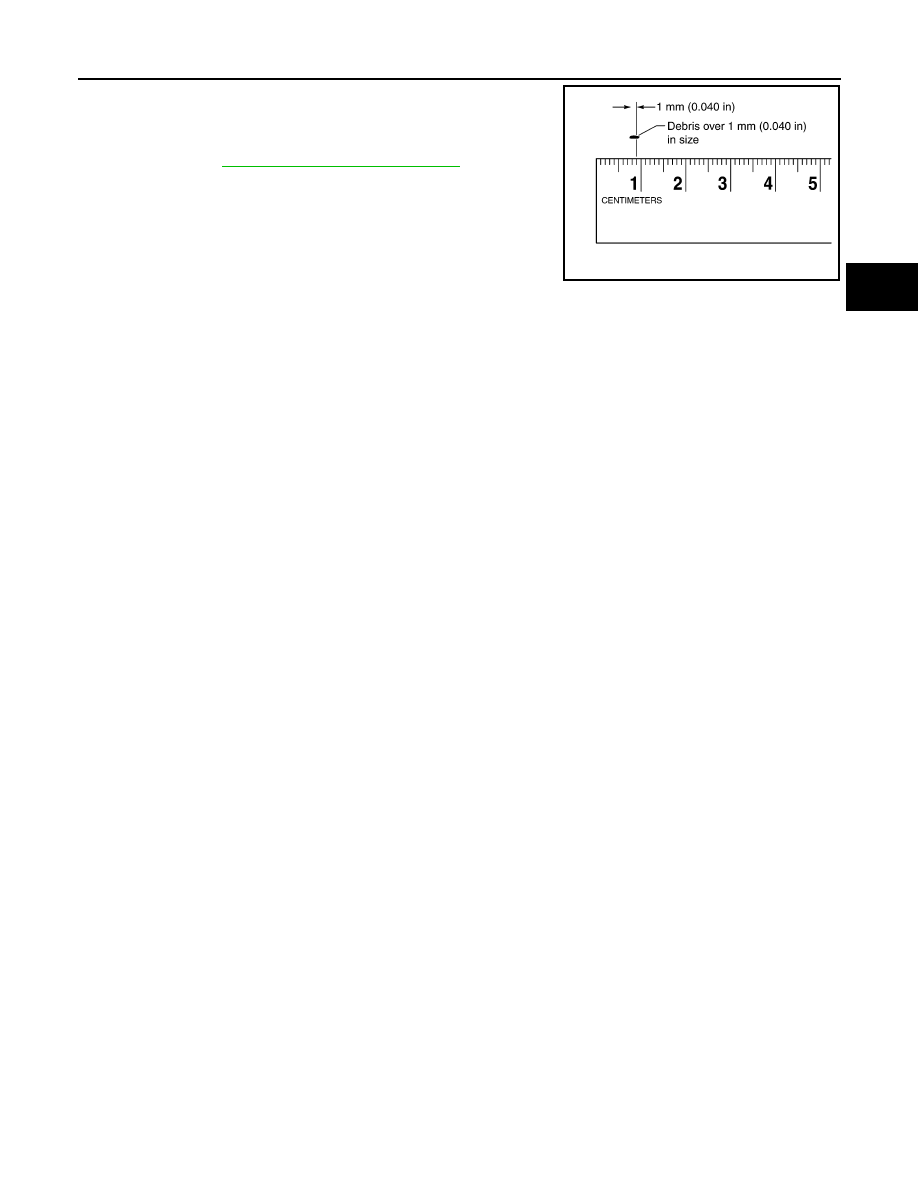

b. If one or more pieces of debris are found that are over 1 mm

(0.040 in) in size and/or peeled clutch facing material is found in

the coffee filter, the fluid cooler is not serviceable. The radiator/

fluid cooler must be replaced and the inspection procedure is

ended. Refer to

CO-14, "Removal and Installation"

.

CVT FLUID COOLER FINAL INSPECTION

After performing all procedures, ensure that all remaining oil is cleaned from all components.
