DIAGNOSIS AND REPAIR WORK FLOW

>> GO TO 3

3.

TECHNICAL SERVICE BULLETINS

Check for technical service bulletins.

>> GO TO 4

4.

USER MODE

Perform self-diagnosis using the "AIR BAG" warning lamp in User mode. Refer to

SRC-12, "SRS Operation

Check"

.

>> GO TO 5

5.

SELF-DIAGNOSIS

Perform SELF-DIAGNOSIS. Refer to

SRC-5, "Trouble Diagnosis with CONSULT"

 (with CONSULT) or

SRC-

14, "Self-Diagnosis Function (Without CONSULT)"

 (without CONSULT).

>> GO TO 6

6.

REPLACE PART

Replace the malfunctioning part.

>> GO TO 7

7.

FINAL CHECK

Check SRS using Diagnosis mode and User mode.
Does Diagnosis mode and User mode indicate SRS normal?

YES

>> Inspection End.

NO

>> GO TO 5

INTERMITTENT INCIDENT

SRC-5

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

INTERMITTENT INCIDENT

Inspection Procedure

INFOID:0000000009466472

INTERMITTENT TROUBLE

An intermittent incident may have occured in the past but is not being detected currently.  This DTC will not be

detected on SELF DIAG [CURRENT], but may be viewed on SELF DIAG [PAST] using CONSULT.

Trouble Diagnosis with CONSULT

INFOID:0000000009466473

DIAGNOSTIC PROCEDURE 4

Check SRS Repair History

1.

CONSIDER POSSIBILITY THAT SELF-DIAGNOSTIC RESULT WAS NOT ERASED AFTER REPAIR

Check repair history of the SRS.
Have any previous repairs been made to the SRS?

Yes

>> Self-diagnostic result “SELF-DIAG [PAST]” (previously stored in the memory) might not be erased

after repair. Proceed to "DIAGNOSTIC PROCEDURE 3". Refer to

SRC-14, "Self-Diagnosis Func-

tion (Without CONSULT)"

.

No

>> Proceed to "DIAGNOSTIC PROCEDURE 2". Refer to

SRC-12, "SRS Operation Check"

.

SRC-6

< SYSTEM DESCRIPTION >

SRS AIR BAG SYSTEM

SYSTEM DESCRIPTION

SRS AIR BAG SYSTEM

SRS Configuration

INFOID:0000000009466474

The air bag deploys if the air bag diagnosis sensor unit is activated while the ignition switch is in the ON or

START position.

The collision modes for which supplemental restraint systems are activated are different among the SRS sys-

tems. For example, the driver air bag module, front passenger air bag module and front seat belt pre-tension-

ers are activated in a frontal collision but not in a side collision.

SRS configurations for some collision modes are as follows:

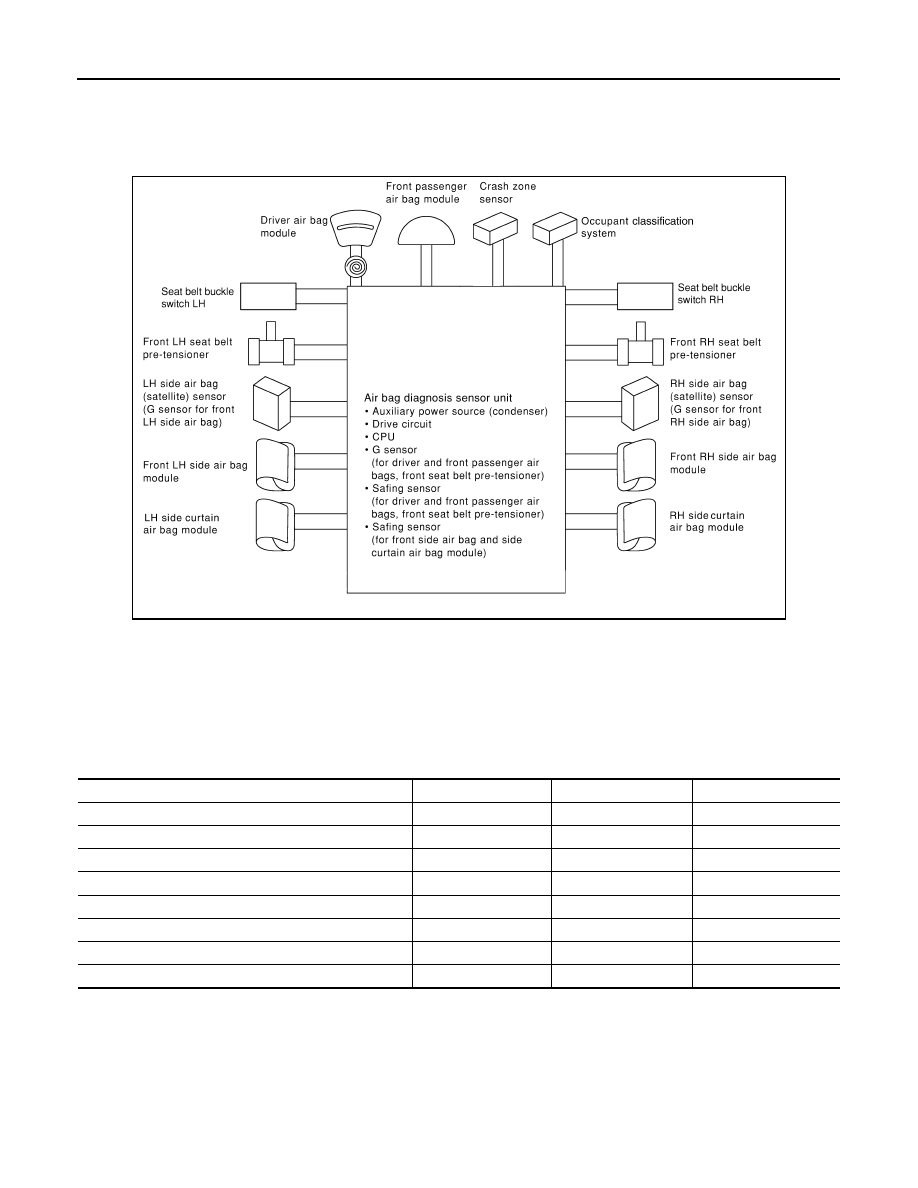

WHIA0186E

SRS configuration

Frontal collision

Left side collision

Right side collision

Driver air bag module

×

—

—

Front passenger air bag module

×

—

—

Front LH seat belt pre-tensioner

×

—

—

Front RH seat belt pre-tensioner

×

—

—

Front LH side air bag module

—

×

—

Front RH side air bag module

—

—

×

LH side curtain air bag module

—

×

—

RH side curtain air bag module

—

—

×

SRS AIR BAG SYSTEM

SRC-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

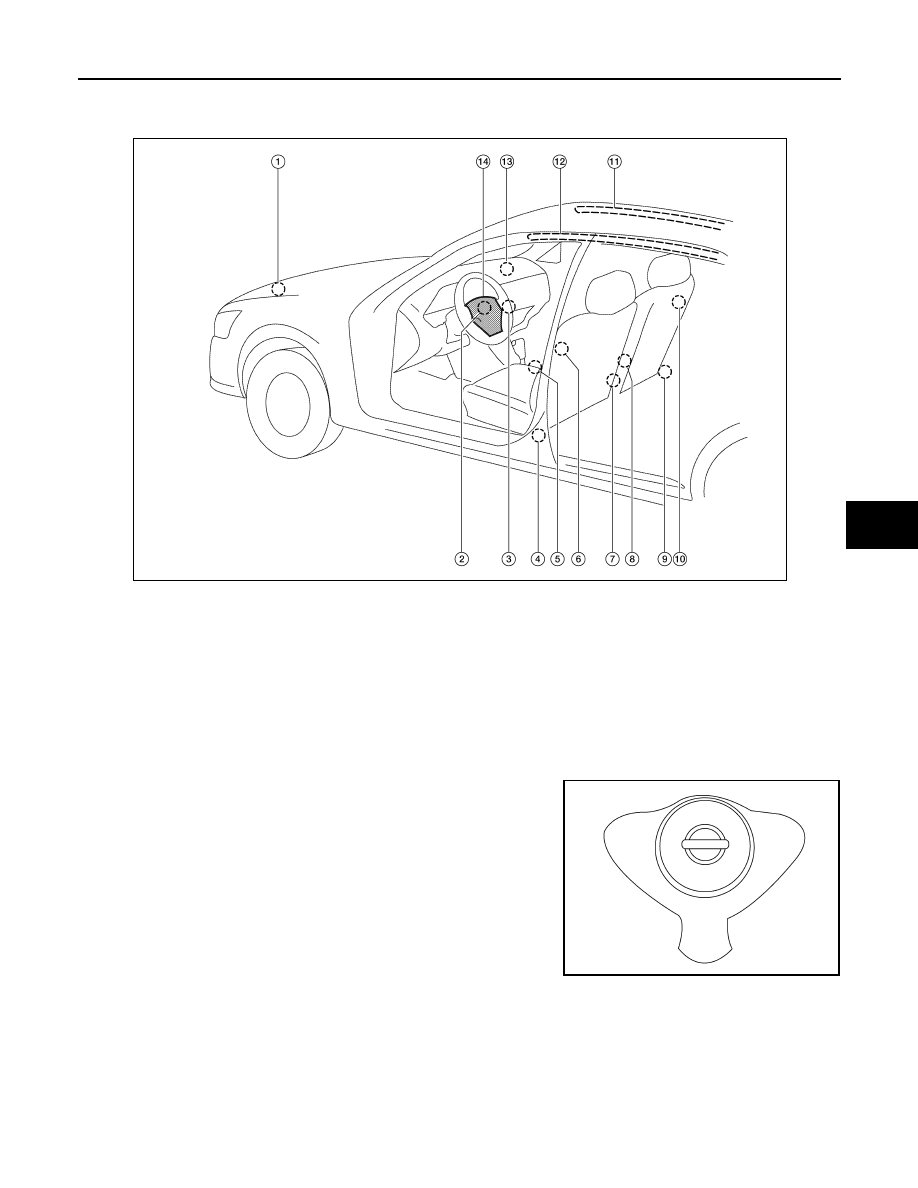

SRS Component Parts Location

INFOID:0000000009466475

Driver Air Bag Module

INFOID:0000000009466476

The driver air bag module is dual stage and located in the steering

wheel assembly. It operates with the SRS system in a frontal colli-

sion exceeding a specified level.

1.

Crash zone sensor

2.

Spiral cable

3.

Front passenger air bag off indicator

4.

Front LH seatbelt pre-tensioner
LH side air bag (satellite) sensor

5.

Air bag diagnosis sensor unit

6.

Front LH side air bag module

7.

Seat belt buckle switch (LH)
Seat belt buckle switch (RH)

8.

Occupant classification system
control unit and sensor mat

9.

Front RH seatbelt pre-tensioner
RH side air bag (satellite) sensor

10. Front RH side air bag module

11. RH side curtain air bag module 12. LH side curtain air bag module

13. Front passenger air bag module

14. Driver air bag module

WHIA0329E
