Nissan Maxima. Manual - part 1095

SRC-8

< SYSTEM DESCRIPTION >

SRS AIR BAG SYSTEM

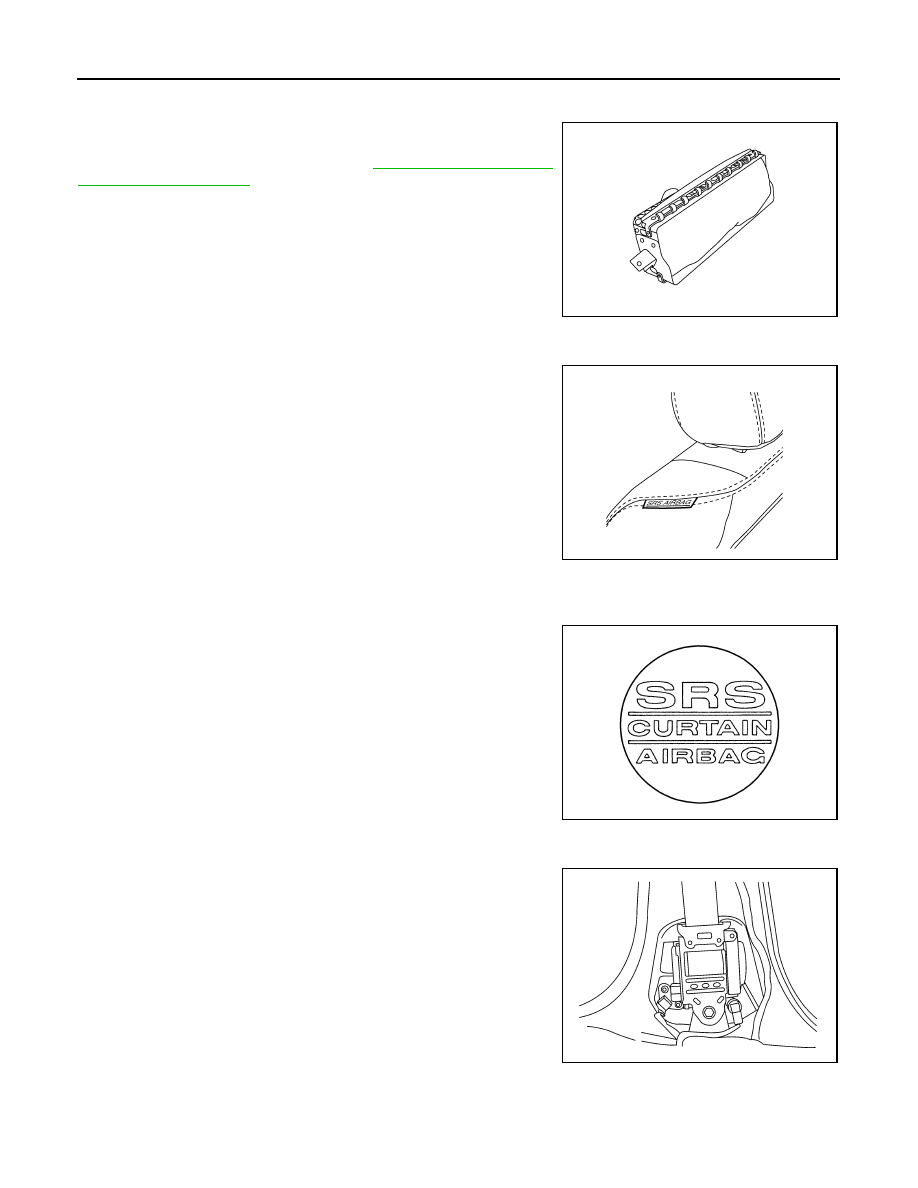

Front Passenger Air Bag Module

INFOID:0000000009466477

The front passenger air bag module is located behind the instrument

panel assembly.  It operates with the SRS system in a frontal colli-

sion exceeding a specified level. Refer to

SRC-10, "Occupant Clas-

sification System (OCS)"

  for more information.

Front Side Air Bag

INFOID:0000000009466478

Front side air bag modules are built into the front seatback assem-

blies. Vehicles with side air bags are equipped with labels as shown.

Side Curtain Air Bag

INFOID:0000000009466479

Side curtain air bag modules are located above the vehicle headlining.

Vehicles with side curtain air bags are equipped with labels as

shown.

Front Seat Belt Pre-tensioner

INFOID:0000000009466480

The seat belt pre-tensioner system with load limiter is installed for

both the driver's seat and the front passenger's seat. It operates

simultaneously with the SRS air bag system in the event of a frontal

collision with an impact exceeding a specified level.

When the frontal collision with an impact exceeding a specified level

occurs, seat belt slack resulting from clothing or other factors is

immediately taken up by the pre-tensioner. Vehicle passengers are

securely restrained.

When passengers in a vehicle are thrown forward in a collision and

the restraining force of the seat belt exceeds a specified level, the

load limiter permits the specified extension of the seat belt by the

twisting of the ELR shaft, and a relaxation of the chest-area seat belt

web tension while maintaining force.

AWHIA0227ZZ

WHIA0327E

WHIA0041E

AWHIA0229ZZ

SRS AIR BAG SYSTEM

SRC-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

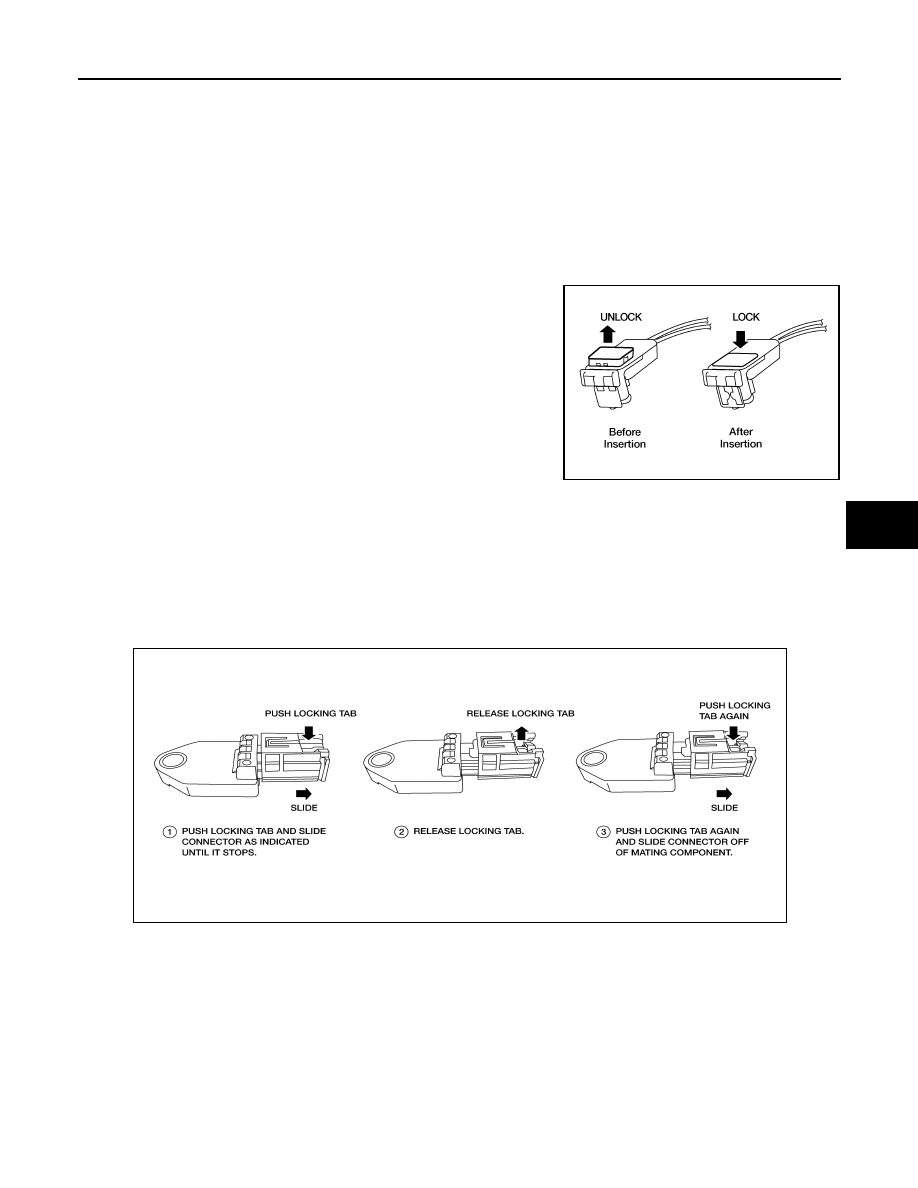

SRS Component Connectors

INFOID:0000000009466481

DIRECT CONNECT

The following SRS components use direct-connect style harness connectors.

• Driver front air bag module

• Passenger front air bag module

• LH side curtain air bag module

• RH side curtain air bag module

• Front LH seat belt pre-tensioner

• Front RH seat belt pre-tensioner

Always pull up to release locking tab prior to removing connector from SRS component.

Always push down to lock locking tab after installing connector to

SRS component. When locked, the locking tab is level with the con-

nector housing.

SLIDE DOUBLE LOCKING

• A new style slide double locking type connector is used on certain systems and components, especially

those related to airbag control systems.

• The slide double locking type connectors help prevent incomplete locking and accidental looseness or dis-

connection.

• The slide double locking type connectors are disconnected by pushing or pulling the slider. Refer to the fig-

ure  below.

CAUTION:

• Do not pull the harness or wires when disconnecting the connector.

WHIA0103E

AAMIA0498GB

SRC-10

< SYSTEM DESCRIPTION >

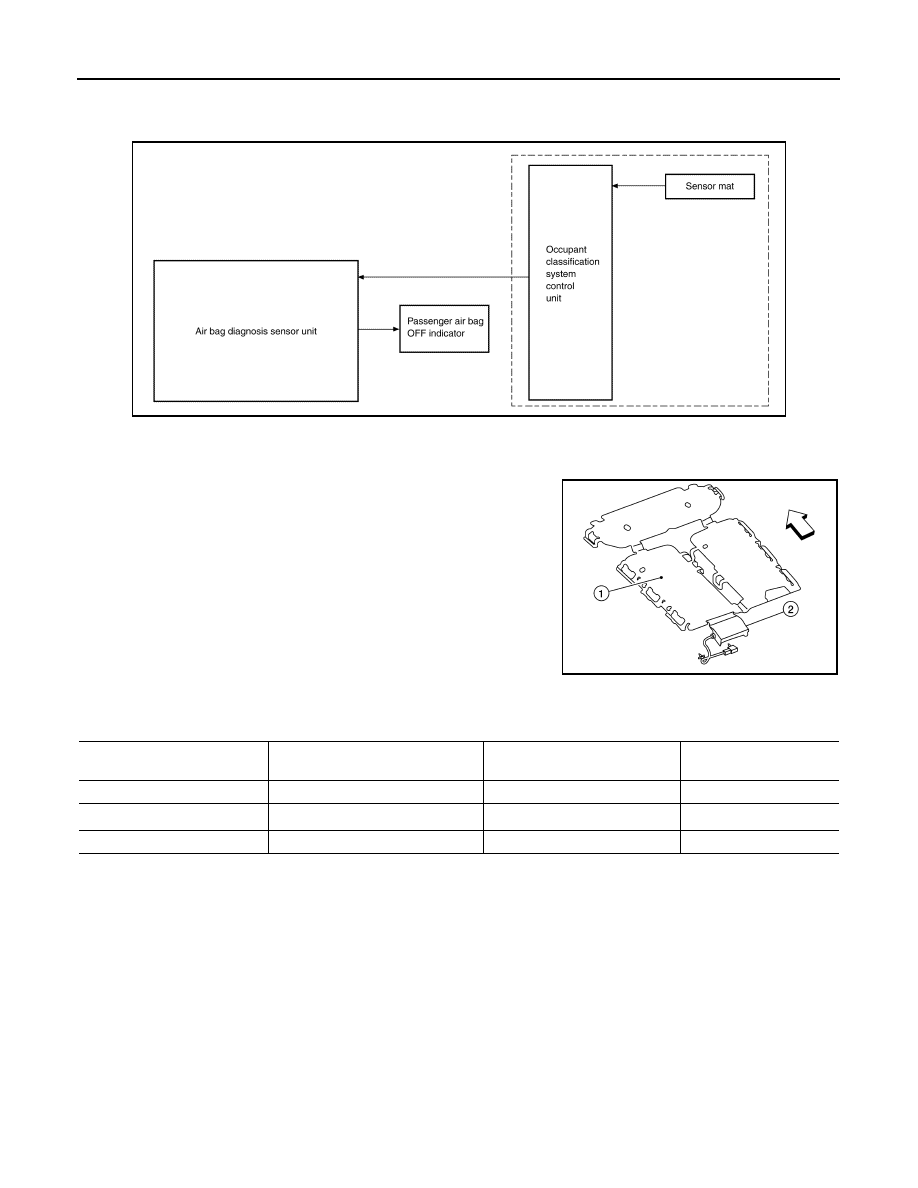

OCCUPANT CLASSIFICATION SYSTEM

OCCUPANT CLASSIFICATION SYSTEM

System Diagram

INFOID:0000000009466482

Occupant Classification System (OCS)

INFOID:0000000009466483

The occupant classification system (OCS) identifies if a child or child

seat is present in the front passenger seat. The OCS receives inputs

from the occupant classification sensor mat (1) which is located

inside the passenger seat cushion assembly. Depending on classifi-

cation of the passenger, the OCS control unit (2) sends a signal to

the air bag diagnosis sensor unit. The air bag diagnosis sensor unit

uses this signal and the seat belt buckle switch RH signal to deter-

mine deployment or non-deployment of the front passenger air bag

module in the event of a collision. Depending on the signals

received, the air bag diagnosis sensor unit can disable the front pas-

senger air bag module completely.

NOTE:

In case of customer concern, CONSULT can be used to confirm the front passenger air bag status (readi-

ness).

Front Passenger Air Bag Status Conditions

NOTE:
Passenger does not meet Occupant Classification System specifications for passenger air bag activation.

ALHIA0026GB

AWHIA0230ZZ

Front Passenger Seat

(Condition)

PASS AIR BAG OFF Indicator

(Status)

Front Passenger Air Bag Status

(Readiness)

CONSULT Display

Seat occupied

OFF

Active (enabled)

ON

Seat occupied

NOTE

ON

Deactivated (disabled)

OFF

Seat empty

OFF

Deactivated (disabled)

OFF

PASSENGER SEAT BELT WARNING SYSTEM

SRC-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

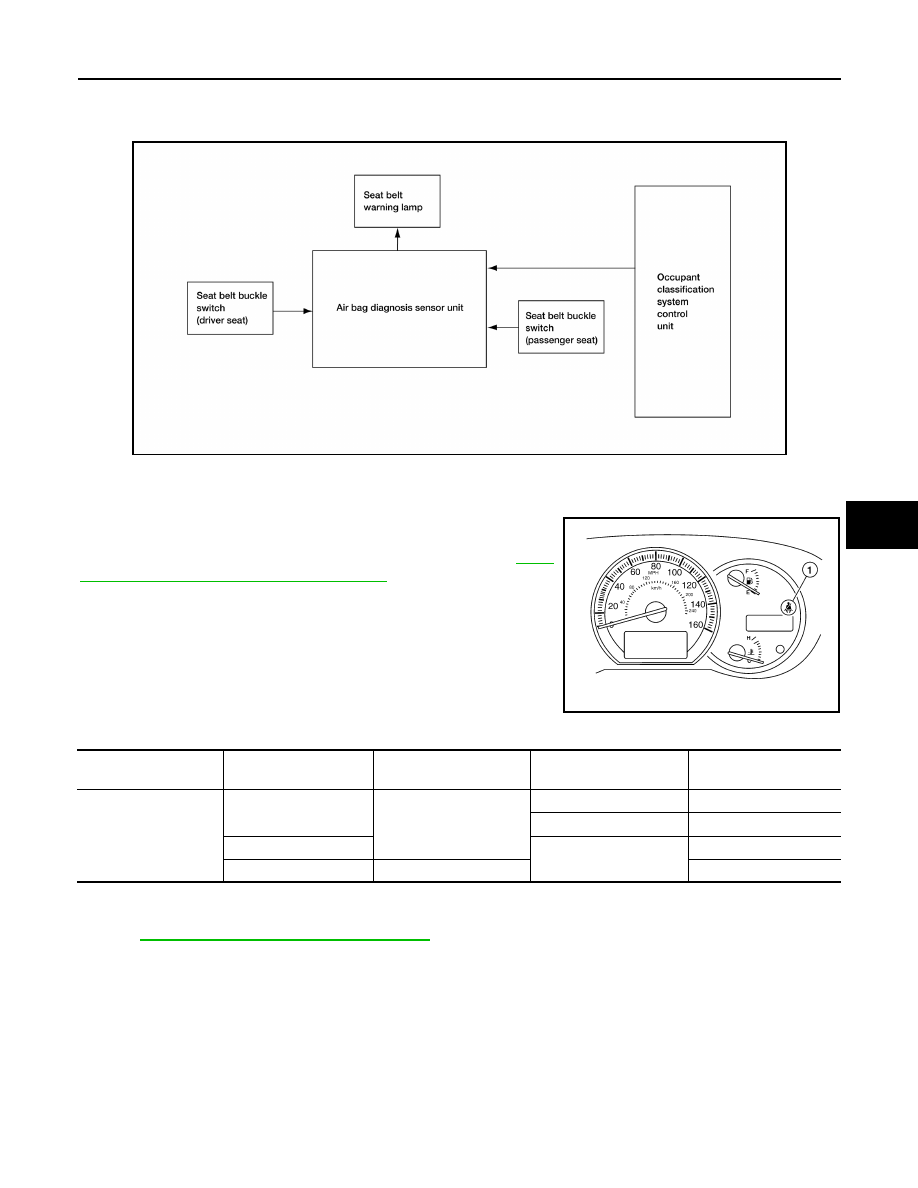

PASSENGER SEAT BELT WARNING SYSTEM

System Diagram

INFOID:0000000009466484

System Description

INFOID:0000000009466485

The seat belt warning lamp (1) will remind the driver if the driver or

front passenger seat belt should be buckled.  The system works in

conjunction with the occupant classification system. Refer to

SRC-

10, "Occupant Classification System (OCS)"

.

Passenger Seat Belt Warning System Operation

Component Parts Location

INFOID:0000000009466486

Refer to

SRC-7, "SRS Component Parts Location"

.

ALHIA0028GB

AWHIA0228ZZ

Driver seat status
(Ignition switch ON)

Passenger seat status

Seat belt buckle switch
LH status

Seat belt buckle switch
RH status

Seat belt warning lamp

Seat occupied

Seat occupied

Buckled

Buckled

Off

Unbuckled

On

Seat unoccupied

—

Off

—

Unbuckled

On
