FRONT SEAT

SE-137

< UNIT DISASSEMBLY AND ASSEMBLY >

[W/O CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

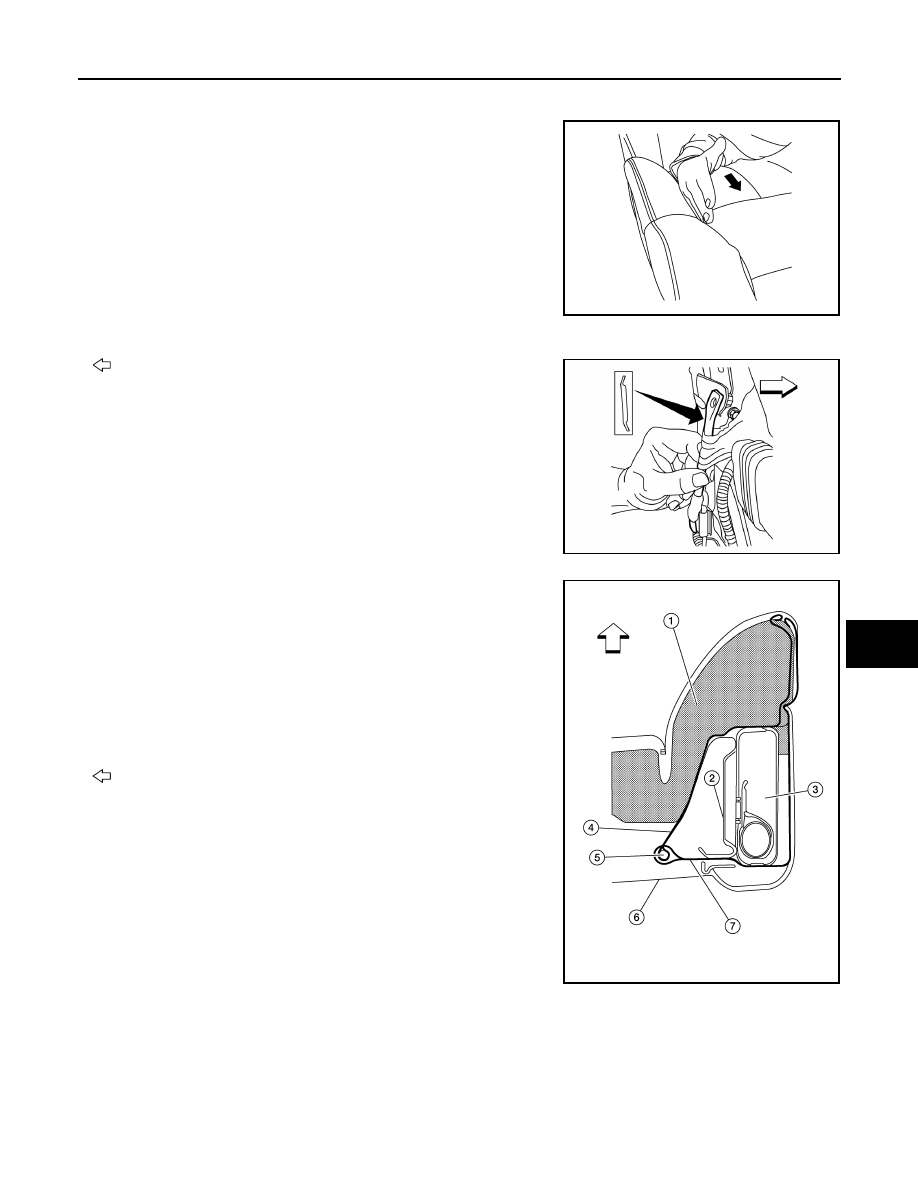

Assembly

Assembly is in the reverse order of disassembly.

• When installing the seatback trim, firmly push down while sliding

your hand along the seams as shown (arrow) to ensure the velcro

fasteners are fastened properly.

• Make sure the chute rod is properly positioned and installed as shown.

: Front

• Make sure the side air bag outer chute (7) is pulled over the side

air bag module (3) and the side air bag inner chute (4) is pulled

around the frame (2). Make sure there are no wrinkles and the

chutes are not folded, twisted or pinched.

(1) Seatback pad

(2) Frame

(3) Side air bag module

(4) Inner side air bag chute

(5) Chute rod

(6) Seatback board

(7) Outer chute

: Front

CAUTION:

• If a malfunction was detected by the air bag warning lamp, after repair or replacement of the mal-

function parts, reset the memory using self-diagnosis or CONSULT.

• After work is completed, check that no system malfunction is detected by air bag warning lamp.

• Make sure side air bag module shell is closed at all tabs and cushion of module is not exposed. Do

not reuse if the tab of shell is not secured.

• Always install new side air bag module attaching nuts and side air bag chute rod bolts.

ALJIA0656ZZ

ALJIA0654ZZ

ALJIA0655ZZ

SE-138

< UNIT DISASSEMBLY AND ASSEMBLY >

[W/O CLIMATE CONTROLLED SEATS]

FRONT SEAT

• Always route side air bag module harness in original location. Replace any deformed or damaged

clips with the same type and color. Always install clips in the original location on the harness.

• Smooth out all wrinkles during assembly.

• Inspect seatback pad, trim cover and trim cover chutes. Replace if damaged.

• Replace any deformed or damaged parts.

• Replace any deformed or damaged hog rings. Ensure any old hog ring pieces are removed from the

seat.

• Use only one hog ring in each designated location.

• Ensure hog rings are correctly fastened around both the seatback trim and seatback pad trim wires.

NOTE:

Use NISSAN standard hog rings and tools to assemble.

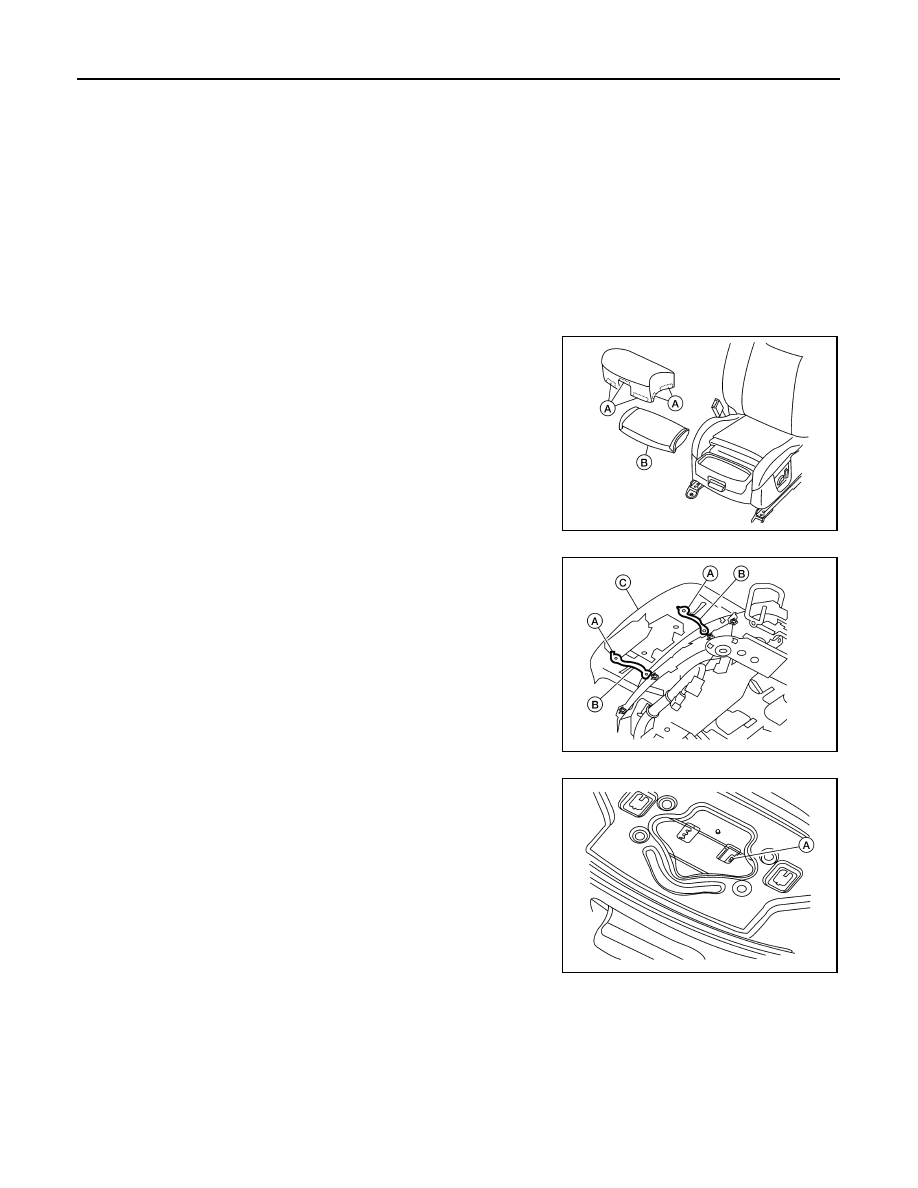

THIGH EXTENSION ASSEMBLY

Disassembly

1. Move the thigh extension assembly to the front most position

and release the trim cover clips (A).

2. Remove the trim and pad (B).

3. Cut the thigh extension tethers and drill out the upper rivets (A)

that connect the thigh extension tethers (B) to the thigh exten-

sion assembly (C).

4. Insert suitable tool into the thigh extension assembly top panel

and release the clip (A).

5. Pull the thigh extension handle and remove the thigh extension

assembly.

6. Drill out the lower rivets that connect the thigh extension tethers to the seat frame assembly.

Assembly

1. Replace the pad, trim and clips and to the thigh extension assembly.

ALIIA0330ZZ

ALIIA0353ZZ

ALIIA0331ZZ

FRONT SEAT

SE-139

< UNIT DISASSEMBLY AND ASSEMBLY >

[W/O CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

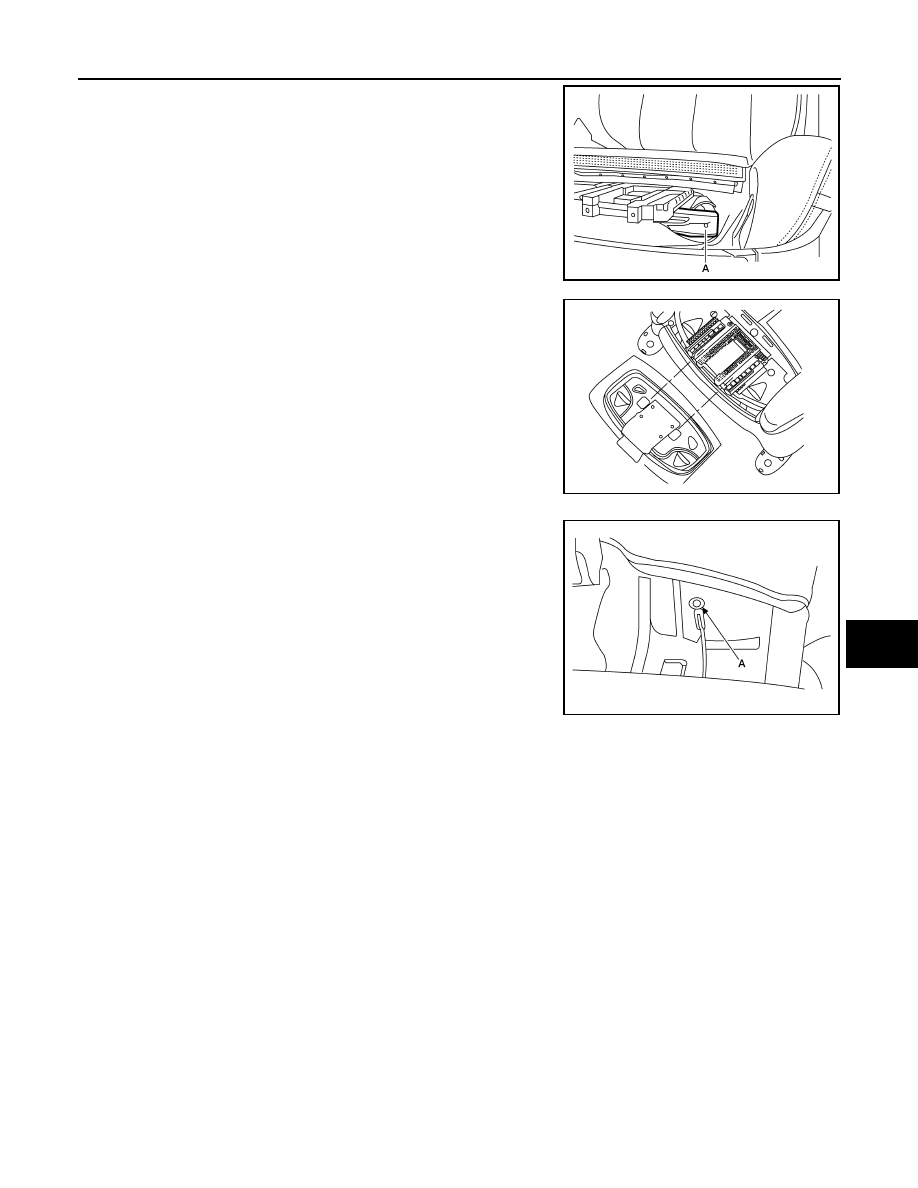

2. Rivet the thigh extension tethers to the seat frame assembly

mounting hole (A).

3. Align the thigh extension assembly on the top rail.
4. Lift the thigh extension handle and slide the thigh extension

assembly onto the seat.

5. Rivet the thigh extension tethers to the thigh extension assem-

bly mounting hole (A).

PASSENGER SIDE

ALIIA0354ZZ

ALIIA0332ZZ

ALIIA0355ZZ

SE-140

< UNIT DISASSEMBLY AND ASSEMBLY >

[W/O CLIMATE CONTROLLED SEATS]

FRONT SEAT

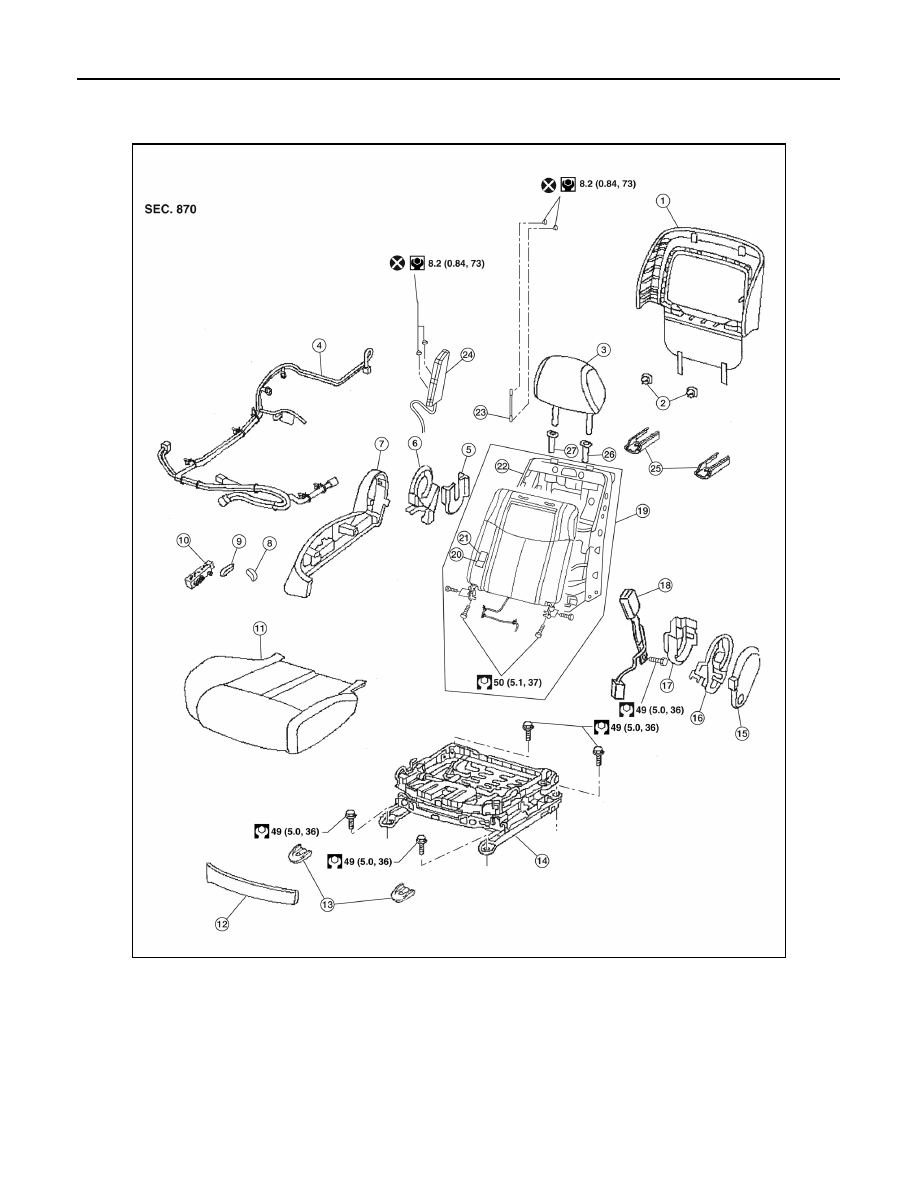

PASSENGER SIDE : Exploded View

INFOID:0000000009468178

Passenger Seat

AWJIA0926ZZ

1.

Seatback board

2.

Seatback board clips

3.

Headrest

4.

Seat harness

5.

Seat cushion inner finisher inside (RH) 6.

Recline device inner cover

7.

Seat cushion outer finisher (RH) 8.

Seat recline knob

9.

Seat slide and lifter switch knob

10.

Power seat switch

11.

Seat cushion assembly

12. Seat cushion front finisher

13.

Front slide cover

14.

Seat frame assembly

15. Seat cushion outer finisher (LH)

16

Recline mechanism inner cover

17.

Seat cushion inner finisher inside (LH) 18. Seat belt buckle

19.

Seatback assembly

20.

Seatback pad

21. Seatback trim
