CONTENTS

SEAT

WITH CLIMATE CONTROLLED SEATS

BASIC INSPECTION  ....................................

4

DIAGNOSIS AND REPAIR WORK FLOW  .........

4

Work Flow  .................................................................

4

SYSTEM DESCRIPTION  ..............................

6

CLIMATE CONTROLLED SEAT SYSTEM .........

6

System Diagram ........................................................

6

System Description  ...................................................

6

Component Parts Location ........................................

7

Component Description .............................................

7

DTC/CIRCUIT DIAGNOSIS  ..........................

8

POWER SUPPLY AND GROUND CIRCUIT .......

8

CLIMATE CONTROLLED SEAT CONTROL UNIT ......

8

CLIMATE CONTROLLED SEAT CONTROL UNIT
: Diagnosis Procedure .............................................
..

8

CLIMATE CONTROLLED SEAT CONTROL UNIT
: Component Inspection (Climate Controlled Seat
Relay) ......................................................................

10

CLIMATE CONTROLLED SEAT BLOWER
MOTOR ...............................................................

12

Description ..............................................................

12

Component Function Check ..................................

12

Diagnosis Procedure ...............................................

12

Component Inspection (Climate Controlled Seat
Blower Motor) ..........................................................

14

SEAT CUSHION THERMAL ELECTRIC DE-
VICE ....................................................................

15

Description ..............................................................

15

Component Function Check ..................................

15

Diagnosis Procedure ...............................................

15

Component Inspection (Thermal Electric Device) ....

16

SEATBACK THERMAL ELECTRIC DEVICE ....

18

Description ...............................................................

18

Component Function Check  ....................................

18

Diagnosis Procedure  ...............................................

18

Component Inspection (Thermal Electric Device) ....

19

CLIMATE CONTROLLED SEAT SWITCH  .......

20

Description ...............................................................

20

Component Function Check ..................................

20

Diagnosis Procedure  ...............................................

20

Component Inspection (Climate Controlled Seat
Switch) .....................................................................

21

CLIMATE CONTROLLED SEAT SWITCH IN-
DICATOR ..........................................................

23

Description ...............................................................

23

Component Function Check ..................................

23

Diagnosis Procedure  ...............................................

23

Component Inspection (Climate Controlled Seat
Switch Indicator)  ......................................................

24

ECU DIAGNOSIS INFORMATION ..............

25

CLIMATE CONTROLLED SEAT CONTROL
UNIT ..................................................................

25

Reference Value ......................................................

25

Fail-safe ...................................................................

26

WIRING DIAGRAM ......................................

28

POWER SEAT FOR DRIVER SIDE  ..................

28

Wiring Diagram - Without Automatic Drive Posi-
tioner ........................................................................

28

POWER SEAT FOR PASSENGER SIDE  .........

32

Wiring Diagram ........................................................

32

HEATED SEAT  .................................................

36

Wiring Diagram ........................................................

36

LUMBAR SUPPORT SYSTEM  .........................

41

Wiring Diagram ........................................................

41

CLIMATE CONTROLLED SEAT  ......................

44

SE-2

Wiring Diagram  .......................................................

44

SYMPTOM DIAGNOSIS  .............................

51

CLIMATE CONTROLLED SEAT SYSTEM  .......

51

Symptom Table  ......................................................

51

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ...............................................................

52

Work Flow ...............................................................

52

Generic Squeak and Rattle Troubleshooting ..........

53

Diagnostic Worksheet .............................................

56

PRECAUTION .............................................

58

PRECAUTIONS  .................................................

58

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ................................................................
.

58

Service Notice  ........................................................

58

Precaution for Work ................................................

58

PREPARATION ...........................................

60

PREPARATION  .................................................

60

Special Service Tools  .............................................

60

Commercial Service Tools ....................................

60

CLIP LIST  ..........................................................

61

Descriptions for Clips ..............................................

61

REMOVAL AND INSTALLATION ...............

65

FRONT SEAT  ....................................................

65

Exploded View ........................................................

65

Removal and Installation  ........................................

68

REAR SEAT .......................................................

70

Exploded View - Fixed Seatback ............................

70

Removal and Installation  ........................................

70

Exploded View - 60:40 Split Seatback ....................

72

Removal and Installation  ........................................

73

CLIMATE CONTROLLED SEAT BLOWER
FILTER ...............................................................

75

Removal and Installation  ........................................

75

UNIT DISASSEMBLY AND ASSEMBLY ....

76

FRONT SEAT  ....................................................

76

DRIVER SIDE ............................................................

76

DRIVER SIDE : Exploded View ..............................

76

DRIVER SIDE : Disassembly and Assembly ..........

77

PASSENGER SIDE ...................................................

84

PASSENGER SIDE : Exploded View  .....................

85

PASSENGER SIDE : Disassembly and Assembly ...

86

REAR SEAT .......................................................

91

Exploded View - Fixed Seatback ............................

91

Exploded View - 60:40 Split Seatback ....................

91

W/O CLIMATE CONTROLLED SEATS

WIRING DIAGRAM  ....................................

94

POWER SEAT FOR DRIVER SIDE  ..................

94

Wiring Diagram - Without Automatic Drive Posi-
tioner .......................................................................

94

POWER SEAT FOR PASSENGER SIDE  .........

98

Wiring Diagram  .......................................................

98

HEATED SEAT .................................................

102

Wiring Diagram  .....................................................

102

LUMBAR SUPPORT SYSTEM  ........................

107

Wiring Diagram  .....................................................

107

SYMPTOM DIAGNOSIS  ...........................

110

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ..............................................................

110

Work Flow  .............................................................

110

Generic Squeak and Rattle Troubleshooting  ........

112

Diagnostic Worksheet  ...........................................

114

PRECAUTION ...........................................

116

PRECAUTIONS  ................................................

116

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................

116

Service Notice .......................................................

116

Precaution for Work  ..............................................

116

PREPARATION .........................................

118

PREPARATION ................................................

118

Special Service Tools  ...........................................

118

Commercial Service Tool ......................................

118

CLIP LIST  .........................................................

119

Descriptions for Clips  ............................................

119

REMOVAL AND INSTALLATION .............

123

FRONT SEAT  ...................................................

123

Exploded View  ......................................................

123

Removal and Installation .......................................

126

REAR SEAT  .....................................................

128

Exploded View - Fixed Seatback  ..........................

128

Removal and Installation .......................................

128

Exploded View - 60:40 Split Seatback  ..................

130

Removal and Installation .......................................

131

UNIT DISASSEMBLY AND ASSEMBLY ..

133

FRONT SEAT  ...................................................

133

DRIVER SIDE  ..........................................................

133

DRIVER SIDE : Exploded View  ............................

133

DRIVER SIDE : Disassembly and Assembly  ........

134

SE-4

< BASIC INSPECTION >

[WITH CLIMATE CONTROLLED SEATS]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010049458

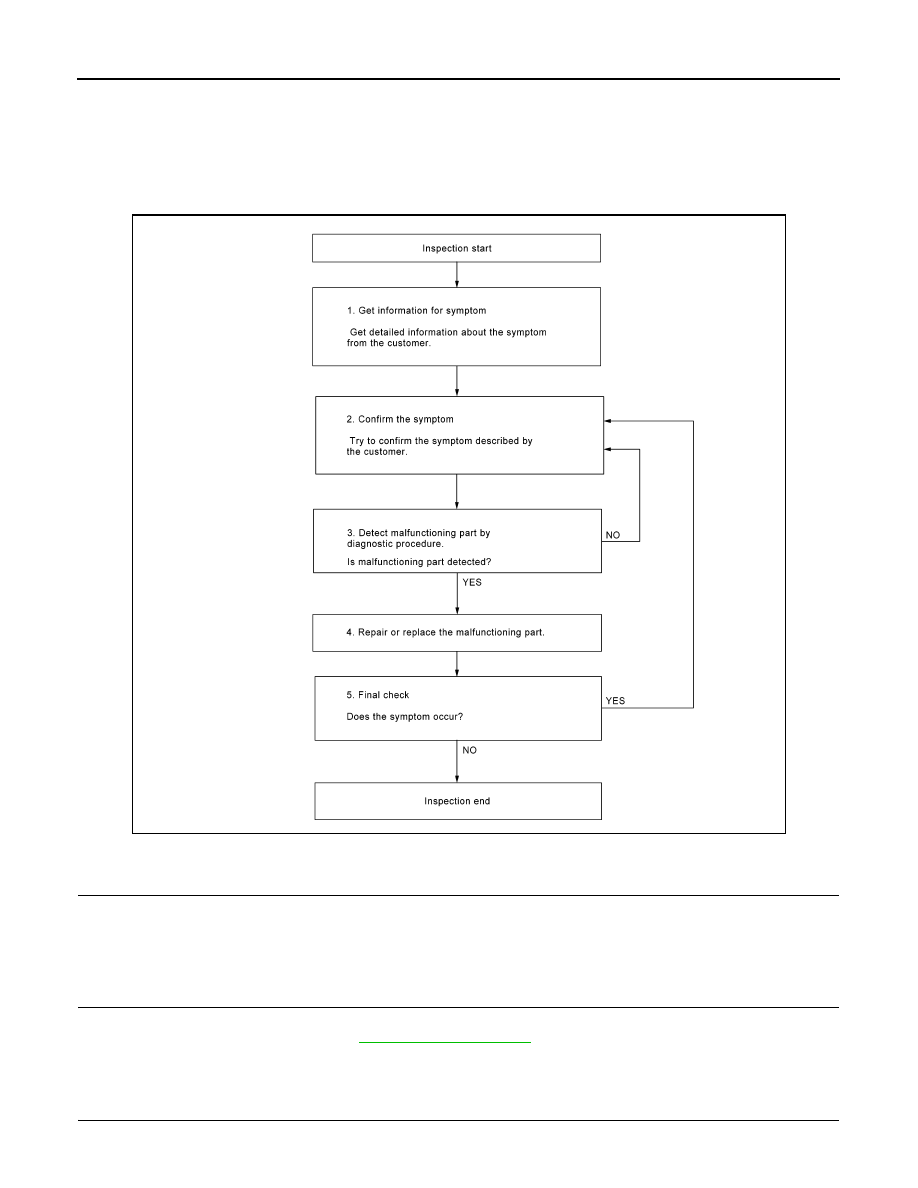

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2.

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected. Refer to

SE-51, "Symptom Table"

.

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

AWNIA2404GB
