REAR SEAT BELT

REAR SEAT BELT

Exploded View

INFOID:0000000009468601

Removal and Installation

INFOID:0000000009468602

REMOVAL OF SEAT BELT RETRACTOR - OUTER

1. Remove the rear seat cushion. Refer to

SE-128, "Exploded View - Fixed Seatback"

 (with fixed seatback,

W/O CLIMATE CONTROLLED SEATS), or

SE-130, "Exploded View - 60:40 Split Seatback"

 (with split

seatback, W/O CLIMATE CONTROL CONTROLLED SEATS), or

SE-70, "Exploded View - Fixed Seat-

back"

 (with fixed seatback, WITH CLIMATE CONTROLLED SEATS)

SE-72, "Exploded View - 60:40 Split

Seatback"

 (with split seatback, WITH CLIMATE CONTROLLED SEATS).

2. Remove the lower anchor bolt outer.
3. Lower the rear seatback assembly.
4. Remove the rear parcel shelf finisher. Refer to

INT-28, "Removal and Installation"

.

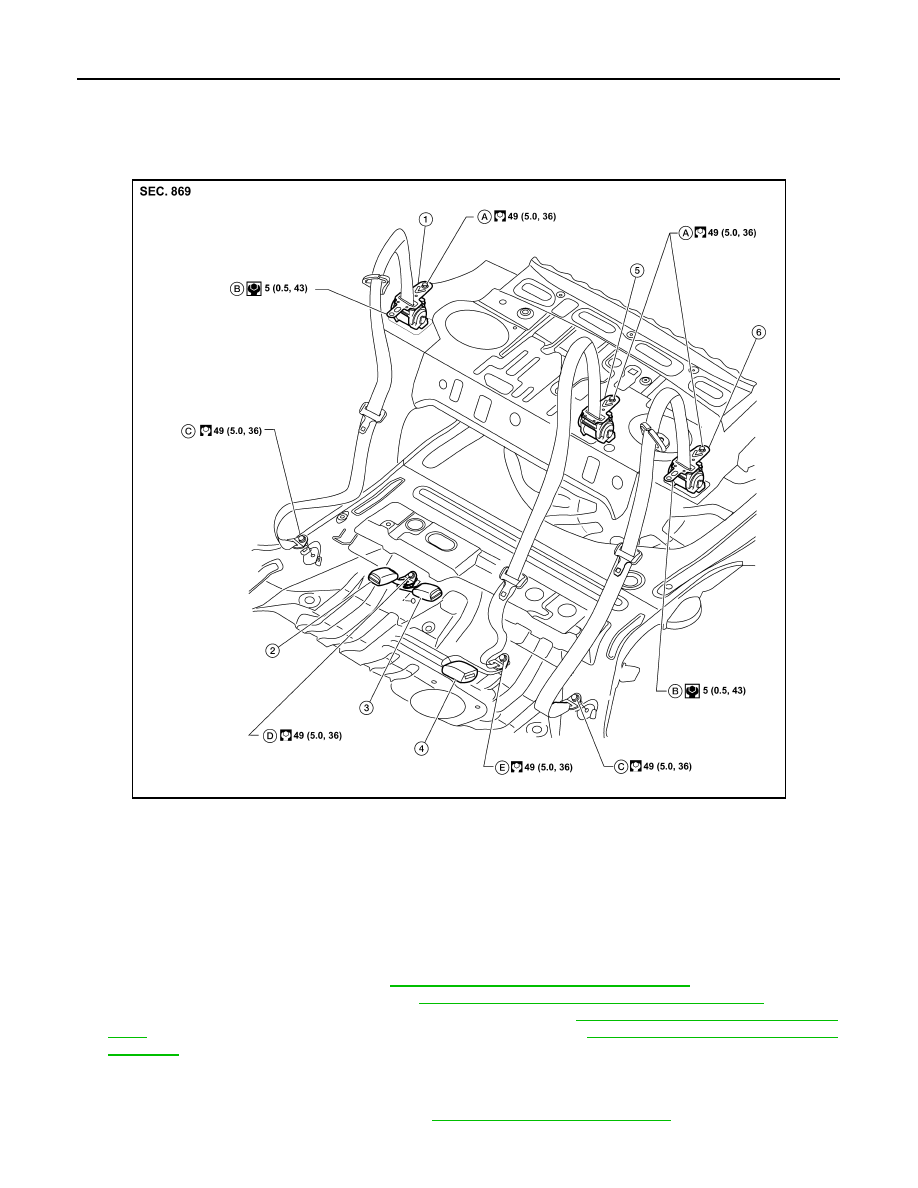

ALHIA0118GB

1.

Seat belt retractor assembly (RH) 2.

Seat belt buckle (RH)

3.

Seat belt buckle center

4.

Seat belt buckle (LH)

5.

Seat belt retractor assembly center 6.

Seat belt retractor assembly (LH)

A.

Retractor anchor bolt

B.

Retractor anti-rotation screw

C.

Lower anchor bolt outer

D.

Seat belt buckle anchor bolt

E.

Lower anchor bolt center

REAR SEAT BELT

SB-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

5. Remove retractor anchor bolt and retractor anti-rotation screw, then remove seat belt retractor assembly

(LH/RH).

INSTALLATION OF SEAT BELT RETRACTOR - OUTER

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system in functioning within specifications. Refer to

SB-3, "Inspection"

.

REMOVAL OF SEAT BELT RETRACTOR - CENTER

1. Remove the rear seat cushion. Refer to

SE-128, "Removal and Installation"

 (W/O CLIMATE CONTROL -

BUCKET SEAT), or

SE-131, "Removal and Installation"

 (W/O CLIMATE CONTROL - BENCH SEAT), or

SE-70, "Removal and Installation"

 (WITH CLIMATE CONTROL - BUCKET SEAT).

2. Remove the lower anchor bolt center.
3. Lower the rear seatback assembly.
4. Remove the rear parcel shelf finisher. Refer to

INT-28, "Removal and Installation"

.

5. Remove retractor anchor bolt, then remove seat belt retractor assembly center.

INSTALLATION OF SEAT BELT RETRACTOR - CENTER

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system in functioning within specifications. Refer to

SB-3, "Inspection"

.

REMOVAL OF SEAT BELT BUCKLE

1. Remove the rear seat cushion. Refer to

SE-128, "Removal and Installation"

 (with fixed seatback, W/O

CLIMATE CONTROLLED SEATS), or

SE-131, "Removal and Installation"

 (with split seatback, W/O CLI-

MATE CONTROL CONTROLLED SEATS), or

SE-70, "Removal and Installation"

 (with fixed seatback,

WITH CLIMATE CONTROLLED SEATS)

SE-73, "Removal and Installation"

 (with split seatback, WITH

CLIMATE CONTROLLED SEATS).

2. Remove seat belt buckle anchor bolt, then remove the seat belt buckle. Refer to

SB-8, "Exploded View"

.

INSTALLATION OF SEAT BELT BUCKLE

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to

SB-3, "Inspection"

.

SB-10

< REMOVAL AND INSTALLATION >

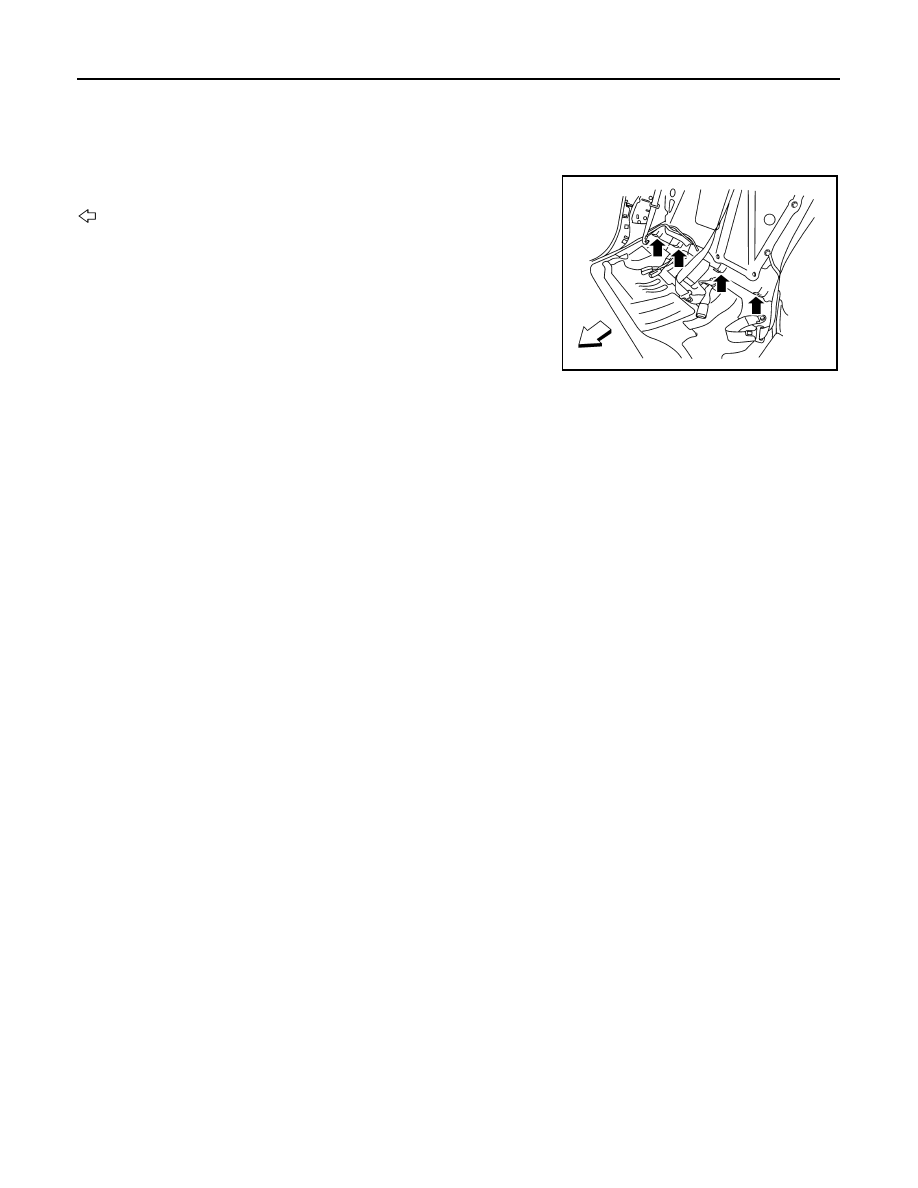

LATCH SYSTEM FOR CHILDREN

LATCH SYSTEM FOR CHILDREN

Removal and Installation

INFOID:0000000009468603

NOTE:

The LATCH (Lower Anchors and Tether for Children) system is a

built-in part of the vehicle structure, and is not servicable.

: Front

ALHIA0121ZZ

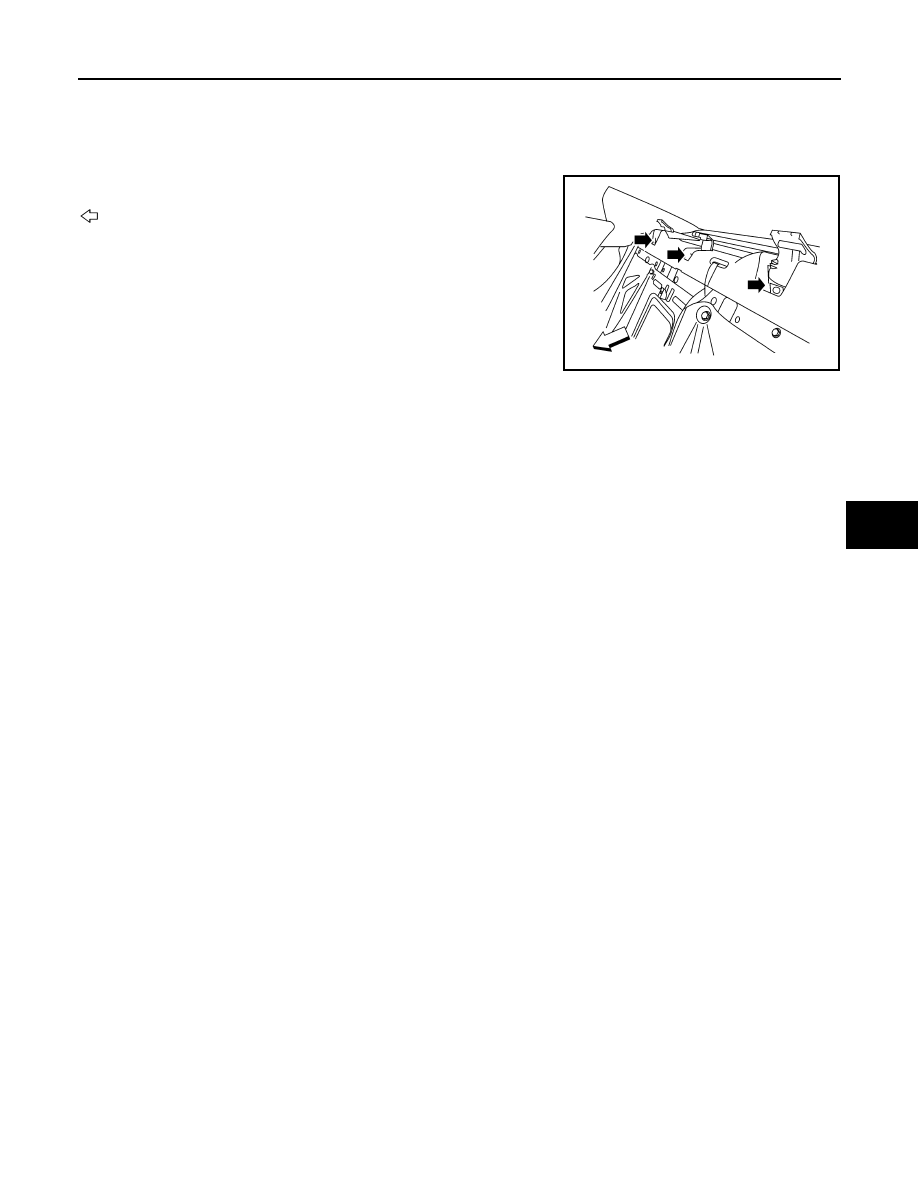

TOP TETHER STRAP CHILD RESTRAINT

SB-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

TOP TETHER STRAP CHILD RESTRAINT
