Nissan Maxima. Manual - part 1005





SB-4

< BASIC INSPECTION >

COMPONENT INSPECTION

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)

NOTE:

All seat belt retractors are of the Emergency Locking Retractors (ELR) type. In an emergency (sudden stop)

the retractor will lock and prevent the webbing from extending any further. All 3-point type seat belt retractors

except the driver's seat belt also have an Automatic Locking Retractors (ALR) mode. The ALR mode (also

called child restraint mode) is used when installing child seats. The ALR mode is activated when the seat belt

is fully extended. When the webbing is then retracted partially, the ALR mode automatically locks the seat belt

in a specific position so the webbing cannot be extended any further. To cancel the ALR mode, allow the seat

belt to fully wind back into the retractor.

Check the seat belt retractors using the following test(s) to determine if a retractor assembly is operating prop-

erly.

ELR Function Stationary Check

Grasp the shoulder webbing and pull forward quickly. The retractor should lock and prevent the belt from

extending further.

ALR Function Stationary Check

1. Pull out entire length of seat belt from retractor until a click is heard.
2. Retract the webbing partially. A clicking noise should be heard as the webbing retracts indicating that the

retractor is in the Automatic Locking Retractors (ALR) mode.

3. Grasp the seat belt and try to pull out the retractor. The webbing must lock and not extend any further. If

NG, replace the retractor assembly.

4. Allow the entire length of the webbing to retract to cancel the automatic locking mode.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a

large, empty parking lot). Road surface must be paved and dry. DO NOT perform the following test on

wet or gravel roads or on public streets and highways. This could result in an accident and serious

personal injury. The driver and passenger must be prepared to brace themselves in the event the

retractor does not lock.
1. Fasten driver's seat belt. Buckle a passenger into the seat for the belt that is to be tested.
2. Proceed to the designated safe area.
3. Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop.

The driver and passenger must be prepared to brace themselves in the event the retractor does not lock.

Apply brakes firmly and make a very hard stop.

During stop, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock, per-

form the retractor off-vehicle check.

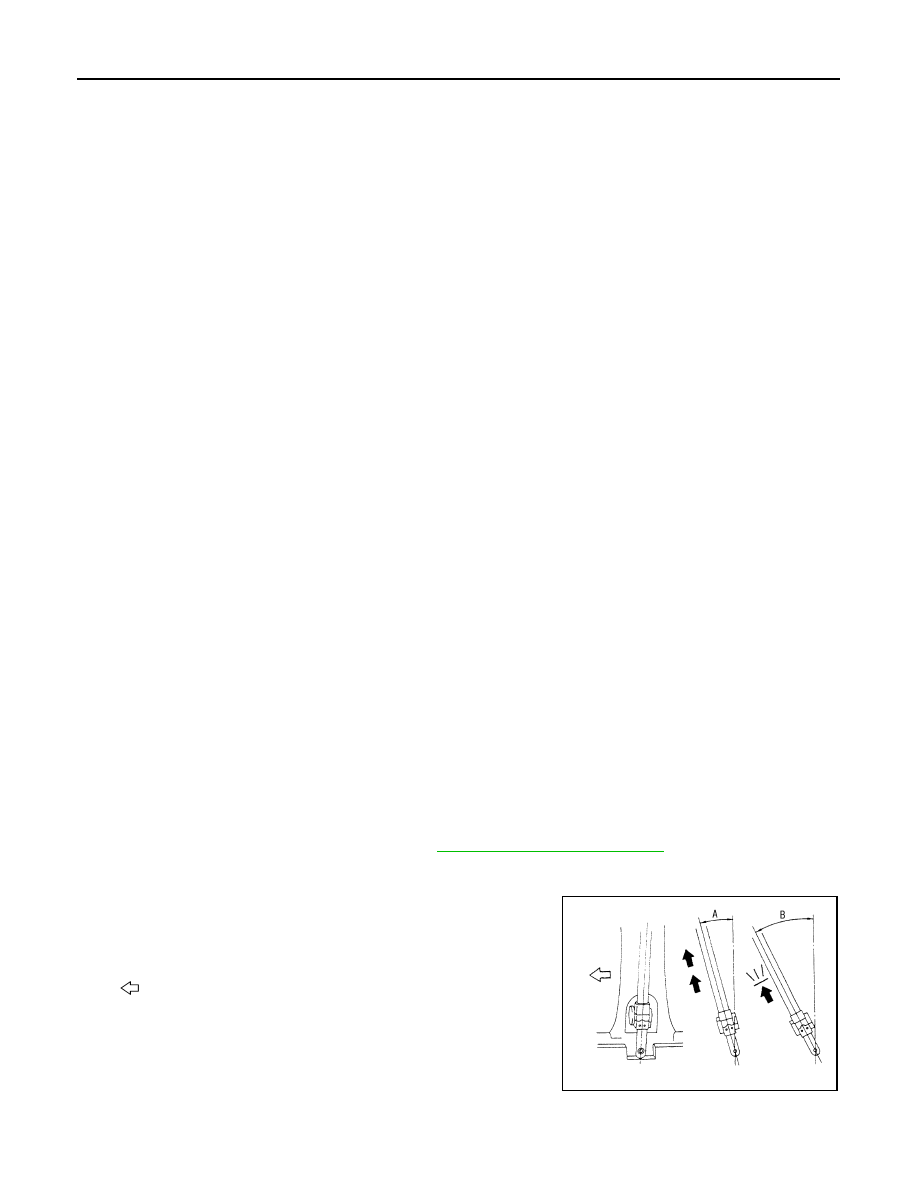

SEAT BELT RETRACTOR OFF-VEHICLE CHECK (PILLAR)

1. Remove the seat belt retractor.

• Remove the front seat belt assembly, refer to

SB-6, "Removal and Installation"

.

2. Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without

twisting the retractor assembly as shown in the illustration.

A : The webbing can be pulled out if the retractor is tilted 15

°

degrees or less.

B : The webbing cannot be pulled out if the retractor is tilted 35

°

degrees or more.

• A and B show tilting angles.

 : Front.

Replace the seat belt assembly if it does not operate within specifications.

PHIA0954J

COMPONENT INSPECTION

SB-5

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

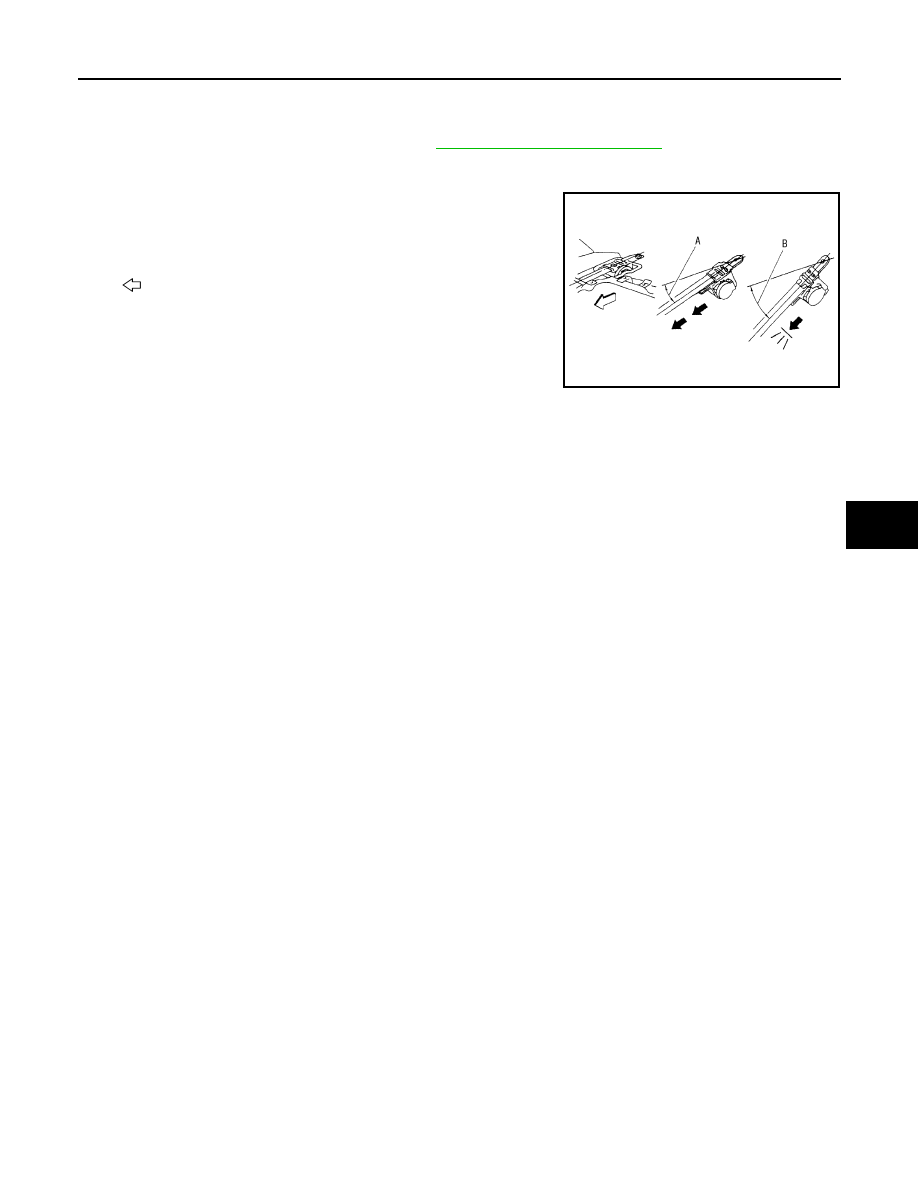

SEAT BELT RETRACTOR OFF-VEHICLE CHECK (REAR PARCEL SHELF)

1. Remove the seat belt retractor.

• Remove the rear seat belt assembly, refer to

SB-8, "Removal and Installation"

.

2. Slowly pull out webbing while tilting the retractor assembly forward from the mounted position without

twisting the retractor assembly as shown in the illustration.

A : The webbing can be pulled out if the retractor is tilted 15

°

degrees or less.

B : The webbing cannot be pulled out if the retractor is tilted 35

°

degrees or more.

• A and B show tilting angles.

 : Front.

Replace the seat belt assembly if it does not operate within specifications.

PHIA0962J

SB-6

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

REMOVAL AND INSTALLATION

FRONT SEAT BELT

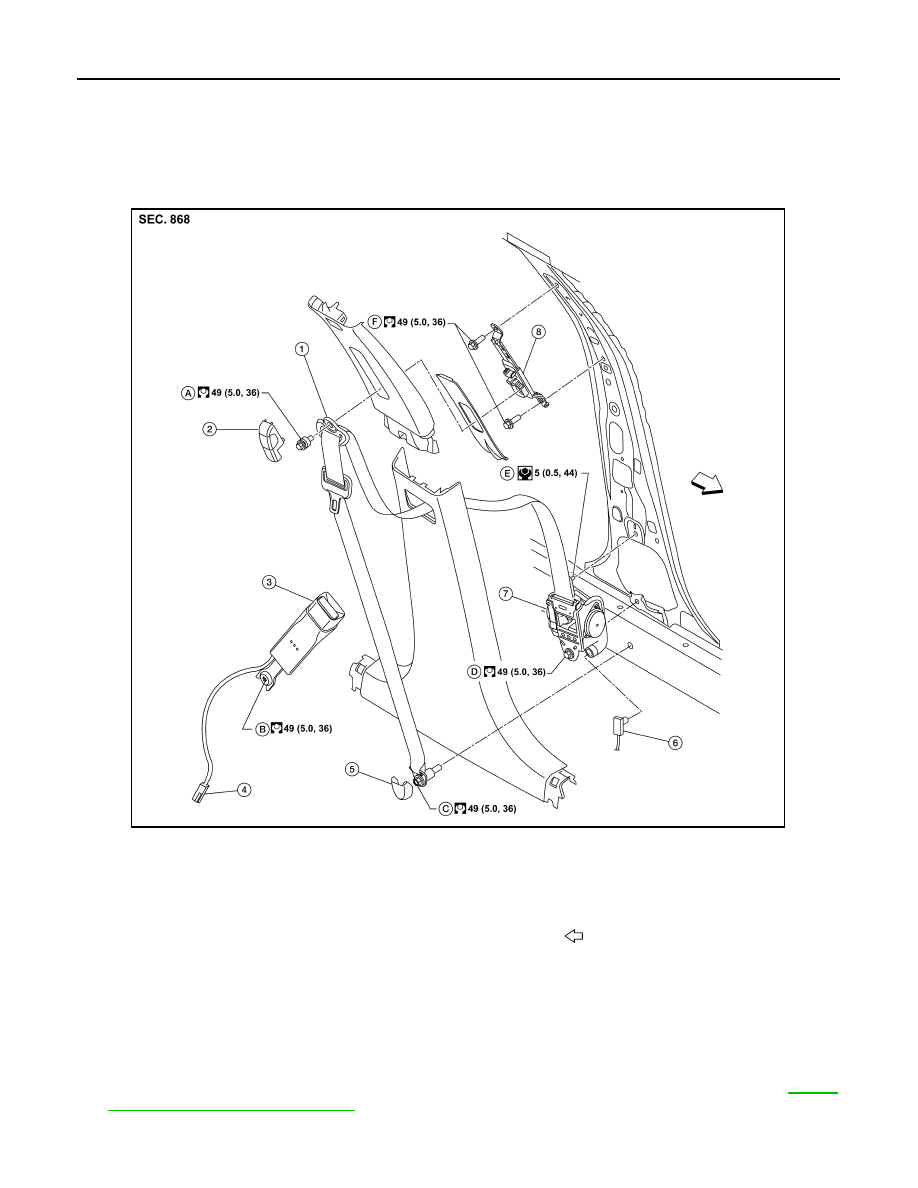

Exploded View

INFOID:0000000009468599

Removal and Installation

INFOID:0000000009468600

REMOVAL OF SEAT BELT RETRACTOR

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect both negative and positive battery termi-

nals, then wait at least 3 minutes.
1. Disconnect both negative and positive battery terminals, then wait at least 3 minutes. Refer to

PG-67,

"Removal and Installation (Battery)"

.

2. Release the pawl, then remove lower anchor bolt cover and lower anchor bolt.

1.

D-ring anchor

2.

Adjustable upper anchor cover

3.

Seat belt buckle

4.

Seat belt buckle connector

5.

Lower anchor bolt cover

6.

Seat belt pre-tensioner connector

7.

Seat belt retractor assembly

8.

Adjustable upper anchor

A.

D-ring anchor bolt

B.

Seat belt buckle anchor bolt

C.

Lower anchor bolt

D

Seat belt retractor anchor bolt

E.

Seat belt retractor screw

F.

Adjustable upper anchor bolt

Front

ALHIA0117GB

FRONT SEAT BELT

SB-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

3. Remove center pillar lower finisher. Refer to

INT-23, "Exploded View"

.

4. Remove D-ring anchor bolt from adjustable upper anchor.
5. Remove seat belt retractor assembly.

• Disconnect the harness connector from the seat belt pre-ten-

sioner.

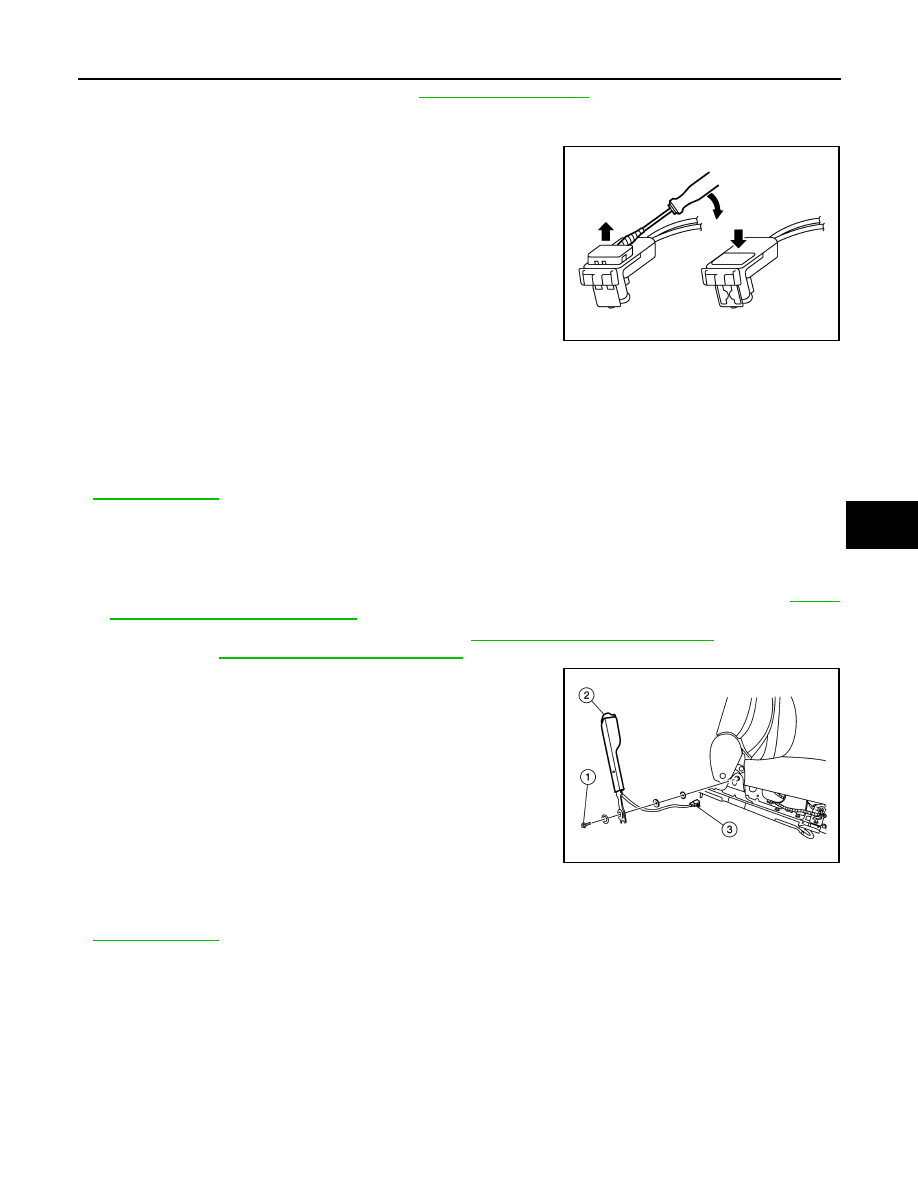

CAUTION:

• For installing/removing seat belt pre-tensioner harness

connector, insert a thin screwdriver wrapped with tape

into the notch; lift locking tab then remove connector.

• Install connector with lock raised, then push locking tab

into connector.

• Remove seat belt retractor screw and anchor bolt, then remove seat belt retractor assembly from center

pillar.

6. Remove bolts, then remove adjustable upper anchor from center pillar.

INSTALLATION OF SEAT BELT RETRACTOR

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to

SB-3, "Inspection"

REMOVAL OF SEAT BELT BUCKLE

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect both negative and positive battery termi-

nals, then wait at least 3 minutes.
1. Disconnect both negative and positive battery terminals, then wait at least 3 minutes. Refer to

PG-67,

"Removal and Installation (Battery)"

.

2. Remove the front seat from the vehicle. Refer to

SE-68, "Removal and Installation"

 (WITH CLIMATE

CONTROL), or

SE-126, "Removal and Installation"

 (W/O CLIMATE CONTROL).

3. Disconnect the harness connector (3) from the seat belt buckle,

then release harness clip from the seat rail.

4. Remove seat belt buckle anchor bolt (1), then remove seat belt

buckle (2) from front seat.

INSTALLATION OF SEAT BELT BUCKLE

Installation is in the reverse order of removal.

• Always perform an inspection after repair to be sure the system is functioning within specifications. Refer to

SB-3, "Inspection"

.

PHIA0953J

ALHIA0116GB
