SUSPENSION ARM

SUSPENSION ARM

Removal and Installation

INFOID:0000000009471824

Removal

1. Remove the rear suspension member. Refer to

RSU-16, "Removal and Installation"

.

2. Remove the connecting rod mount bracket nut and bolt from the rear suspension arm using power tools.

Remove the connecting rod mount bracket.

3. Remove each rear suspension arm bolt and nut from the rear suspension member using power tools.

Installation

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse the rear suspension arm nuts at the rear suspension member.

• Do not reuse the upper ball joint cotter pin.

Check wheel alignment. Adjust as necessary. Refer to

RSU-6, "Inspection and Adjustment"

.

REAR SUSPENSION ASSEMBLY

RSU-15

< UNIT REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

UNIT REMOVAL AND INSTALLATION

REAR SUSPENSION ASSEMBLY

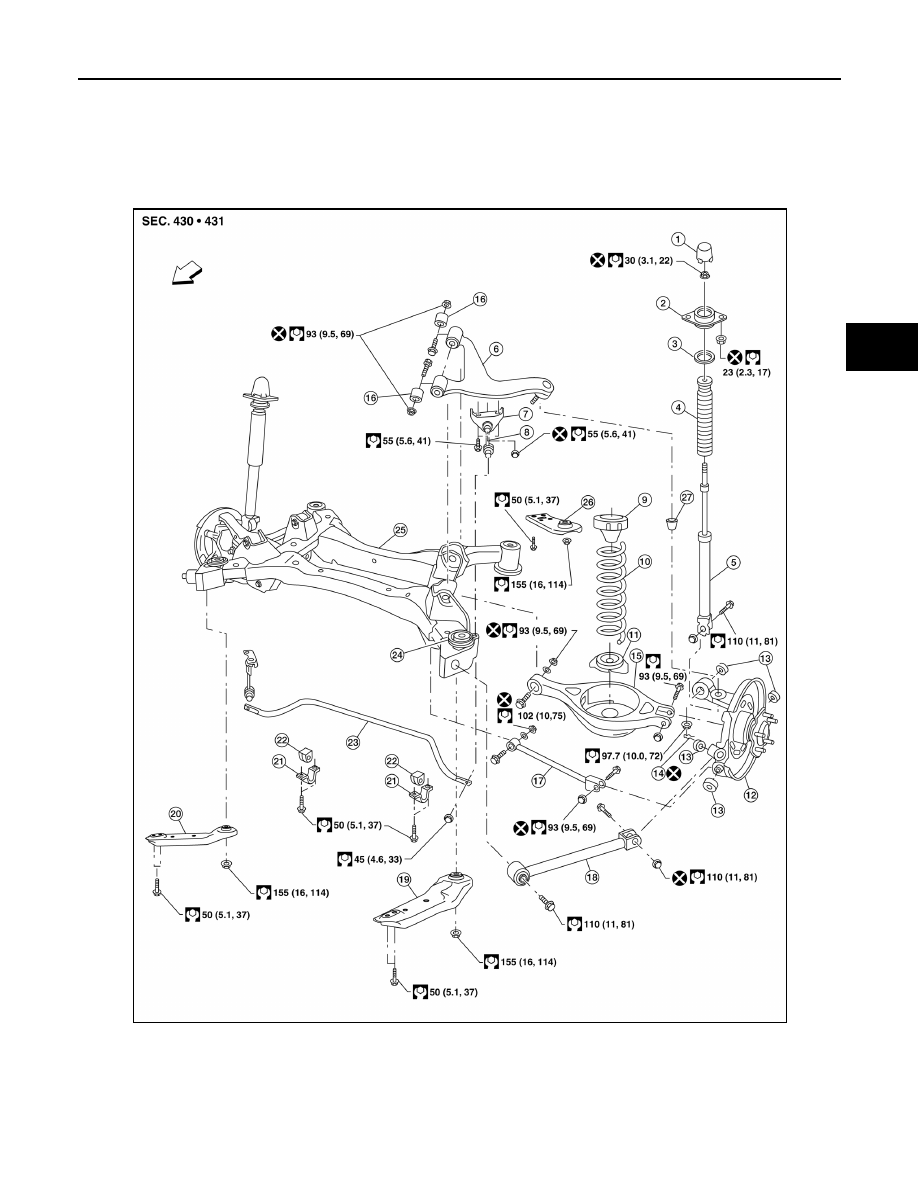

Exploded View

INFOID:0000000009471825

1.

Rear shock absorber cap

2.

Strut mount insulator

3.

Shock absorber mount seal

4.

Rear suspension bound bumper

5.

Rear shock absorber

6.

Rear suspension arm

7.

Connecting rod mount bracket

8.

Rear stabilizer connecting rod

9.

Rear spring upper rubber seat

10. Rear suspension spring

11. Rear spring lower rubber seat

12. Rear axle housing

13. Bushing

14. Upper ball joint cotter pin

15. Rear lower link

AWEIA0272ZZ

RSU-16

< UNIT REMOVAL AND INSTALLATION >

REAR SUSPENSION ASSEMBLY

Removal and Installation

INFOID:0000000009471826

Removal

CAUTION:

Before removing the rear suspension member, remove each rear wheel sensor from each rear axle

housing. Failure to do so may result in damage to the sensor wires and the sensor becoming inopera-

tive.
1. Remove the center exhaust tube with muffler(s). Refer to

EX-5, "Removal and Installation"

.

2. Remove each brake caliper using power tools and reposition each brake caliper aside with wire. Refer to

BR-36, "Removal and Installation of Brake Caliper and Rotor"

.

• Leave each brake hydraulic hose connected to each brake caliper.

• Do not depress the brake pedal, or the caliper pistons will pop out.

• Do not pull or twist the brake hydraulic hoses.

3. Remove each brake rotor.
4. Disconnect each parking brake cable from each rear axle housing. Refer to

PB-6, "Exploded View"

.

5. Remove each rear wheel sensor. Refer to

BRC-103, "Removal and Installation - Rear Wheel Sensor"

.

6. Remove each lower shock absorber nut and bolt using power tools.
7. Remove each rear lower link. Refer to

RSU-8, "Removal and Installation"

.

8. Remove each upper ball joint nut and cotter pin. Refer to

RSU-15, "Exploded View"

.

9. Remove each radius rod. Refer to

RSU-12, "Removal and Installation"

.

10. Remove each front lower link. Refer to

RSU-11, "Removal and Installation"

.

11. Remove each rear axle housing using Tool. Refer to

RSU-15, "Exploded View"

.

CAUTION:

• Do not damage ball joint when removing.

• While using Tool, temporarily tighten the nut so as not to damage screw threads.

12. Remove the rear stabilizer. Refer to

RSU-13, "Removal and Installation"

.

13. Disconnect the member harness.
14. Support rear suspension member using a suitable jack.
15. Remove the rear suspension member nuts and the rear suspension member stay bolts using power tools.
16. Lower the jack to remove the rear suspension member.
17. If necessary, remove each rear suspension arm. Refer to

RSU-14, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse the front lower link nuts.

• Do not reuse the radius rod nuts at the rear axle housing.

• Do not reuse the upper ball joint cotter pin.

• Do not reuse the rear lower link nuts at the rear suspension member.

• Check wheel alignment. Adjust as necessary. Refer to

RSU-6, "Inspection and Adjustment"

.

• Install member stays in correct position.

NOTE:

Member stays are directional.

16. Arm bushing stopper

17. Front lower link

18. Radius rod

19. Rear suspension member stay

(Front LH)

20. Rear suspension member stay

(Front RH)

21. Rear stabilizer clamp

22. Rear stabilizer bushing

23. Rear stabilizer

24. Rear suspension mount insulator

25. Rear suspension member

26. Rear suspension member stay (Rear

LH)

27. Ball seat

Front

Tool number

: HT72520000 (J-25730-B)
