AV-132

< ECU DIAGNOSIS INFORMATION >

[MONOCHROME DISPLAY - W/ BOSE]

BOSE SPEAKER AMP

BOSE SPEAKER AMP

Reference Values

INFOID:0000000009471251

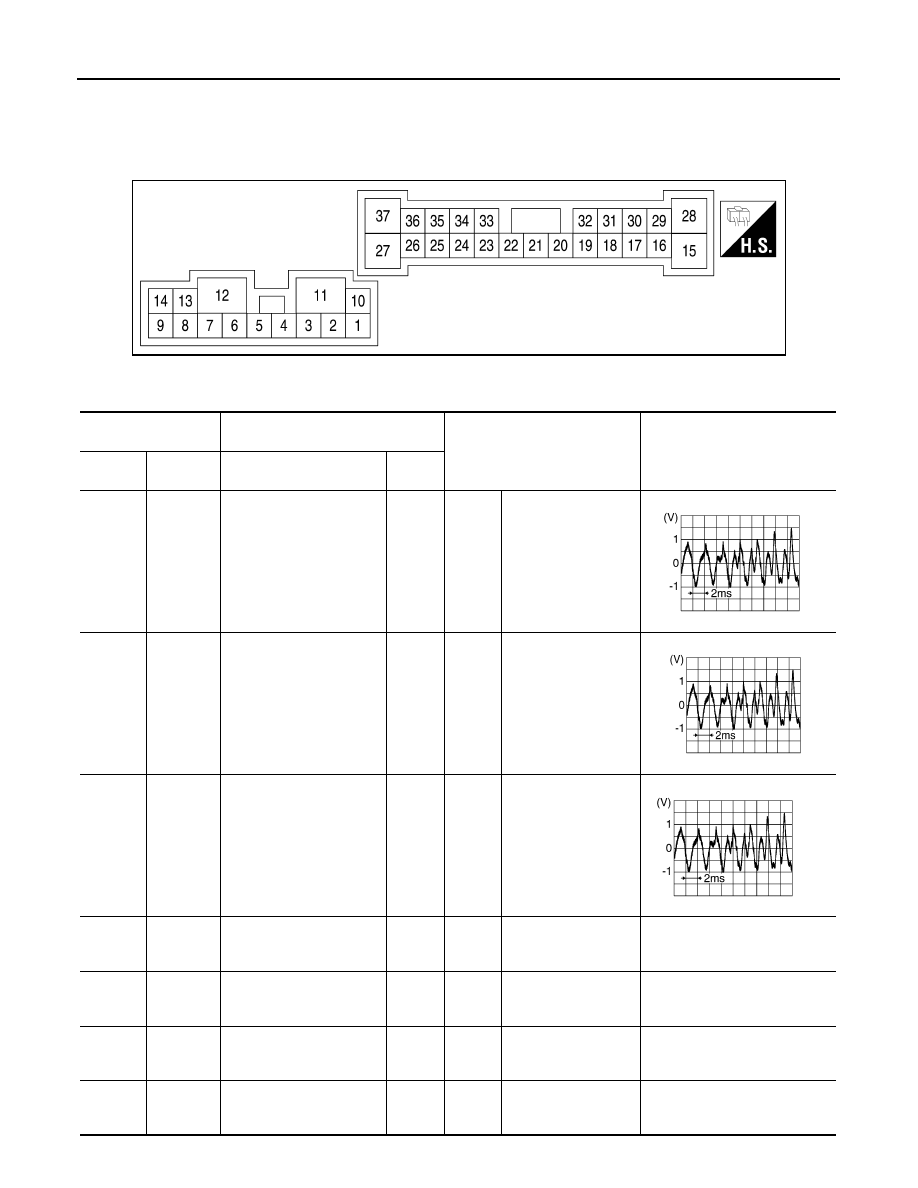

TERMINAL LAYOUT

PHYSICAL VALUES

ALNIA1165ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(LG)

2

(V)

Sound signal front tweeter
LH

Output

Ignition

switch

ON

Sound output.

4

(G)

3

(W)

Sound signal front tweeter
RH

Output

Ignition

switch

ON

Sound output.

5

(R)

6

(BR)

Sound signal rear subwoof-
er RH

Output

Ignition

switch

ON

Sound output.

7

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  V

10

(SB)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

11

(GR)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

12

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  V

SKIB3609E

SKIB3609E

SKIB3609E

AV

BOSE SPEAKER AMP

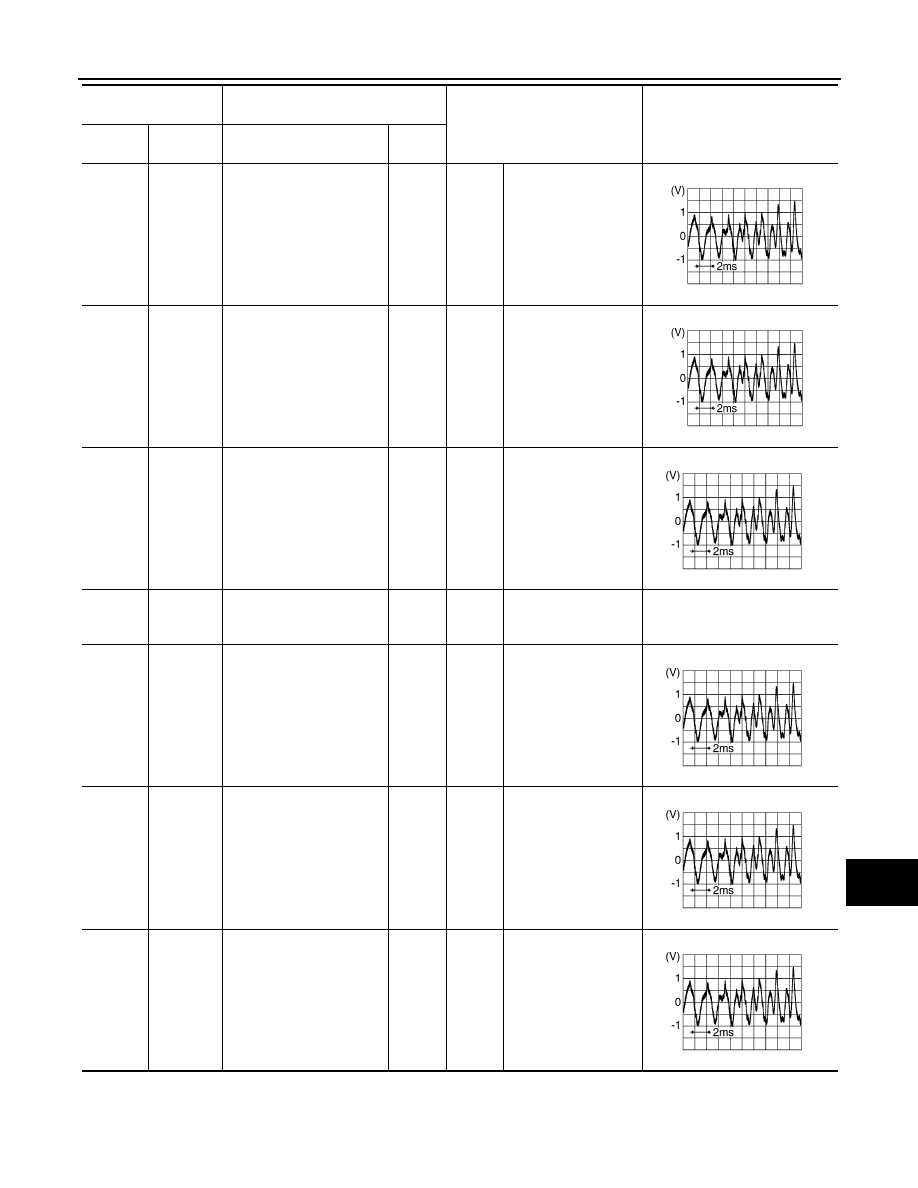

AV-133

< ECU DIAGNOSIS INFORMATION >

[MONOCHROME DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

13

(L)

8

(P)

Sound signal rear subwoof-
er LH

Output

Ignition

switch

ON

Sound output.

14

(LG)

9

(O)

Sound signal rear door
speaker RH

Output

Ignition

switch

ON

Sound output.

18

(W)

19

(B)

Sound signal front door
speaker LH

Output

Ignition

switch

ON

Sound output.

20

(SB)

Ground

Amp. ON signal

Input

Ignition

switch

ACC

—

Battery  voltage

24

(GR)

23

(L)

Sound signal rear LH

Input

Ignition

switch

ON

Sound output.

26

(BR)

25

(Y)

Sound signal rear RH

Input

Ignition

switch

ON

Sound output.

28

(G)

15

(L)

Sound signal rear door
speaker LH

Output

Ignition

switch

ON

Sound output.

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

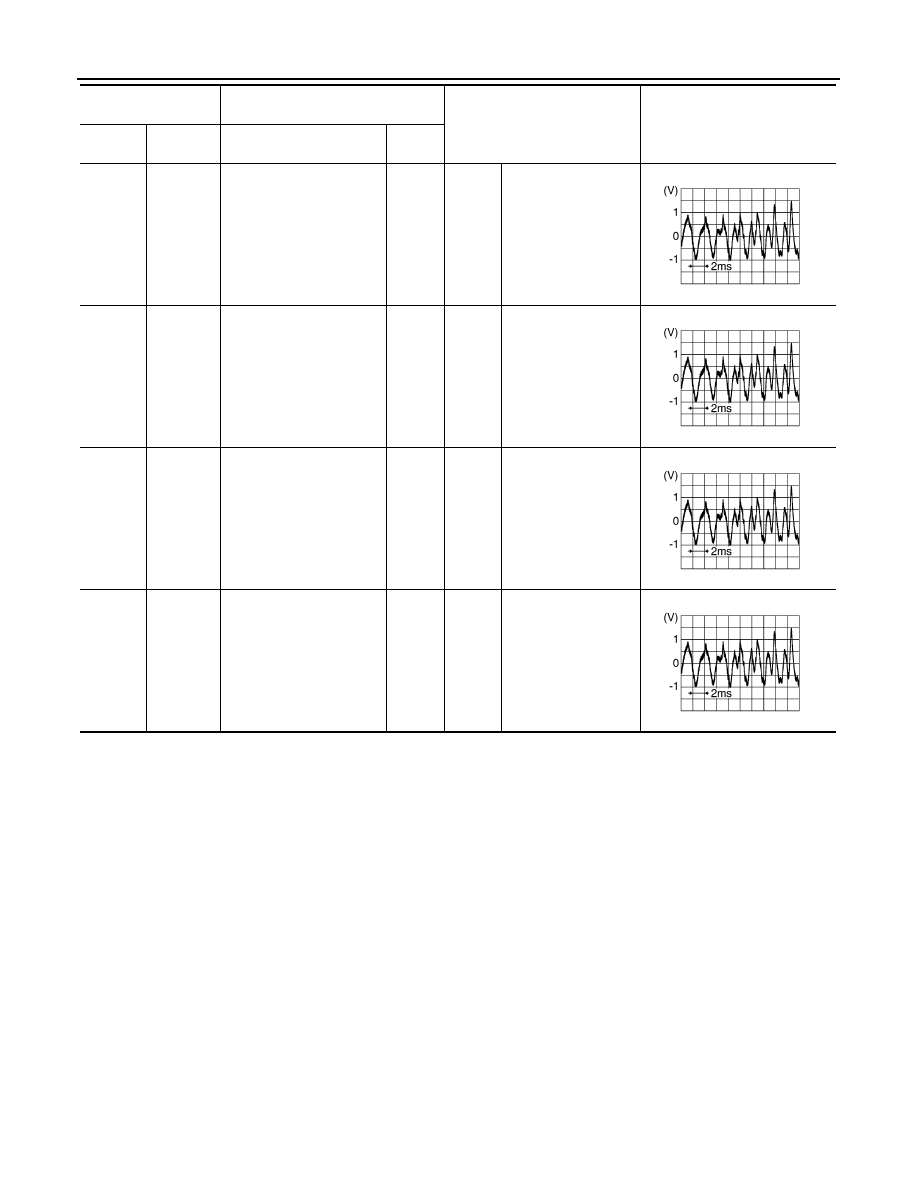

AV-134

< ECU DIAGNOSIS INFORMATION >

[MONOCHROME DISPLAY - W/ BOSE]

BOSE SPEAKER AMP

29

(V)

30

(P)

Sound signal center speak-
er

Output

Ignition

switch

ON

Sound output.

31

(R)

32

(BR)

Sound signal front door
speaker RH

Output

Ignition

switch

ON

Sound output.

33

(LG)

34

(V)

Sound signal front RH

Input

Ignition

switch

ON

Sound output.

35

(W)

36

(B)

Sound signal front LH

Input

Ignition

switch

ON

Sound output.

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

AV

BLUETOOTH® CONTROL UNIT

AV-135

< ECU DIAGNOSIS INFORMATION >

[MONOCHROME DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BLUETOOTH® CONTROL UNIT

Reference Values

INFOID:0000000009471253

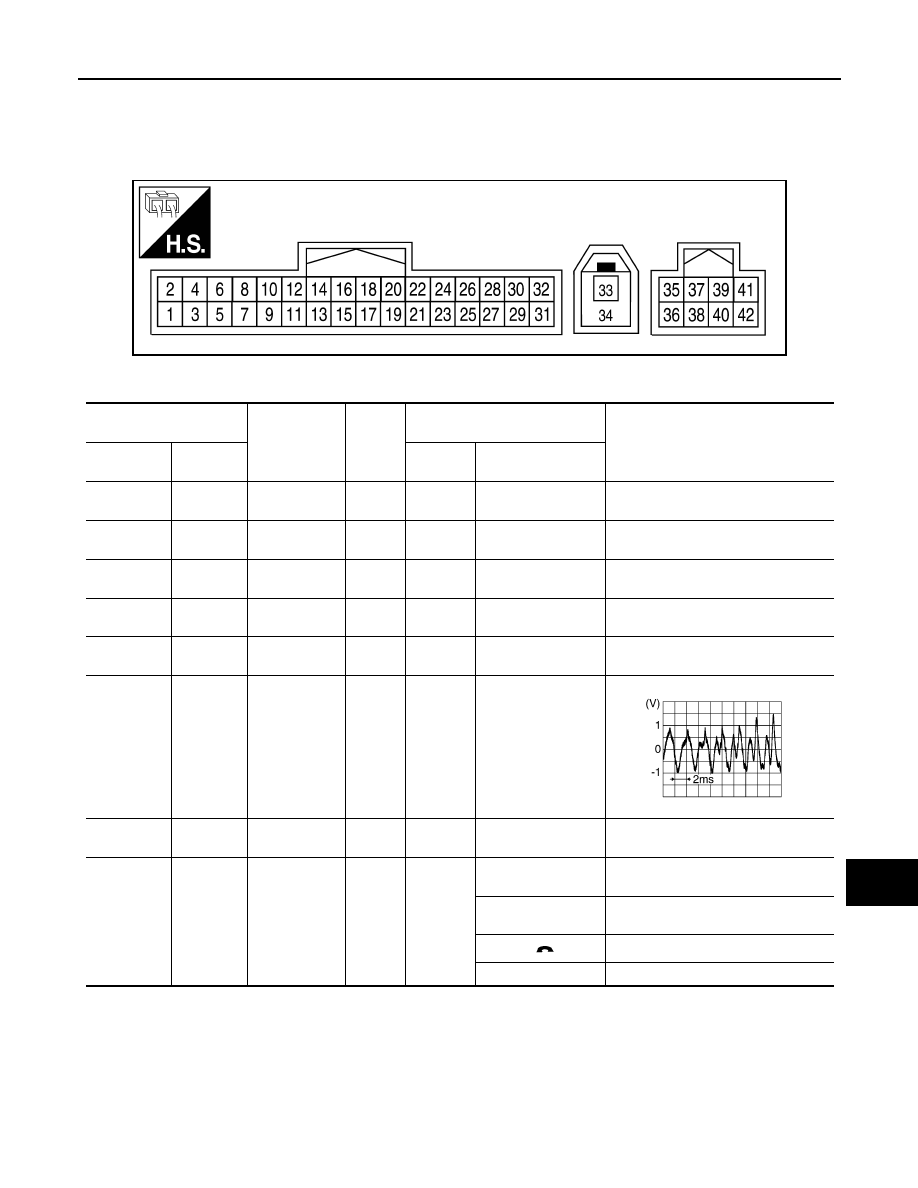

TERMINAL LAYOUT

PHYSICAL VALUES

AWNIA1686ZZ

Terminal

 (Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

+

–

Ignition

switch

Operation

1

 (V)

Ground

Battery power

Input

–

–

Battery voltage

2

 (GR)

Ground

ACC power

Input

ACC/ON

–

Battery voltage

3

(O)

Ground

 IGN power

Input

ON/

START

–

Battery voltage

4

(B)

Ground

Ground

–

–

–

0.2V

7

(L)

8 Mic-in

signal

Input

–

–

–

9

 (BR)

10

 (Y)

Audio out

Output

ACC/ON

Bluetooth

®

 control

unit sends audio sig-

nal

11

(SB)

–

Mute

Output

–

–

–

12

 (L)

Ground

Ladder input 1

Input

ACC/ON

Press VOL DOWN
switch

 0.7 V

Press VOL UP
switch.

1.3 V

Pressing

switch.

2.0 V

Except for above.

3.3 V

SKIB3609E
