AV-92

< SYSTEM DESCRIPTION >

[MONOCHROME DISPLAY - W/ BOSE]

AUDIO SYSTEM

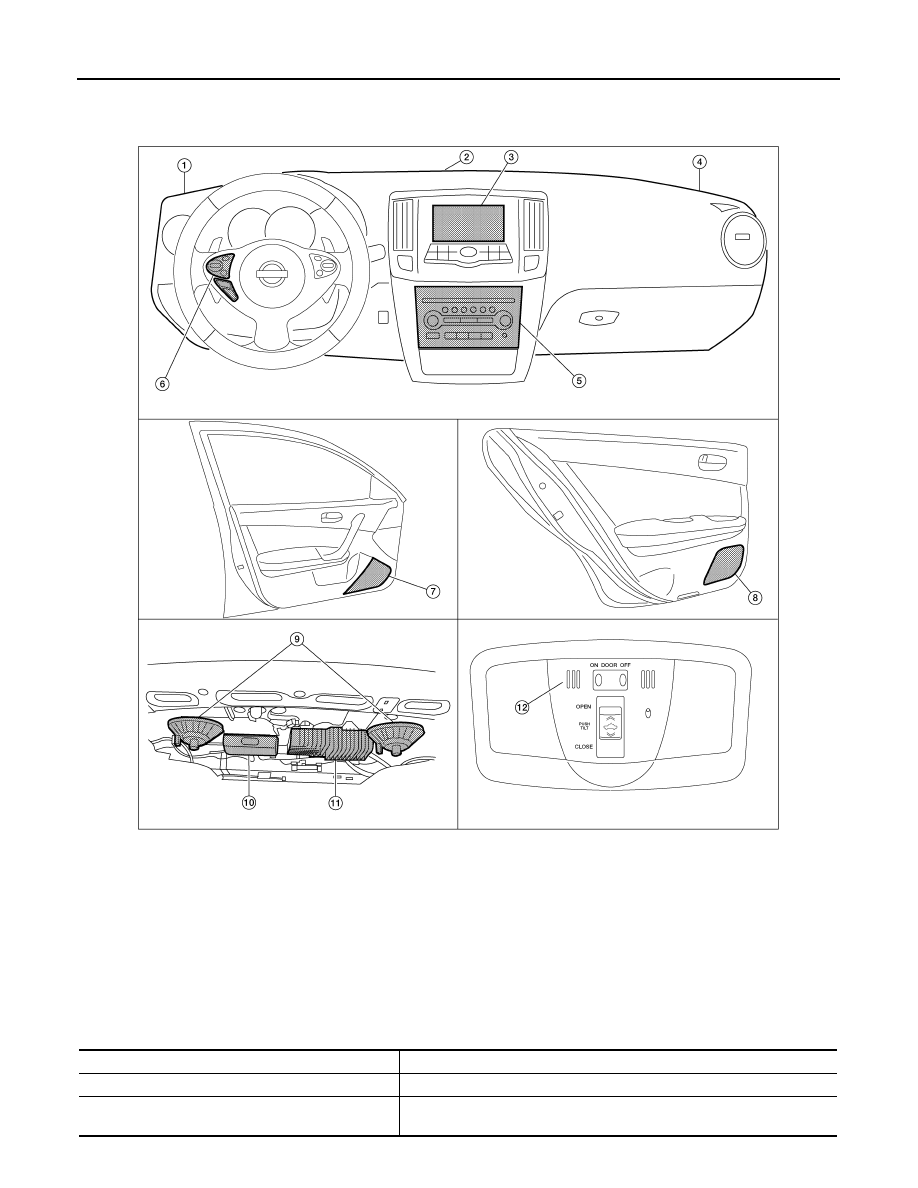

Component Parts Location

INFOID:0000000009471214

Component Description

INFOID:0000000009471215

1.

Tweeter LH M51

2.

Center speaker M130

3.

Display unit M109

4.

Tweeter RH M52

5.

Audio unit M132, M135

6.

Steering wheel audio control switches

7.

Front door speaker
LH D3
RH D103

8.

Rear door speaker
LH D202
RH D302

9.

Rear subwoofer
LH B106
RH B107

10. Bluetooth

®

 control unit

B125, B130, B131

11. BOSE speaker amp. B109, B110

12. Microphone R7

AWNIA3222ZZ

Part name

Description

Audio unit

Controls audio system and AUX IN system functions

Bluetooth

®

 control unit

• Receives display signals from the audio unit.
• Outputs display signals to the display unit.

AV

AUDIO SYSTEM

AV-93

< SYSTEM DESCRIPTION >

[MONOCHROME DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Display unit

• Receives display signals from the Bluetooth

®

 control unit.

• Displays audio system information.

BOSE speaker amp.

Receives power (amp ON) and audio signals from audio unit, and outputs au-
dio signals to each speaker.

Steering wheel audio control switches

• Each audio operation can be operated
• Steering switch signal (operation signal) is output to audio unit and Blue-

tooth

®

 control unit

Front door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Center speaker

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Tweeters

• Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds

Rear door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Rear subwoofers

• Outputs audio signal from BOSE speaker amp.
• Outputs low range sounds

Part name

Description

AV-94

< SYSTEM DESCRIPTION >

[MONOCHROME DISPLAY - W/ BOSE]

HANDS-FREE PHONE SYSTEM

HANDS-FREE PHONE SYSTEM

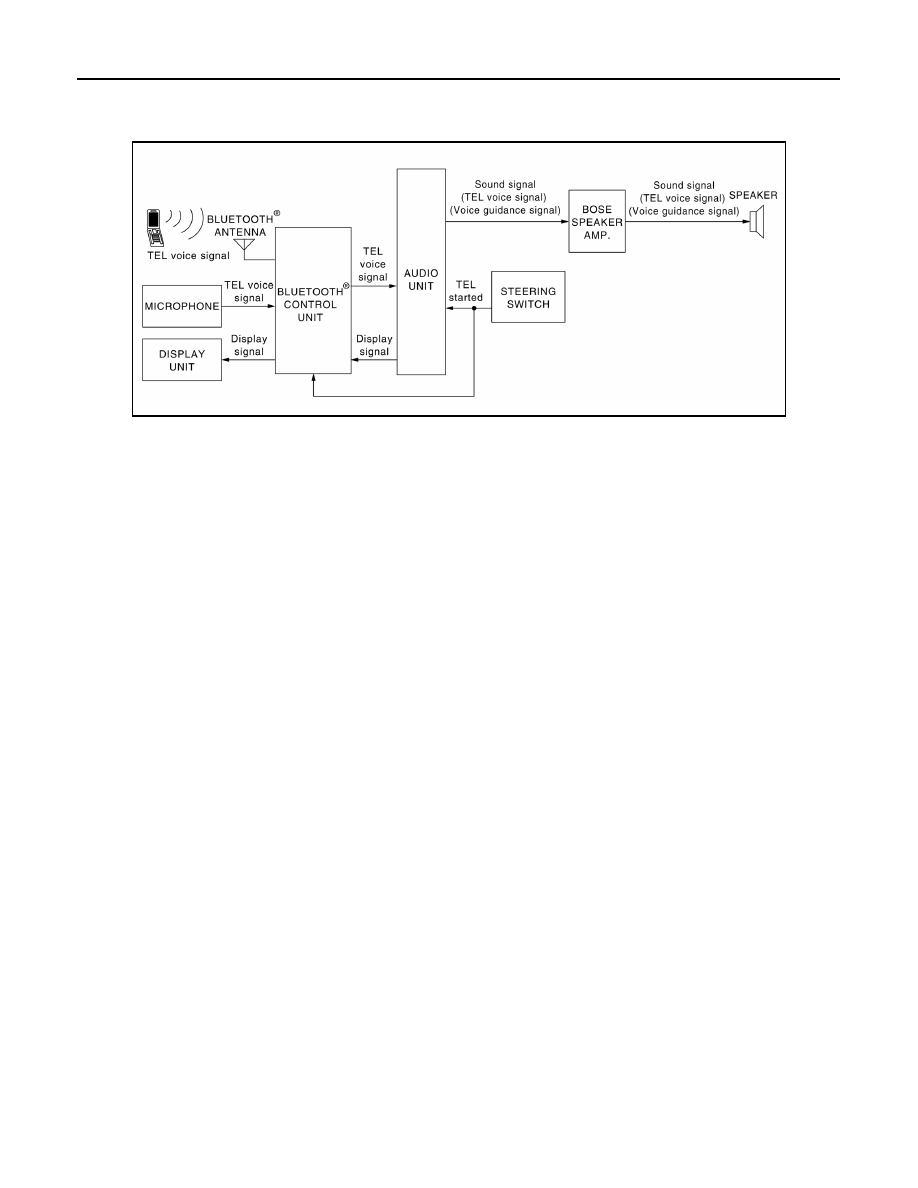

System Diagram

INFOID:0000000009471216

System Description

INFOID:0000000009471217

Refer to the Owner's Manual for Bluetooth

®

 telephone system operating instructions.

NOTE:
Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth

®

 telephone

system.
Bluetooth

®

 telephone system allows users who have a Bluetooth

®

 cellular telephone to make a wireless con-

nection between their cellular telephone and the Bluetooth

®

 control unit. Hands-free cellular telephone calls

can be sent and received. Some Bluetooth

®

 cellular telephones may not be recognized by the Bluetooth

®

 con-

trol unit. When a cellular telephone or the Bluetooth

®

 control unit is replaced, the telephone must be paired

with the Bluetooth

®

 control unit. Different cellular telephones may have different pairing procedures. Refer to

the cellular telephone operating manual.

BLUETOOTH

®

 CONTROL UNIT

When the ignition switch is turned to ACC or ON, the Bluetooth

®

 control unit will power up. During power up,

the Bluetooth

®

 control unit is initialized and performs various self-checks. Initialization may take up to 20 sec-

onds. If a phone is present in the vehicle and paired with the Bluetooth

®

 control unit, Nissan Voice Recognition

will then become active. Bluetooth

®

 telephone functions can be turned off using the Nissan Voice Recognition

system.

STEERING WHEEL AUDIO CONTROL SWITCHES

When buttons on the steering wheel audio control switch are pushed, the resistance in steering wheel audio
control switch circuit changes, depending on which button is pushed. The Bluetooth

®

 control unit uses this sig-

nal to perform various functions while navigating through the voice recognition system.

The following functions can be performed using the steering wheel audio control switch:
• Initiate self-diagnosis of the Bluetooth

®

 telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

MICROPHONE

The microphone is located in the roof console assembly. The microphone sends a signal to the Bluetooth

®

control unit. The microphone can be actively tested during self-diagnosis.

AUDIO UNIT

The audio unit receives signals from the Bluetooth

®

 control unit and sends audio signals to the speakers.

AWNIA2695GB

AV

HANDS-FREE PHONE SYSTEM

AV-95

< SYSTEM DESCRIPTION >

[MONOCHROME DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

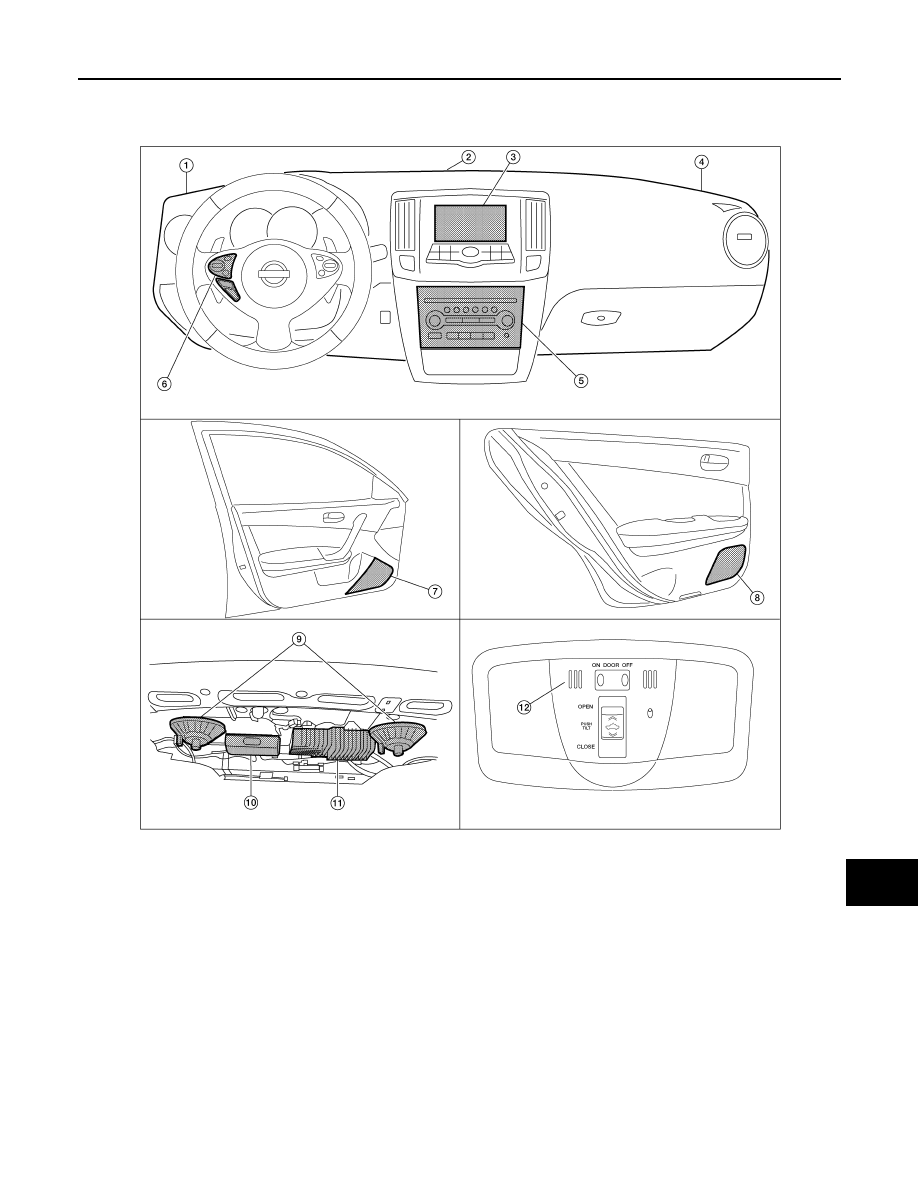

Component Parts Location

INFOID:0000000010062742

1.

Tweeter LH M51

2.

Center speaker M130

3.

Display unit M109

4.

Tweeter RH M52

5.

Audio unit M132, M135

6.

Steering wheel audio control switches

7.

Front door speaker
LH D3
RH D103

8.

Rear door speaker
LH D202
RH D302

9.

Rear subwoofer
LH B106
RH B107

10. Bluetooth

®

 control unit

B125, B130, B131

11. BOSE speaker amp. B109, B110

12. Microphone R7

AWNIA3222ZZ
