AV-80

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/O BOSE]

SUBWOOFER AMP

SUBWOOFER AMP

Removal and Installation

INFOID:0000000009471203

REMOVAL

1. Disconnect the battery negative terminal. Refer to

PG-67, "Removal and Installation (Battery)"

.

2. Remove the parcel shelf finisher. Refer to

INT-28, "Removal and Installation"

.

NOTE:

The subwoofer amp. can be removed without removing the parcel amp finisher. If moving the subwoofer

amp. and bracket, it is necessary to remove the parcel shelf finisher.

3. Remove the trunk upper finisher. Refer to

INT-36, "Exploded View"

.

4. Remove the subwoofer amp. screws.
5. Disconnect the harness connectors from the subwoofer amp. and remove.

INSTALLATION

Installation is in the reverse order of removal.

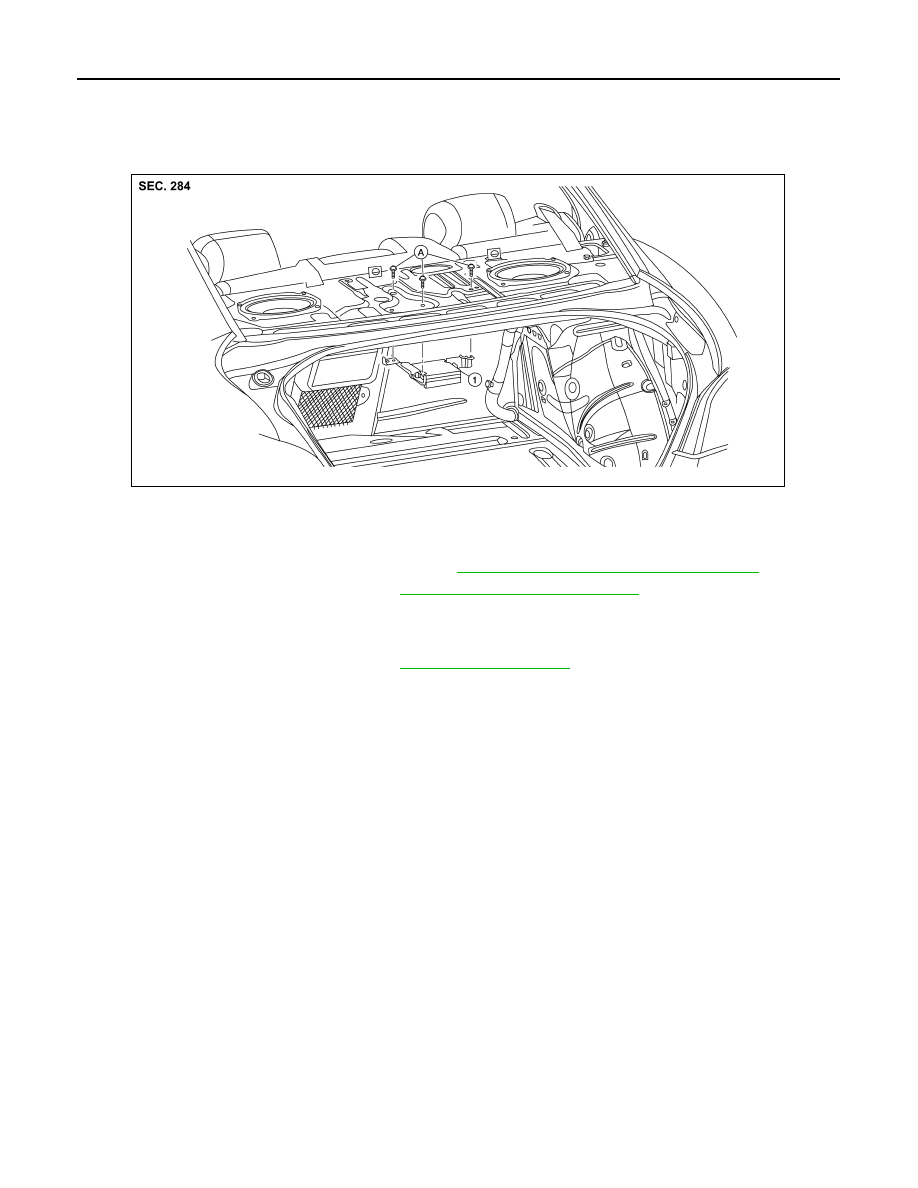

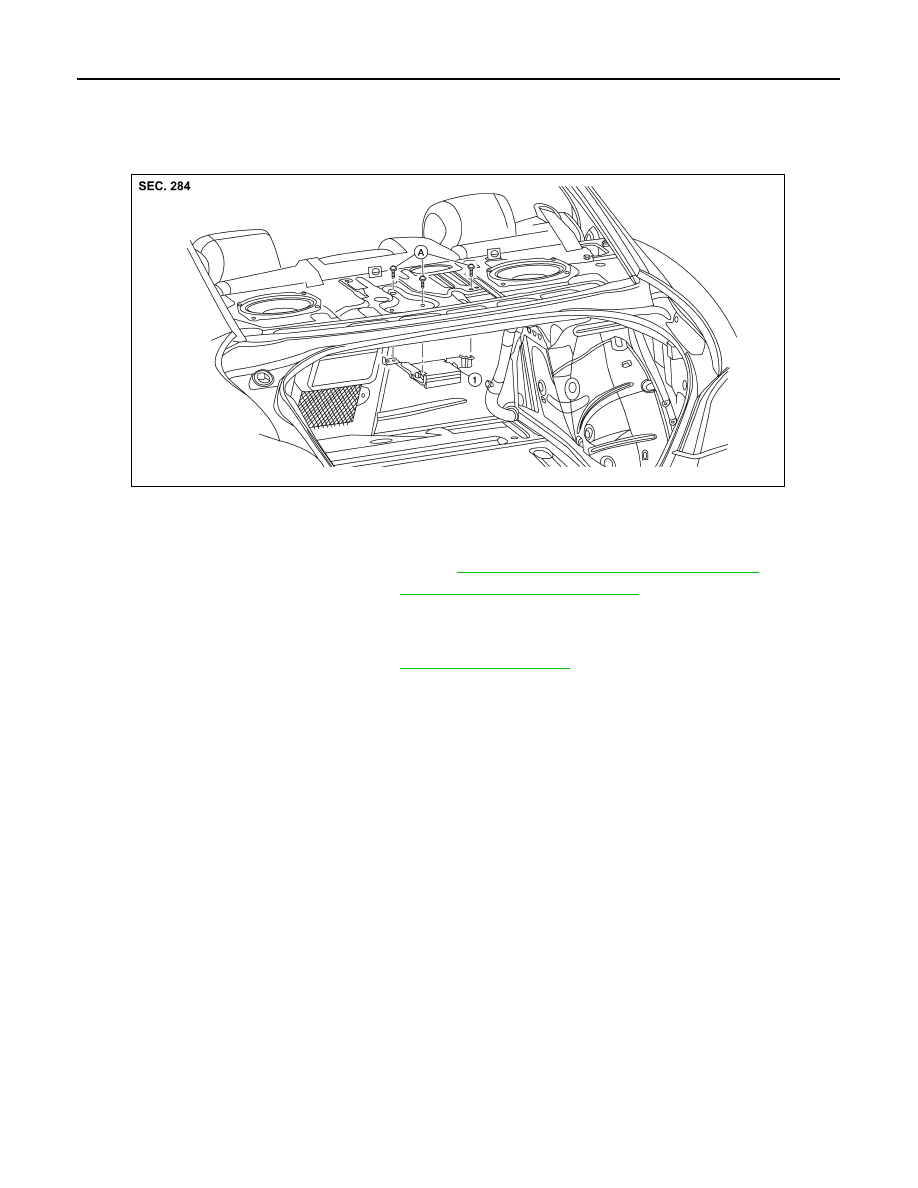

1.

Subwoofer amp. and bracket

A.

Subwoofer amp. bracket screws

ALNIA1136ZZ

AV

STEERING SWITCH

AV-81

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Removal and Installation

INFOID:0000000009471204

REMOVAL

1. Remove the driver airbag module. Refer to

SR-12, "Removal and Installation"

.

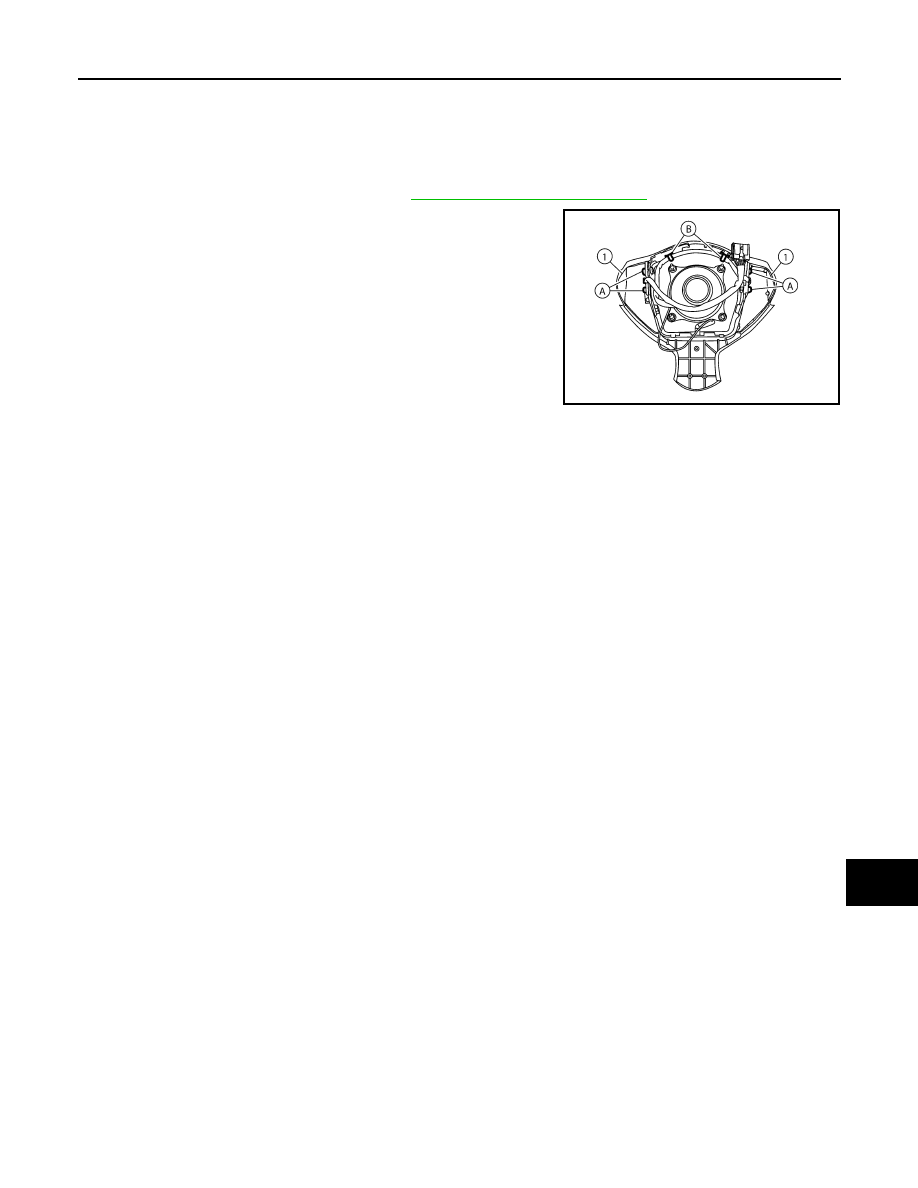

2. Remove the steering wheel audio control switch screws (A).
3. Release the steering wheel audio control switch harness clips

(B).

4. Remove the steering wheel audio control switches (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1132ZZ

AV-82

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/O BOSE]

AUDIO ANTENNA

AUDIO ANTENNA

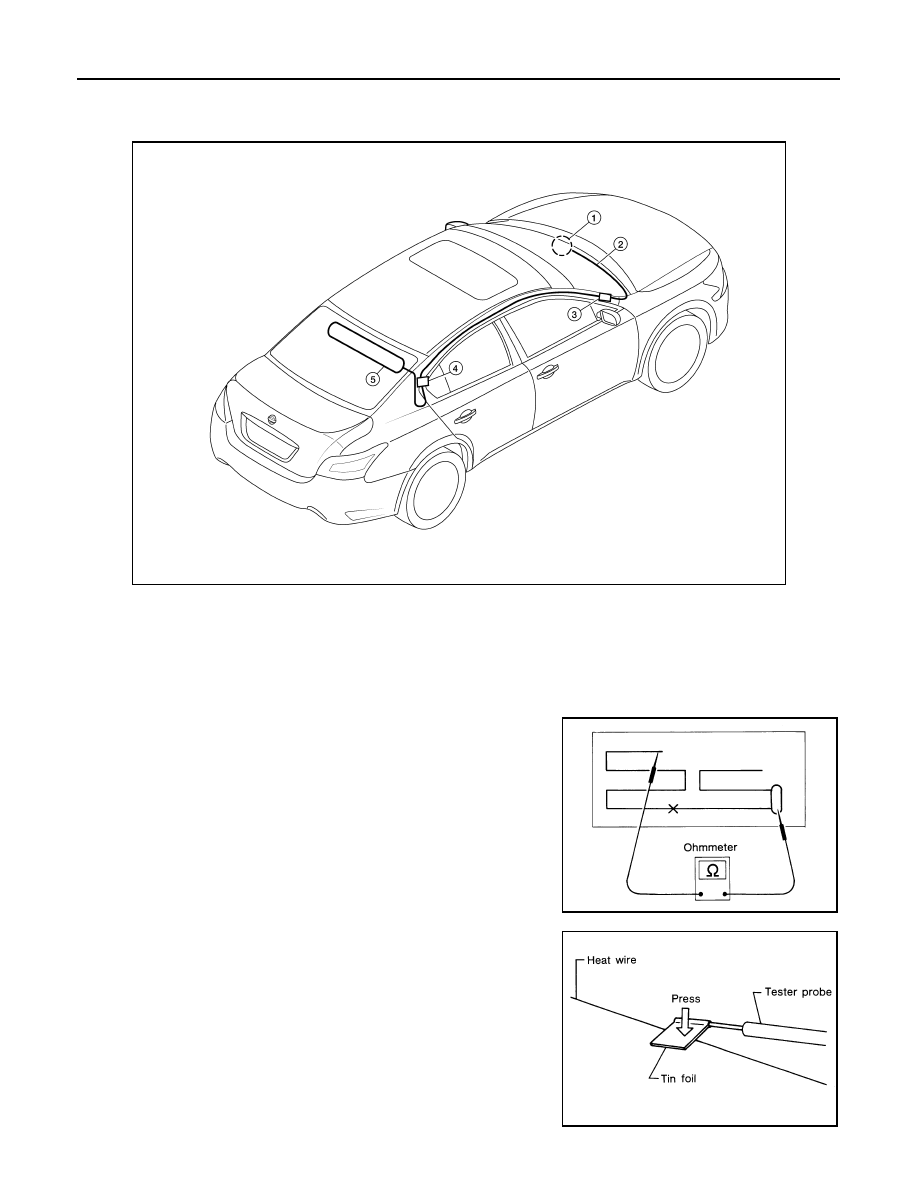

Location of Antenna

INFOID:0000000009471205

Window Antenna Repair

INFOID:0000000009471206

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your finger.

ALNIA1213ZZ

1.

Audio unit

2.

Audio unit antenna feeder

3.

In-line connectors M103, M501

4.

Antenna amp.

5.

Window antenna

SEL250I

SEL122R

AV

AUDIO ANTENNA

AV-83

< REMOVAL AND INSTALLATION >

[MONOCHROME DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

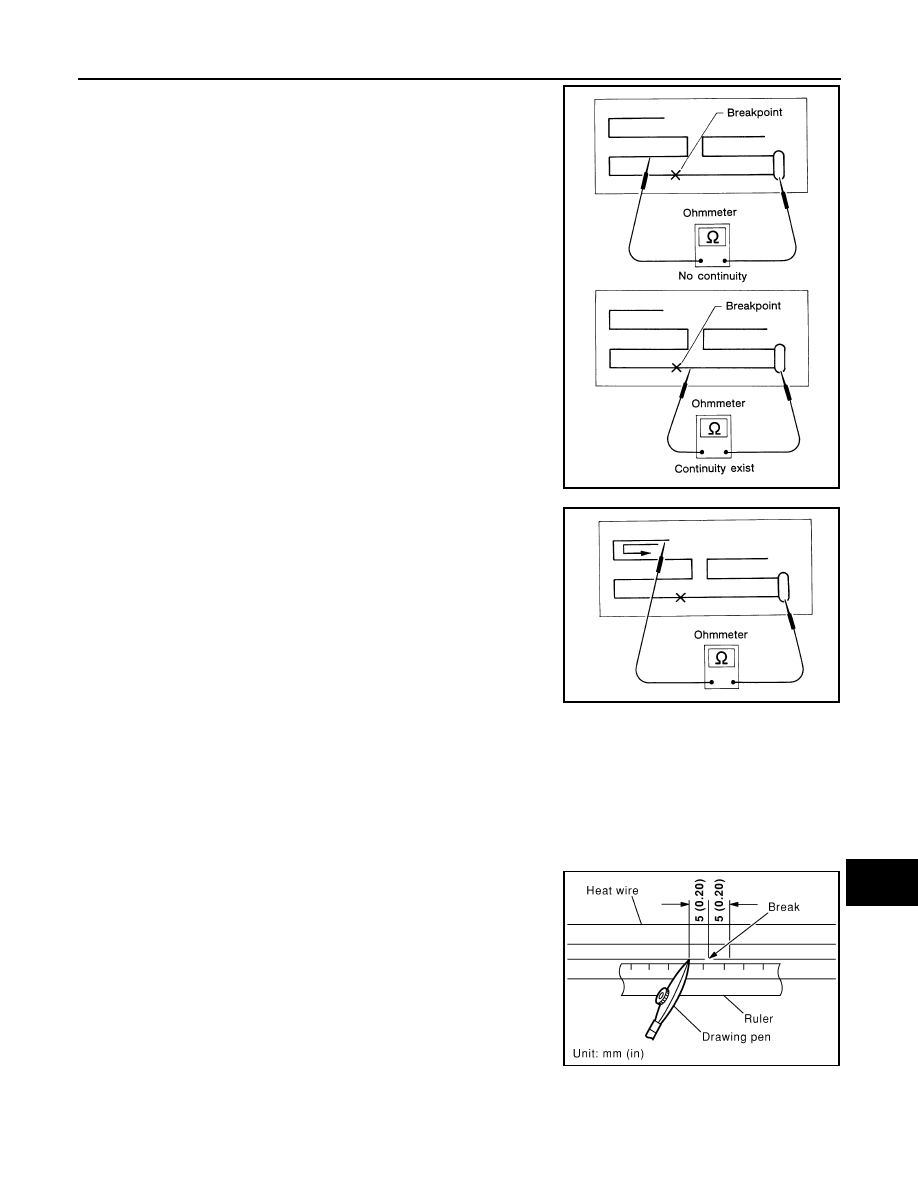

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

REPAIR EQUIPMENT

• Conductive silver composition (DuPont No. 4817 or equivalent)

• Ruler 30 cm (11.8 in) long

• Drawing pen

• Heat gun

• Alcohol

• Cloth

REPAIRING PROCEDURE

1. Wipe broken heat wire and its surrounding area clean with a

cloth dampened in alcohol.

2. Apply a small amount of conductive silver composition to tip of

drawing pen.

NOTE:

Shake silver composition container before use.

3. Place ruler on glass along broken line. Deposit conductive silver

composition on break with drawing pen. Slightly overlap existing

heat wire on both sides [preferably 5 mm (0.20 in)] of the break.

SEL252I

SEL253I

PIIA0215E
