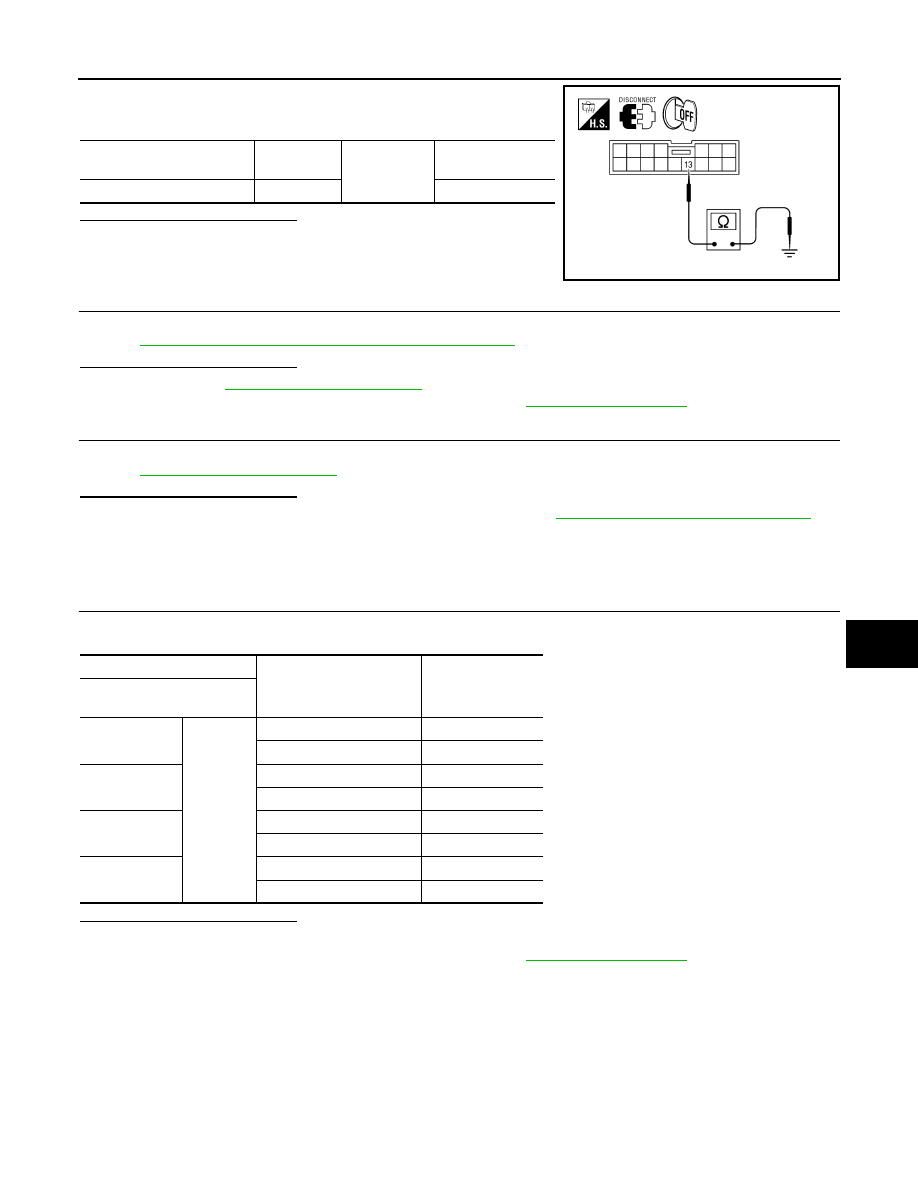

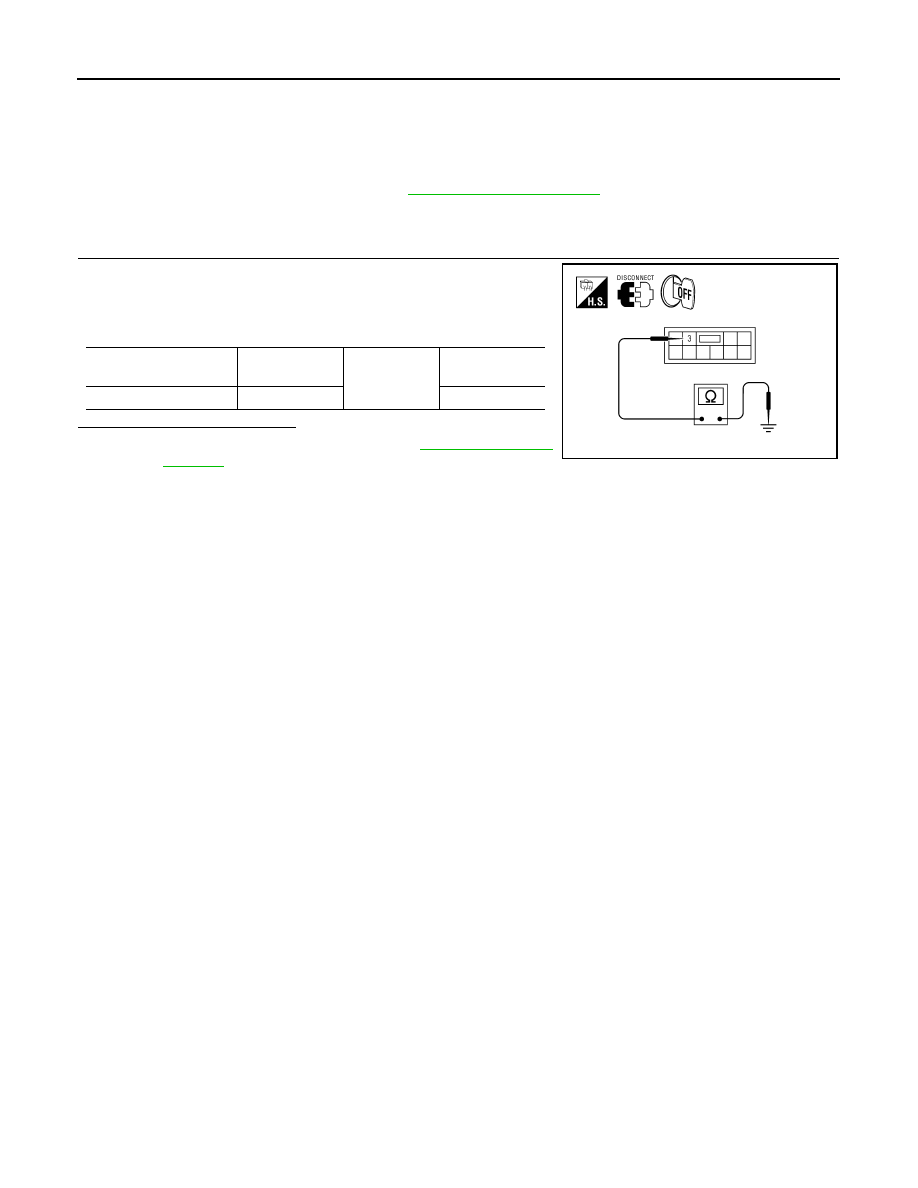

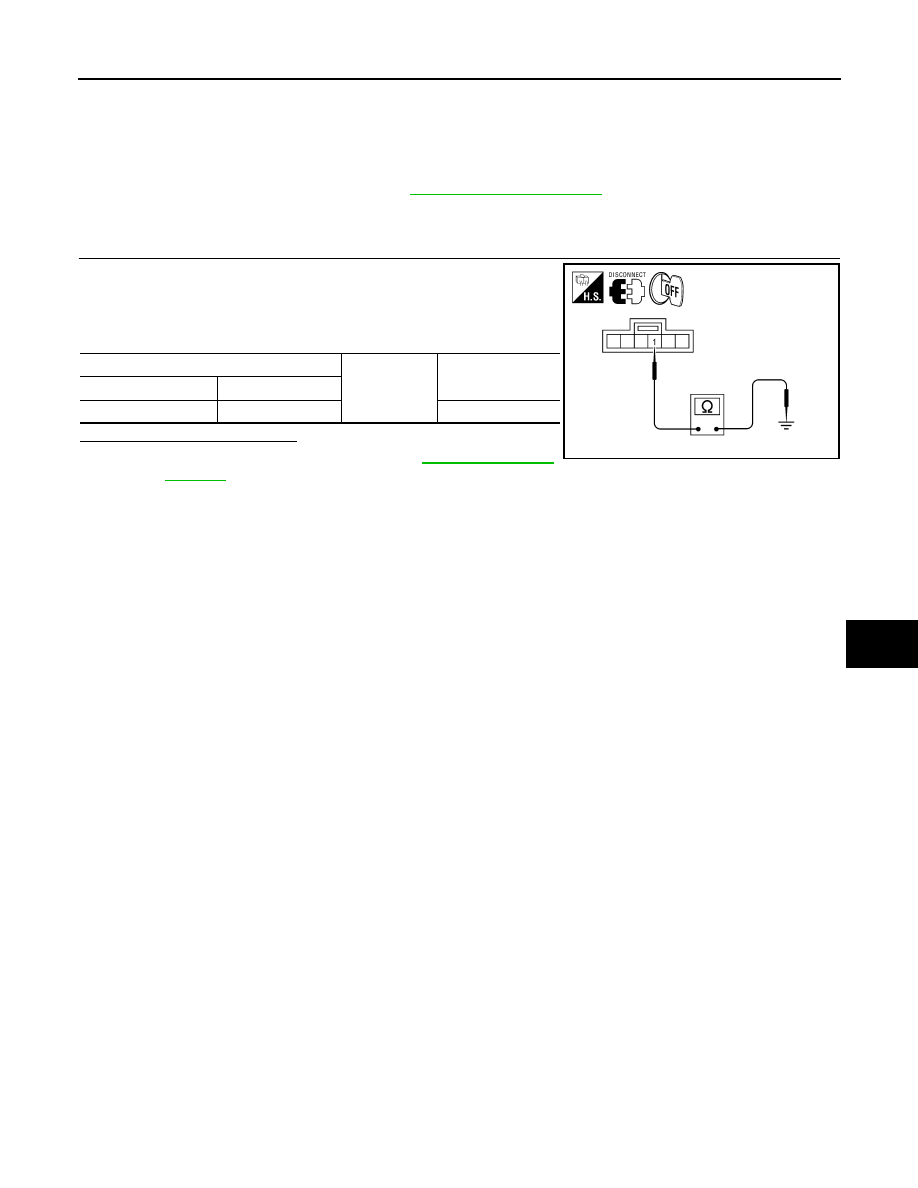

ADP-68 < DTC/CIRCUIT DIAGNOSIS > DOOR MIRROR REMOTE CONTROL SWITCH Is the inspection result normal? YES >> GO TO 5 NO >> GO TO 2 2. CHECK HARNESS CONTINUITY 1. Turn ignition switch OFF. 2. Disconnect automatic drive positioner control unit and door mirror remote control switch. 3. Check continuity between automatic drive positioner control unit connector and door mirror remote control switch connector. 4. Check continuity between automatic drive positioner control unit connector and ground. Is the inspection result normal? YES >> GO TO 3 NO >> Repair or replace harness. 3. CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT Terminals Mirror switch Condition Voltage (V) (Approx.) (+) (–) Automatic drive positioner control unit connector Terminal M63 3 Ground UP 0 Other than above 5 4 LEFT 0 Other than above 5 15 DOWN 0 Other than above 5 16 RIGHT 0 Other than above 5 Automatic drive positioner control unit connector Terminal Door mirror remote control switch con- nector Terminal Continuity M63 3 M108 6 Yes 4 5 15 14 16 4 Automatic drive positioner control unit connector Terminal Ground Continuity M63 3 No 4 15 16 |
