ADP-64

< DTC/CIRCUIT DIAGNOSIS >

SEAT MEMORY SWITCH

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace seat memory switch. Refer to

ADP-171, "Removal and Installation"

.

Terminal

Condition

Continuity

Seat memory switch

4

1

Memory switch 1

Push

Yes

Release

No

2

Memory switch 2

Push

Yes

Release

No

3

Set switch

Push

Yes

Release

No

DOOR MIRROR REMOTE CONTROL SWITCH

ADP-65

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

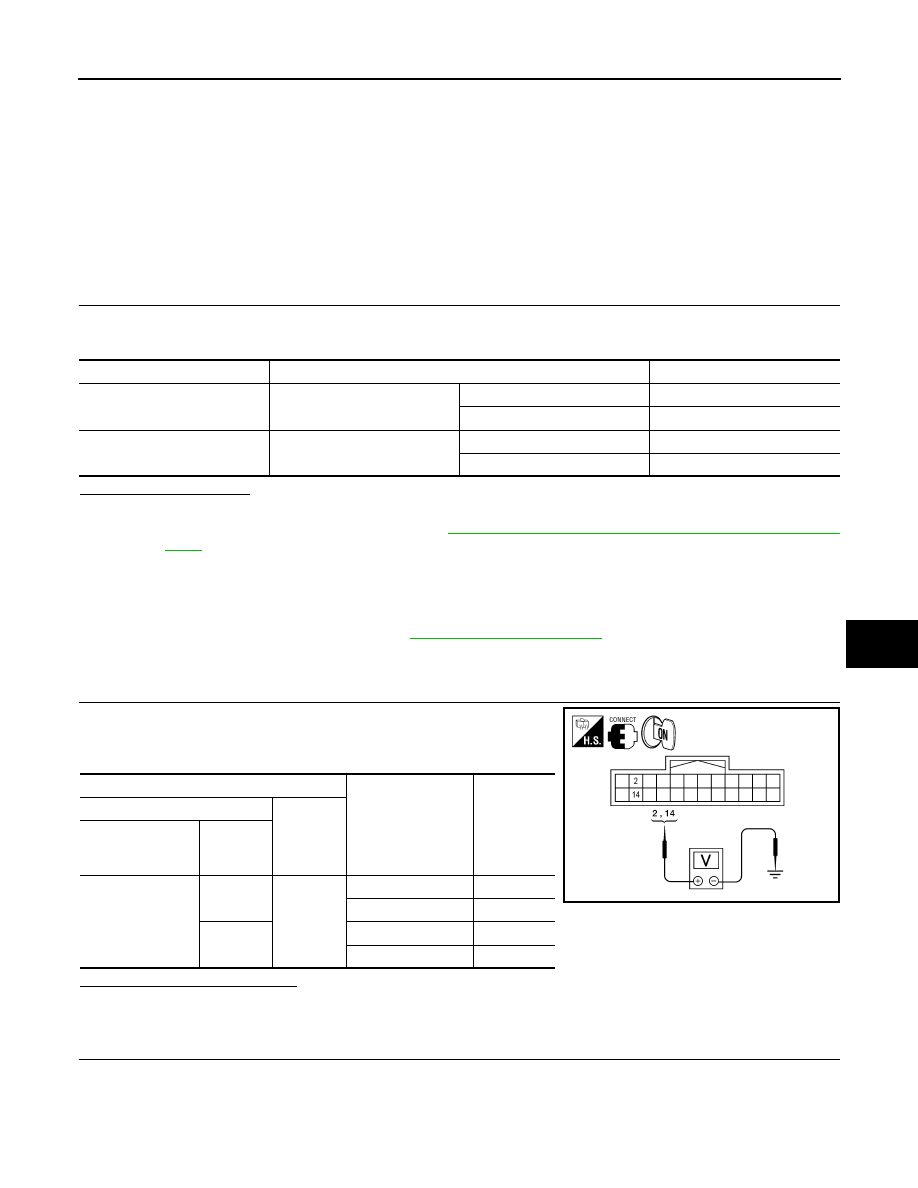

DOOR MIRROR REMOTE CONTROL SWITCH

CHANGEOVER SWITCH
CHANGEOVER SWITCH : Description

INFOID:0000000010051759

Changeover switch is integrated into door mirror remote control switch.

Changeover switch has three positions (L, N and R).

It changes door mirror motor operation by transmitting control signal to automatic drive positioner control unit.

CHANGEOVER SWITCH : Component Function Check

INFOID:0000000010051760

1.

 CHECK FUNCTION

1. Select “MIR CHNG SW-R”, “MIR CHNG SW-L” in “DATA MONITOR” mode with CONSULT.

2. Check changeover switch signal under the following conditions.

Is the indication normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-65, "CHANGEOVER SWITCH : Diagnosis Proce-

dure"

.

CHANGEOVER SWITCH : Diagnosis Procedure

INFOID:0000000010051761

Regarding Wiring Diagram information, refer to

ADP-150, "Wiring Diagram"

.

1.

 CHECK CHANGEOVER SWITCH SIGNAL

1. Turn ignition switch ON.

2. Check voltage between automatic drive positioner control unit

connector and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

Monitor item

Condition

Status

MIR CHNG SW-R

Mirror switch (right)

Operate

ON

Release

OFF

MIR CHNG SW-L

Mirror switch (left)

Operate

ON

Release

OFF

Terminals

Change over switch

condition

Voltage (V)

(Approx.)

(+)

(-)

Automatic drive

positioner control

unit connector

Terminal

M63

2

Ground

RIGHT

0

Other than above

5

14

LEFT

0

Other than above

5

ALJIA0393ZZ

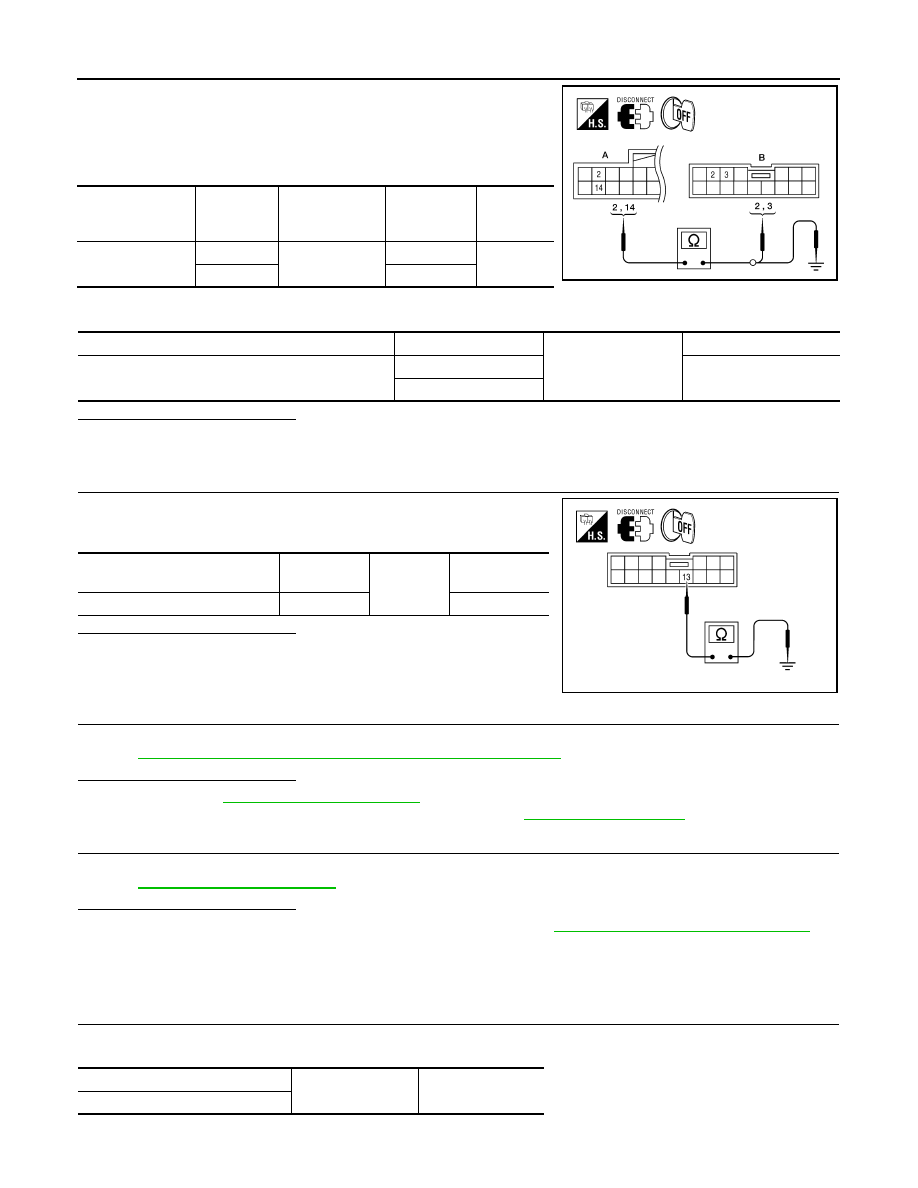

ADP-66

< DTC/CIRCUIT DIAGNOSIS >

DOOR MIRROR REMOTE CONTROL SWITCH

1. Turn ignition switch OFF.

2. Disconnect automatic drive positioner control unit and door mir-

ror remote control switch.

3. Check continuity between automatic drive positioner control unit

connector and door mirror remote control switch connector.

4. Check continuity between automatic drive positioner control unit connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT

Check continuity between door mirror remote control switch connec-

tor and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK CHANGEOVER SWITCH

Check changeover switch.

Refer to

ADP-66, "CHANGEOVER SWITCH : Component Inspection"

.

Is the inspection result normal?

YES

>> Refer to

GI-41, "Intermittent Incident"

.

NO

>> Replace door mirror remote control switch. Refer to

IP-10, "Exploded View"

.

5.

 CHECK INTERMITTENT INCIDENT

Check intermittent incident.

Refer to

GI-41, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace automatic drive positioner control unit. Refer to

ADP-170, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning parts.

CHANGEOVER SWITCH : Component Inspection

INFOID:0000000010051762

1.

 CHECK CHANGEOVER SWITCH

Check door mirror remote control switch.

Automatic drive

positioner control

unit connector

Terminal

Door mirror re-

mote control

switch connector

Terminal

Continuity

M63 (A)

2

M108 (B)

3

Yes

14

2

ALJIA0394ZZ

Automatic drive positioner control unit connector

Terminal

Ground

Continuity

M63 (A)

2

No

14

Door mirror remote control switch

connector

Terminal

Ground

Continuity

M108

13

Yes

ALJIA0395ZZ

Terminal

Change over switch

condition

Continuity

Door mirror remote control switch

DOOR MIRROR REMOTE CONTROL SWITCH

ADP-67

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace door mirror remote control switch. Refer to

IP-10, "Exploded View"

.

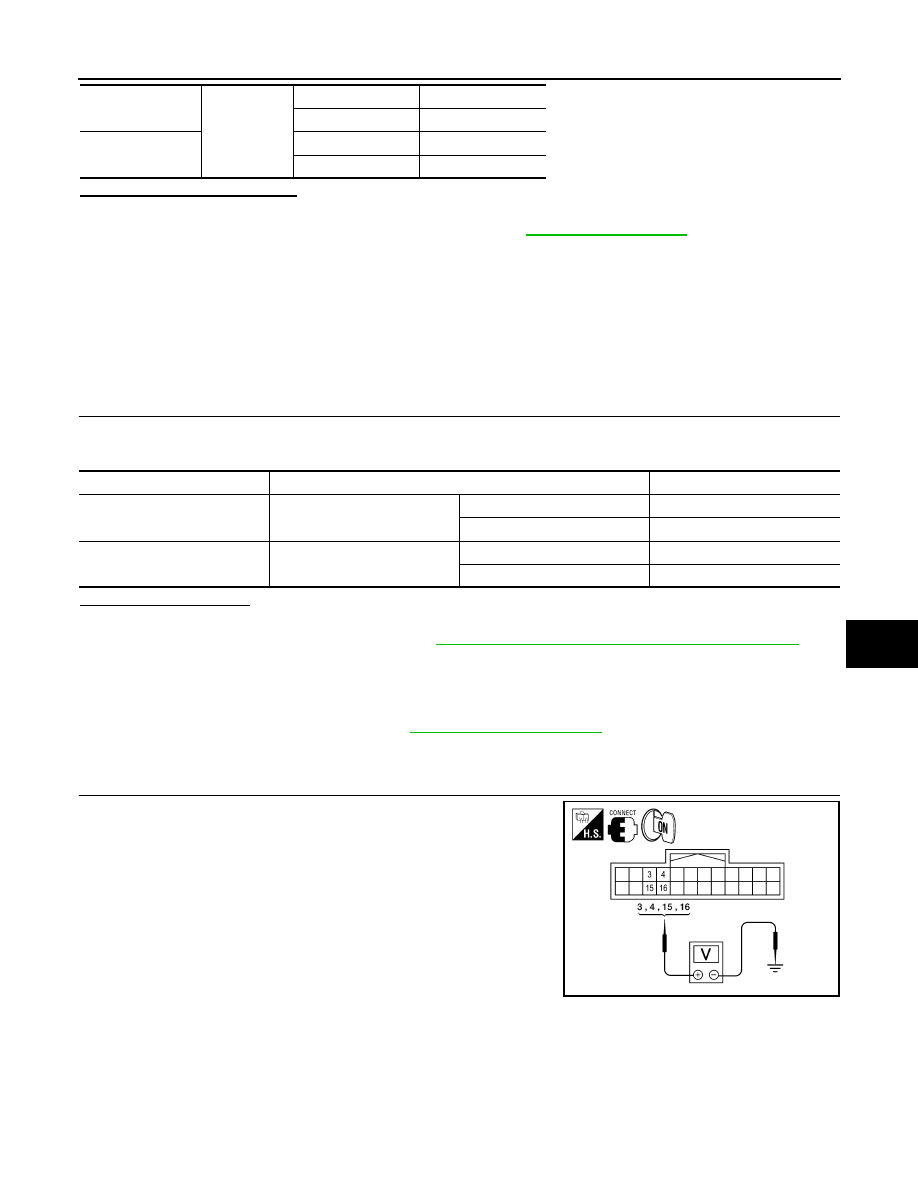

MIRROR SWITCH
MIRROR SWITCH : Description

INFOID:0000000010051763

It operates angle of the door mirror face.

It transmits mirror face adjust operation to automatic drive positioner control unit.

MIRROR SWITCH : Component Function Check

INFOID:0000000010051764

1.

 CHECK FUNCTION

1. Select “MIR CON SW-UP/DN”,“MIR CON SW-RH/LH “ in “DATA MONITOR” mode with CONSULT.

2. Check mirror switch signal under the following conditions.

Is the indication normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-67, "MIRROR SWITCH : Diagnosis Procedure"

.

MIRROR SWITCH : Diagnosis Procedure

INFOID:0000000010051765

Regarding Wiring Diagram information, refer to

ADP-150, "Wiring Diagram"

.

1.

 CHECK MIRROR SWITCH FUNCTION

1. Turn ignition switch ON.

2. Check voltage between automatic drive positioner control unit

connector and ground.

2

13

LEFT

Yes

Other than above

No

3

RIGHT

Yes

Other than above

No

Monitor item

Condition

Status

MIR CON SW-UP/DN

Mirror switch (up/down)

Operate

ON

Release

OFF

MIR CON SW-RH/LH

Mirror switch (right/left)

Operate

ON

Release

OFF

ALJIA0397ZZ
