LAN-78

< COMPONENT DIAGNOSIS >

[HEV SYSTEM CAN]

HEV SYSTEM CAN COMMUNICATION CIRCUIT

HEV SYSTEM CAN COMMUNICATION CIRCUIT

Diagnosis Procedure

INFOID:0000000004219076

1.

CONNECTOR INSPECTION

1. Turn the ignition switch OFF.

2. Disconnect the battery cable from the negative terminal.

3. Disconnect all the unit connectors on HEV SYSTEM CAN.

4. Check terminals and connectors for damage, bend and loose connection.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS CONTINUITY (SHORT CIRCUIT)

Check the continuity between the data link connector terminals.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Check the harness and repair the root cause.

3.

CHECK HARNESS CONTINUITY (SHORT CIRCUIT)

Check the continuity between the data link connector and the ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Check the harness and repair the root cause.

4.

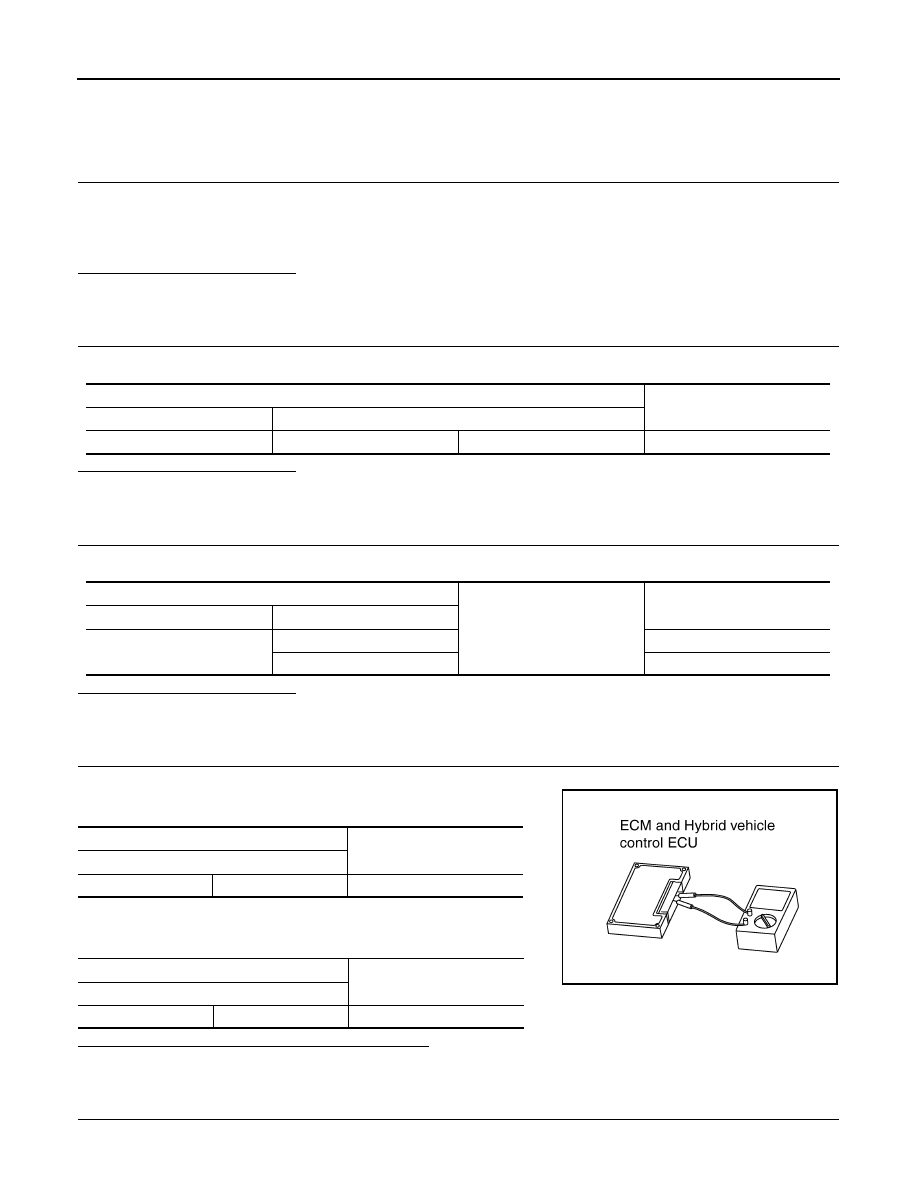

CHECK ECM AND HYBRID VEHICLE CONTROL ECU TERMINATION CIRCUIT

1. Remove the ECM and the hybrid vehicle control ECU.

2. Check the resistance between the ECM terminals.

3. Check the resistance between the hybrid vehicle control ECU

terminals.

Is the measurement value within the specification?

YES

>> GO TO 5.

NO

>> Replace the ECM and/or the hybrid vehicle control ECU.

5.

CHECK DTC

1. Connect all the connectors.

Data link connector

Continuity

Connector No.

Terminal No.

M22

13

12

Not existed

Data link connector

Ground

Continuity

Connector No.

Terminal No.

M22

13

Not existed

12

Not existed

ECM

Resistance (

Ω)

Terminal No.

74

73

Approx. 108 – 132

Hybrid vehicle control ECU

Resistance (

Ω)

Terminal No.

171

170

Approx. 108 – 132

JPMIA0798GB

LAN

HEV SYSTEM CAN COMMUNICATION CIRCUIT

LAN-79

< COMPONENT DIAGNOSIS >

[HEV SYSTEM CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

2. Erase the DTCs of unit connected to HEV SYSTEM CAN and CAN.

3. Turn the ignition switch OFF.

4. Turn the ignition switch ON.

5. Perform All DTC Reading with CONSULT-III. Check if the symptoms listed below are reproduced.

• *1: Hybrid vehicle control ECU may display one or more DTCs (INF code) listed as follows; U0100 (211), U0100 (212), U0100

(530).

• *2: Hybrid vehicle control ECU may display one or more DTCs (INF code) listed as follows; U0129 (220), U0129 (222), U0129

(528).

• *3: Hybrid vehicle control ECU may display one or more DTCs (INF code) listed as follows; U0131 (433), U0131 (434).

Are the symptoms listed above reproduced?

YES

>> GO TO 6.

NO

>> Short circuit was detected in HEV SYSTEM CAN.

6.

CHECK UNIT REPRODUCTION

Perform the reproduction test as per the following procedure for each unit.

1. Turn the ignition switch OFF.

2. Disconnect the battery cable from the negative terminal.

3. Disconnect one of the unit connectors of HEV SYSTEM CAN.

NOTE:

ECM and hybrid vehicle control ECU have a termination circuit. Check other units first.

4. Connect the battery cable to the negative terminal. Erase the DTCs of unit connected to HEV SYSTEM

CAN and CAN.

5. Perform All DTC Reading with CONSULT-III. Check if the symptoms listed below are reproduced.

• *1: Hybrid vehicle control ECU may display one or more DTCs (INF code) listed as follows; U0100 (211), U0100 (212), U0100

(530).

• *2: Hybrid vehicle control ECU may display one or more DTCs (INF code) listed as follows; U0129 (220), U0129 (222), U0129

(528).

• *3: Hybrid vehicle control ECU may display one or more DTCs (INF code) listed as follows; U0131 (433), U0131 (434).

Are the symptoms listed above reproduced?

YES

>> Connect the connector. Check other units as per the above procedure.

NO

>> Replace the unit whose connector was disconnected.

Item (CONSULT-III)

Indication

The printed or saved All DTC Reading

• The items of EPS and ABS are not displayed.
• U0129, U0293, U1020 and U1022 are displayed as the ENGINE items.
• U0100

*1

, U0129

*2

 and U0131

*3

 are displayed as the HYBRID SYSTEM items.

Item (CONSULT-III)

Indication

The printed or saved All DTC Reading

• The items of EPS and ABS are not displayed.
• U0129, U0293, U1020 and U1022 are displayed as the ENGINE items.
• U0100

*1

, U0129

*2

 and U0131

*3

 are displayed as the HYBRID SYSTEM items.

LAN-80

< COMPONENT DIAGNOSIS >

[CAN SYSTEM (TYPE 13)]

MAIN LINE BETWEEN DLC AND HV ECU CIRCUIT

COMPONENT DIAGNOSIS

MAIN LINE BETWEEN DLC AND HV ECU CIRCUIT

Diagnosis Procedure

INFOID:0000000004219077

INSPECTION PROCEDURE

1.

CHECK CONNECTOR

1. Turn the ignition switch OFF.

2. Disconnect the battery cable from the negative terminal.

3. Check the following terminals and connectors for damage, bend and loose connection (connector side

and harness side).

-

Harness connector M89

-

Harness connector E64

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1. Disconnect the harness connectors M89 and E64.

2. Check the continuity between the data link connector and the harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the main line between the data link connector and the harness connector M89.

3.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1. Disconnect the connector of hybrid vehicle control ECU.

2. Check the continuity between the harness connector and the hybrid vehicle control ECU harness connec-

tor.

Is the inspection result normal?

YES (Present error)>>Check CAN system type decision again.

YES (Past error)>>Error was detected in the main line between the data link connector and the hybrid vehi-

cle control ECU.

NO

>> Repair the main line between the harness connector E64 and the hybrid vehicle control ECU.

Data link connector

Harness connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

M22

6

M89

7

Existed

14

8

Existed

Harness connector

Hybrid vehicle control ECU harness connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

E64

7

E66

173

Existed

8

172

Existed

LAN

ECM BRANCH LINE CIRCUIT

LAN-81

< COMPONENT DIAGNOSIS >

[CAN SYSTEM (TYPE 13)]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ECM BRANCH LINE CIRCUIT

Diagnosis Procedure

INFOID:0000000004219078

1.

CHECK CONNECTOR

1. Turn the ignition switch OFF.

2. Disconnect the battery cable from the negative terminal.

3. Check the following terminals and connectors for damage, bend and loose connection (unit side and con-

nector side).

-

ECM

-

Harness connector E47

-

Harness connector E48

-

Junction block

-

Harness connector E30

-

Harness connector M1

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS FOR OPEN CIRCUIT

1. Disconnect the connector of ECM.

2. Check the resistance between the ECM harness connector terminals.

Is the measurement value within the specification?

YES

>> GO TO 3.

NO

>> Repair the ECM branch line.

3.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the ECM. Refer to

EC-114, "Diagnosis Procedure"

.

Is the inspection result normal?

YES (Present error)>>Replace the ECM. Refer to

EC-14, "ADDITIONAL SERVICE WHEN REPLACING

CONTROL UNIT : Special Repair Requirement"

.

YES (Past error)>>Error was detected in the ECM branch line.

NO

>> Repair the power supply and the ground circuit.

ECM harness connector

Resistance (

Ω)

Connector No.

Terminal No.

E10

98

97

Approx. 108 – 132
