Nissan Altima HL32 Hybrid. Manual - part 755

REAR PARCEL SHELF FINISHER

INT-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REAR PARCEL SHELF FINISHER

Exploded View

INFOID:0000000004215427

Removal and Installation

INFOID:0000000004215428

REMOVAL

1. Remove the rear seat. Refer to

SE-22, "Removal and Installation"

.

2. Remove high mounted stop lamp (if equipped). Refer to

EXL-164, "Removal and Installation"

.

3. Remove rear pillar finisher RH/LH. Refer to

INT-16, "Removal and Installation"

.

4. Thread the rear seat belt RH/LH/Center through vertical opening and release from rear parcel shelf fin-

isher.

5. Remove the clips, then remove rear parcel shelf finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

1.

High mounted stop lamp (if equipped) 2.

Cover

3.

Child anchor cover

4.

Rear parcel shelf finisher

Front

Clip C101

ALJIA0058ZZ

INT-20

< ON-VEHICLE REPAIR >

REAR PARCEL SHELF FINISHER

Make sure that clips are fully aligned with panel holes on body when installing, then press them in

completely.

FLOOR TRIM

INT-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

FLOOR TRIM

Exploded View

INFOID:0000000004215429

Removal and Installation

INFOID:0000000004215430

REMOVAL

1. Remove front seat (RH/LH) and rear seat cushion. Refer to

SE-21, "Removal and Installation"

 (front seat)

and

SE-22, "Removal and Installation"

 (rear seat).

2. Remove lower body side trim. Refer to

INT-16, "Removal and Installation"

.

3. Remove center console. Refer to

IP-17, "Exploded View"

.

1.

Spacer (RH)

2.

Spacer (LH)

3.

Floor mat hook

4.

Floor carpet

5.

Harness clamp

Vehicle front

ALJIA0004ZZ

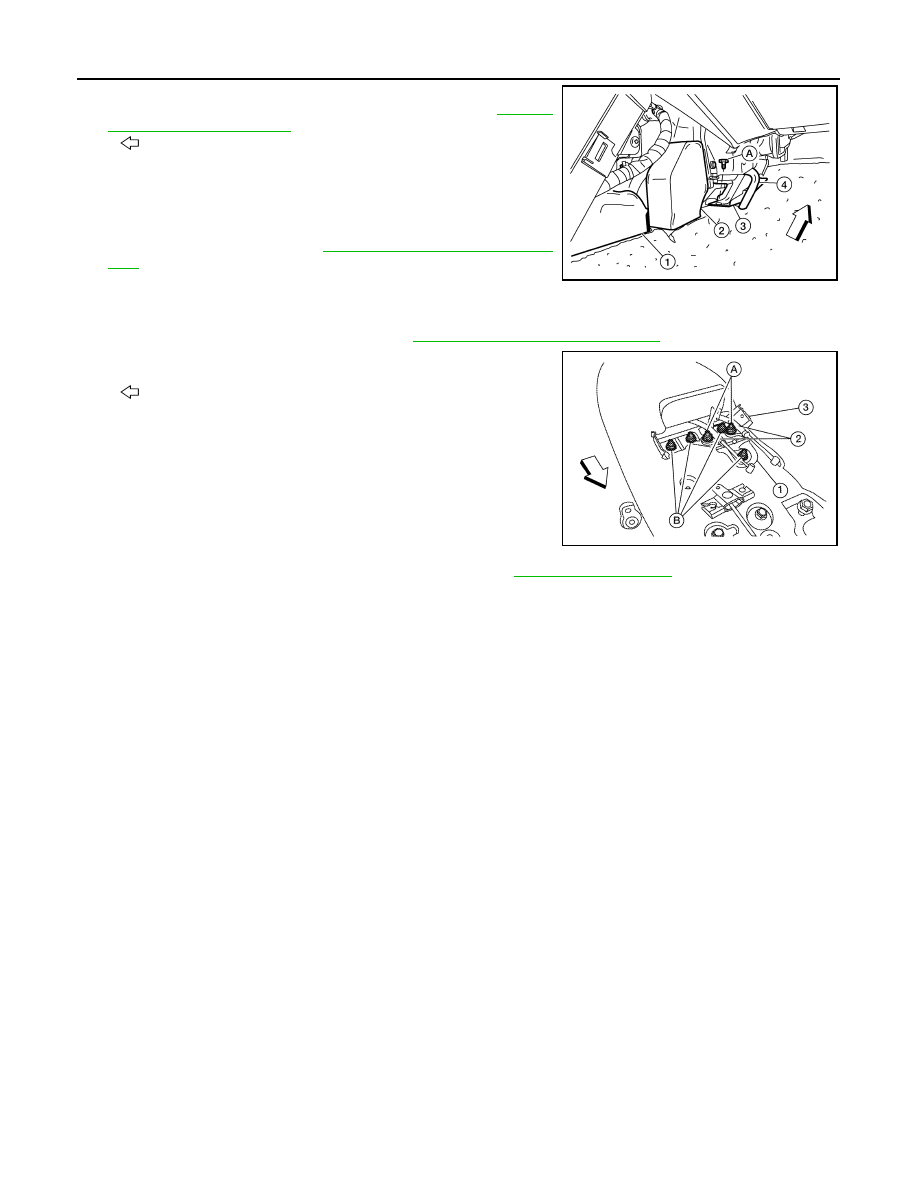

INT-22

< ON-VEHICLE REPAIR >

FLOOR TRIM

4. Remove the connector duct (RH/LH) (2) and the center connec-

tor duct (1) from heater and cooling unit. Refer to

VTL-17,

"Removal and Installation"

.

•

 Vehicle front

5. Remove the bracket bolt, then position the parking brake cable

aside.

6. Disconnect the drain hose (4) from the heater and cooling unit,

then set aside.

7. Remove the HV ECU. Refer to

HBC-644, "Removal and Installa-

tion"

.

8. Remove the three bolts (A) and one nut, then remove the

bracket (3).

9. Remove the diagnosis sensor unit. Refer to

SRS-16, "Removal and Installation"

.

10. Remove the parking brake cable nuts (A), then position the park-

ing brake cables (2) aside.
•

 Vehicle front

11. Remove the bracket nuts (B), then remove extension bracket (1)

and center console rear bracket (3).

12. Remove front seat belt floor anchor bolt (RH/LH). Refer to

SB-7, "Exploded View"

.

13. Release the tab, then remove floor mat hook.
14. Release the tabs and open harness clamps (seven - RH and seven - LH). Position harness and floor car-

pet cut-out areas outside of harness clamps.

15. Fold corners toward center, then remove floor carpet.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA0009ZZ

ALJIA0005ZZ
