ILLUMINATION

Removal and Installation

INFOID:0000000004216498

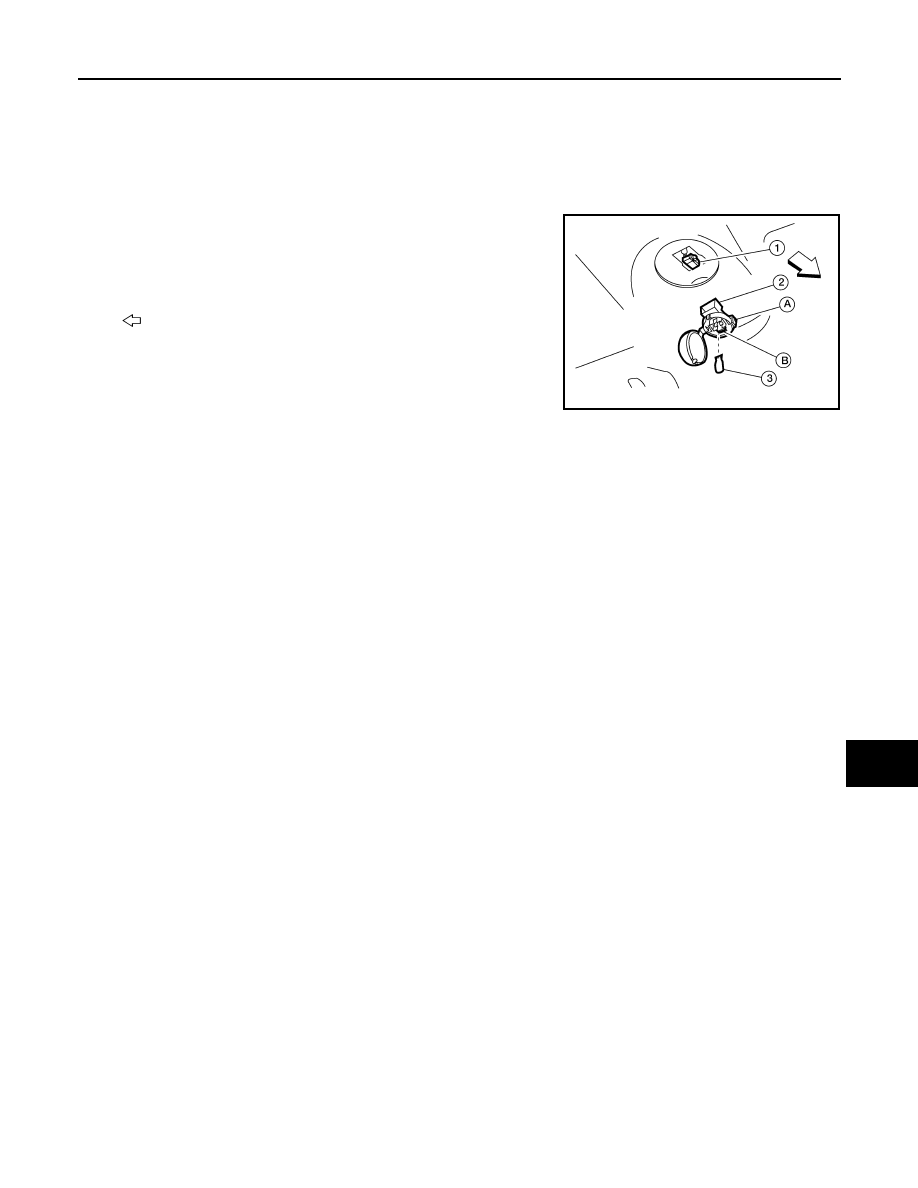

TRUNK ROOM LAMP

Removal

1. Release the tab (A), then swing open the lens.
2. Remove the bulb (3).
3. Release the tab (B), then pull trunk room lamp (2) away from

body opening.

4. Disconnect the connector (1) and remove trunk room lamp.

•

: Vehicle front

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1. Release the tab (A), then swing open the lens.
2. Pull bulb (3) straight out to remove.

ALLIA0014ZZ

Trunk room lamp bulb

: 12V - 3.4W

INL-92

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000004216499

* Always check with the Parts Department for the latest parts information.

Item

Type

Wattage (W)

Bulb No.*

Front room/map lamp

Wedge

8

B5

Push-button ignition switch illumination

LED

-

-

Vanity mirror lamp

Cylinder

-

HTU-14V

Glove box lamp

Wedge

-

-

Step lamp

Wedge

-

194

Personal lamp

Wedge

8

B5

Trunk room lamp

Wedge

3.4

158

INT-1

BODY INTERIOR

C

D

E

F

G

H

I

K

L

M

SECTION

INT

A

B

INT

N

O

P

CONTENTS

INTERIOR

SYMPTOM DIAGNOSIS  ...............................

2

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

2

Work Flow  .................................................................

2

Generic Squeak and Rattle Troubleshooting  ............

4

Diagnostic Worksheet  ...............................................

6

Clip and Fastener ......................................................

7

PRECAUTION ..............................................

10

PRECAUTIONS ..................................................

10

Supplemental Restraint System (SRS) "AIR BAG"
and "SEAT BELT PRE-TENSIONER" .....................

10

Necessary for Steering Wheel Rotation After Bat-
tery Disconnect  .......................................................

10

Precautions For High-Voltage System  ....................

10

Precautions .............................................................

11

PREPARATION ...........................................

12

PREPARATION ..................................................

12

Special Service Tools ..............................................

12

Commercial Service Tools  ......................................

12

ON-VEHICLE REPAIR .................................

13

DOOR FINISHER  ..............................................

13

Exploded View .........................................................

13

Removal and Installation  .........................................

14

BODY SIDE TRIM  .............................................

15

Exploded View .........................................................

15

Removal and Installation  .........................................

16

REAR PARCEL SHELF FINISHER  ..................

19

Exploded View .........................................................

19

Removal and Installation  .........................................

19

FLOOR TRIM  ....................................................

21

Exploded View .........................................................

21

Removal and Installation  .........................................

21

HEADLINING ....................................................

23

Exploded View .........................................................

23

Removal and Installation  .........................................

23

TRUNK ROOM TRIM & TRUNK LID FINISH-
ER ......................................................................

26

Exploded View .........................................................

26

Removal and Installation  .........................................

27

INT-2

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SYMPTOM DIAGNOSIS

SQUEAK AND RATTLE TROUBLE DIAGNOSES

Work Flow

INFOID:0000000004215415

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-

nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any

customer's comments. This information is necessary to duplicate the conditions that exist when the noise

occurs.

• The customer may not be able to provide a detailed descriptions or the location of the noise. Attempt to

obtain all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer is

concerned about. This can be accomplished by test driving the vehicle with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so the customer, service adviser and technician are all speaking the same language when

defining the noise.

• Squeak —(Like tennis shoes on a clean floor)

Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces

= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping

• Creak—(Like walking on an old wooden floor)

Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-

dent on materials/often brought on by activity.

• Rattle—(Like shaking a baby rattle)

Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing

clip or fastener/incorrect clearance.

• Knock —(Like a knock on a door)

Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

• Tick—(Like a clock second hand)

Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver

action or road conditions.

• Thump—(Heavy, muffled knock noise)

Thump characteristics include softer knock/dead sound often brought on by activity.

• Buzz—(Like a bumble bee)

Buzz characteristics include high frequency rattle/firm contact.

• Often the degree of acceptable noise level will vary depending upon the person. A noise that you may judge

as acceptable may be very irritating to the customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE
