P3004-800, P3004-801

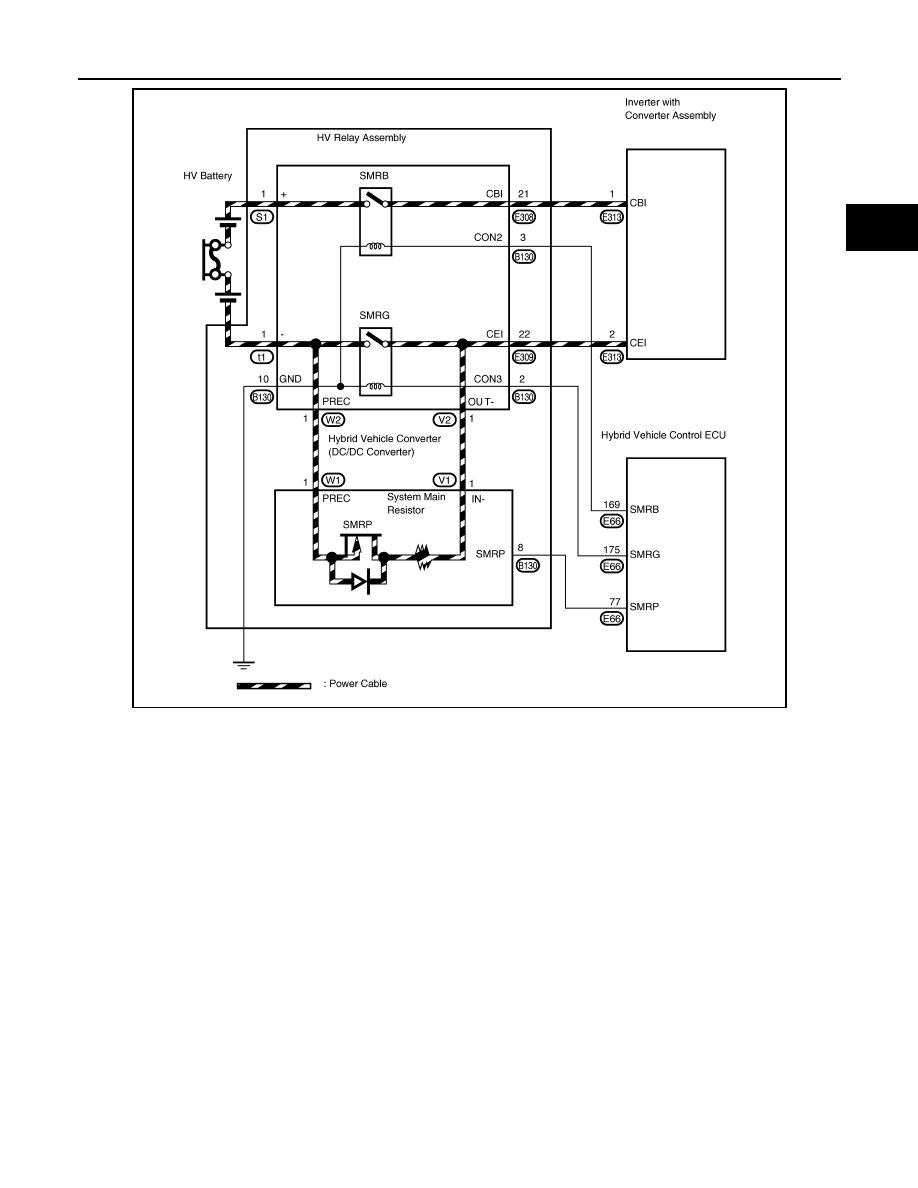

DTC Logic

INFOID:0000000004212128

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000004212129

1.

PRECONDITIONING

• Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with

converter assembly, take safety precautions such as wearing insulated gloves and removing the service

plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent

other technicians from accidentally reconnecting it while you are working on the high-voltage system.

• After disconnecting the service plug grip, wait for at least 10 minutes before touching any of the high-voltage

connectors or terminals.

JMCIA0125GB

DTC No.

INF code

Trouble diagnosis name

DTC detecting condition

Possible cause

P3004

800

Power cable malfunction

Excessive overcurrent occurs
during precharge (time from
when SMRP turns on until when
SMRG turns on).

• Wire harness or connector
• Air conditioning harness assembly
• Compressor with motor assembly
• Inverter with converter assembly
• HV relay assembly
• Floor  wire
• Hybrid vehicle converter (DC/DC

converter)

• Hybrid vehicle control ECU

801

Minimal overcurrent occurs dur-
ing precharge (time from when
SMRP turns on until when
SMRG turns on).

P3004-800, P3004-801

HBC-535

< COMPONENT DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

HBC

N

O

P

• Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with

converter assembly.

>> GO TO 2.

2.

CHECK DTC OUTPUT (HYBRID SYSTEM)

1. Turn ignition switch ON.

2. Check DTC.

Is DTC detected?

YES

>> Go to Diagnosis Procedure relevant to output DTC.

NO

>> GO TO 3.

3.

CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)

See

HBC-109, "Diagnosis Procedure"

.

OK or NG

OK

>> GO TO 4.

NG

>> Connect securely.

4.

CHECK ELECTRIC COMPRESSOR

CAUTION:

Be sure to wear insulated gloves.

1. Turn ignition switch OFF and remove the service plug grip. (See

HBC-632, "Precautions for Inspecting the

Hybrid Control System"

)

NOTE:

After removing the service plug grip, do not turn ignition switch ON (READY), unless instructed by the ser-

vice manual because this may cause a malfunction.

2. Disconnect the air conditioning harness from the inverter with

converter assembly (See

HBC-638, "Removal and Installation"

).

3. Measure the resistance according to the value(s) in the table

below.

NOTE:

• Do not use a megohmmeter.

• Make sure that the tester probes are connected to the correct

terminals.

OK or NG

DTC No.

Related part

P0A09-265, P0A10-263

Hybrid vehicle converter circuit

P0AFA, P0A1F, P3105

VB sensor circuit, battery smart unit circuit

P0ABF, P0AC0, P0AC1, P0AC2

IB sensor circuit

ALCIA0104ZZ

Air conditioning harness

assembly

Air conditioning harness

assembly

Resistance

Harness

connector

Terminal

Harness

connector

Terminal

F250

11

F250

12

100 k

Ω or higher

JMCIA0200GB

HBC-536

< COMPONENT DIAGNOSIS >

P3004-800, P3004-801

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

CHECK AIR CONDITIONING HARNESS ASSEMBLY

CAUTION:

Be sure to wear insulated gloves.

1. Check that the service plug grip is not installed.

2. Disconnect the air conditioning harness from the compressor

with motor assembly.

-

Green lock (1)

3. Measure the resistance according to the value(s) in the table

below.

OK or NG

OK

>> Replace electric compressor.

NG

>> Replace air conditioning harness assembly.

6.

CHECK FRAME WIRE

CAUTION:

Be sure to wear insulated gloves.

1. Check that the service plug grip is not installed.

2. Remove the compressor fuse cover from the inverter with converter assembly.

3. Disconnect the frame wire from the inverter with converter

assembly (See

HBC-638, "Removal and Installation"

).

4. Disconnect the frame wire from the HV relay assembly (See

HBB-105, "Removal and Installation"

).

ALCIA0109ZZ

Air conditioning harness

assembly

Air conditioning harness

assembly

Resistance

Harness

connector

Terminal

Harness

connector

Terminal

F250

11

F250

12

10 M

Ω or higher

JMCIA0200GB
