>> Repair or replace harness or connector (service plug grip - body ground).

NG

>> Repair or replace harness or connector (battery pack wire connector - service plug grip).

19.

CHECK INVERTER WITH CONVERTER ASSEMBLY (COMPRESSOR FUSE COVER OF INVERTER

WITH CONVERTER ASSEMBLY)

CAUTION:

Be sure to wear insulated gloves.

1. Turn ignition switch OFF and remove the service plug grip (See

HBC-632, "Precautions for Inspecting the

Hybrid Control System"

).

NOTE:

After removing the service plug grip, do not turn ignition switch to READY position, unless instructed by

the repair manual because this may cause a malfunction.

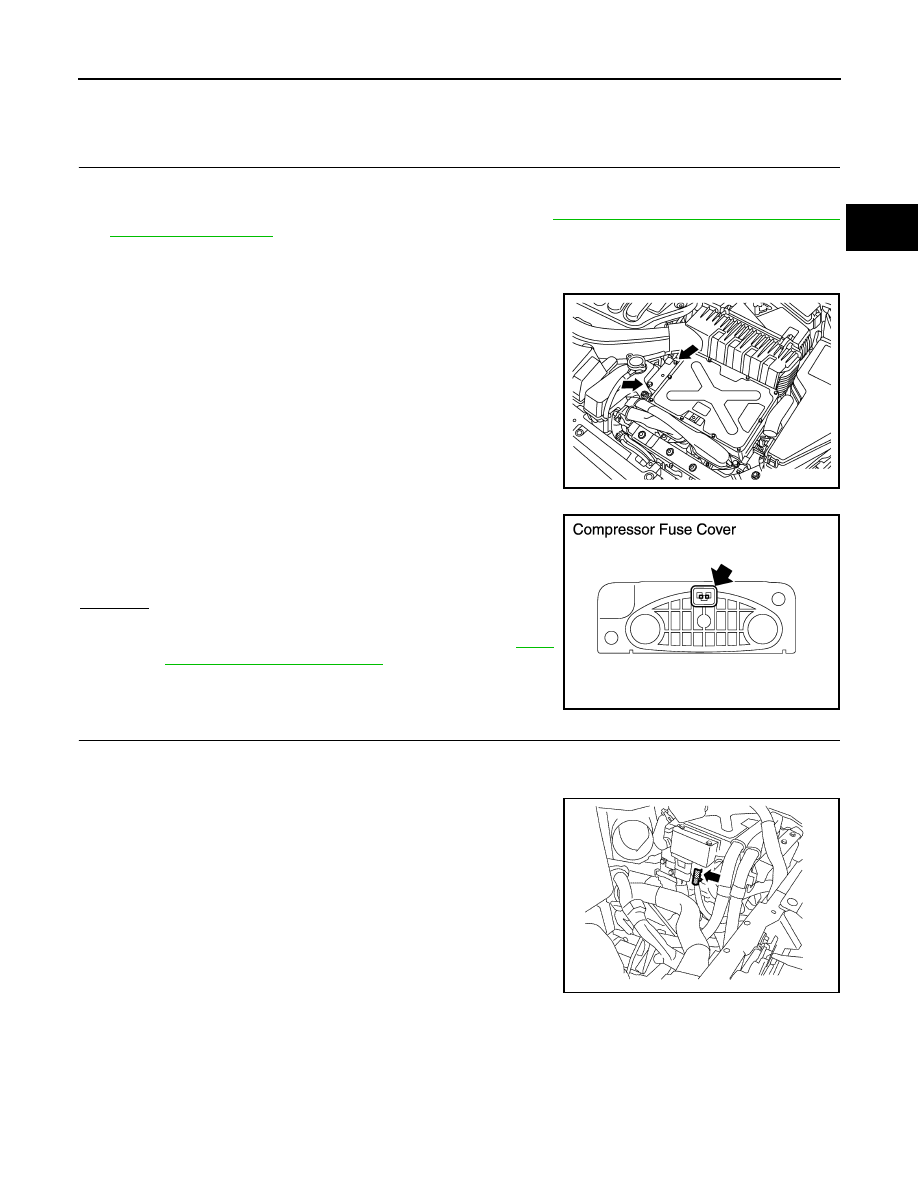

2. Remove the compressor fuse cover from the inverter with con-

verter assembly.

3. Check the condition of the compressor fuse cover interlock.

OK or NG

OK

>> GO TO 20.

NG

>> Replace inverter with converter assembly (See

HBC-

638, "Removal and Installation"

).

20.

CHECK AIR CONDITIONING HARNESS ASSEMBLY (INTERLOCK)

CAUTION:

Be sure to wear insulated gloves.

1. Check that the service plug grip is not installed.

2. Remove the air conditioning harness assembly from the inverter

with converter assembly.

ALCIA0103ZZ

• Dirt or foreign objects have not entered the connection
• There is no evidence of contamination.

JMCIA0143GB

ALCIA0104ZZ

HBC-150

< COMPONENT DIAGNOSIS >

P0A0D-350, P0A0D-351

3. Check the condition of the air conditioning harness assembly

interlock.

OK or NG

OK

>> Replace inverter with converter assembly (See

HBC-

638, "Removal and Installation"

).

NG

>> Replace air conditioning harness assembly.

21.

CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)

Refer to

HBC-109, "Diagnosis Procedure"

.

OK or NG

OK

>> GO TO 22.

NG

>> Connect securely.

22.

CHECK HARNESS AND CONNECTOR (HV CONTROL ECU - INVERTER WITH CONVERTER ASSEM-

BLY)
1. Turn ignition switch OFF.

2. Disconnect the hybrid vehicle control ECU harness connector E66.

3. Measure the resistance according to the value(s) in the table below.

OK or NG

OK

>> Replace hybrid vehicle control ECU (See

HBC-644, "Removal and Installation"

).

NG

>> Repair or replace harness or connector.

• Dirt or foreign objects have not entered the connection
• There is no evidence of contamination.

JMCIA0144GB

Hybrid vehicle control ECU

Inverter with converter assembly

Resistance

Harness

connector

Terminal

Harness

connector

Terminal

E66

94 (ILK)

E69

12 (ILKI)

Below 1

Ω

P0A0F-238

HBC-151

< COMPONENT DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

HBC

N

O

P

P0A0F-238

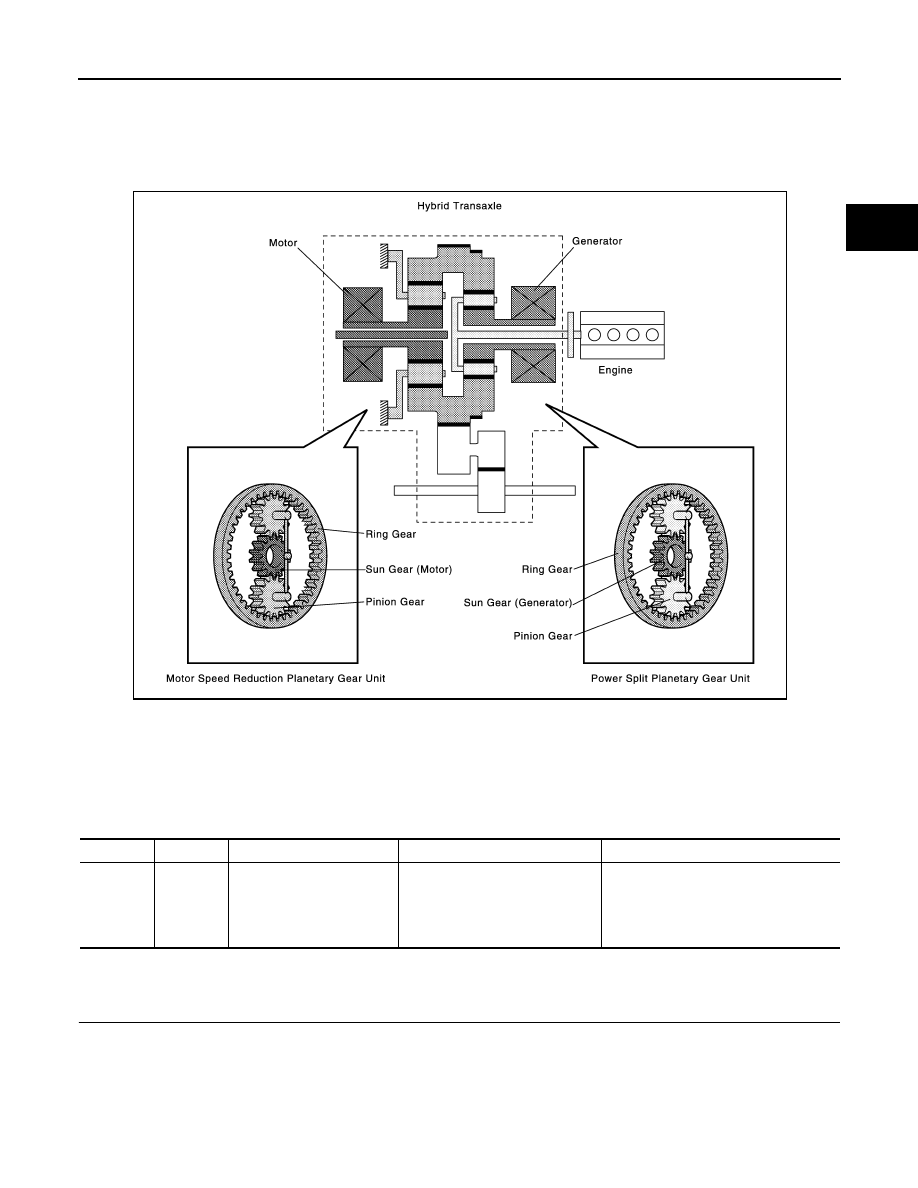

Description

INFOID:0000000004211801

The hybrid vehicle control ECU detects this DTC and effects fail-safe control if the engine or hybrid transaxle

gear has seized up, or foreign objects have been caught in either of them.

NOTE:

If this DTC is output, the engine or hybrid transaxle gear may be seized up. Be sure to check the level of the

engine oil, hybrid transaxle oil (ATF), and coolant before inspection.

DTC Logic

INFOID:0000000004211802

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000004211803

1.

PRECONDITIONING

• Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with

converter assembly, take safety precautions such as wearing insulated gloves and removing the service

plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent

other technicians from accidentally reconnecting it while you are working on the high-voltage system.

• After disconnecting the service plug grip, wait for at least 10 minutes before touching any of the high-voltage

connectors or terminals.

JMCIA0094GB

DTC No.

INF code

Trouble diagnosis name

DTC detecting condition

Possible cause

P0A0F

238

Engine failed to start

 Engine does not start even
though cranking it [hybrid transax-
le input malfunction (engine sys-
tem)]

• Engine
• Hybrid transaxle (shaft, gear)
• Transmission input damper
• Wire harness or connector
• Hybrid vehicle control ECU

HBC-152

< COMPONENT DIAGNOSIS >

P0A0F-238

• Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with

converter assembly.

>> GO TO 2.

2.

CHECK DTC OUTPUT (ENGINE)

1. Turn ignition switch ON.

2. Check DTC.
Is DTC detected?

YES

>> Go to Diagnosis Procedure relevant to output DTC.

NO

>> GO TO 3.

3.

CHECK CRANKSHAFT PULLEY REVOLUTION (P POSITION)

1. Turn ignition switch OFF, move the shift lever to the P position, and lift up the vehicle.

2. Turn the crankshaft pulley by hand to check if the crankshaft rotates.

CAUTION:

Do not turn ignition switch to READY position while performing this inspection. Be sure to turn

ignition switch OFF before performing this inspection, to prevent the engine from starting.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 12.

4.

CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - CRANKSHAFT POSITION

SENSOR)
See

EC-252, "Diagnosis Procedure"

.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace harness or connector.

5.

INSPECT CRANKSHAFT POSITION SENSOR

See

EC-253, "Component Inspection"

.

OK or NG

OK

>> GO TO 6.

NG

>> Replace crankshaft position sensor.

6.

CHECK DTC OUTPUT (HYBRID SYSTEM)

1. Check DTC.

2. Confirm and record the DTCs, freeze frame data, and information for the HV system.

>> GO TO 7.

7.

CLEAR DTC

1. Clear DTC.

>> GO TO 8.

8.

CHECK READY LIGHT ON

1. Turn ignition switch ON.

2. Select “MG1 REVOLUTION” and “ENGINE SPEED” in “” mode with CONSULT-III.

3. Depress the brake pedal and turn ignition switch to READY position.

NOTE:

The crankshaft rotates.

The READY light comes on.
