HYBRID TRANSAXLE

HBC-49

< FUNCTION DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

HBC

N

O

P

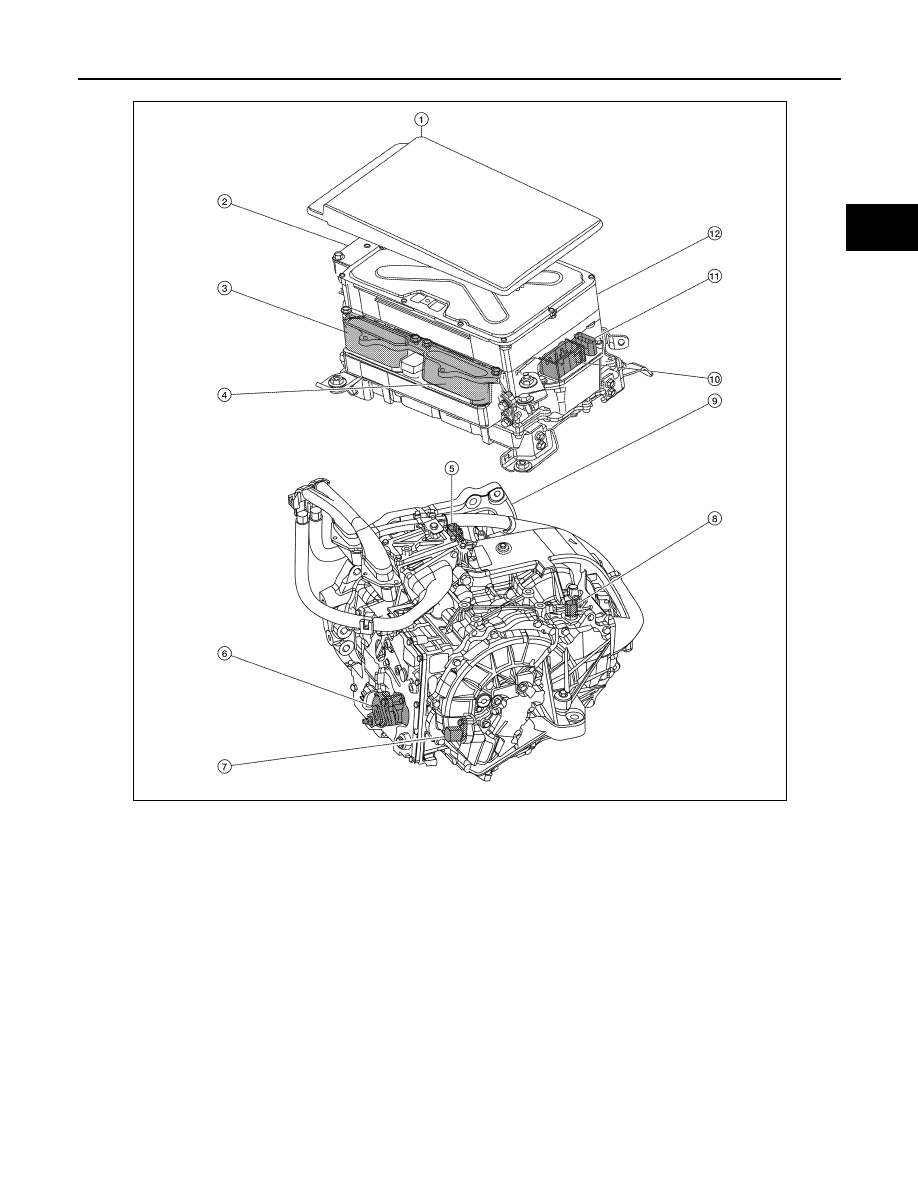

1.

Cover

2.

Compressor fuse cover

3.

MG1 connector

4.

MG2 connector

5.

Generator resolver and generator
temperature sensor

6.

Park/Neutral position (PNP) switch

7.

Motor resolver

8.

Motor temperature sensor

9.

Hybrid transaxle (MG1, MG2, motor
speed reduction planetary gear unit,
power split planetary gear unit)

10. Inverter with converter assembly

connector (MG ECU)

11. Inverter with converter assembly

connector (Resolver)

12. Inverter with converter assembly

(Boost converter, inverter, MG ECU)

AWCIA0014ZZ

HBC-50

< FUNCTION DIAGNOSIS >

HYBRID TRANSAXLE

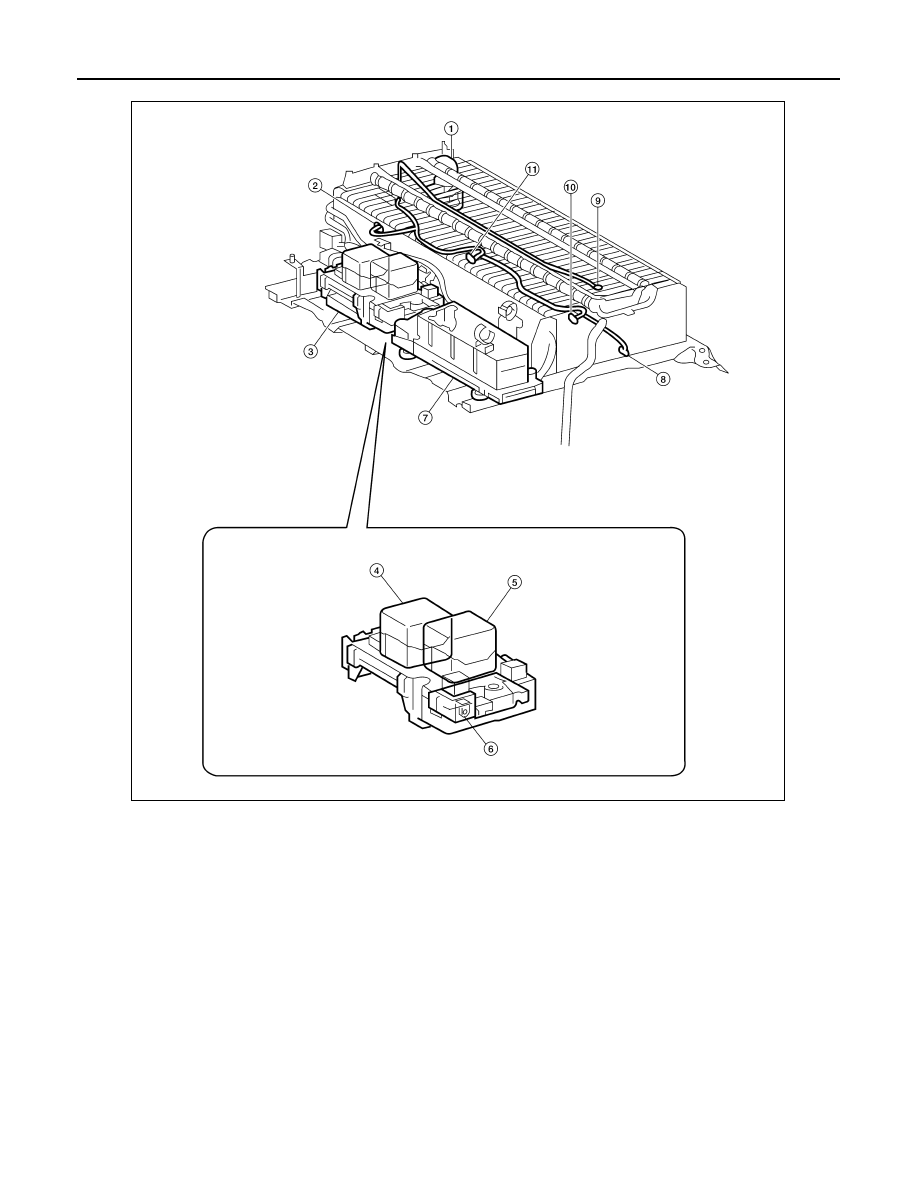

1.

Service plug grip

2.

Battery temperature sensor 0

3.

Battery smart unit

4.

SMRG

5.

SMRB

6.

Battery current sensor

7.

Hybrid vehicle converter

8.

Battery temperature sensor 3

9.

Intake air temperature sensor

10. Battery temperature sensor 2

11. Battery temperature sensor 1

ALCIA0004ZZ

COOLING SYSTEM FOR INVERTER, MG1 AND MG2

HBC-51

< FUNCTION DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

HBC

N

O

P

COOLING SYSTEM FOR INVERTER, MG1 AND MG2

System Diagram

INFOID:0000000004211741

System Description

INFOID:0000000004211742

• An inverter cooling system that is independent from the engine cooling system has been provided to cool the

inverter, MG1 and MG2.

• This inverter cooling system activates when the power supply status is switched to the READY ON state.

• A sub radiator, which is exclusively used for the inverter, MG1 and MG2, has been provided in front of the

radiator and condenser assembly (for the engine cooling and A/C).

Specifications

• The inverter cooling system is filled at the factory with a high-qual-

ity, year-round, anti-freeze coolant solution. The anti-freeze solu-

tion contains rust and corrosion inhibitors. Therefore, additional

inverter cooling system additives are not necessary.

CAUTION:

When adding or replacing coolant, always use only Genuine

NISSAN Long Life Antifreeze/ Coolant or equivalent with the

proper mixture ratio of 50% anti-freeze and 50% demineralized

water/distilled water.

Other types of coolant solutions may damage your inverter

cooling system.

1.

Coolant reservoir

2.

Water pump with motor and bracket
assembly

3.

Sub radiator

AWCIA0001ZZ

Water Pump

Discharge Volume

liter/min.

10 or above [65

°C (149°F)]

Coolant

Capacity

US measure (Imp. measure/Liters)

7/8 gal (3/4 gal, 3.2)

Type

NISSAN Genuine Long Life Coolant (LLC) or the

equivalent

Maintenance
Intervals

First Time

60,000 miles (96,000 km) or 48 months

Subsequent

Every 30,000 miles (48,000 km) or 24 months

SMA947CA

HBC-52

< FUNCTION DIAGNOSIS >

COOLING SYSTEM FOR INVERTER, MG1 AND MG2

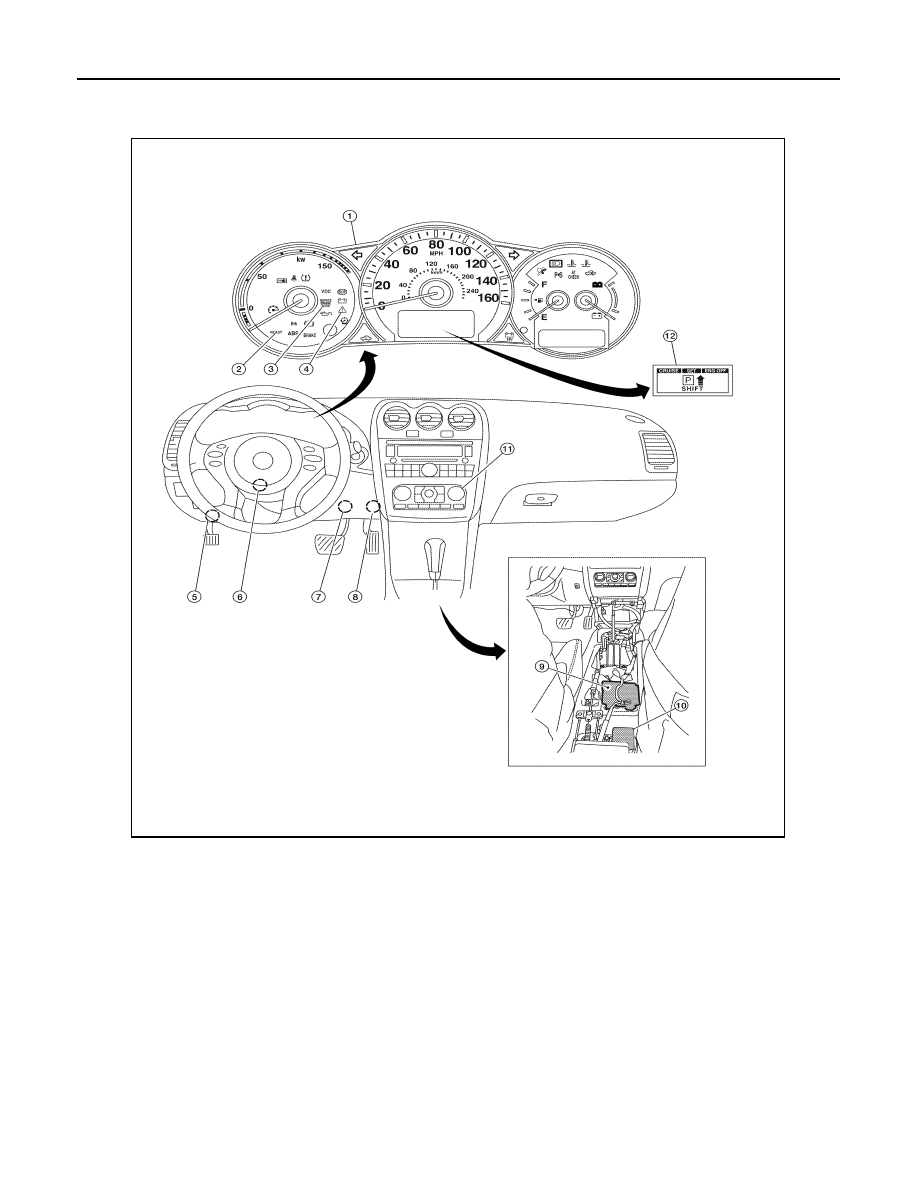

Component Parts Location

INFOID:0000000004211743

1.

Combination meter

2.

READY operation indicator light

3.

Malfunction indicator light

4.

Master warning light

5.

Data link connector

6.

Steering angle sensor

7.

Stop lamp switch

8.

Accelerator pedal position sensor

9.

ACU (Air bag diagnosis sensor unit)

10. Yaw rate/side G sensor

11. Controller (A/C auto AMP.)

12. Vehicle information display indicator

ALCIA0008ZZ
