PLEASE HELP MAKE THIS SERVICE MANUAL BETTER!

Your comments are important to NISSAN and will help us to improve our Service Manuals.
Use this form to report any issues or comments you may have regarding our Service Manuals.
Please print this form and type or write your comments below. Mail or fax to:

Nissan North America, Inc.
Technical Service Information
39001 Sunrise Drive, P.O. Box 9200
Farmington Hills, MI USA 48331
FAX: (248) 488-3910

SERVICE MANUAL: Model:

Year:

PUBLICATION NO. (Refer to Quick Reference Index ):
Please describe any Service Manual issues or problems in detail:
Page number(s)

Note: Please include a copy of each page, marked with your comments.

Are the trouble diagnosis procedures logical and easy to use? (circle your answer)

YES

NO

If no, what page number(s)?

Note: Please include a copy of each page, marked with your comments.

Please describe the issue or problem in detail:

Is the organization of the manual clear and easy to follow? (circle your answer)

YES

NO

Please comment:

What information should be included in NISSAN Service Manuals to better support you in servicing or
repairing customer vehicles?

DATE:

YOUR NAME:

POSITION:

DEALER:

DEALER NO.:

ADDRESS:

CITY:

STATE/PROV./COUNTRY:

ZIP/POSTAL CODE:

2009

QUICK REFERENCE CHART: ALTIMA HYBRID

QUICK REFERENCE CHART: ALTIMA HYBRID

Engine Tune-up Data

INFOID:0000000003351824

GENERAL SPECIFICATIONS

SPARK PLUG

Unit: mm (in)

Cylinder arrangement

In-line 4

Displacement cm

3

 (in

3

)

2,488 (151.82)

Bore and stroke mm (in)

89.0 x 100 (3.50 x 3.94)

Valve arrangement

DOHC

Firing order

1-3-4-2

Number of piston rings

Compression

2

Oil

1

Compression ratio

9.5:1

Compression pressure                                  kPa
(kg/cm

2

, psi) / 250 rpm

Standard

1,250 (12.8, 181.3)

Minimum

1,060 (10.8, 153.7)

Differential limit be-
tween cylinders

100 (1.0, 14)

Valve timing

Unit: degree

a

b

c

d

e

f

220

°

232

°

-41

°

93

°

10

°

30

°

PBIC0187E

Make

NGK

Type

Standard

DILKAR6A-11

Gap (nominal)

1.1 (0.043)

QUICK REFERENCE CHART: ALTIMA HYBRID

2009

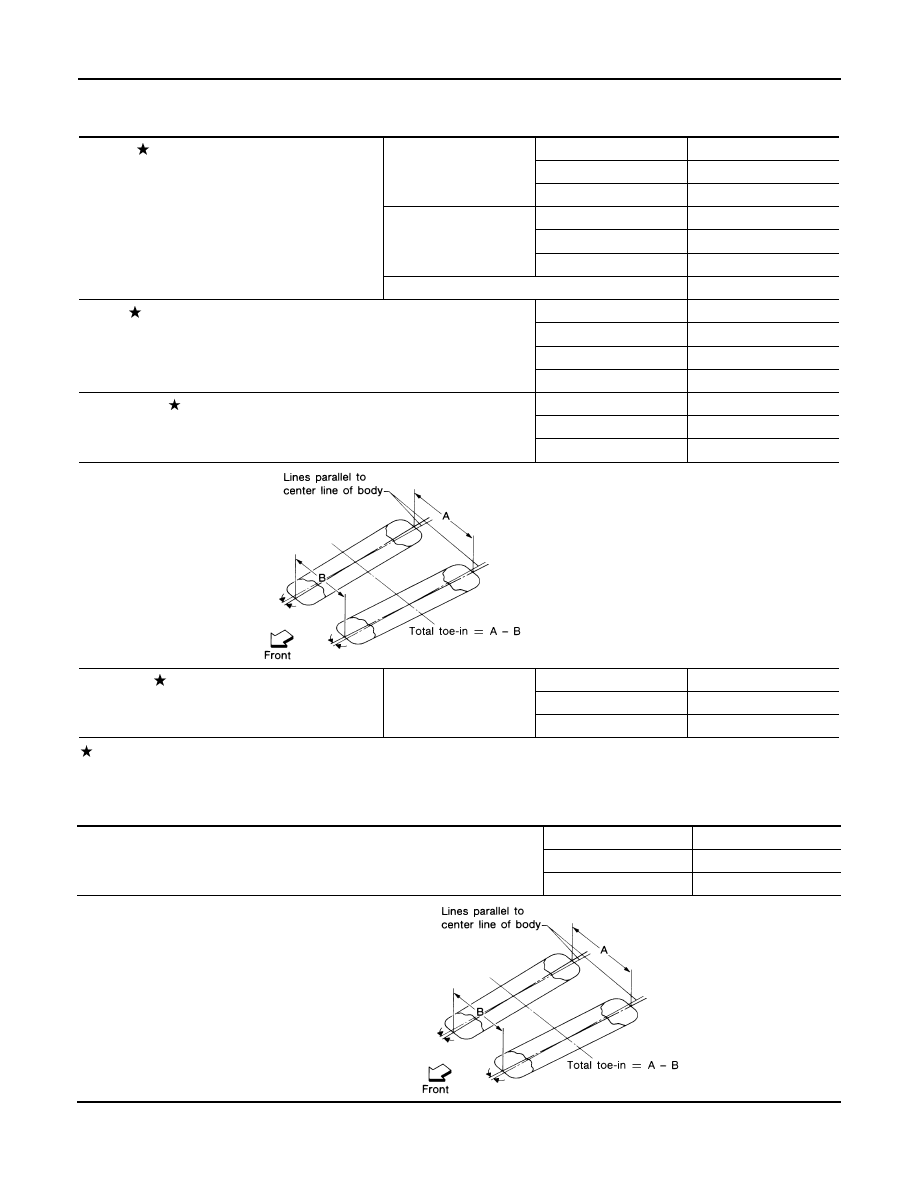

Front Wheel Alignment

INFOID:0000000003351823

: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

Rear Wheel Alignment (Unladen*)

INFOID:0000000003351821

Camber
Decimal degree

LH

Minimum

– 1.15

°

Nominal

– 0.40

°

Maximum

0.35

°

RH

Minimum

– 1.40

°

Nominal

– 0.65

°

Maximum

0.10

°

Left and right difference

0.75

°

Caster
Decimal degree

Minimum

4.25

°

Nominal

5.00

°

Maximum

5.75

°

Left and right difference

0.75

°

Kingpin offset
Decimal degree

Minimum

11.80

°

Nominal

12.55

°

Maximum

13.30

°

Total toe-in

Distance (A - B)

Minimum

0 mm (0 in)

Nominal

1 mm (0.04 in)

Maximum

2 mm (0.08 in)

SFA234AC

Camber
Degree minute (Decimal degree)

Minimum

−0° 45′ (−0.749°)

Nominal

−0° 15′ (−0.249°)

Maximum

−0° 15′ (0.251°)

SFA234AC

2009

QUICK REFERENCE CHART: ALTIMA HYBRID

*: Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

Wheel Height

INFOID:0000000003351822

Unit: mm (in)

*: Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

Brake Specifications

INFOID:0000000003351817

Unit: mm (in)

Brake Pedal

INFOID:0000000003351818

Total toe-in

Distance (A

− B)

mm (in)

2.4 (0.09)

Distance difference
between RH and LH side
mm (in)

Minimum

−2 (−0.08)

Nominal

0 (0)

Maximum

2 (0.08)

Angle (left plus right)
Degree minute (decimal degree)

0

° 6′ (0.109°)

Destination

USA

Canada

Tire size

215/60R16

215/60R16

Front (Hf)*

727 (28.62)

727 (28.62)

Rear (Hr)*

718 (28.27)

719 (28.31)

SFA818A

Front brake

Cylinder bore diameter (each)

57.2 (2.25)

Pad length

× width × thickness

132

× 50 × 11 (5.20 × 1.969 × 0.433)

Rotor outer diameter

× thickness

296

× 26 (11.65 × 1.024)

Rear brake

Cylinder bore diameter

34.93 (1.375)

Pad length

× width × thickness

83.0

× 31.9 × 8.5 (3.268 × 1.256 × 0.335)

Rotor outer diameter

× thickness

292

× 9 (11.50 × 0.35)

Recommended brake fluid

DOT 3

 Brake pedal height (from dash lower panel top surface)

190.7 - 202.7 mm (7.51 - 7.98 in)

Depressed pedal height [under a force of 490 N (50 kg-f, 110 lb-f) with engine running]

60.7 - 72.7 mm (2.39 - 2.86  in)

Clearance between stopper rubber and threaded end of the stop lamp switch and brake
switch

0.74 - 1.96 mm (0.0291 - 0.0772 in)

 Pedal play

3 - 11 mm (0.12 - 0.43 in)
