Nissan Altima HL32 Hybrid. Manual - part 456





FL-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000004211683

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

Precautions For High-Voltage System

INFOID:0000000004211684

Refer to

GI-24, "Precautions For High-Voltage System"

.

Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000004501285

NOTE:

• Before removing and installing any control units, first turn the push-button ignition switch to the LOCK posi-

tion, then disconnect both 12-volt battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect both 12-

volt battery cables.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

This vehicle is equipped with a push-button ignition switch and a steering lock unit.

If the 12-volt battery is disconnected or discharged, the steering wheel will lock and cannot be turned.

If turning the steering wheel is required with the 12-volt battery disconnected or discharged, follow the proce-

dure below before starting the repair operation.

OPERATION PROCEDURE

1. Connect both 12-volt battery cables.

NOTE:

Supply power using jumper cables if 12-volt battery is discharged.

2. Carry the Intelligent Key or insert it to the key slot and turn the push-button ignition switch to ACC position.

(At this time, the steering lock will be released.)

3. Disconnect both 12-volt battery cables. The steering lock will remain released with both 12-volt battery

cables disconnected and the steering wheel can be turned.

4. Perform the necessary repair operation.
5. When the repair work is completed, re-connect both 12-volt battery cables. With the brake pedal released,

turn the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steer-

ing wheel will lock when the push-button ignition switch is turned to LOCK position.)

6. Perform self-diagnosis check of all control units using CONSULT-III.

PREPARATION

FL-3

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

PREPARATION

PREPARATION

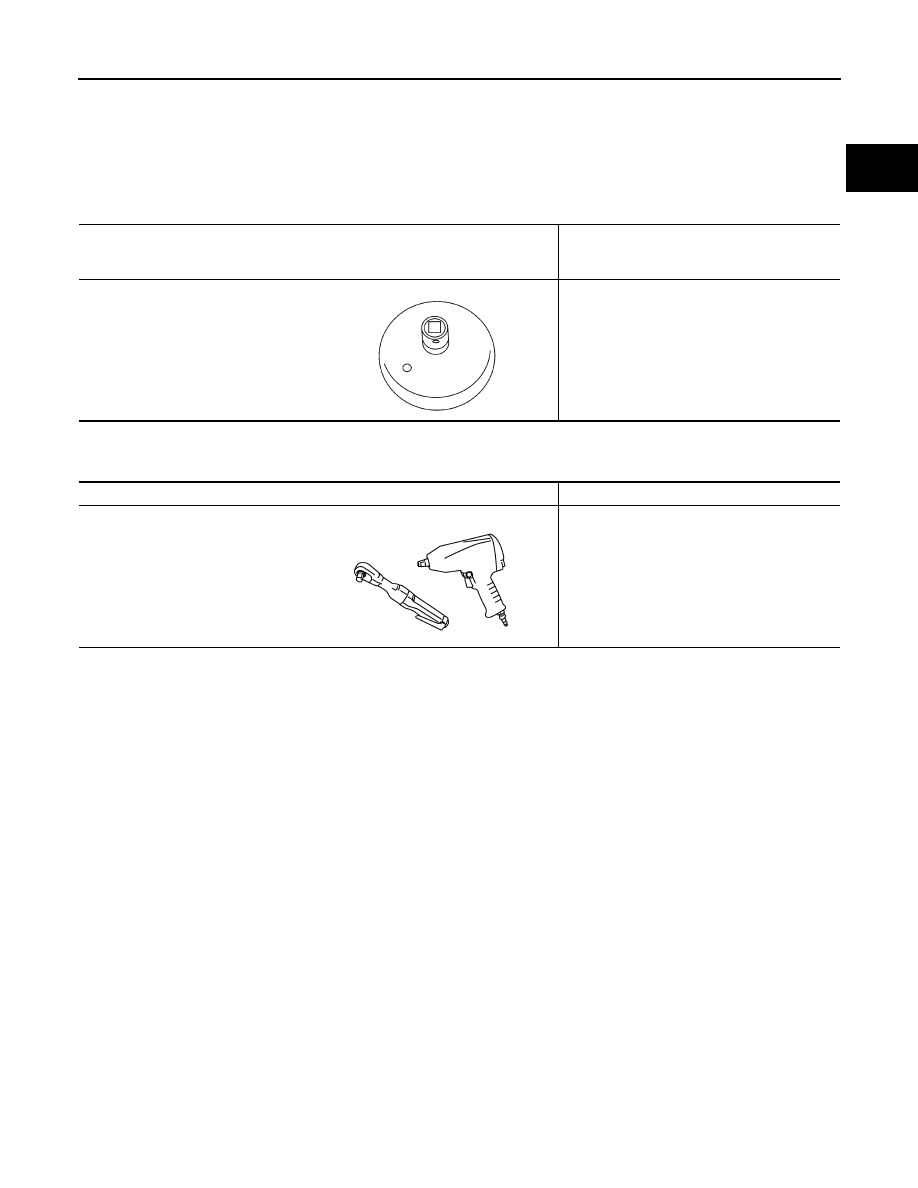

Special Service Tool

INFOID:0000000004211685

The actual shape of the Kent-Moore tools may differ from those tools illustrated here.

Commercial Service Tool

INFOID:0000000004211686

Tool number
(Kent-Moore No.)
Tool name

Description

KV991J0090
(J-46214)
Fuel tank lock ring wrench

Removing and installing fuel tank lock ring

LBIA0353E

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

FL-4

< ON-VEHICLE MAINTENANCE >

FUEL SYSTEM

ON-VEHICLE MAINTENANCE

FUEL SYSTEM

Inspection

INFOID:0000000004211687

Inspect fuel lines, fuel filler cap and fuel tank for improper attach-

ment, leaks, cracks, damage, loose connections, chafing or deterio-

ration.

If necessary, repair or replace damaged parts.

Quick Connector

INFOID:0000000004211688

CAUTION:

• After connecting fuel tube quick connectors, make sure quick

connectors are secure.

Ensure that connector and resin tube do not contact any adja-

cent parts.

SMA803A

SBIA0504E

FUEL SYSTEM

FL-5

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

FUEL SYSTEM

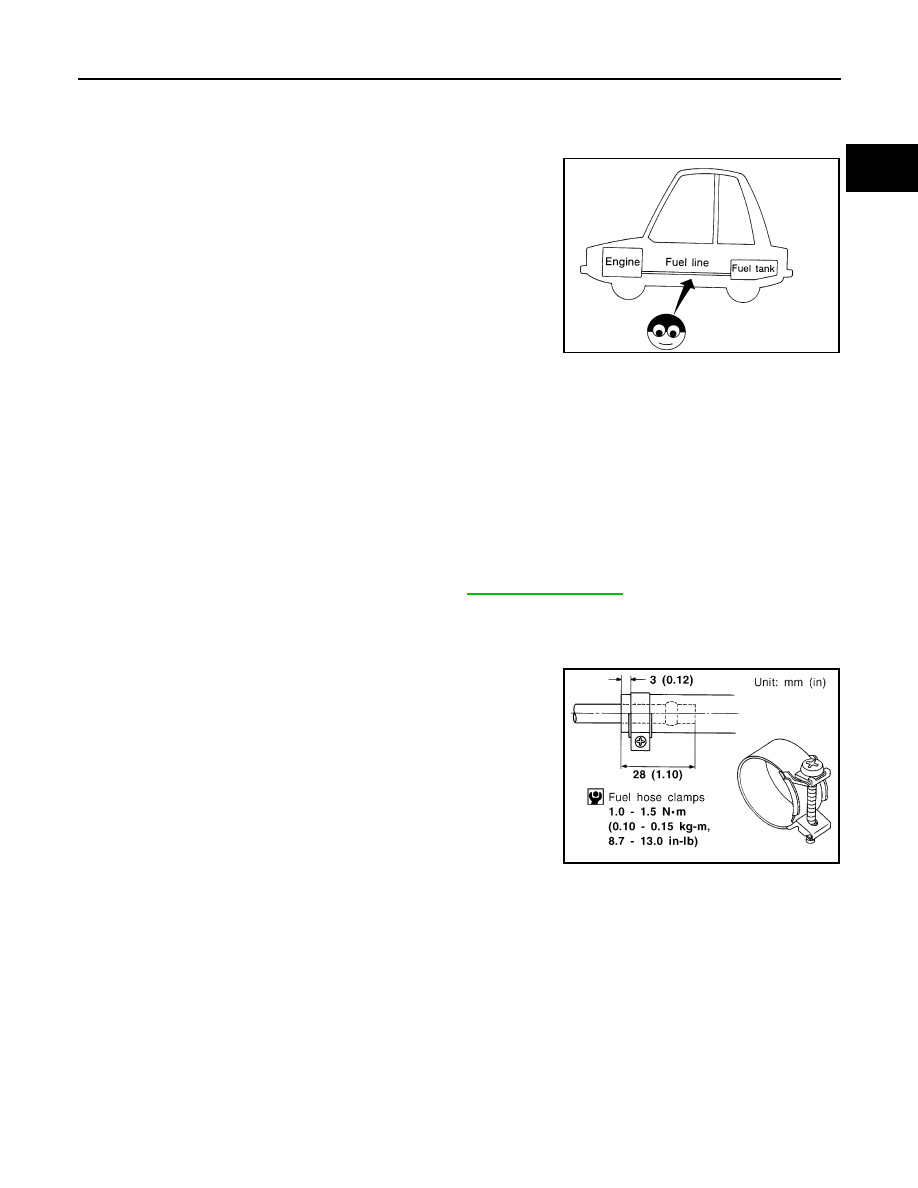

Checking Fuel Line

INFOID:0000000004211689

Inspect fuel lines, filler cap and tank for improper attachment, leaks,

cracks, damage, loose connections, chafing or deterioration.

If necessary, repair or replace faulty parts as necessary.

General Precaution

INFOID:0000000004211690

WARNING:

When replacing fuel line parts, be sure to observe the following.

• Put a “CAUTION: FLAMMABLE” sign in the work area.
• Be sure to work in a well ventilated area and have a CO

2

 fire extinguisher.

• Do not smoke while working on the fuel system. Keep open flames and sparks away from the work

area.

CAUTION:

• Before removing fuel line parts, carry out the following procedures:

- Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in

safe area.

- Release fuel pressure from the fuel lines. Refer to

EC-465, "Inspection"

.

- Disconnect the battery ground cable.

• Always replace O-rings and clamps with new ones.

• Do not kink or twist tubes when they are being installed.

• Do not tighten hose clamps excessively to avoid damaging hoses.

Tighten high-pressure rubber hose clamp so that clamp end

is 3 mm (0.12 in) from hose end.

Tightening torque specifications are the same for all rubber

hose clamps.

Ensure that screw does not contact adjacent parts.

SMA803A

MMA104A
