EM-34

< ON-VEHICLE REPAIR >

[QR25DE]

IGNITION COIL

IGNITION COIL

Removal and Installation

INFOID:0000000004211246

REMOVAL

1. Remove the engine cover.
2. Disconnect the harness connector from the ignition coil.
3. Remove the ignition coil.

CAUTION:

Do not drop or shock it.

INSTALLATION

Installation is in the reverse order of removal.

1.

Ignition coil

2.

Spark plug

3.

Rocker cover

AWBIA0208GB

FUEL INJECTOR AND FUEL TUBE

EM-35

< ON-VEHICLE REPAIR >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

FUEL INJECTOR AND FUEL TUBE

Removal and Installation

INFOID:0000000004211247

CAUTION:

• Apply new engine oil to parts before installing the parts, as shown above.

• Do not remove or disassemble parts unless instructed as shown.

REMOVAL

1. Release the fuel pressure. Refer to

EC-465, "Inspection"

.

2. Remove the intake air duct. Refer to

EM-24, "Removal and Installation"

.

3. Disconnect the fuel hose quick connector at the fuel tube side.

CAUTION:

• Prepare a container and cloth for catching any spilled fuel.

• This operation should be performed in a place that is free from any open flames.

• While hoses are disconnected seal their openings with vinyl bag or similar material to prevent

foreign material from entering them.

4. Remove the intake manifold. Refer to

EM-25, "Removal and Installation"

.

5. Disconnect sub-harness for injector at engine front side, and remove it from bracket.

AWBIA0077ZZ

1.

Fuel tube protector

2.

Fuel tube

3.

Upper O-ring (black)

4.

Clip

5.

Fuel injector

6.

Lower O-ring (green)

7.

Intake manifold adapter

A. Follow the installation steps

EM-36

< ON-VEHICLE REPAIR >

[QR25DE]

FUEL INJECTOR AND FUEL TUBE

6. Remove the fuel tube assembly bolts in the reverse order as

shown, then remove the fuel tube and fuel injectors as an

assembly.

7. Remove the fuel injectors from the fuel tube.

• Release the clip and remove the fuel injector.

• Pull fuel injector straight out of the fuel tube.

CAUTION:

• Be careful not to damage the nozzle.

• Avoid any impact, such as dropping the fuel injector.

• Do not disassemble or adjust the fuel injector.

INSTALLATION

1. Install new O-rings on the fuel injector, the fuel side black O-ring and the nozzle side green O-ring.

CAUTION:

• Upper and lower O-rings are different. Be careful not to confuse them.

- Fuel tube side: black O-ring

- Nozzle side: green O-ring

• Lubricate the O-rings lightly with new engine oil.

• Handle O-rings with bare hands only. Do not wear gloves.

• Do not clean O-rings with solvent.

• Make sure that O-ring and its mating part is free of foreign material.

• Be careful not to scratch O-rings during installation.

• Do not twist or stretch the O-ring. If the O-ring was stretched while it is attached, do not insert it

into the fuel tube immediately.

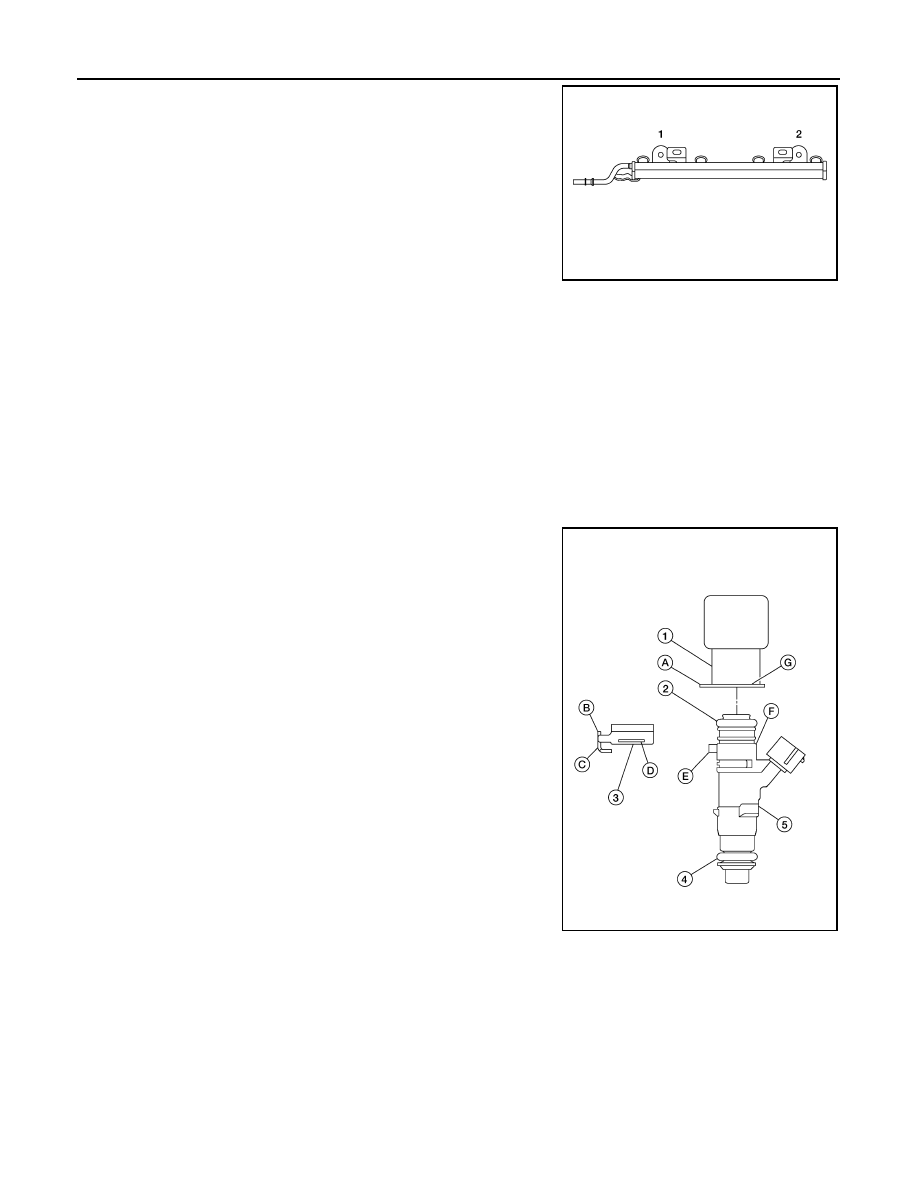

2. Install the fuel injector (5) into the fuel tube (1) with the following

procedure:

• Do not reuse the clip (3), replace it with a new one.

• Insert the new clip (3) into the clip mounting groove (F) on fuel

injector (5).

• Insert the clip (3) so that projection (E) of fuel injector (5)

matches notch (C) of the clip (3).

• Fuel tube side: black O-ring (2)

• Nozzle side: green O-ring (4)

3. Insert fuel injector (5) into fuel tube (1) with clip (3) attached.

• Insert it while matching it to the axial center.

• Insert fuel injector (5) so that projection (A) of fuel tube (1)

matches notch (B) of the clip (3).

• Make sure that fuel tube flange (G) is securely fixed in flange

fixing groove (D) on the clip (3).

• Make sure that installation is complete by checking that fuel

injector (5) does not rotate or come off.

4. Install the fuel tube assembly.
a. Insert the tip of each fuel injector into the intake manifold adapter.

ALBIA0188ZZ

AWBIA0078ZZ

FUEL INJECTOR AND FUEL TUBE

EM-37

< ON-VEHICLE REPAIR >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

b. Tighten the fuel tube assembly bolts in two steps in the numeri-

cal order as shown.

CAUTION:

• After properly connecting fuel tube assembly to injector

and fuel hose, check connection for fuel leakage.

5. Install the intake manifold. Refer to

EM-25, "Removal and Installation"

.

6. Connect the fuel hose quick connector.
7. Installation of the remaining components is in the reverse order of removal.

INSPECTION AFTER INSTALLATION

Make sure there is no fuel leakage at connections as follows:
1. Apply fuel pressure to fuel lines using CONSULT III. Then check for fuel leaks at connections.
2. Start the Hybrid System and rev it up using CONSULT III and check for fuel leaks at connections.

• Perform procedures for “Throttle Valve Closed Position Learning” after finishing repairs. Refer to

EC-15,

"THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

• If electric throttle control actuator is replaced, perform procedures for “Idle Air Volume Learning” after

finishing repairs. Refer to

EC-16, "IDLE AIR VOLUME LEARNING : Special Repair Requirement"

.

WARNING:

Do not touch engine immediately after stopping as engine is extremely hot.

NOTE:

Use mirrors for checking on connections out of the direct line of sight.

Fuel tube assembly bolts
Step 1

: 10 N·m (1.0 kg-m, 7 ft-lb.)

Step 2

: 22 N·m (2.2 kg-m, 16 ft-lb.)

ALBIA0188ZZ
