Nissan Altima HL32 Hybrid. Manual - part 170

BRM-34

< ON-VEHICLE REPAIR >

REPLACEMENT OPERATIONS

Hoodledge

INFOID:0000000004216231

ALKIA0084GB

Change parts

z

Front strut housing (LH)

z

Upper front hoodledge

z

Hoodledge reinforcement

z

Hoodledge connector

z

Radiator core support upper

z

Hoodledge reinforcement rear

REPLACEMENT OPERATIONS

BRM-35

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

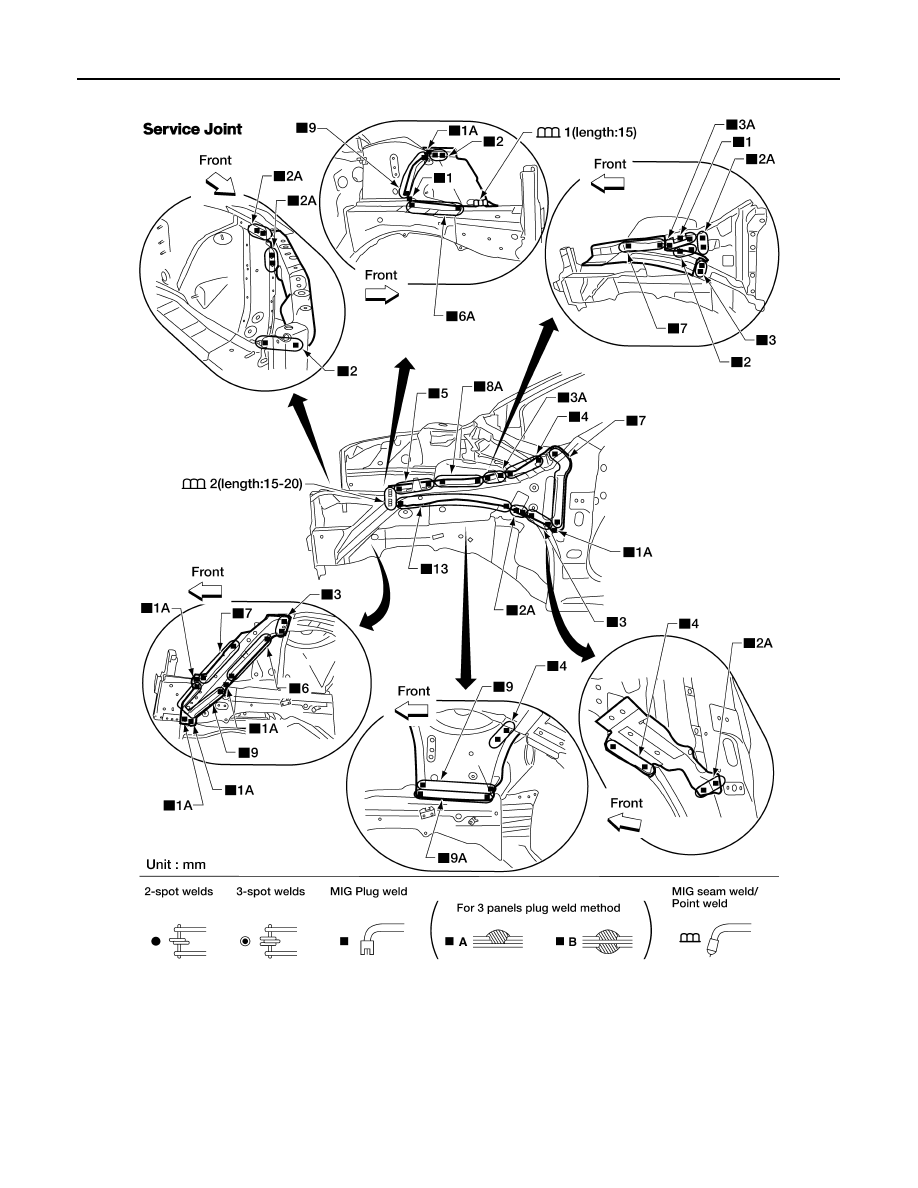

Front Side Member

INFOID:0000000004216232

• Work after hoodledge partial has been removed.

Change parts

z

Front side member rear assembly

z

Front side member rear reinforcement

z

Front suspension member plate

z

Front side member outrigger assembly

z

Front side member rear closing plate as-
sembly

ALKIA0085GB

BRM-36

< ON-VEHICLE REPAIR >

REPLACEMENT OPERATIONS

Front Side Member (Partial Replacement)

INFOID:0000000004216233

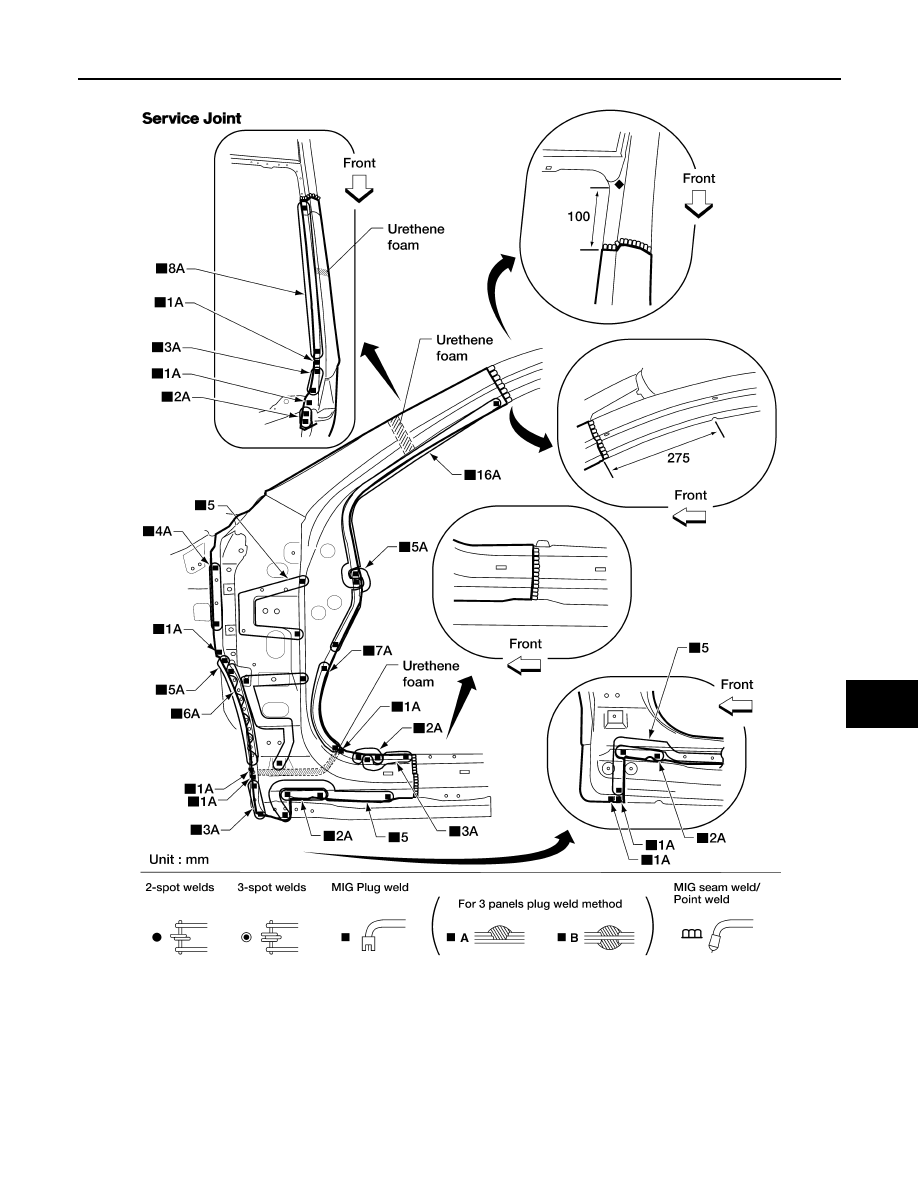

Front Pillar

INFOID:0000000004216234

OUTER

ALKIA0086GB

Change parts

z

Front side member front assembly

z

Front side member front closing plate

z

Radiator core side support

REPLACEMENT OPERATIONS

BRM-37

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

• Work after hoodledge and hoodledge reinforcement rear has been removed.

REINFORCEMENT

Change parts

z

Front pillar section of body side outer

ALKIA0087GB
