Nissan Altima HL32 Hybrid. Manual - part 168





BRM-26

< ON-VEHICLE REPAIR >

BODY ALIGNMENT

Rear Body

INFOID:0000000004216228

Measurement

ALKIA0169GB

BODY ALIGNMENT

BRM-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

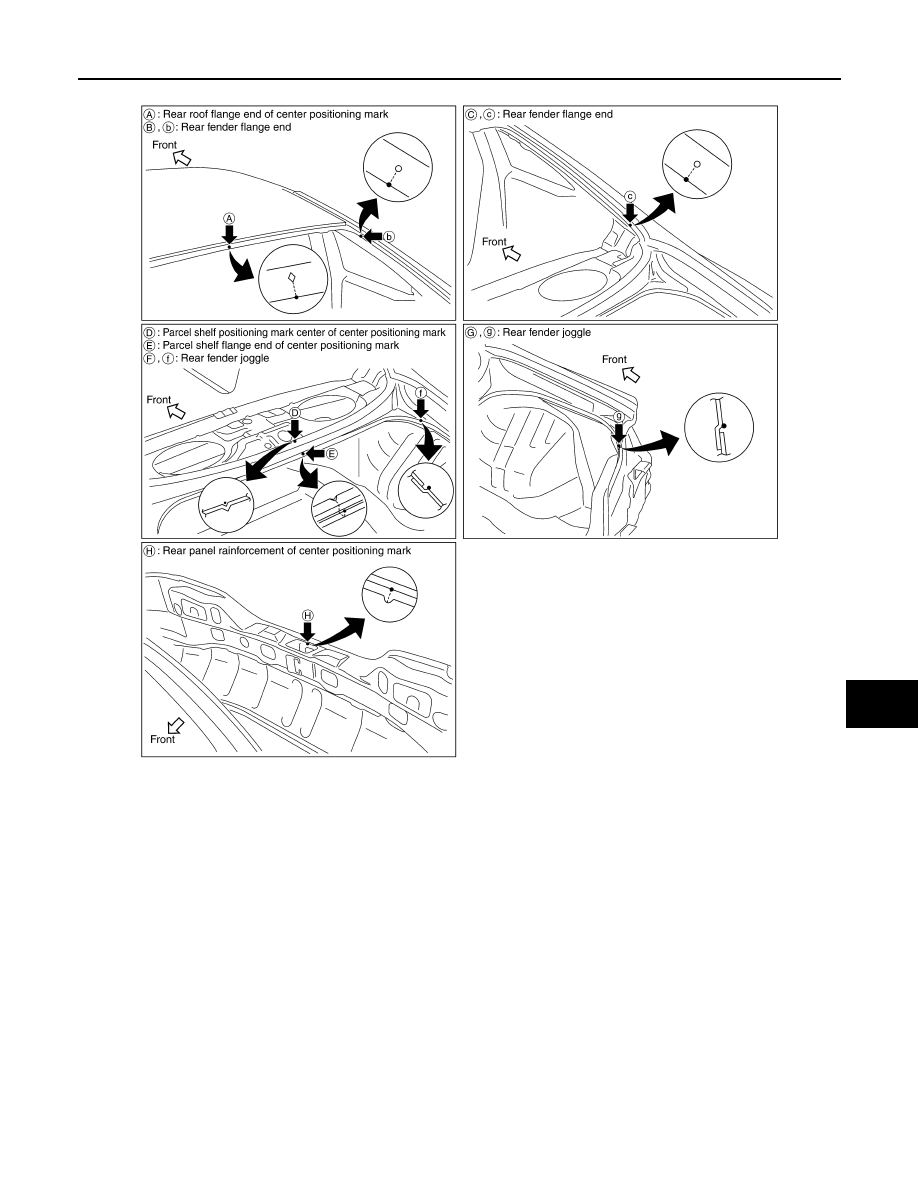

Measurement Points

SIIA2147E

BRM-28

< ON-VEHICLE REPAIR >

PRECAUTIONS IN REPAIRING HIGH STRENGTH STEEL

PRECAUTIONS IN REPAIRING HIGH STRENGTH STEEL

High Strength Steel (HSS)

INFOID:0000000004216229

High strength steel is used for body panels in order to reduce vehicle weight.

Accordingly, precautions in repairing automotive bodies made of high strength steel are described below:

SP130 is the most commonly used HSS.
Read the following precautions when repairing HSS:

1. Additional points to consider

• The repair of reinforcements (such as side members) by heat-

ing is not recommended since it may weaken the component.

When heating is unavoidable, do not heat HSS parts above

550

°C (1,022°F).

Verify heating temperature with a thermometer.

(Crayon-type and other similar type thermometer are appropri-

ate.)

• When straightening body panels, use caution in pulling any

HSS panel. Because HSS is very strong, pulling may cause

deformation in adjacent portions of the body. In this case,

increase the number of measuring points, and carefully pull

the HSS panel.

• When cutting HSS panels, avoid gas (torch) cutting if possible.

Instead, use a saw to avoid weakening surrounding areas due

to heat. If gas (torch) cutting is unavoidable, allow a minimum

margin of 50 mm (1.97in).

Tensile strength

Nissan/Infiniti designation

Major applicable parts

373 N/mm

2

(38kg/mm

2

,54klb/sq in)

SP130

• Front side member assembly
• Hoodledge assembly
• Upper dash
• Front pillar reinforcement assembly
• Rear side member assembly
• Other reinforcements

PIIA0115E

PIIA0116E

PIIA0117E

PRECAUTIONS IN REPAIRING HIGH STRENGTH STEEL

BRM-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

• When welding HSS panels, use spot welding whenever possi-

ble in order to minimize weakening surrounding areas due to

heat.

If spot welding is impossible, use M.I.G. welding. Do not use

gas (torch) welding because it is inferior in welding strength.

• The spot weld on HSS panels is harder than that of an ordi-

nary steel panel.

Therefore, when cutting spot welds on a HSS panel, use a low

speed high torque drill (1,000 to 1,200 rpm) to increase drill bit

durability and facilitate the operation.

2. Precautions in spot welding HSS

This work should be performed under standard working condi-

tions. Always note the following when spot welding HSS:

• The electrode tip diameter must be sized properly according to

the metal thickness.

• The panel surfaces must fit flush to each other, leaving no

gaps.

PIIA0144E

PIIA0145E

PIIA0146E

PIIA0147E
