BRM-38

< ON-VEHICLE REPAIR >

REPLACEMENT OPERATIONS

• Work after front pillar outer has been removed.

INNER

Change parts

z

Front pillar upper reinforcement

z

Front pillar lower reinforcement

AWKIA0566ZZ

REPLACEMENT OPERATIONS

BRM-39

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

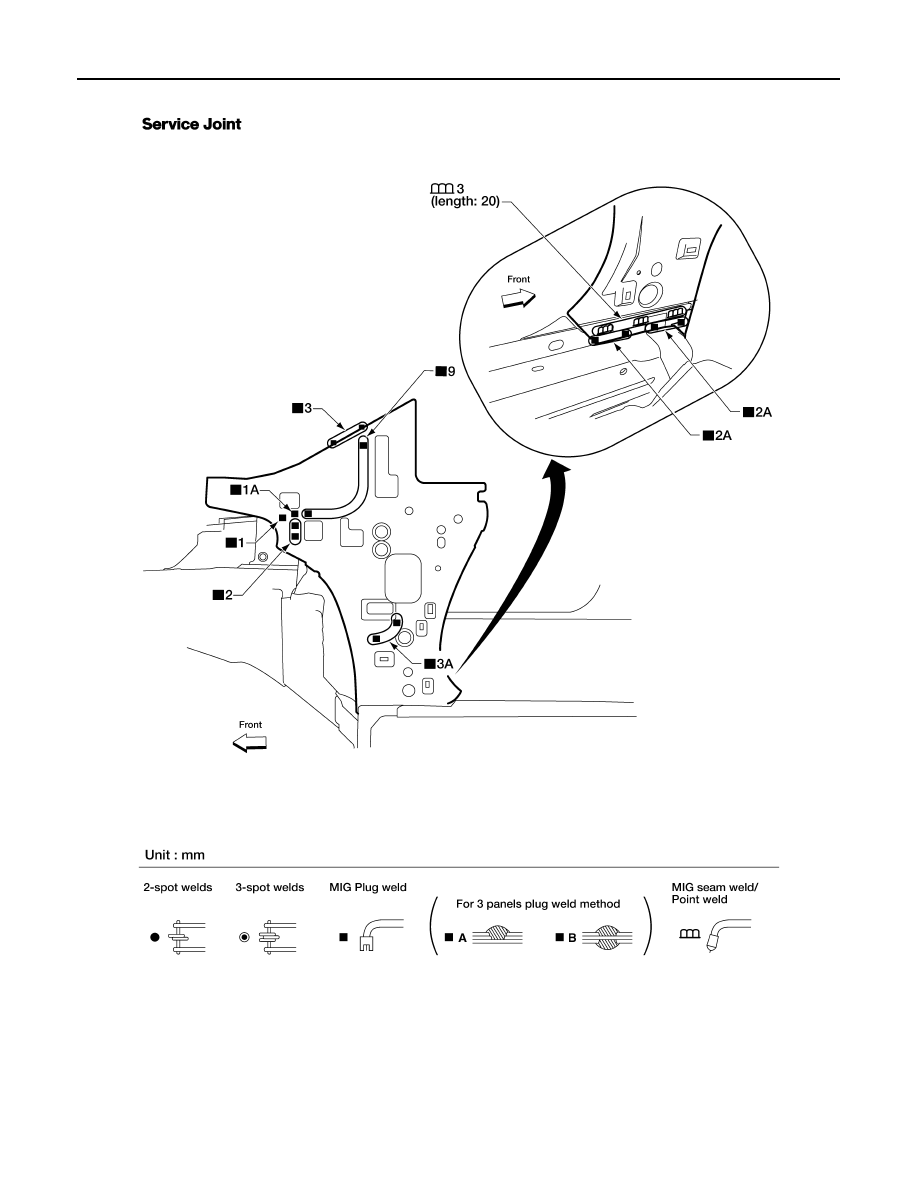

• Work after front pillar reinforcement has been removed.

Dash Side

INFOID:0000000004216235

Work with front pillar reinforcement removed.

Change parts

z

Front pillar inner reinforcement

ALKIA0089GB

BRM-40

< ON-VEHICLE REPAIR >

REPLACEMENT OPERATIONS

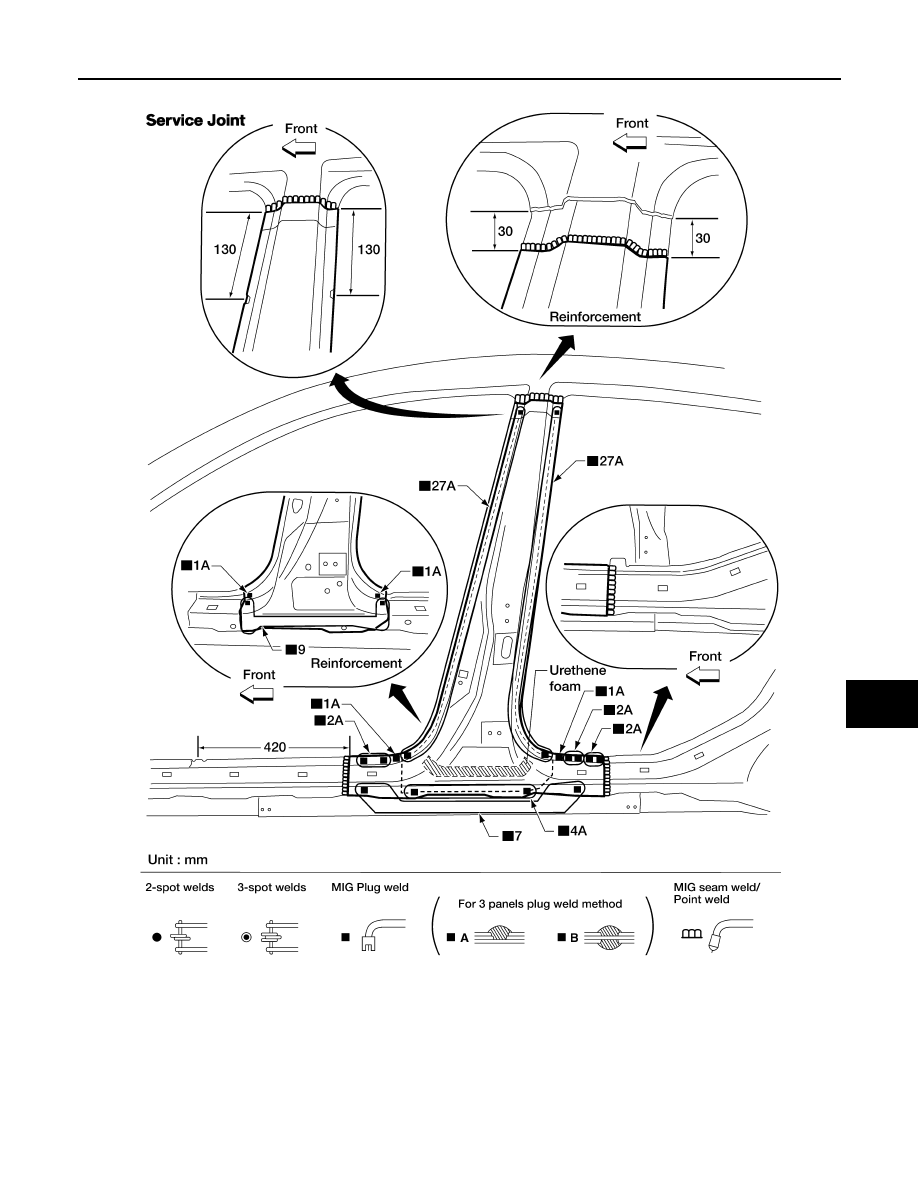

Center Pillar

INFOID:0000000004216236

OUTER

Change parts
z

Dash side

ALKIA0091GB

REPLACEMENT OPERATIONS

BRM-41

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

INNER

Work after center pillar outer and outer sill have been removed.

Change parts

z

Center pillar portion of body side outer

z

Center pillar reinforcement

AWKIA1228GB
