PRECAUTION

PRECAUTIONS

Supplemental Restraint System (SRS) AIR BAG and SEAT BELT PRE-TEN-
SIONER

INFOID:0000000004216526

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

WW-88

< ON-VEHICLE REPAIR >

FRONT WIPER

ON-VEHICLE REPAIR

FRONT WIPER

Exploded View

INFOID:0000000004216527

FRONT WIPER BLADE REFILL
FRONT WIPER BLADE REFILL : Removal and Installation

INFOID:0000000004216528

REMOVAL

1. Remove the front wiper blade. Refer to

WW-91, "FRONT WIPER BLADE : Removal and Installation"

.

1.

Rib (part of wiper blade refill)

2.

Wiper blade refill

3.

Front RH wiper blade assembly (in-
cludes wiper blade refill)

4.

Front RH wiper arm

5.

Wiper arm cap

6.

Front wiper drive assembly

7.

Front LH wiper blade assembly (in-
cludes wiper blade refill)

8.

Front LH wiper arm

Front

AWLIA1564GB

FRONT WIPER

WW-89

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

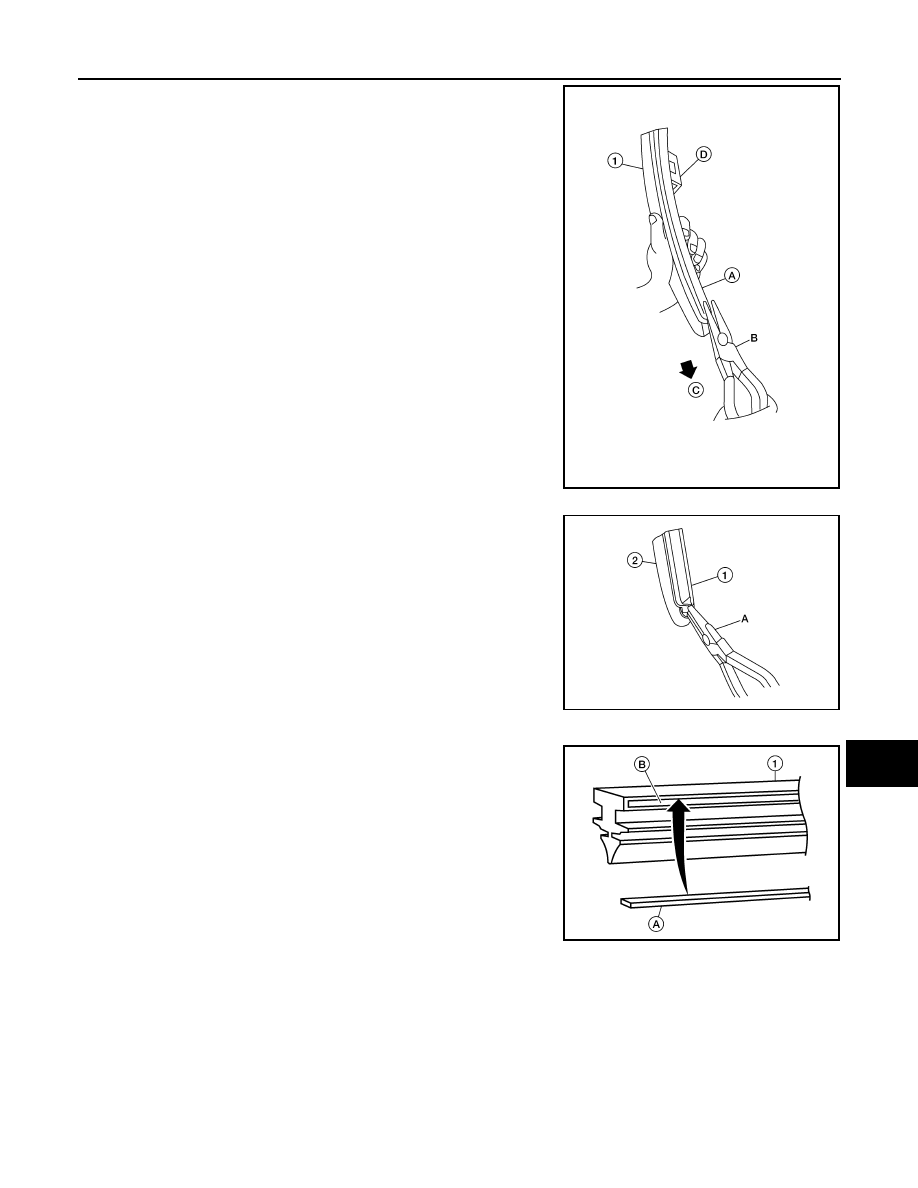

2. Hold the wiper blade refill lip at the end (A) of the front wiper

blade (1) with a suitable tool (B) as shown, and pull it firmly in

the direction (C).

• U clip (part of the front wiper blade assembly) (D)

• If the wiper blade refill lip is torn due to wear, insert a suitable

tool (A) into the space between the end of the wiper blade refill

(1) and the front wiper blade (2) and pull the wiper blade refill

(1) out as shown.

INSTALLATION

1. If the rib (A) has become detached from the wiper blade refill (1),

check that the curve of the rib (A) is in the same direction as the

curve of the wiper blade refill (1) and insert the rib (A) into the slit

(B) in the wiper blade refill (1) as shown.

ALLIA0860ZZ

ALLIA0861ZZ

ALLIA0866ZZ

WW-90

< ON-VEHICLE REPAIR >

FRONT WIPER

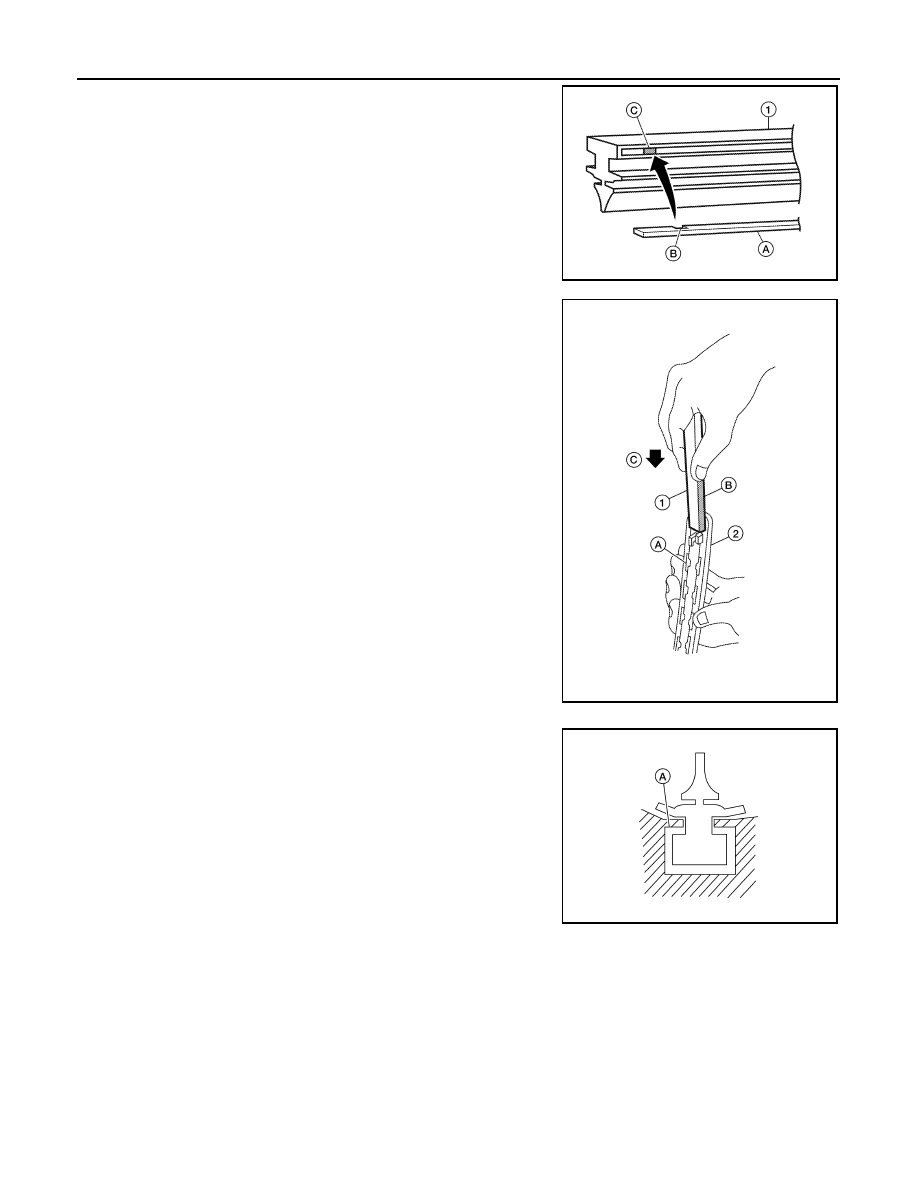

• If the rib (A) has a notch (B), insert the rib (A) into the wiper

blade refill (1) so the notch (B) fits over the protrusion (C) in

the wiper blade refill (1) as shown.

2. Insert the wiper blade refill (1) tip into the end of the front wiper

blade (2) in the direction (C). Push the wiper blade refill (1) in

while pressing it into the end of the front wiper blade (2) as

shown. After the wiper blade refill is fully inserted, remove the

holder (B).

• Tab [part of front wiper blade (2)] (A)

• Make sure to slide the refill into the front wiper blade so that

the wiper blade refill is held by the tabs (A) on the front wiper

blade as shown.

ALLIA0867ZZ

ALLIA0862ZZ

ALLIA0863ZZ
