FRONT WIPER AND WASHER SYSTEM SYMPTOMS

WW-83

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Front wiper does not
stop

HI only

• Combination switch
• BCM

Combination switch
Refer to

BCS-10, "System

Description"

.

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R
Data monitor "FR WIP REQ"

IPDM E/R

—

LO only

• Combination switch
• BCM

Combination switch
Refer to

BCS-10, "System

Description"

.

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R
Data monitor "FR WIP REQ"

IPDM E/R

—

INT only

• Combination switch
• BCM

Combination switch
refer to

BCS-10, "System

Description"

.

Front wiper request signal
• BCM
• IPDM E/R

IPDM E/R
Data monitor "FR WIP REQ"

Front wiper does not
operate normally

Intermittent adjustment
cannot be performed

• Combination switch
• Harness between combination switch and BCM
• BCM

Combination switch
Refer to

BCS-10, "System

Description"

.

BCM

—

Intermittent control
linked with vehicle
speed cannot be per-
formed

Check the vehicle speed detection wiper setting.
Refer to

BCS-24, "WIPER : CONSULT - III Function (BCM - WIPER)"

.

Wiper is not linked to
the washer operation

• Combination switch
• Harness between combination switch and BCM
• BCM

Combination switch
Refer to

BCS-10, "System

Description"

.

BCM

—

Does not return to stop
position (Repeatedly
operates for 10 sec-
onds and then stops
for 20 seconds. After
that, it stops the opera-
tion.

• IPDM E/R
• Harness between IPDM E/R and front wiper

motor

• Front wiper motor

Front wiper auto stop signal
circuit
Refer to

WW-23, "Compo-

nent Function Check"

.

Symptom

Probable malfunction location

Inspection item

WW-84

< SYMPTOM DIAGNOSIS >

FRONT WIPER DOES NOT OPERATE

FRONT WIPER DOES NOT OPERATE

Description

INFOID:0000000004216523

The front wiper does not operate under any operation conditions

Diagnosis Procedure

INFOID:0000000004216524

1.

 CHECK WIPER RELAY OPERATION

IPDM E/R AUTO ACTIVE TEST

1. Start IPDM E/R auto active test. Refer to

PCS-14, "Diagnosis Description"

.

2. Check that the front wiper operates at the LO/HI operation.

CONSULT-III ACTIVE TEST

1. Select "FRONT WIPER" of IPDM E/R active test item.

2. While operating the test item, check that front wiper LO/HI operation and OFF.

Does the front wiper operate?

YES

>> GO TO 5

NO

>> GO TO 2

2.

 CHECK FRONT WIPER MOTOR FUSE

1. Turn the ignition switch OFF.

2. Check that the front wiper motor fuse 30A (No. 55, located in the IPDM E/R) is not blown.
Is the fuse blown?

YES

>> Replace the fuse after repairing the affected circuit.

NO

>> GO TO 3

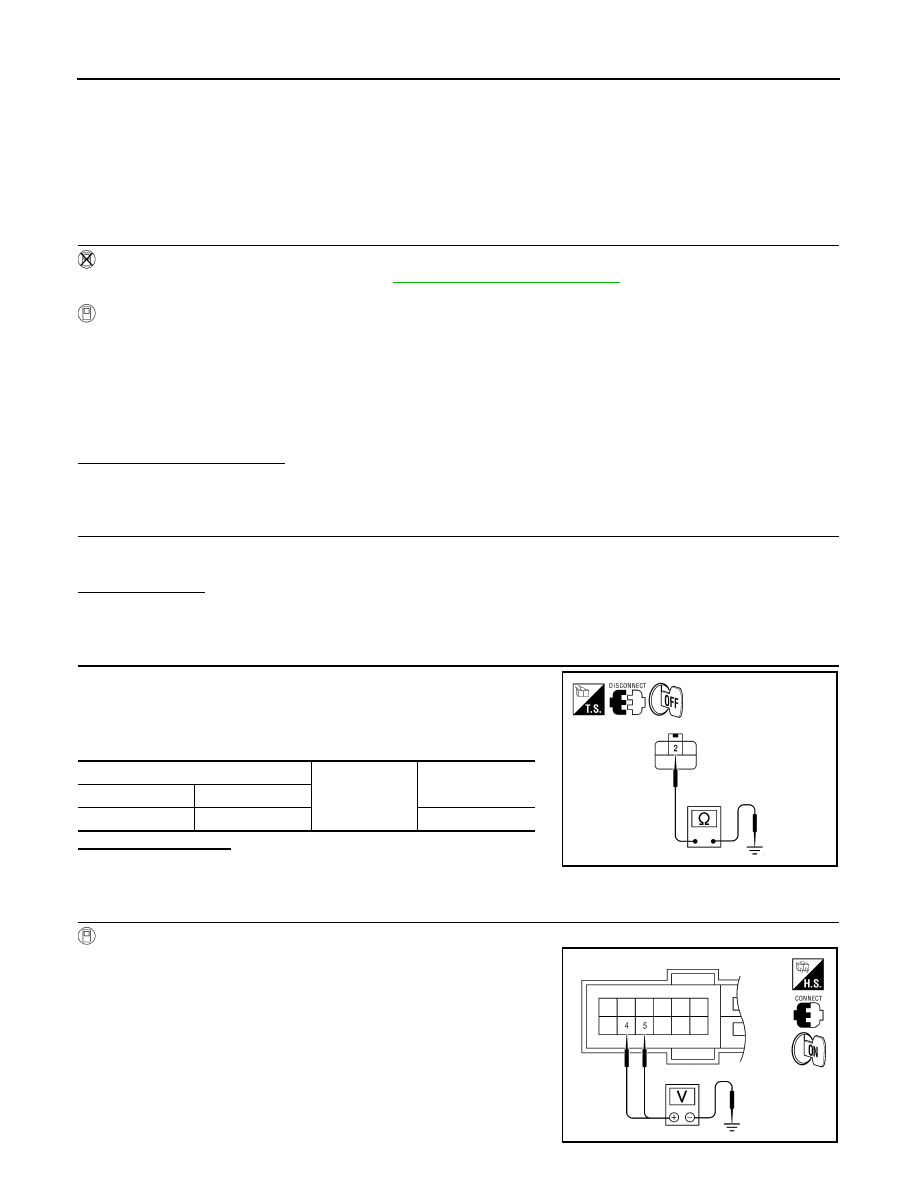

3.

 CHECK FRONT WIPER MOTOR (GND) OPEN CIRCUIT

1. Turn the ignition switch OFF.

2. Disconnect front wiper motor.

3. Check continuity between front wiper motor harness connector

and ground.

Does continuity exist?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

 CHECK FRONT WIPER MOTOR OUTPUT VOLTAGE

CONSULT-III ACTIVE TEST

1. Turn the ignition switch OFF.

2. Turn the ignition switch ON.

3. Select "FRONT WIPER" of IPDM E/R active test item.

4. While operating the test item, check voltage between IPDM E/R

harness connector and ground.

Lo

: Front wiper LO operation

Hi

: Front wiper HI operation

Off

: Stop the front wiper.

Front wiper motor

Ground

Continuity

Connector

Terminal

E25

2

Yes

ALLIA0215ZZ

ALLIA0923ZZ

FRONT WIPER DOES NOT OPERATE

WW-85

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Is the measurement normal?

YES LO Circuit>> Refer to

WW-19, "Diagnosis Procedure"

.

YES HI Circuit>> Refer to

WW-21, "Diagnosis Procedure"

.

NO

>> Replace IPDM E/R. Refer to

PCS-39, "Removal and Installation"

.

5.

 CHECK FRONT WIPER REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1. Select "FR WIP REQ" of IPDM E/R "DATA MONITOR" item.

2. Switch the front wiper switch to HI and LO.

3. While operating the front wiper switch, check the monitor status.

Is the status of item normal?

YES

>> Replace IPDM E/R. Refer to

PCS-39, "Removal and Installation"

.

NO

>> GO TO 6

6.

 CHECK COMBINATION SWITCH

1. Perform the inspection of the combination switch. Refer to

BCS-10, "System Description"

.

Is combination switch normal?

YES

>> Replace BCM. Refer to

BCS-87, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning parts.

Terminals

Test item

Voltage (V)

(Approx.)

(+)

(-)

IPDM E/R

Ground

FRONT WIPER

Connector

Terminal

E18

4

Lo

Battery
voltage

Off

0 V

5

Hi

Battery
voltage

Off

0 V

Monitor item

With operating the front wiper

switch condition

Monitor status

FR WIP REQ

Front wiper
switch HI

ON

Hi

OFF

Stop

Front wiper
switch LO

ON

Low

OFF

Stop

WW-86

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000004216525

FRONT WIPER MOTOR PROTECTION FUNCTION

• IPDM E/R may stop the front wiper to protect the front wiper motor if any obstruction (operation resistance)

such as a large amount of snow is detected during the front wiper operation.

• At that time turn OFF the front wiper and remove the foreign object. Then wait for approximately 20 seconds

or more and reactivate the front wiper. The wiper will operate normally.
