PARK/NEUTRAL POSITION (PNP) SWITCH

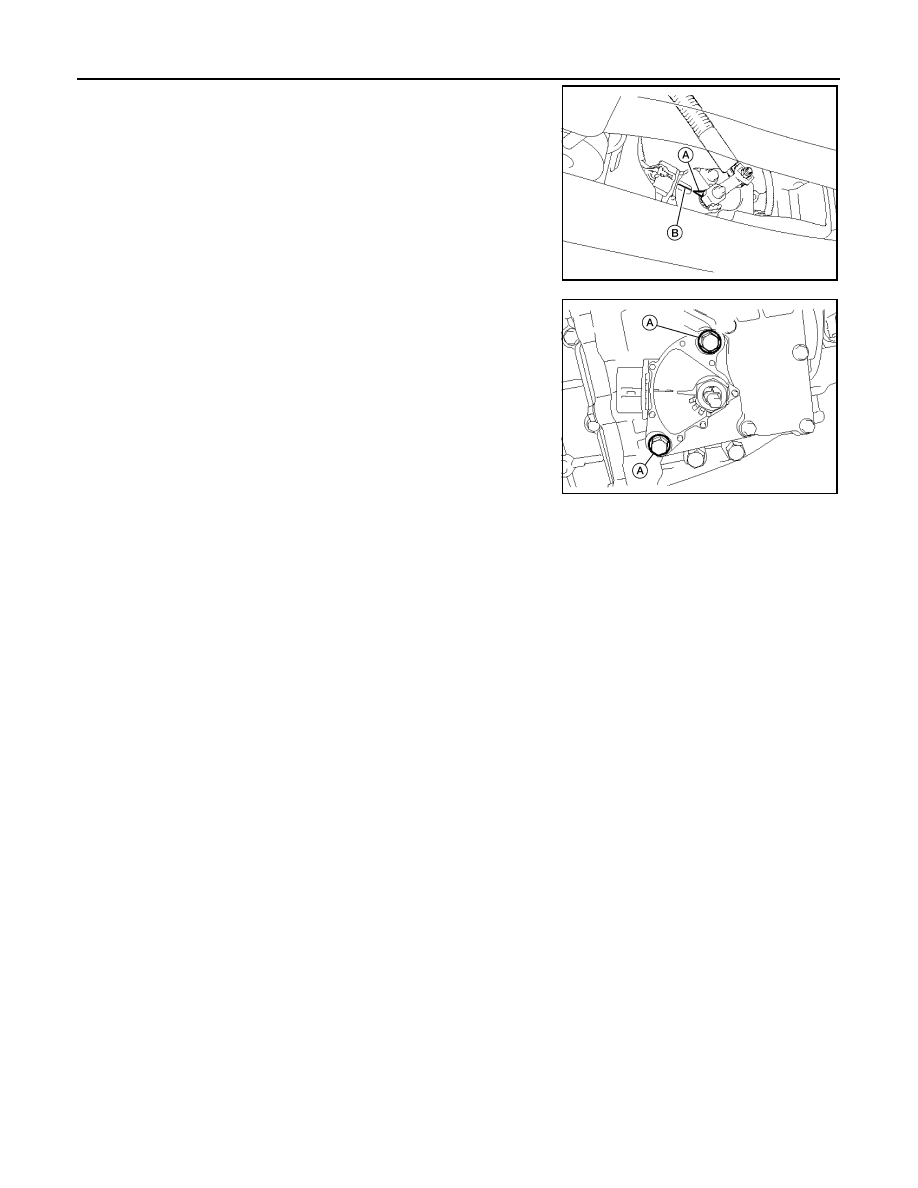

3. Align the PNP switch position indicator (A) with the neutral posi-

tion line (B).

4. Tighten the PNP switch bolts (A).

ALDIA0087ZZ

ALDIA0089ZZ

INPUT SHAFT OIL SEAL

TM-35

< ON-VEHICLE REPAIR >

[HYBRID TRANSAXLE: RE0F01H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

INPUT SHAFT OIL SEAL

Exploded View

INFOID:0000000004212396

Removal and Installation

INFOID:0000000004212397

REMOVAL

1. Remove the transaxle assembly. Refer to

TM-36, "Removal and

Installation"

.

2. Remove the input shaft oil seal (1) from the transaxle assembly

(2) using suitable tool.

CAUTION:

Do not scratch transaxle assembly.

INSTALLATION

1. Install the new input shaft oil seal to the transaxle assembly.

CAUTION:

Do not reuse input shaft oil seal.

2. Install the transaxle assembly. Refer to

TM-36, "Removal and Installation"

.

1.

Transaxle assembly

2.

Input shaft oil seal

ALDIA0083ZZ

ALDIA0084ZZ

TM-36

< REMOVAL AND INSTALLATION >

[HYBRID TRANSAXLE: RE0F01H]

TRANSAXLE ASSEMBLY

REMOVAL AND INSTALLATION

TRANSAXLE ASSEMBLY

Exploded View

INFOID:0000000004212398

Removal and Installation

INFOID:0000000004212399

REMOVAL

1. Remove the engine and transaxle as an assembly. Refer to

EM-71, "Removal and Installation"

.

2. Disconnect the electrical connectors from the transaxle.
3. Remove the harness from the transaxle assembly.
4. Remove the transaxle to engine and engine to transaxle bolts.
5. Separate the transaxle assembly from the engine.
6. If necessary, remove the following from the transaxle assembly:

• Sensors, refer to

TM-32, "Removal and Installation"

.

• Switches

• Mass damper with gasket

• Dynamic damper

• Brackets

• Covers

INSTALLATION

Installation is in the reverse order of removal after the following.

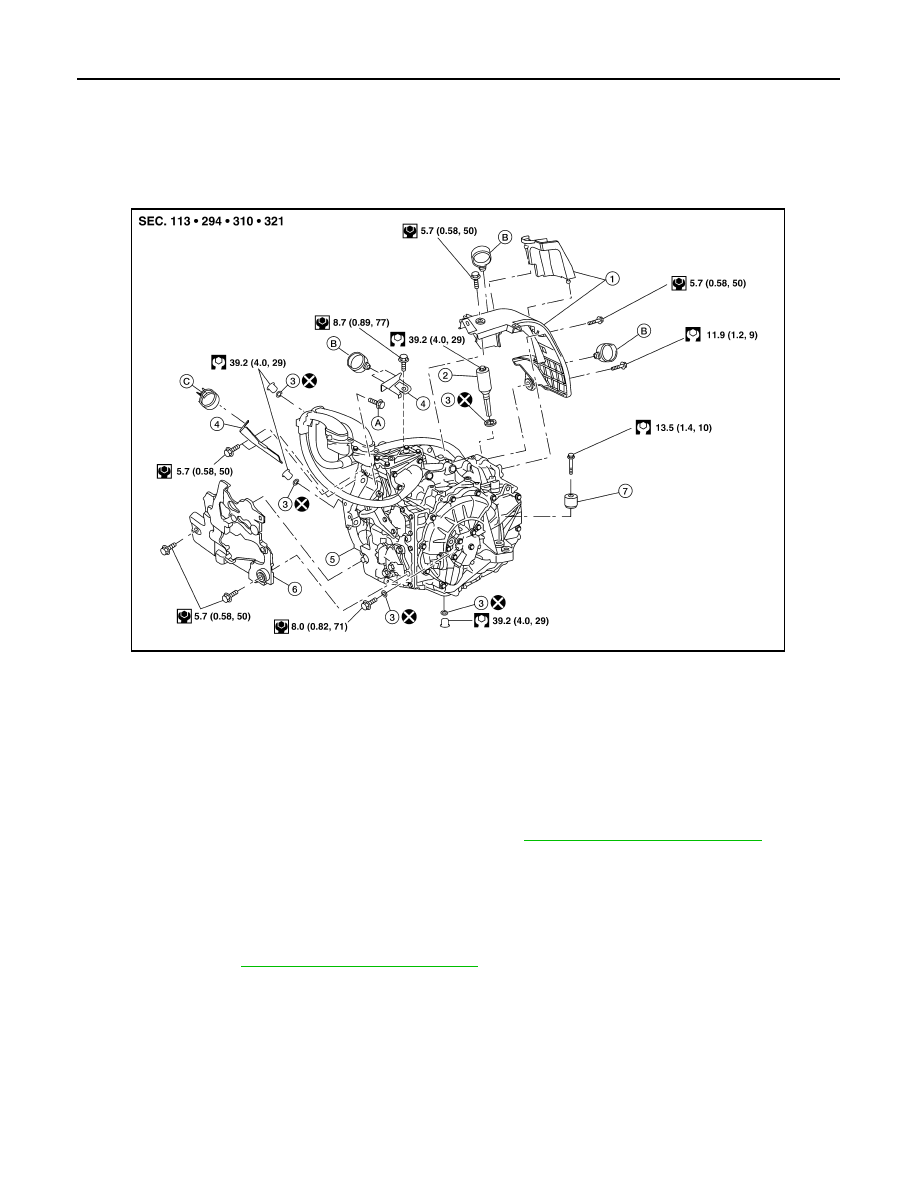

1.

Rear cover

2.

Mass damper

3.

Gasket

4.

Bracket

5.

Transaxle assembly

6.

Front cover

7.

Dynamic damper

A.

Refer to Installation.

B.

Clip

C.

Clip

AWDIA0033GB

TRANSAXLE ASSEMBLY

TM-37

< REMOVAL AND INSTALLATION >

[HYBRID TRANSAXLE: RE0F01H]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

1. Be sure the grommet (1) is installed flush with the flange plane

as shown prior to mating the engine and transaxle.

CAUTION:

Do not use lubricating oil for lubricant.

NOTE:

Be careful that the edge does not protude from the socket.

CAUTION:

• When replacing the PNP switch, replace the manual lever (1)

with new manual lever (1) for transfer the manual lever (1)

from the old PNP switch to the new PNP switch. The manual

lever (1) must have a rectangular hole as shown for proper

operation of the transaxle.

• When replacing an engine or transaxle you must make sure

any dowels are installed correctly during re-assembly.

• Improper alignment caused by missing dowels may cause

vibration, oil leaks or breakage of drivetrain components.

• Do not reuse O-rings or gaskets.

• When installing the transaxle to the engine, attach the bolts in

accordance with the following standard.

- A: Transaxle to engine

- B: Engine to transaxle

• After completing installation, check for fluid leakage, fluid level, and the positions of the transaxle. Refer to

TM-24, "Inspection"

 and

TM-26, "Inspection and Adjustment"

.

ALDIA0206ZZ

JPDIA0483ZZ

Bolt  No.

1

2

3

4

5

6

7

Number of
bolts

1

3

2

2

2

1

1

Tightening
torque N·m
(kg-m, ft-lb)

48
(4.9,
35)

74.5
(7.6,
55)

74.5
(7.6,
55)

42.7
(4.4,
31)

42.7
(4.4,
31)

74.5
(7.6,
55)

48
(4.9,
35)

ALDIA0081ZZ
