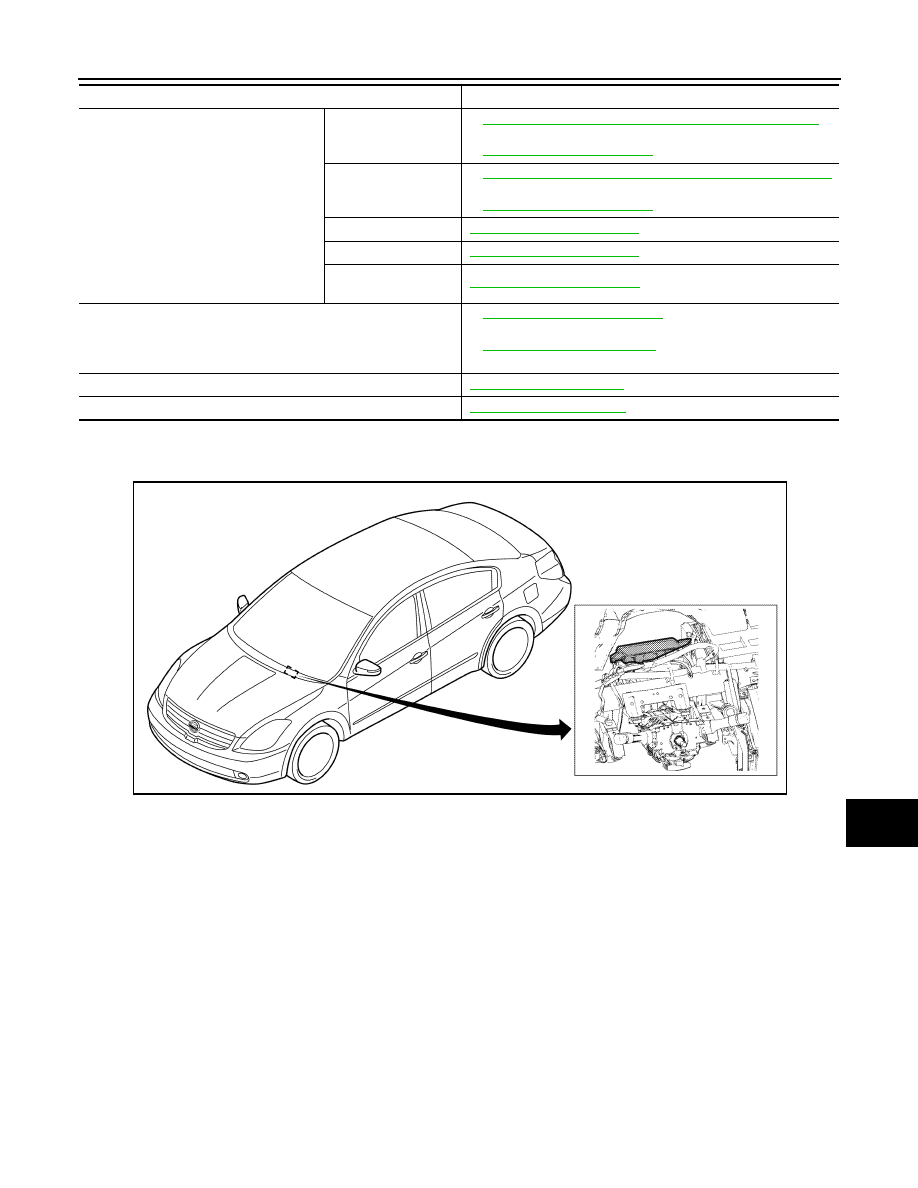

BCS-6
< BASIC INSPECTION >
[BCM]
DIAGNOSIS AND REPAIR WORKFLOW
>> GO TO 2
2.
REPLACE BCM
Replace BCM. Refer to
BCS-87, "Removal and Installation"
>> GO TO 3
3.
WRITING VEHICLE SPECIFICATION
CONSULT-III Configuration
Perform “WRITE CONFIGURATION - Config file” or “WRITE CONFIGURATION - Manual selection” to write
vehicle specification. Refer to
BCS-6, "CONFIGURATION (BCM) : Special Repair Requirement"
>> GO TO 4
4.
INITIALIZE BCM (NATS)
Perform BCM initialization (NATS). Refer to CONSULT-III Operation Manual NATS-IVIS/NVIS.
>> Inspection End.
CONFIGURATION (BCM)
CONFIGURATION (BCM) : Description
INFOID:0000000004494665
Vehicle specification needs to be written with CONSULT-III because it is not written after replacing BCM.
Configuration has three functions as follows
NOTE:
Manual setting item: Items which need selection by vehicle specifications
Automatic setting item: Items which are written in automatically (Setting cannot be changed)
CAUTION:
• When replacing BCM, you must perform “WRITE CONFIGURATION” with CONSULT-III.
• Complete the procedure of “WRITE CONFIGURATION” in order.
• If you set incorrect “WRITE CONFIGURATION”, incidents might occur.
• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.
• Never perform “WRITE CONFIGURATION” except for new BCM.
CONFIGURATION (BCM) : Special Repair Requirement
INFOID:0000000004494666
1.
WRITING MODE SELECTION
CONSULT-III Configuration
Select “CONFIGURATION” of BCM.
When writing saved data>>GO TO 2
When writing manually>>GO TO 3
2.
PERFORM “WRITE CONFIGURATION - CONFIG FILE”
CONSULT-III Configuration
Perform “WRITE CONFIGURATION - Config File”.
>> Inspection End.
Function
Description
READ CONFIGURATION
• Reads the vehicle configuration of current BCM.
• Saves the read vehicle configuration.
WRITE CONFIGURATION - Manual selection Writes the vehicle configuration with manual selection.
WRITE CONFIGURATION - Config file
Writes the vehicle configuration with saved data.
