AV-292

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

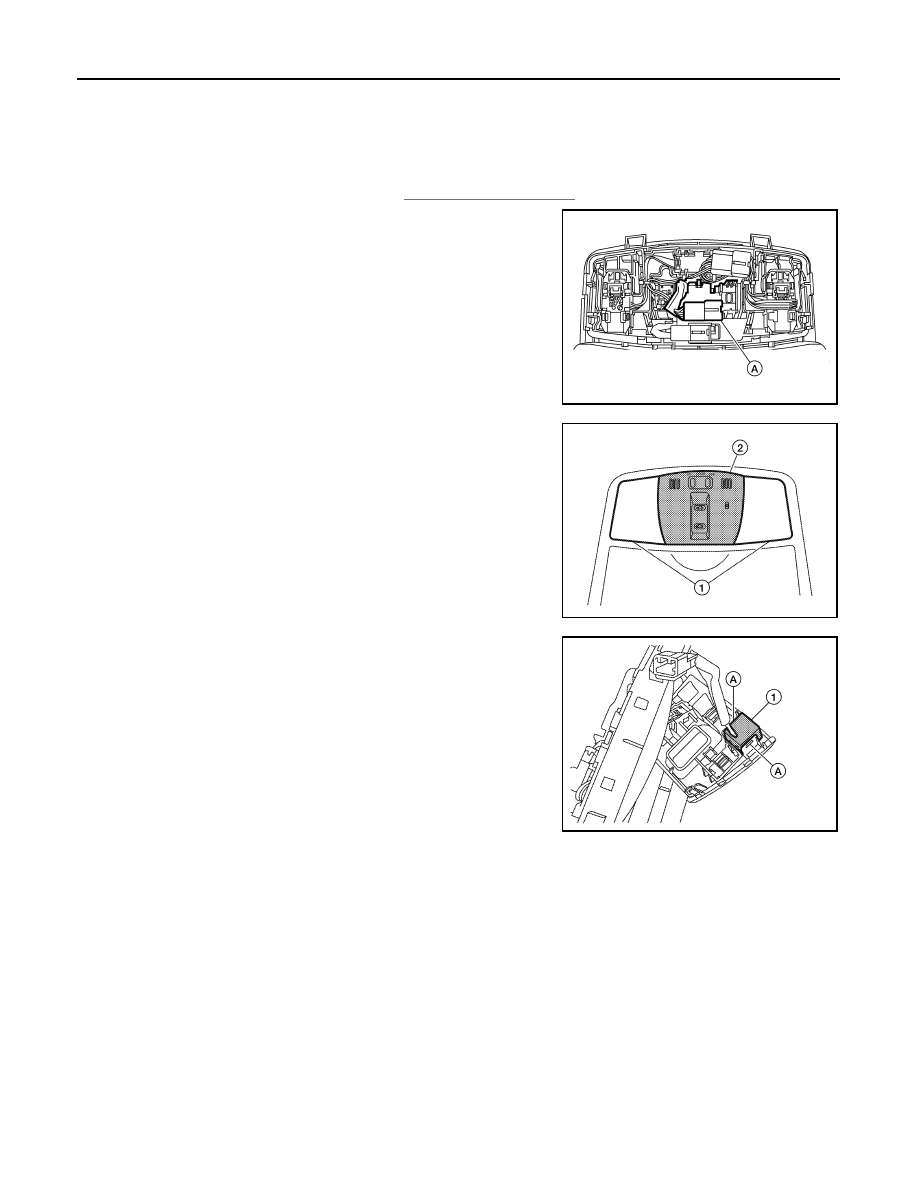

MICROPHONE

MICROPHONE

Removal and Installation

INFOID:0000000004487165

REMOVAL

1. Remove the map lamp assembly. Refer to

INT-23, "Exploded View"

.

2. Detach the microphone connector (A).

3. Remove the map lamp covers (1), then remove the map lamp

assembly cover (2).

4. Release the microphone tabs (A), then remove the microphone

(1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0928ZZ

ALNIA0929ZZ

ALNIA0930ZZ

AV

REAR VIEW CAMERA

AV-293

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

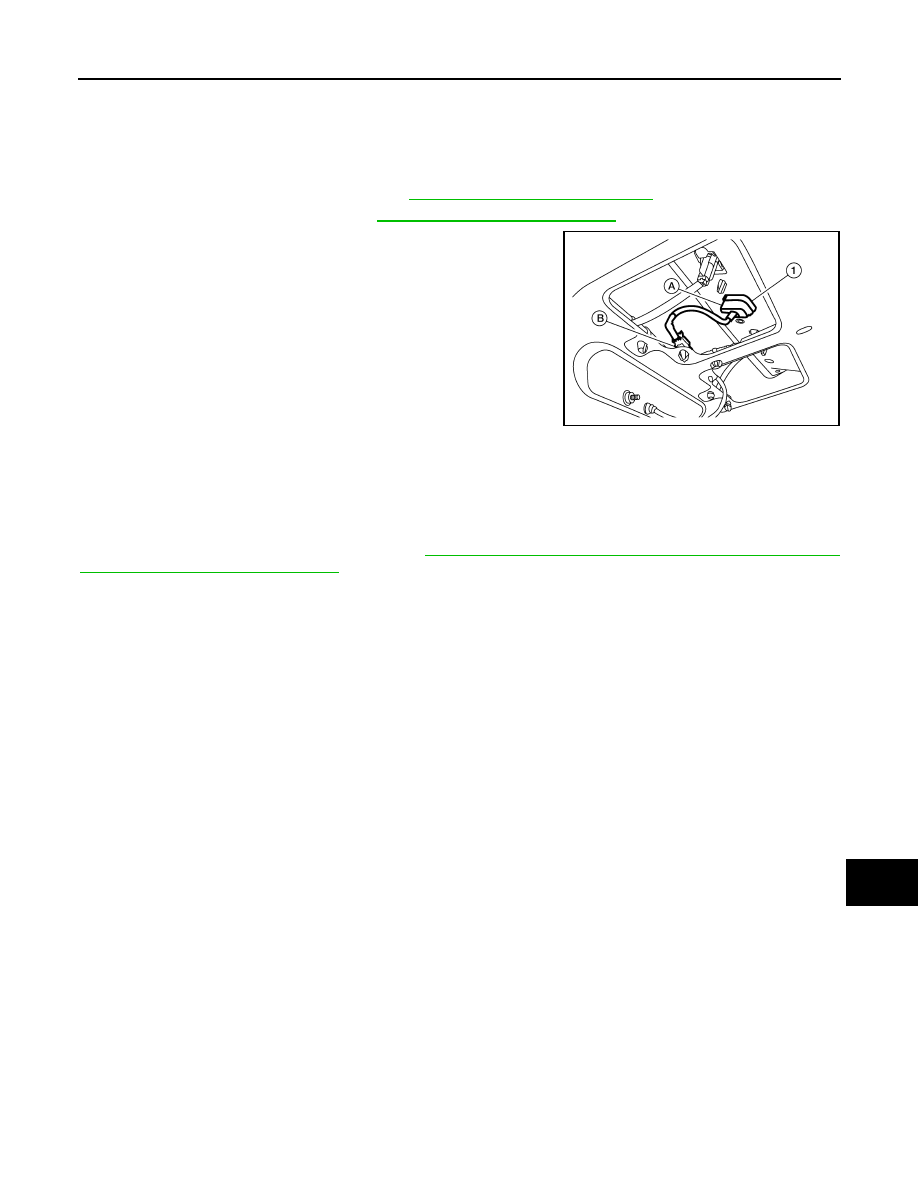

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000004219629

REMOVAL

1. Remove the license plate finisher. Refer to

EXT-24, "Removal and Installation"

.

2. Remove the trunk lid finisher. Refer to

INT-27, "Removal and Installation"

.

3. Disconnect the rear view camera connector (B), press the rear

view camera tab (A) and remove the rear view camera (1).

INSTALLATION

Installation is in the reverse order of removal.

Adjustment

INFOID:0000000004219630

REAR VIEW MONITOR

For adjustment on the rear view camera, refer to

AV-148, "REAR VIEW MONITOR GUIDING LINE ADJUST-

MENT : Special Repair Requirement"

.

ALNIA0062ZZ

AV-294

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

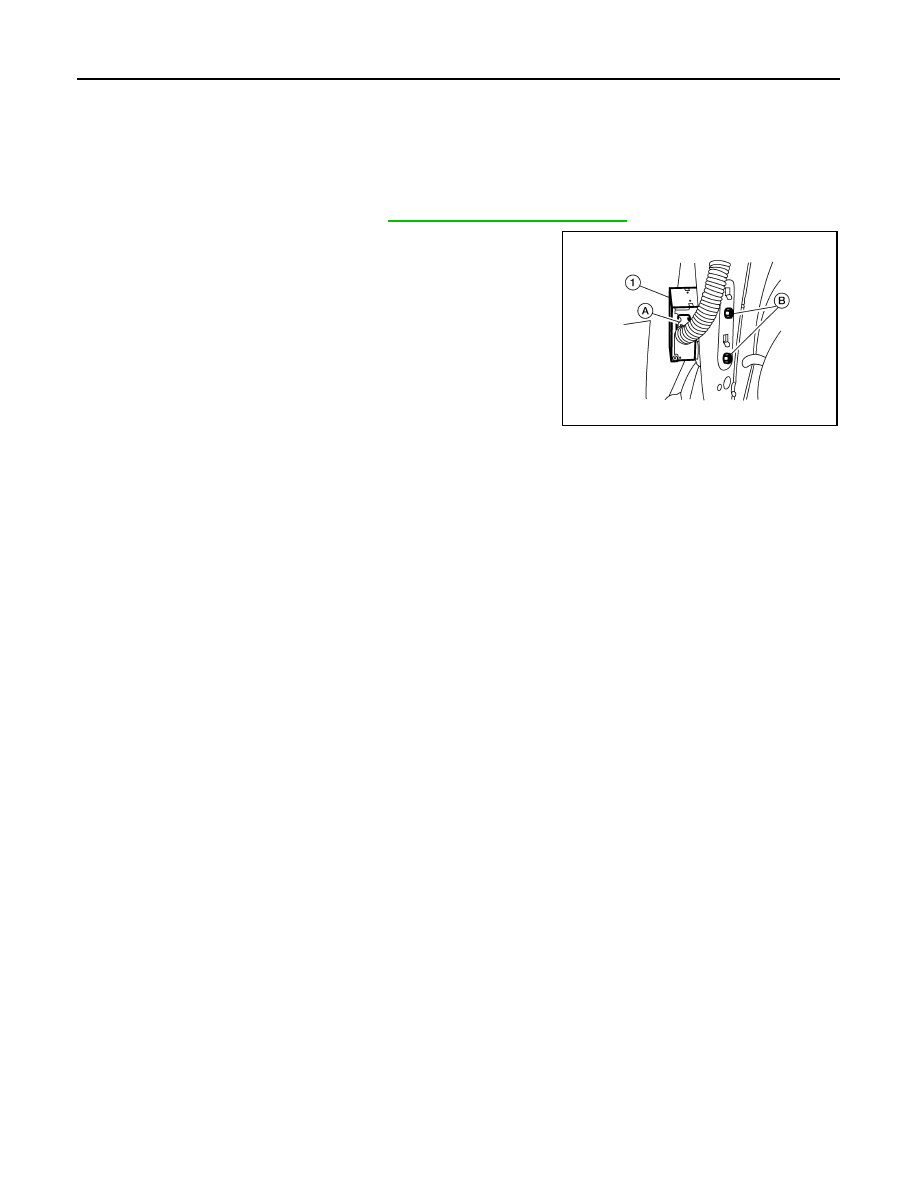

CAMERA CONTROL UNIT

CAMERA CONTROL UNIT

Removal and Installation

INFOID:0000000004219631

REMOVAL

1. Disconnect the 12-volt battery negative terminal.
2. Remove the trunk side finisher. Refer to

INT-27, "Removal and Installation"

.

3. Disconnect the rear view camera control unit connector (A), then

remove the rear view camera control unit screws (B) and

remove the rear view camera control unit (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0063ZZ

BCS

BCS-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

BCS

A

O

P

N

CONTENTS

BODY CONTROL SYSTEM

BCM

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ..........................................................

5

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description  ..................................

5

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement  .......

5

CONFIGURATION (BCM)  ...........................................

6

CONFIGURATION (BCM) : Description ....................

6

CONFIGURATION (BCM) : Special Repair Re-
quirement ..................................................................

6

CONFIGURATION (BCM) : Configuration list ...........

7

FUNCTION DIAGNOSIS ...............................

8

BODY CONTROL SYSTEM ................................

8

System Description  ...................................................

8

Component Parts Location ........................................

9

COMBINATION SWITCH READING SYSTEM

....

10

System Diagram ......................................................

10

System Description  .................................................

10

SIGNAL BUFFER SYSTEM  ...............................

14

System Diagram ......................................................

14

System Description  .................................................

14

POWER CONSUMPTION CONTROL SYS-
TEM ....................................................................

15

System Diagram ......................................................

15

System Description  .................................................

15

Component Parts Location ......................................

17

DIAGNOSIS SYSTEM (BCM)  ............................

18

COMMON ITEM  .........................................................

18

COMMON ITEM : Diagnosis Description  ................

18

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM)  .....................................................

18

DOOR LOCK ..............................................................

19

DOOR LOCK : CONSULT-III Function (BCM -
DOOR LOCK) ..........................................................

19

REAR WINDOW DEFOGGER  ...................................

19

REAR WINDOW DEFOGGER : CONSULT-III
Function (BCM - REAR DEFOGGER) .....................

19

BUZZER .....................................................................

20

BUZZER : CONSULT-III Function (BCM - BUZZ-
ER) ..........................................................................

20

INT LAMP ...................................................................

20

INT LAMP : CONSULT-III Function (BCM - INT
LAMP) ......................................................................

21

HEADLAMP ...............................................................

22

HEADLAMP : CONSULT-III Function (BCM -
HEAD LAMP) ...........................................................

22

WIPER ........................................................................

24

WIPER : CONSULT - III Function (BCM - WIPER) ....

24

FLASHER ...................................................................

25

FLASHER : CONSULT-III Function (BCM -
FLASHER) ...............................................................

25

INTELLIGENT KEY ....................................................

26

INTELLIGENT KEY : CONSULT-III Function
(BCM - INTELLIGENT KEY) ....................................

26

COMB SW ..................................................................

29

COMB SW : CONSULT-III Function (BCM -
COMB SW) ..............................................................

29

BCM ...........................................................................

30

BCM : CONSULT-III Function (BCM - BCM) ...........

30

IMMU ..........................................................................

30
