REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000004487162

REMOVAL

1. Remove the rear door finisher. Refer to

INT-14, "Removal and Installation"

.

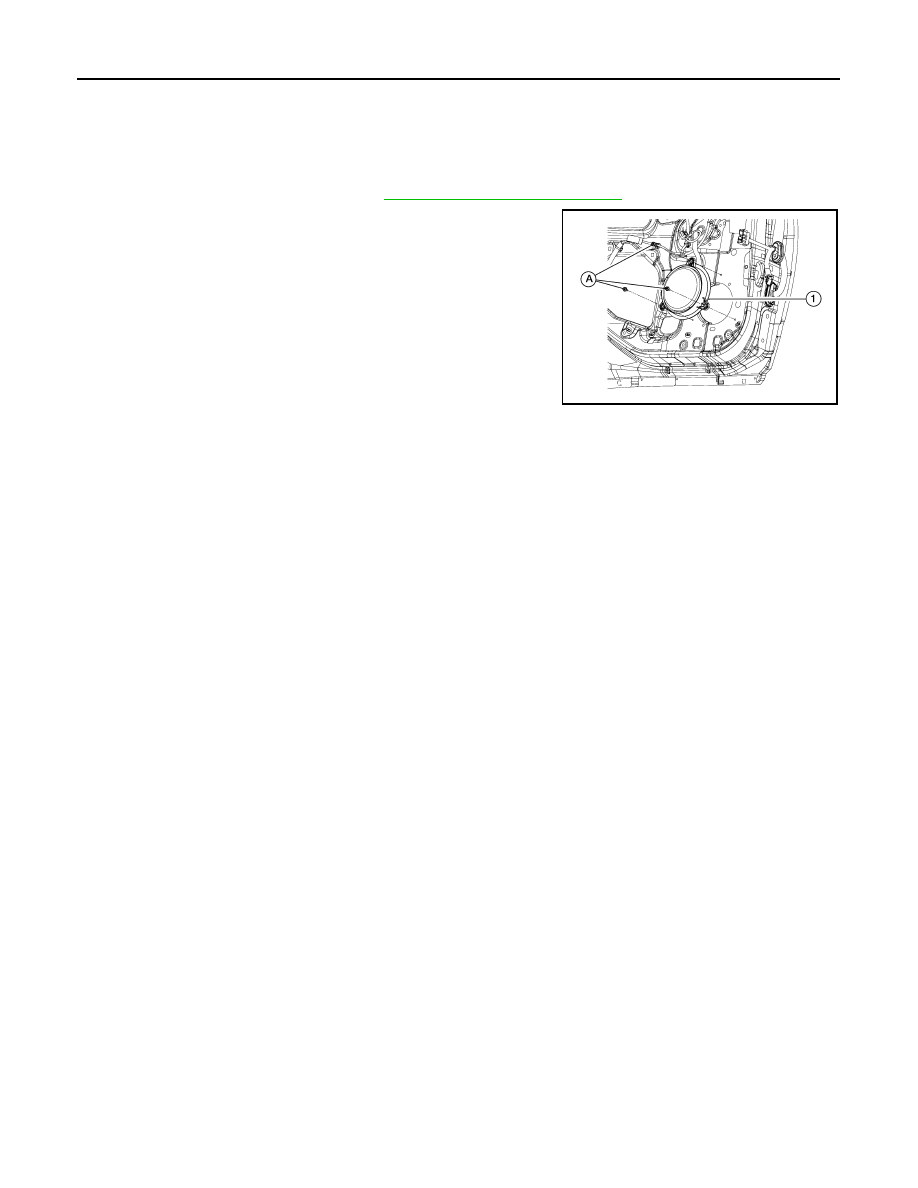

2. Remove the rear door speaker screws (A), then disconnect the

rear door speaker connector and remove the rear door speaker

(1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0041ZZ

AV

REAR SPEAKER

AV-285

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR SPEAKER

Removal and Installation

INFOID:0000000004487163

REMOVAL

1. Remove the rear parcel shelf finisher. Refer to

INT-19, "Removal and Installation"

.

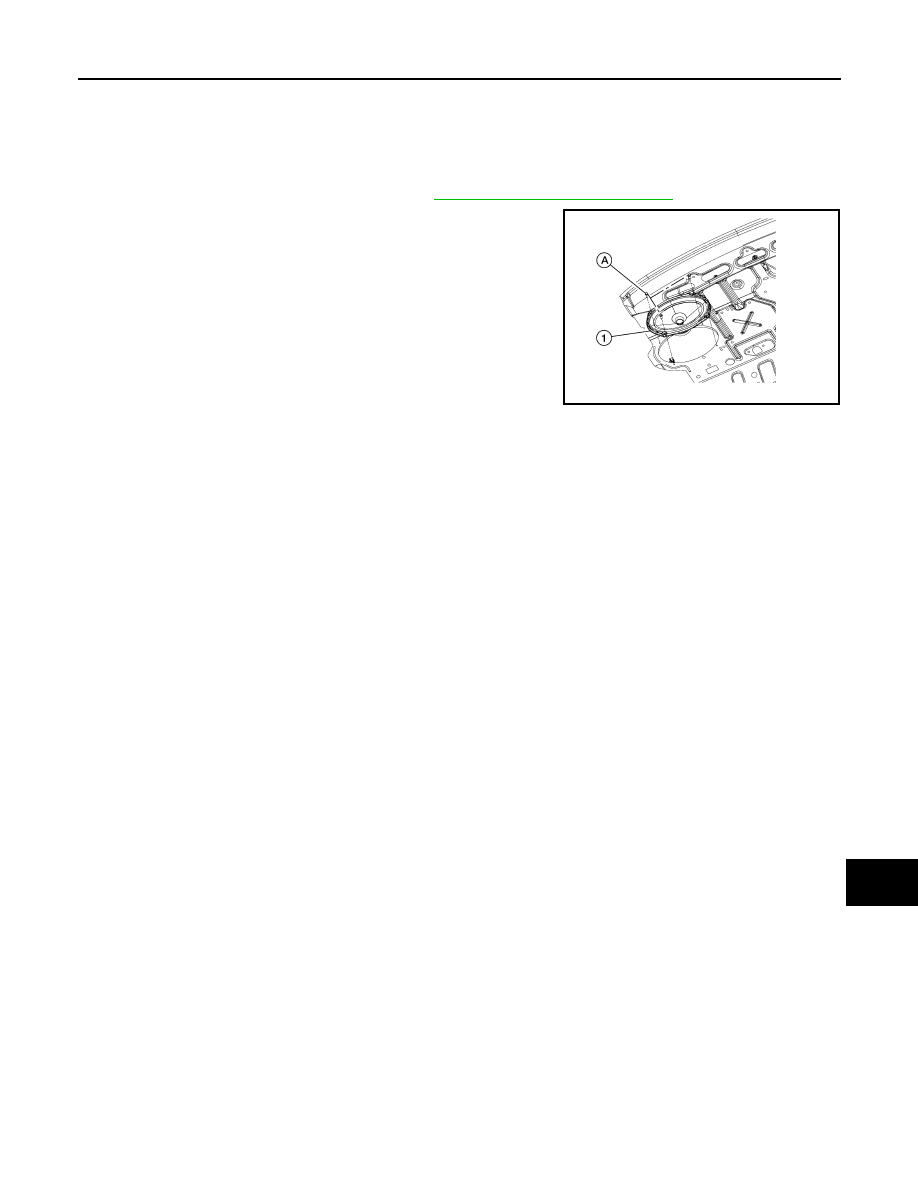

2. Remove the rear speaker screws (A), then disconnect the rear

speaker connector and remove the rear speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0042ZZ

AV-286

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

AUDIO ANTENNA

AUDIO ANTENNA

Location of Antennas

INFOID:0000000004219622

Roof Antenna

INFOID:0000000004490972

REMOVAL AND INSTALLATION

Removal

1. Remove the rear parcel shelf finisher. Refer to

INT-19, "Removal and Installation"

.

2. Remove the rear assist grips. Refer to

INT-23, "Removal and Installation"

.

3. Pull down headlining (rear) and obtain space work between roof and headlining.

AWNIA1818ZZ

1.

AV control unit harness connector

2.

AV control unit harness

3.

AV control unit

4.

Roof antenna rod

5.

Roof antenna base

6.

Antenna feeder (to AV control unit)

7.

Satellite feeder

8.

Window antenna

9.

Satellite radio tuner

AV

AUDIO ANTENNA

AV-287

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

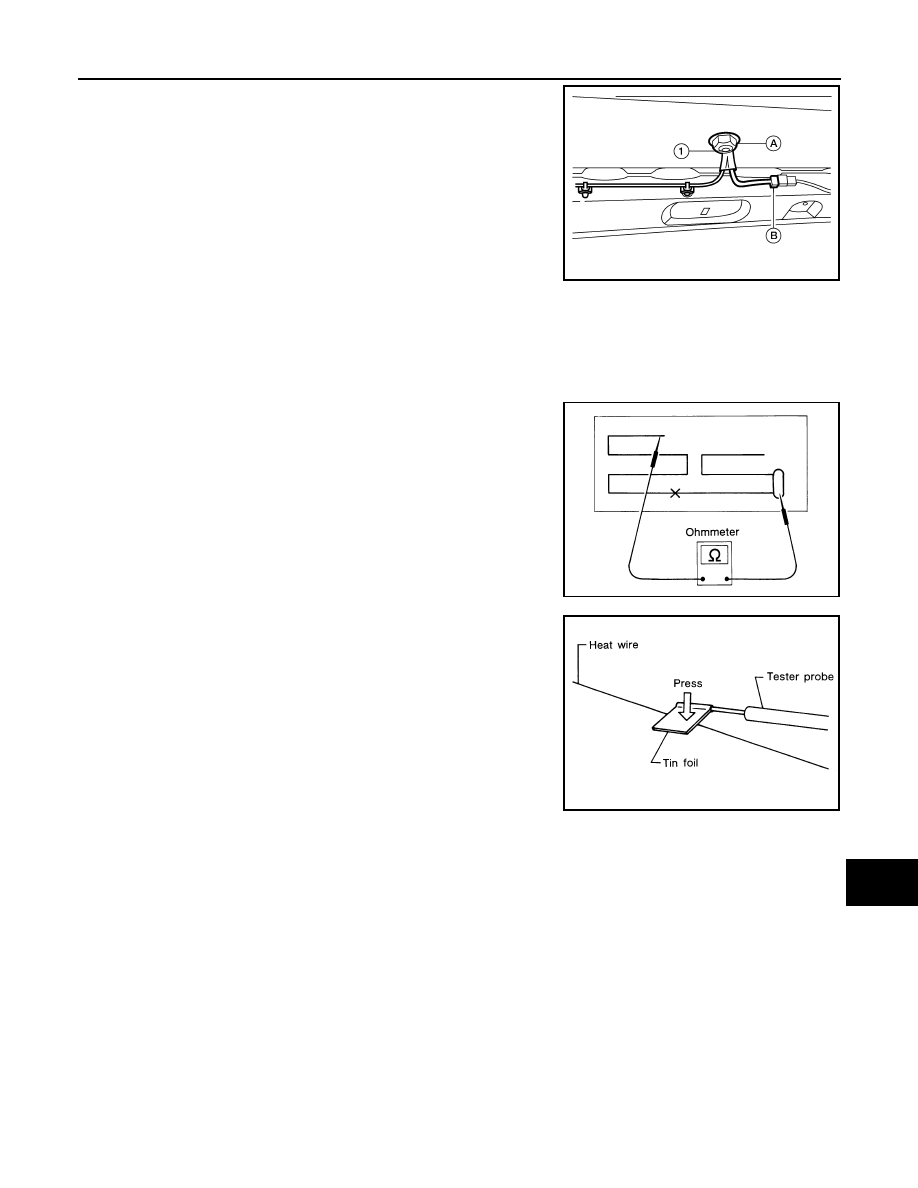

4. Remove the roof antenna nut (A), then disconnect the antenna

feeder connector (B) and remove the antenna feeder (1) from

the roof.

5. Detach the antenna feeder harness wire clips, then disconnect

the antenna feeder harness wire end and feed the antenna

feeder harness through the roof to remove the roof antenna

base.

Installation

Installation is in the reverse order of removal.

Window Antenna Repair

INFOID:0000000004490973

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your finger.

ALNIA0127ZZ

SEL250I

SEL122R
