COMBINATION SWITCH READING SYSTEM

COMBINATION SWITCH READING SYSTEM

System Diagram

INFOID:0000000004218951

System Description

INFOID:0000000004218952

OUTLINE

• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the

status of each switch.

• BCM is a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a

maximum of 20 switch status.

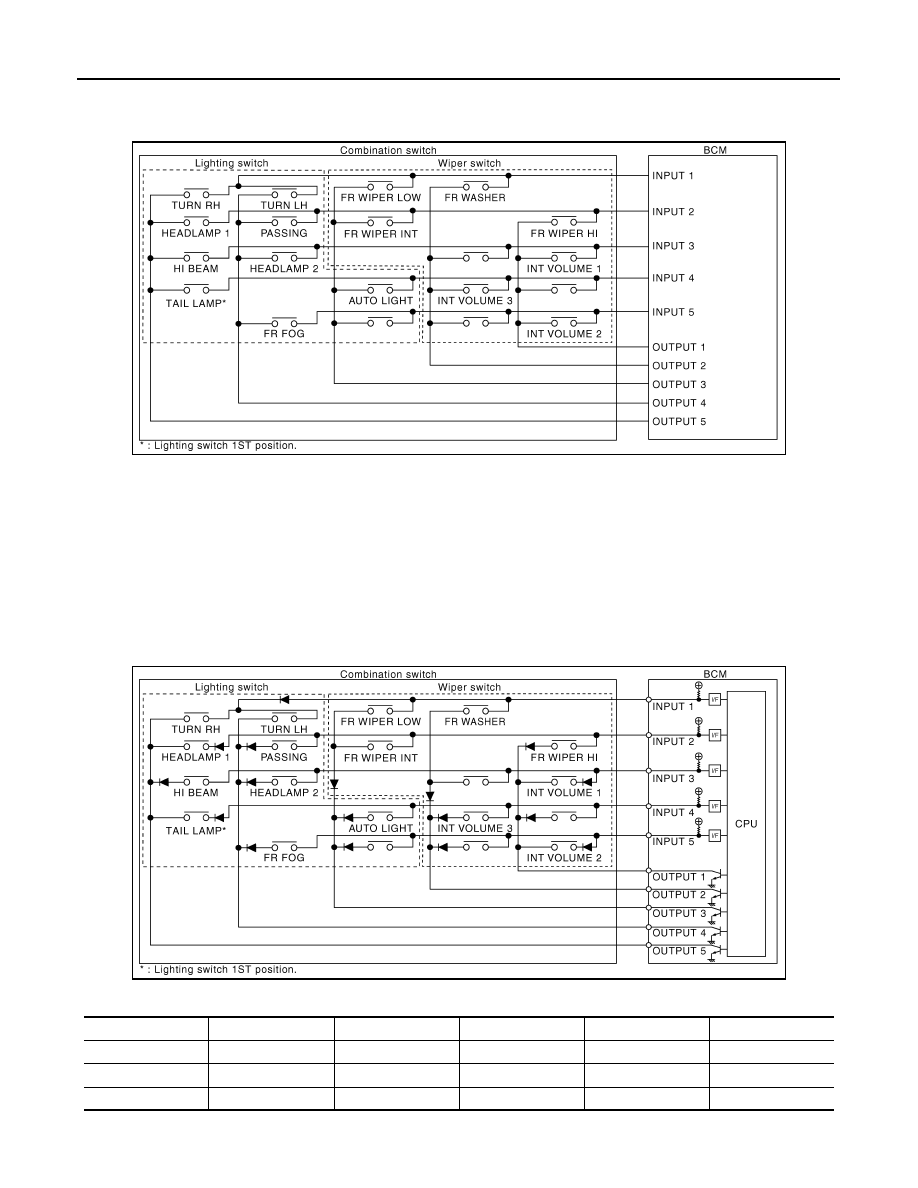

COMBINATION SWITCH MATRIX

Combination switch circuit

Combination switch INPUT-OUTPUT system list

JPMIA0083GB

System

OUTPUT 1

OUTPUT 2

OUTPUT 3

OUTPUT 4

OUTPUT 5

INPUT 1

—

FR WASHER

FR WIPER LOW

TURN LH

TURN RH

INPUT 2

FR WIPER HI

—

FR WIPER INT

PASSING

HEADLAMP 1

INPUT 3

INT VOLUME 1

—

—

HEADLAMP 2

HI BEAM

JPMIA0066GB

BCS

COMBINATION SWITCH READING SYSTEM

BCS-11

< FUNCTION DIAGNOSIS >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

NOTE:
Headlamp has a dual system switch.

COMBINATION SWITCH READING FUNCTION

Description

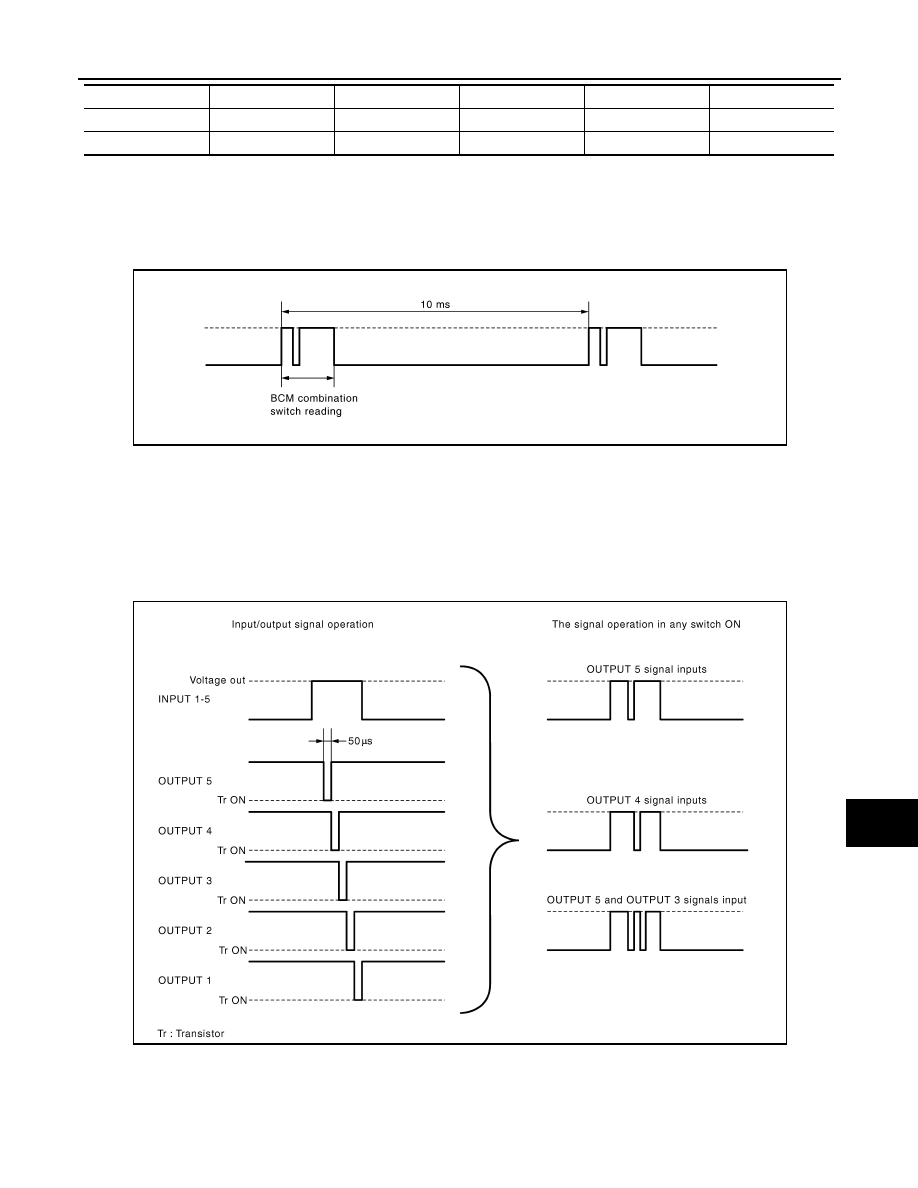

• BCM reads the status of the combination switch at 10ms interval normally.

NOTE:

BCM reads the status of the combination switch at 60ms interval when BCM is controlled at low power con-

sumption mode.

• BCM operates as follows and judges the status of the combination switch.

- INPUT 1 - 5 outputs the voltage waveforms of 5 systems simultaneously.

- It operates the transistor on OUTPUT side in the following order: OUTPUT 5

→4→3→2→1.

- The voltage waveform of INPUT corresponding to the formed circuit changes according to the operation of

the transistor on OUTPUT side if any (1 or more) switches are ON.

- It reads this change of the voltage as the status signal of the combination switch.

Operation Example

In the following operation example, the combination of the status signals of the combination switch is replaced

as follows: INPUT 1 - 5 to “1 - 5” and OUTPUT 1 - 5 to “A - E”.

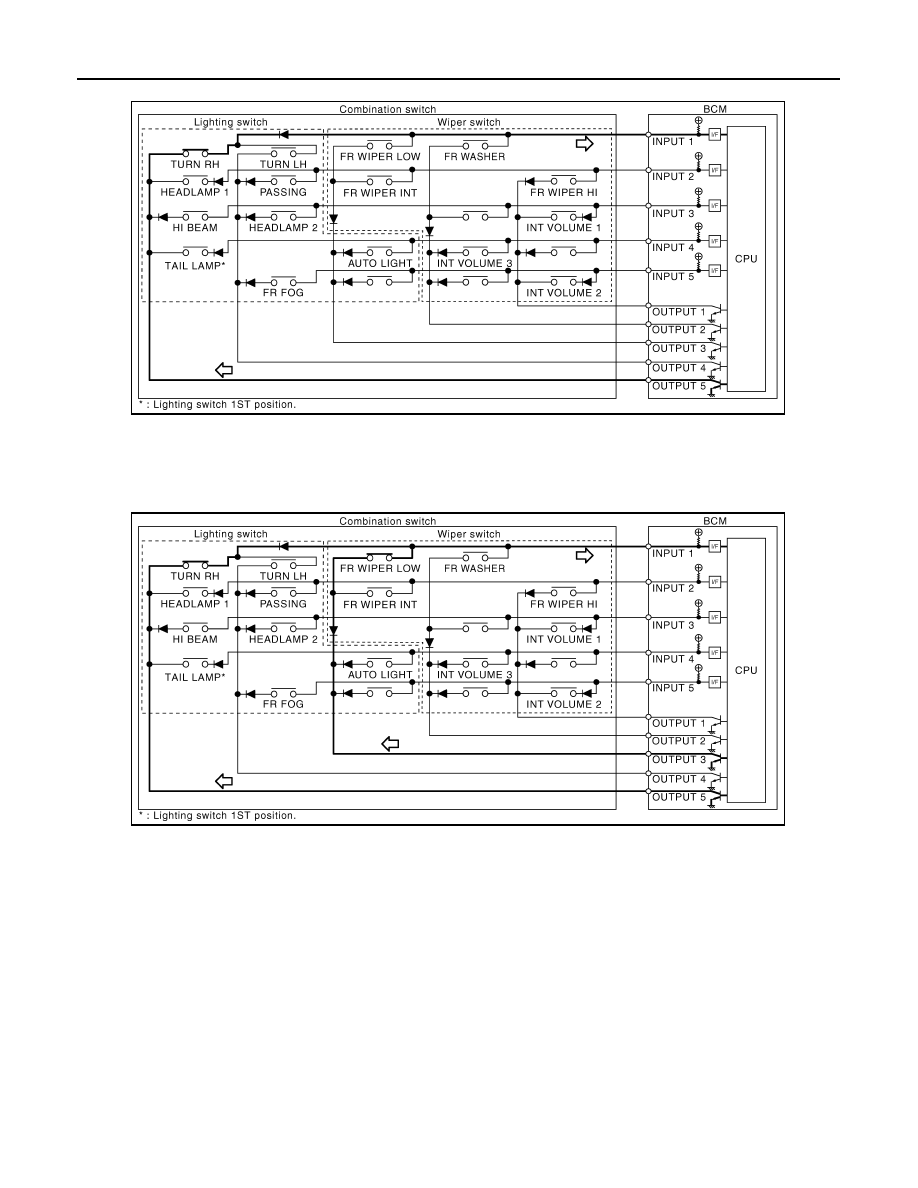

Example 1: When a switch (TURN RH switch) is turned ON

INPUT 4

—

INT VOLUME 3

AUTO LIGHT

—

TAIL LAMP

INPUT 5

INT VOLUME 2

—

—

FR FOG

—

System

OUTPUT 1

OUTPUT 2

OUTPUT 3

OUTPUT 4

OUTPUT 5

JPMIA0067GB

JPMIA0068GB

BCS-12

< FUNCTION DIAGNOSIS >

[BCM]

COMBINATION SWITCH READING SYSTEM

• The circuit between INPUT 1 and OUTPUT 5 is formed when the TURN RH switch is turned ON.

• BCM detects the combination switch status signal “1E” when the signal of OUTPUT 5 is input to INPUT 1.

• BCM judges that the TURN RH switch is ON when the signal “1E” is detected.

Example 2: When some switches (TURN RH switch, FR WIPER LOW switch) are turned ON

• The circuits between INPUT 1 and OUTPUT 5 and between INPUT 1 and OUTPUT 3 are formed when the

TURN RH switch and FR WIPER LOW switch are turned ON.

• BCM detects the combination switch status signal “1CE” when the signals of OUTPUT 3 and OUTPUT 5 are

input to INPUT 1.

• BCM judges that the TURN RH switch and FR WIPER LOW switch are ON when the signal “1CE” is

detected.

WIPER INTERMITTENT DIAL POSITION SETTING (FRONT WIPER INTERMITTENT OPERATION)

BCM judges the wiper intermittent dial 1 - 7 by the status of INT VOLUME 1, 2, and 3 switches.

JPMIA0073GB

JPMIA0074GB

BCS

COMBINATION SWITCH READING SYSTEM

BCS-13

< FUNCTION DIAGNOSIS >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Wiper intermittent dial posi-

tion

Intermittent oper-

ation delay inter-

val

INT VOLUME switch ON/OFF status

INT VOLUME 1 switch

INT VOLUME 2 switch

INT VOLUME 3 switch

1

Short

↑
↓

Long

ON

ON

ON

2

ON

ON

OFF

3

ON

OFF

OFF

4

OFF

OFF

OFF

5

OFF

OFF

ON

6

OFF

ON

ON

7

OFF

ON

OFF
