Component Description

INFOID:0000000004219500

AWNIA0091GB

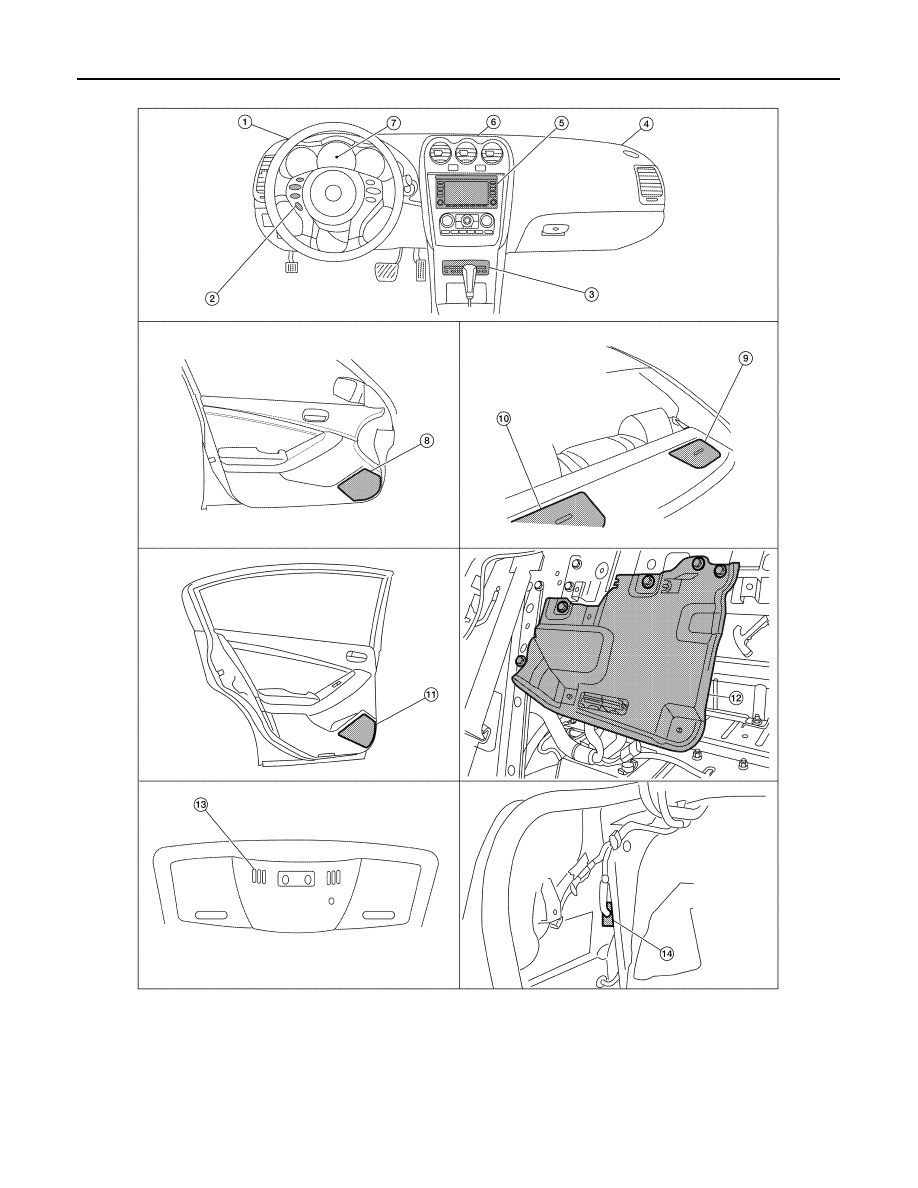

1.

Tweeter LH M51

2.

Steering wheel audio control switches 3.

CD changer M42

4.

Tweeter RH M52

5.

AV control unit M46, M47, M48, M81,
M90, M91

6.

Center speaker M151

7.

Combination meter M24

8.

Front door speaker
LH D3
RH D103

9.

Rear subwoofer RH B124

10. Rear subwoofer LH B120

11. Rear door speaker

LH D202
RH D302

12. BOSE speaker amp. B121, B122 (view

with rear seat back removed)

13. Microphone R7

14. Rear view camera control unit B31

(view with trunk side finisher LH re-
moved)

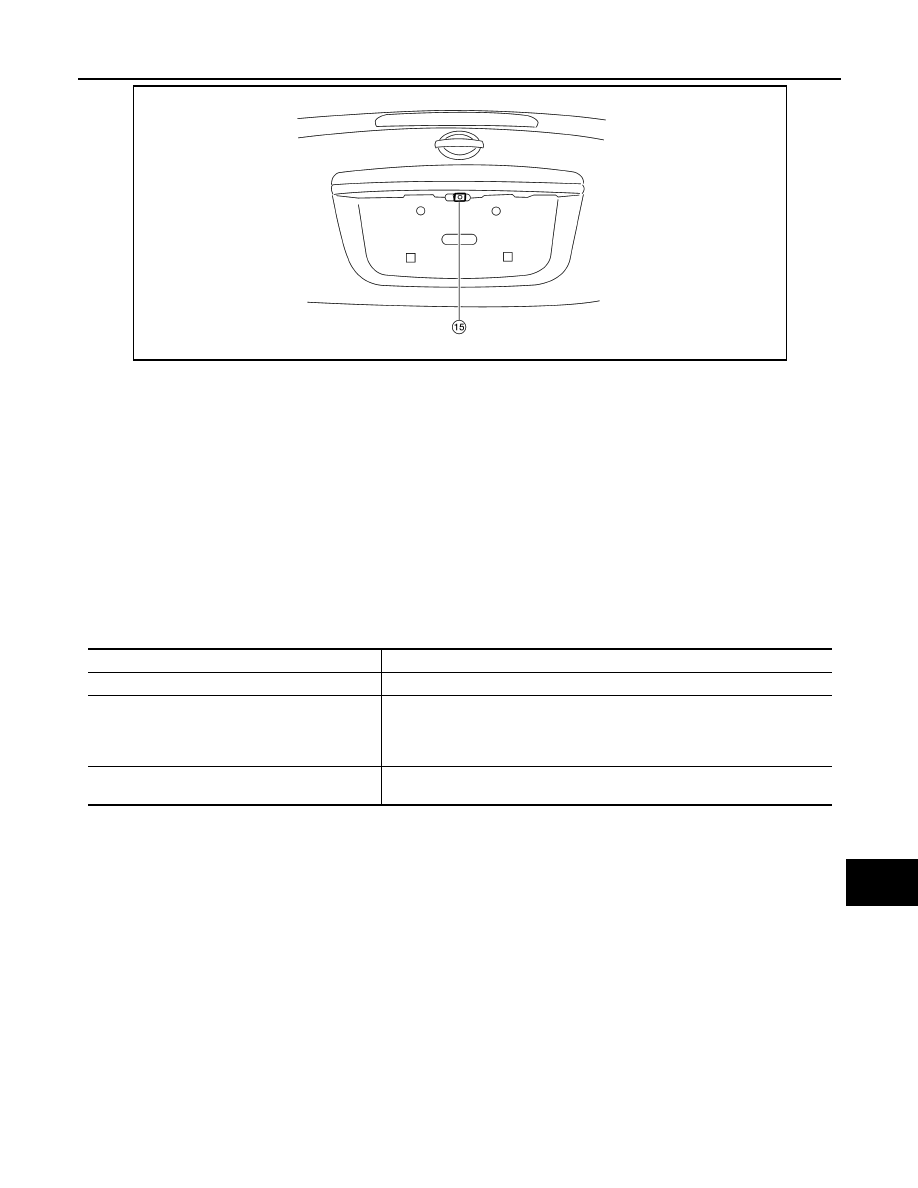

15. Rear view camera B35

Part name

Description

AV control unit

Camera image signal is sent from rear view camera control unit

Rear view camera control unit

• Receives reverse signal from back-up lamp relay
• Receives rear view camera image signal
• Sends camera ON signal to rear view camera
• Sends image signal to AV control unit

Rear view camera

• Receives camera ON signal from rear view camera control unit
• Sends image signal to rear view camera control unit

AV-166

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AUDIO SYSTEM

AUDIO SYSTEM

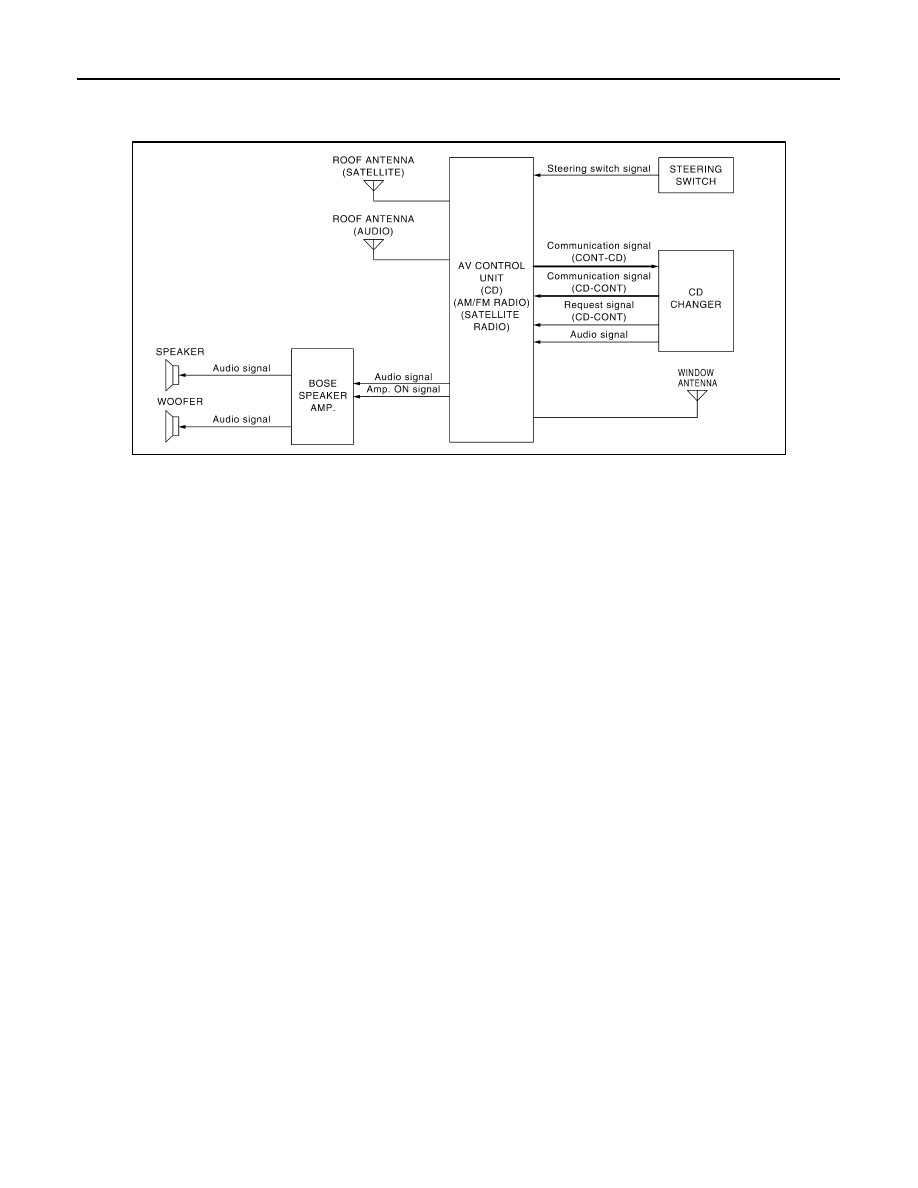

System Diagram

INFOID:0000000004219501

System Description

INFOID:0000000004219502

AUDIO SYSTEM

The audio system consists of the following components

• AV control unit (audio unit)

• BOSE speaker amp.

• Window antenna

• Roof antenna (audio)

• Steering switches

• Front door speakers

• Tweeters

• Center speaker

• Rear door speakers

• Subwoofers

• CD changer

When the audio system is on, radio signals are received by the window antenna and roof antenna. The audio

unit then sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the audio signals

before sending them to the front door speakers, tweeters, center speaker, rear door speakers and subwoof-

ers.

Refer to Owner's Manual for audio system operating instructions.

SATELLITE RADIO SYSTEM

The satellite radio system consists of the following components

• Roof antenna (satellite)

• Satellite radio tuner

When the satellite radio system is on, radio signals are supplied to the satellite radio tuner from the satellite

antenna. The satellite radio tuner then sends audio signals to the audio unit.

Refer to Owner's Manual for satellite radio system operating instructions.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control

level can be selected by the customer. Refer to Owner's Manual for operating instructions.

AWNIA0080GB
