AV-160

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

NAVIGATION SYSTEM

AWNIA0934ZZ

AV

NAVIGATION SYSTEM

AV-161

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

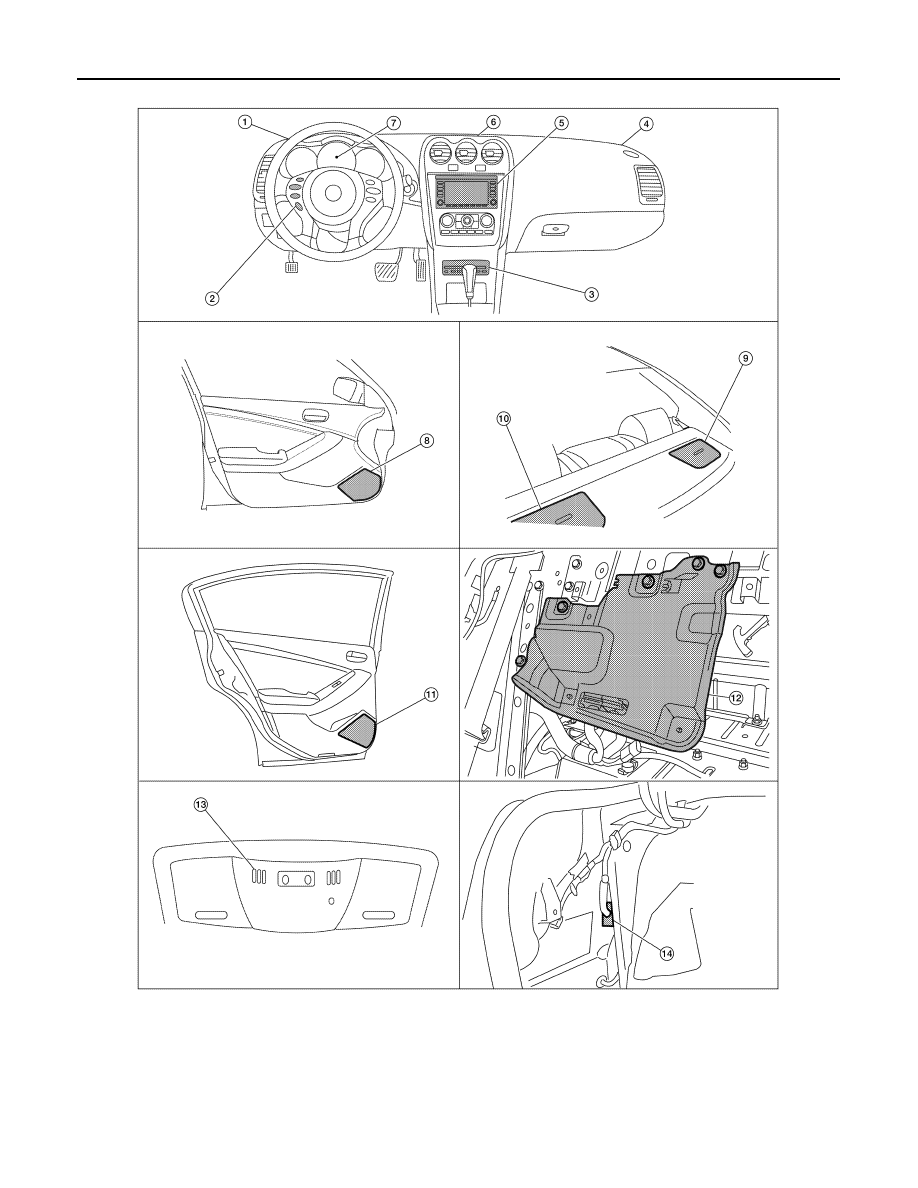

Component Description

INFOID:0000000004219496

AWNIA0091GB

1.

Tweeter LH M51

2.

Steering wheel audio control switches 3.

CD changer M42

4.

Tweeter RH M52

5.

AV control unit M46, M47, M48, M81,
M90, M91

6.

Center speaker M151

7.

Combination meter M24

8.

Front door speaker
LH D3
RH D103

9.

Rear subwoofer RH B124

10. Rear subwoofer LH B120

11. Rear door speaker

LH D202
RH D302

12. BOSE speaker amp. B121, B122 (view

with rear seat back removed)

13. Microphone R7

14. Rear view camera control unit B31

(view with trunk side finisher LH re-
moved)

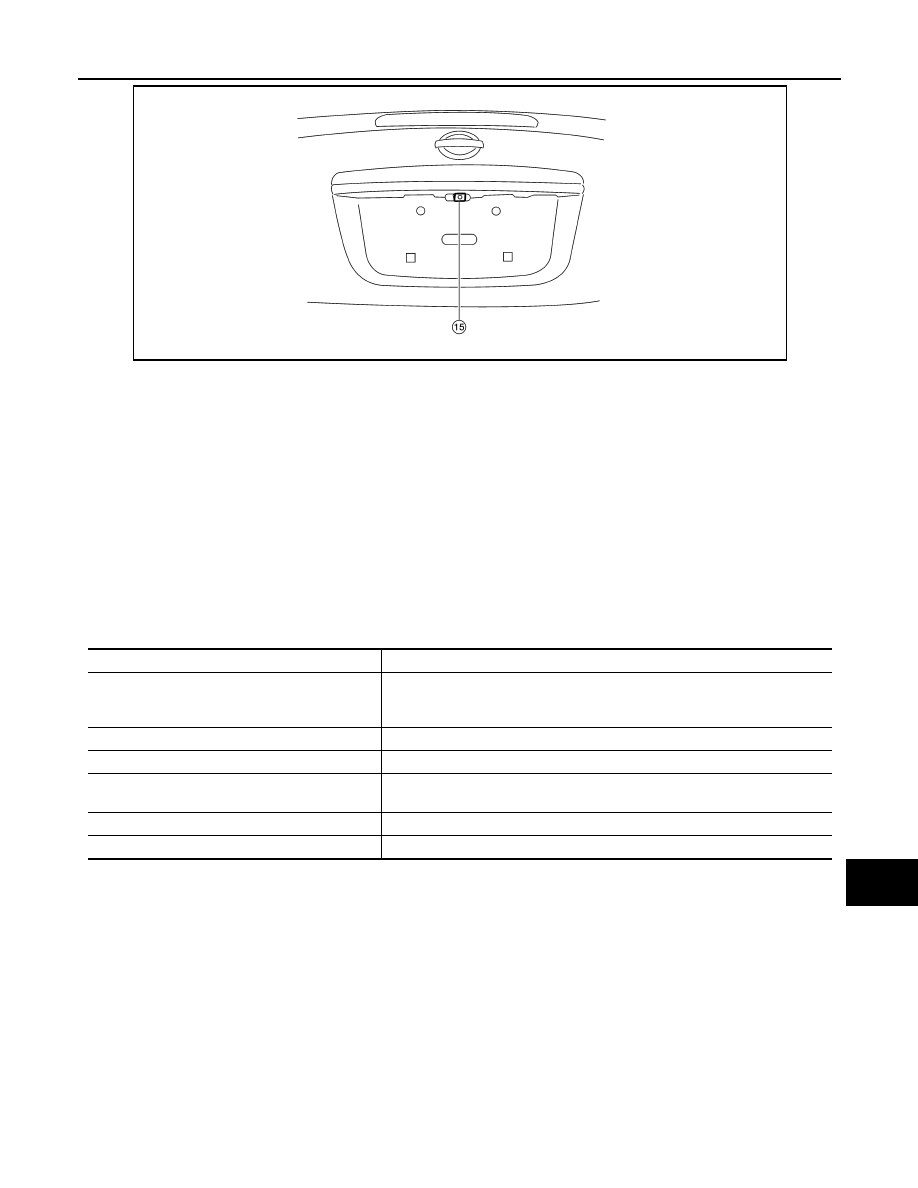

15. Rear view camera B35

Part name

Description

AV control unit

• Controls each operation of the navigation system
• DVD-ROM drive is built in
• Voice guidance signal is output to BOSE speaker amp.

BOSE speaker amp.

Voice guidance signal is input from AV control unit, and it is output to speakers.

Tweeter

Voice guidance signal from BOSE speaker amp. is output.

Steering switches

• Each operation of navigation system can be performed
• Switch operating signal is output to AV control unit

Microphone

Sends voice signals to AV control unit

GPS antenna

GPS signal is received and is output to AV control unit.

AV-162

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

REAR VIEW MONITOR SYSTEM

REAR VIEW MONITOR SYSTEM

System Diagram

INFOID:0000000004219497

System Description

INFOID:0000000004219498

When the selector is in the R position, the display shows a view to the rear of the vehicle. Lines which indicate

the vehicle clearance and distances are also displayed.

AV COMMUNICATION LINE

The rear view camera control unit is connected to the AV control unit using an AV communication line. This

line is used to transmit and receive data.

AWNIA0088GB

AV

REAR VIEW MONITOR SYSTEM

AV-163

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Parts Location

INFOID:0000000004219499
