Nissan Altima HL32 Hybrid. Manual - part 36





AV-136

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

REAR SPEAKER

REAR SPEAKER

Removal and Installation

INFOID:0000000004486420

REMOVAL

1. Remove the rear parcel shelf finisher. Refer to

INT-19, "Removal and Installation"

.

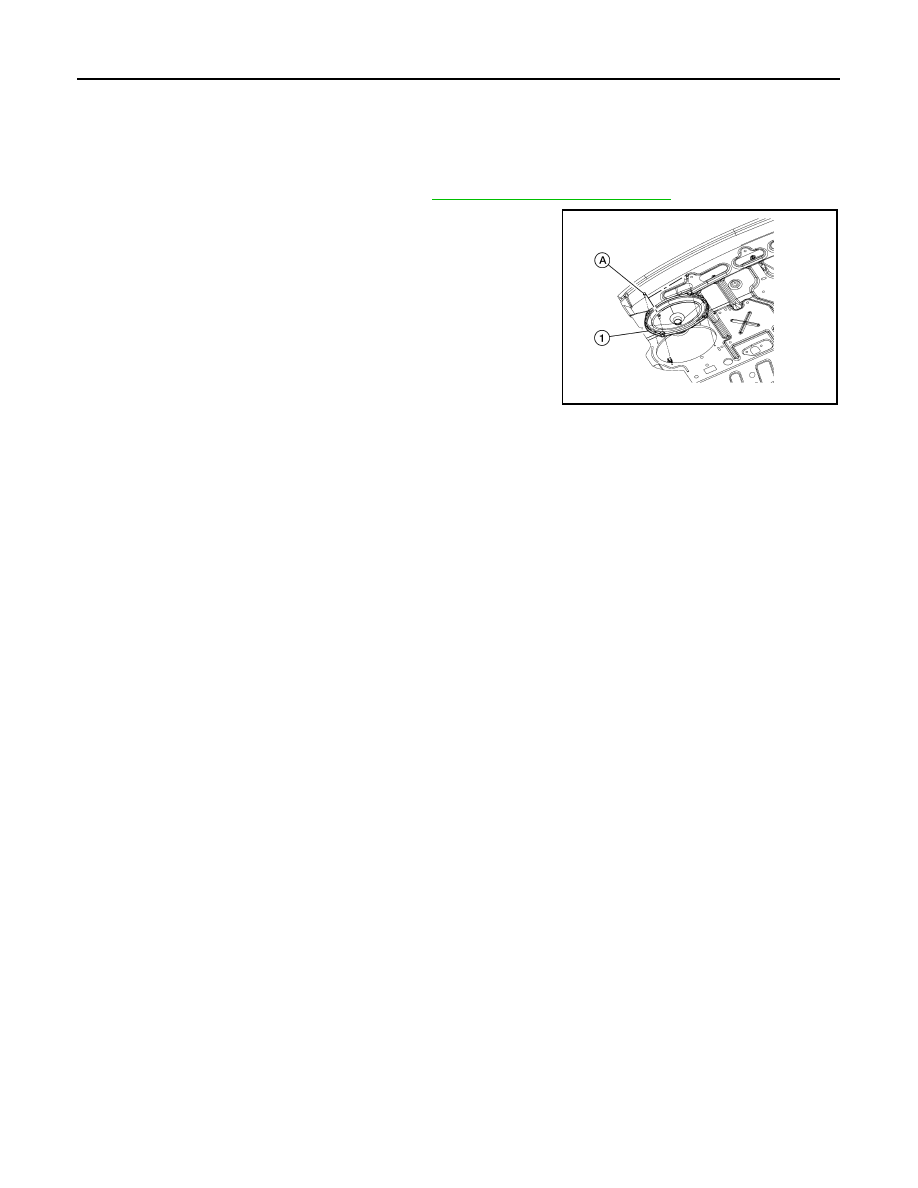

2. Remove the rear speaker screws (A), then disconnect the rear

speaker connector and remove the rear speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0042ZZ

AV

SATELLITE RADIO TUNER

AV-137

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO TUNER

Removal and Installation

INFOID:0000000004219479

REMOVAL

1. Disconnect the 12-volt battery negative terminal.
2. Remove the rear parcel shelf finisher. Refer to

INT-19, "Removal and Installation"

.

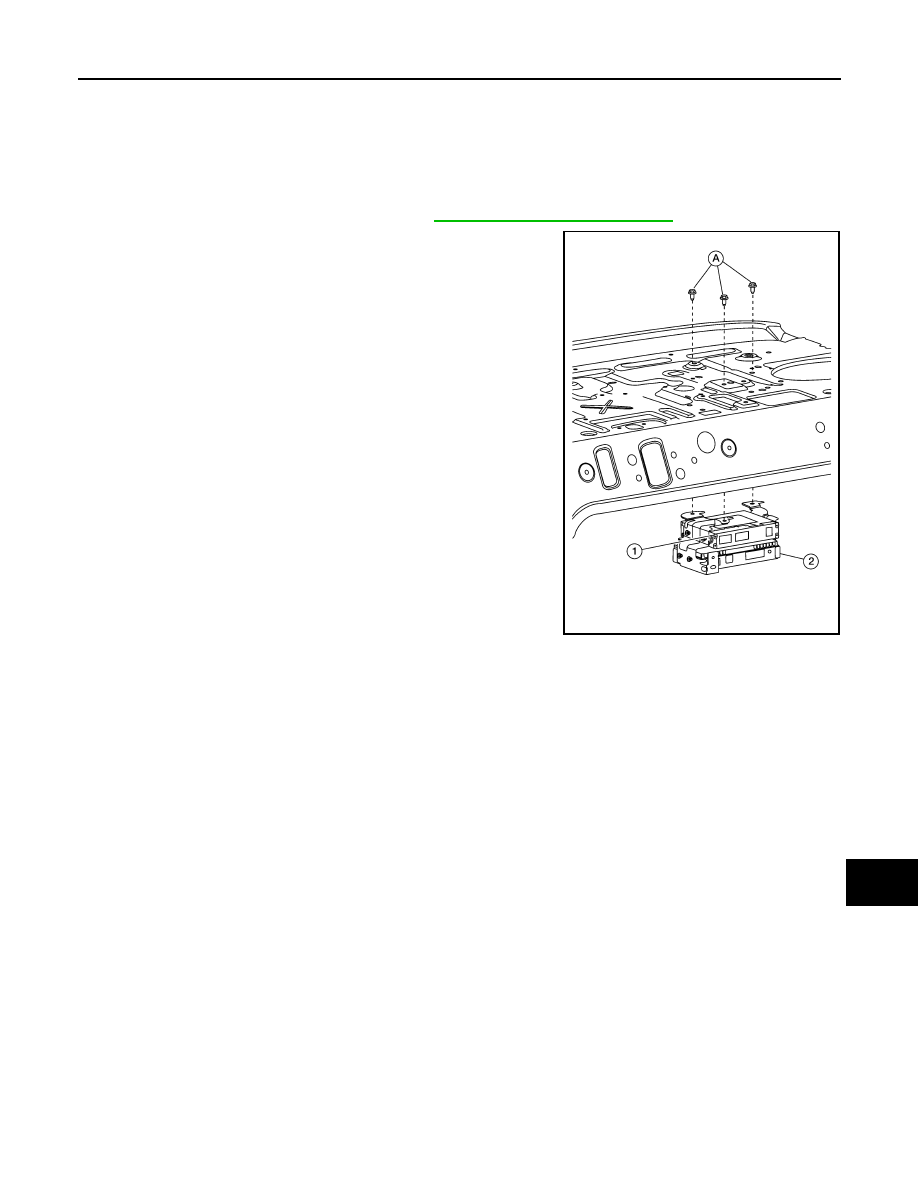

3. Remove the satellite radio tuner unit screws (A), disconnect the

satellite tuner harness connectors and remove the satellite radio

tuner (1).

NOTE:

Bluetooth control unit (2) is removed with the satellite radio tuner

unit (if equipped).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0055ZZ

AV-138

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

AUDIO ANTENNA

AUDIO ANTENNA

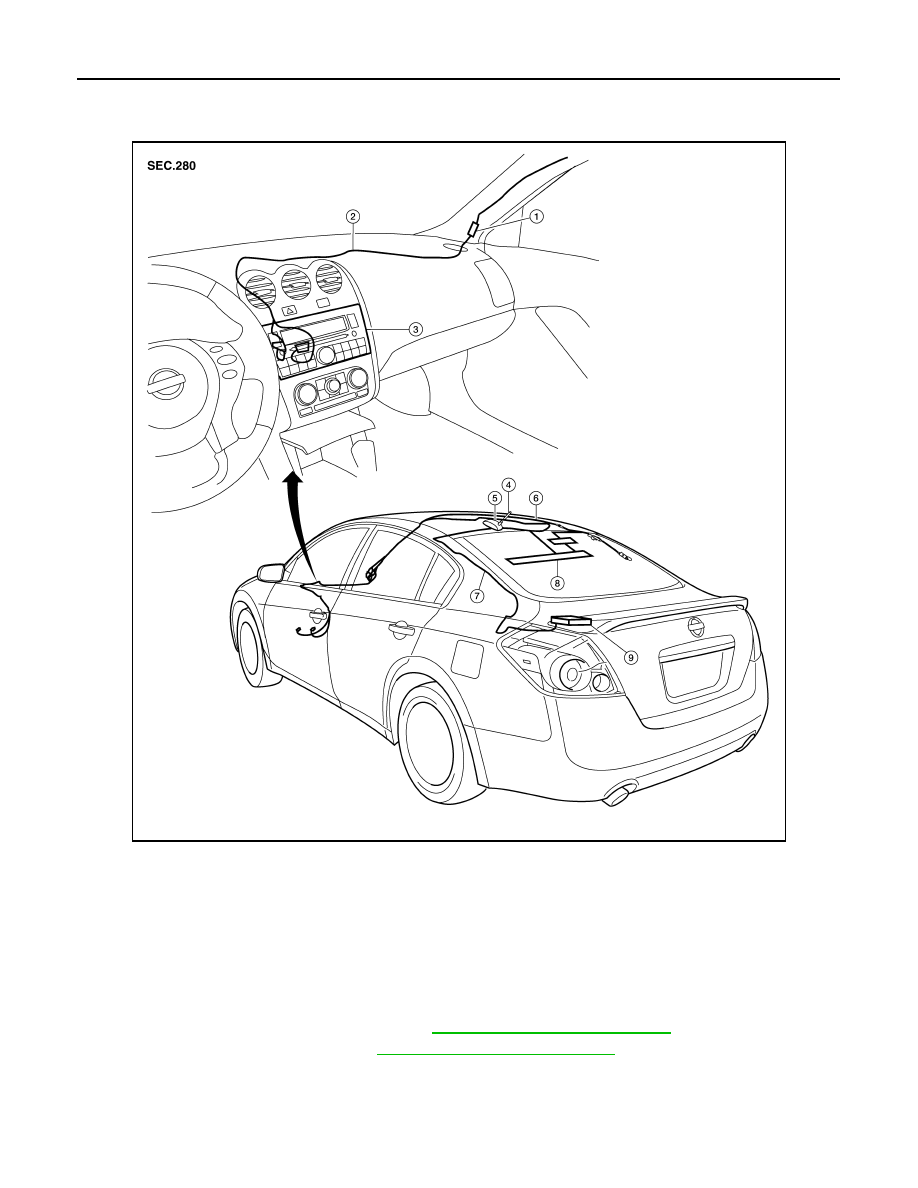

Location of Antennas

INFOID:0000000004219480

Roof Antenna

INFOID:0000000004490970

REMOVAL AND INSTALLATION

Removal

1. Remove the rear parcel shelf finisher. Refer to

INT-19, "Removal and Installation"

.

2. Remove the rear assist grips. Refer to

INT-23, "Removal and Installation"

.

3. Pull down headlining (rear) and obtain space work between roof and headlining.

ALNIA0125ZZ

1.

Audio unit harness connector

2.

Audio unit harness

3.

Audio unit

4.

Roof antenna rod

5.

Roof antenna base

6.

Antenna feeder (to audio unit)

7.

Satellite feeder

8.

Window antenna

9.

Satellite radio tuner

AV

AUDIO ANTENNA

AV-139

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

4. Remove the roof antenna nut (A), then disconnect the antenna

feeder connector (B) and remove the antenna feeder (1) from

the roof.

5. Detach the antenna feeder harness wire clips, then disconnect

the antenna feeder harness wire end and feed the antenna

feeder harness through the roof to remove the roof antenna

base.

Installation

Installation is in the reverse order of removal.

Window Antenna Repair

INFOID:0000000004490971

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your finger.

ALNIA0127ZZ

SEL250I

SEL122R
