< PRECAUTION >

[BOSE AUDIO WITHOUT NAVIGATION]

PRECAUTIONS

• Be sure to turn ignition switch OFF and disconnect the battery cable from the negative terminal before

checking the circuit.

Precaution for Harness Repair

INFOID:0000000004499301

AV COMMUNICATION SYSTEM

• Solder the repaired parts, and wrap with tape. [Frays of twisted line

must be within 110 mm (4.33 in).]

• Do not perform bypass wire connections for the repair parts. (The

spliced wire will become separated and the characteristics of

twisted line will be lost.)

PKIA0306E

PKIA0307E

AV

PREPARATION

AV-129

< PREPARATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000004219471

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0191E

AV-130

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

AUDIO UNIT

ON-VEHICLE REPAIR

AUDIO UNIT

Removal and Installation

INFOID:0000000004486324

REMOVAL

1. Disconnect the 12-volt battery negative terminal.
2. Remove the cluster lid D. Refer to

IP-12, "Removal and Installation"

.

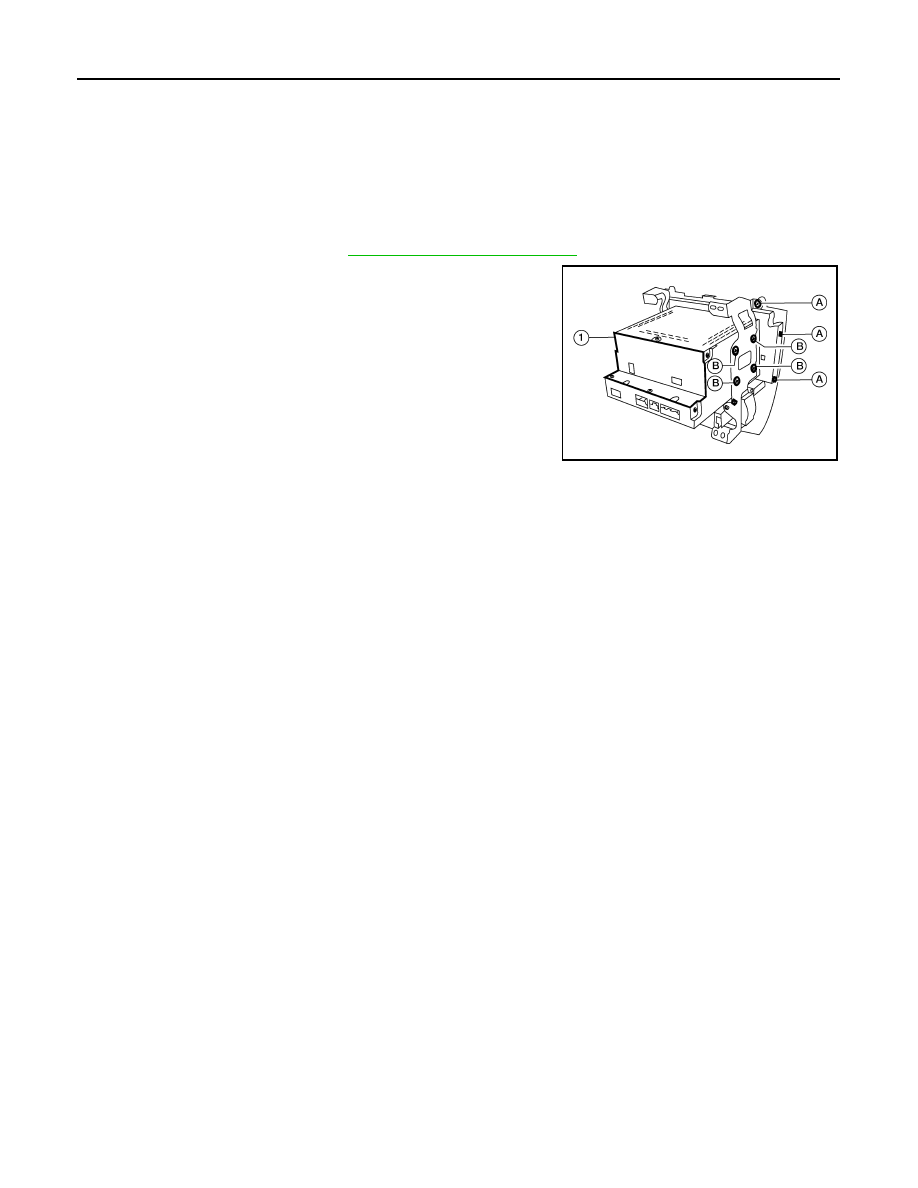

3. Remove the cluster lid D screws (A), then remove the audio unit

screws (B) and the audio unit (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0026ZZ

AV

BOSE AMP.

AV-131

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BOSE AMP.

Removal and Installation

INFOID:0000000004219473

REMOVAL

1. Disconnect the 12-volt battery negative terminal.
2. Remove the rear seat back. Refer to

SE-22, "Removal and Installation"

.

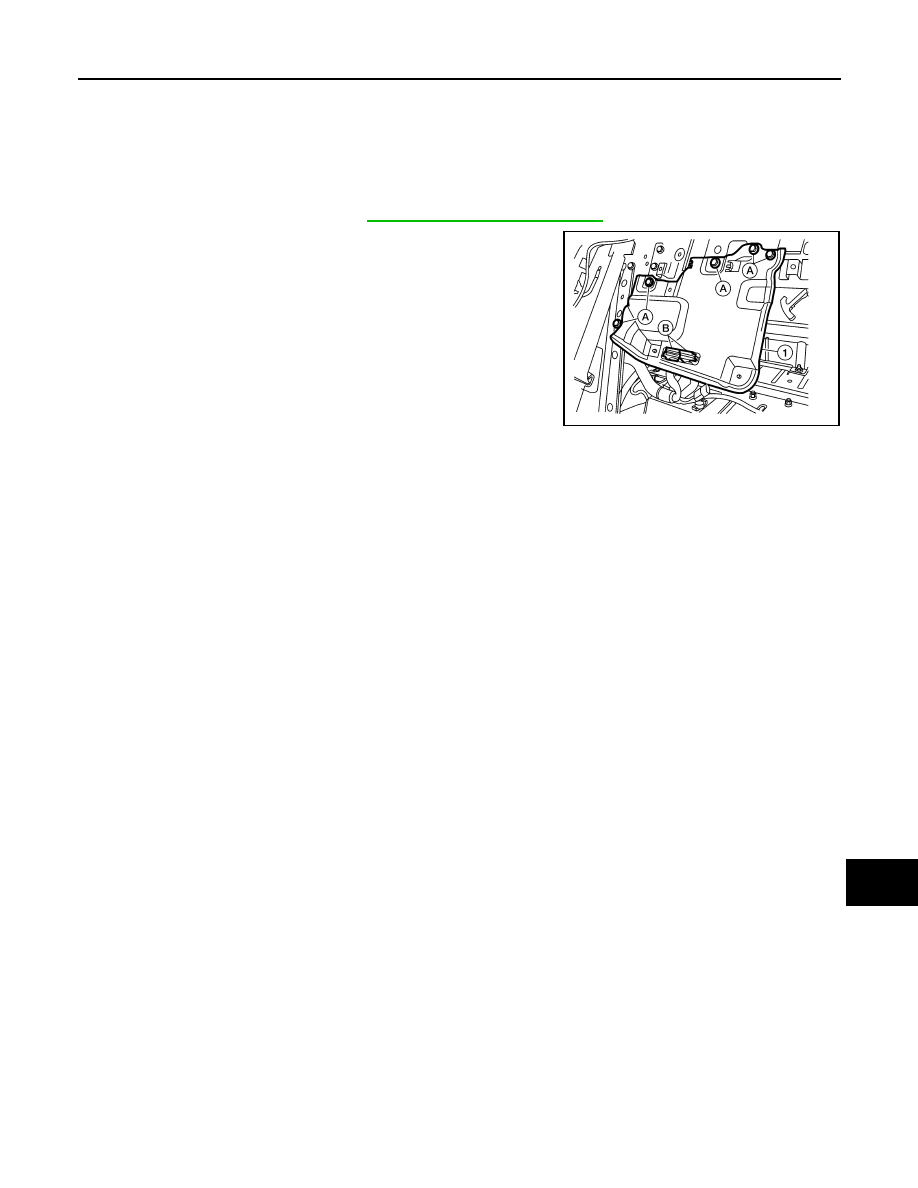

3. Remove the bose speaker amp. screws (A), then disconnect the

bose speaker amp. connectors (B), and remove the bose

speaker amplifier (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0126ZZ
