AV-132

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

TWEETER

TWEETER

Removal and Installation

INFOID:0000000004486370

REMOVAL

1. Remove the front pillar finisher. Refer to

INT-23, "Removal and Installation"

.

2. Remove tweeter speaker grille. Refer to

IP-12, "Removal and Installation"

.

3. Remove the tweeter speaker screws (A), disconnect the tweeter speaker connector and remove the

tweeter speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0180GB

AV

CENTER SPEAKER

AV-133

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CENTER SPEAKER

Removal and Installation

INFOID:0000000004219475

REMOVAL

1. Remove the center speaker grille. Refer to

IP-12, "Removal and Installation"

.

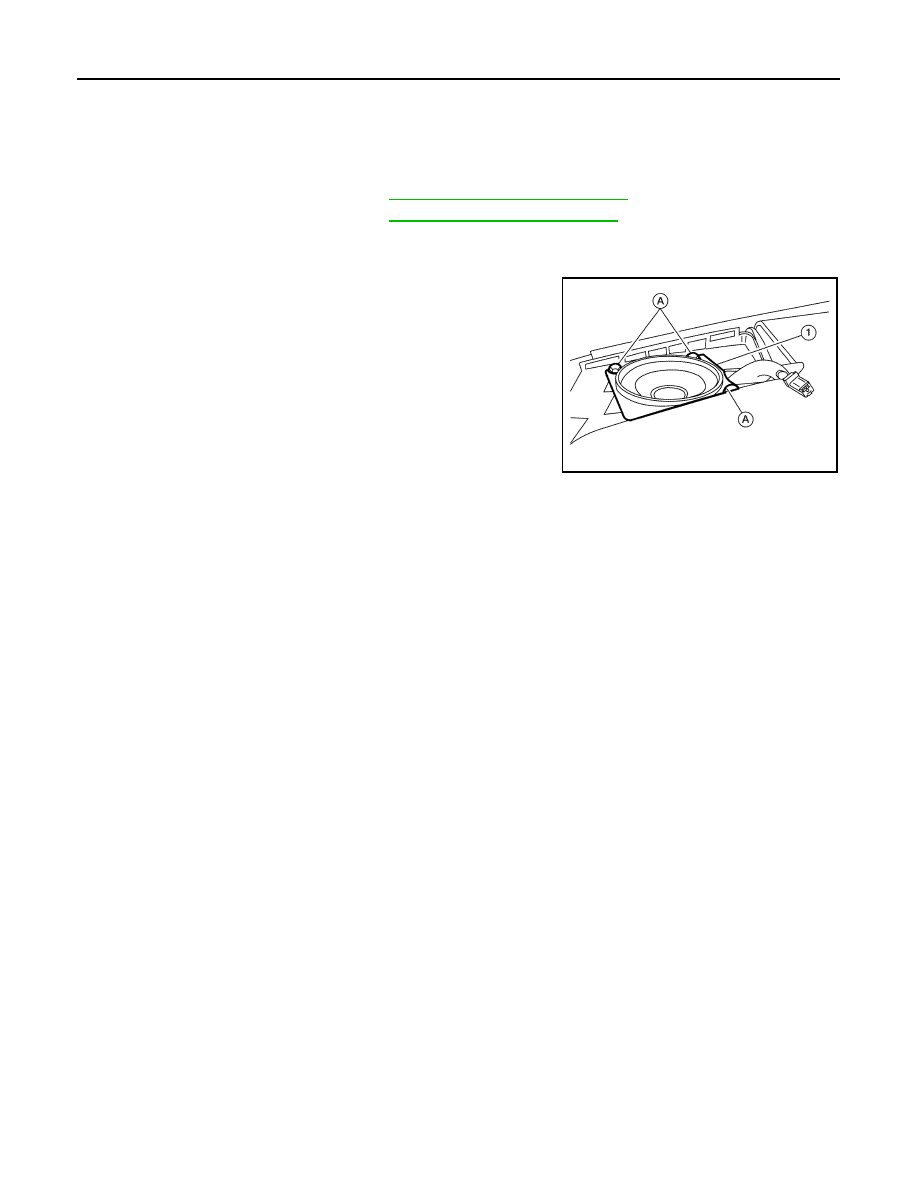

2. Remove the center speaker screws (A), then pull out the center

speaker (1), disconnect the connector and remove the center

speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0181GB

AV-134

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000004486371

REMOVAL

1. Remove the front door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the front door speaker screws (A), then disconnect the

front door speaker connector and remove the front door speaker

(1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0040ZZ

AV

REAR DOOR SPEAKER

AV-135

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000004219477

REMOVAL

1. Remove the rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the rear door speaker screws (A), then disconnect the

rear door speaker connector and remove the rear door speaker

(1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0041ZZ
