IP-28

< UNIT DISASSEMBLY AND ASSEMBLY >

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

Assembly

Assembly is in the reverse order of disassembly.

CENTER CONSOLE ASSEMBLY

IP-29

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CENTER CONSOLE ASSEMBLY

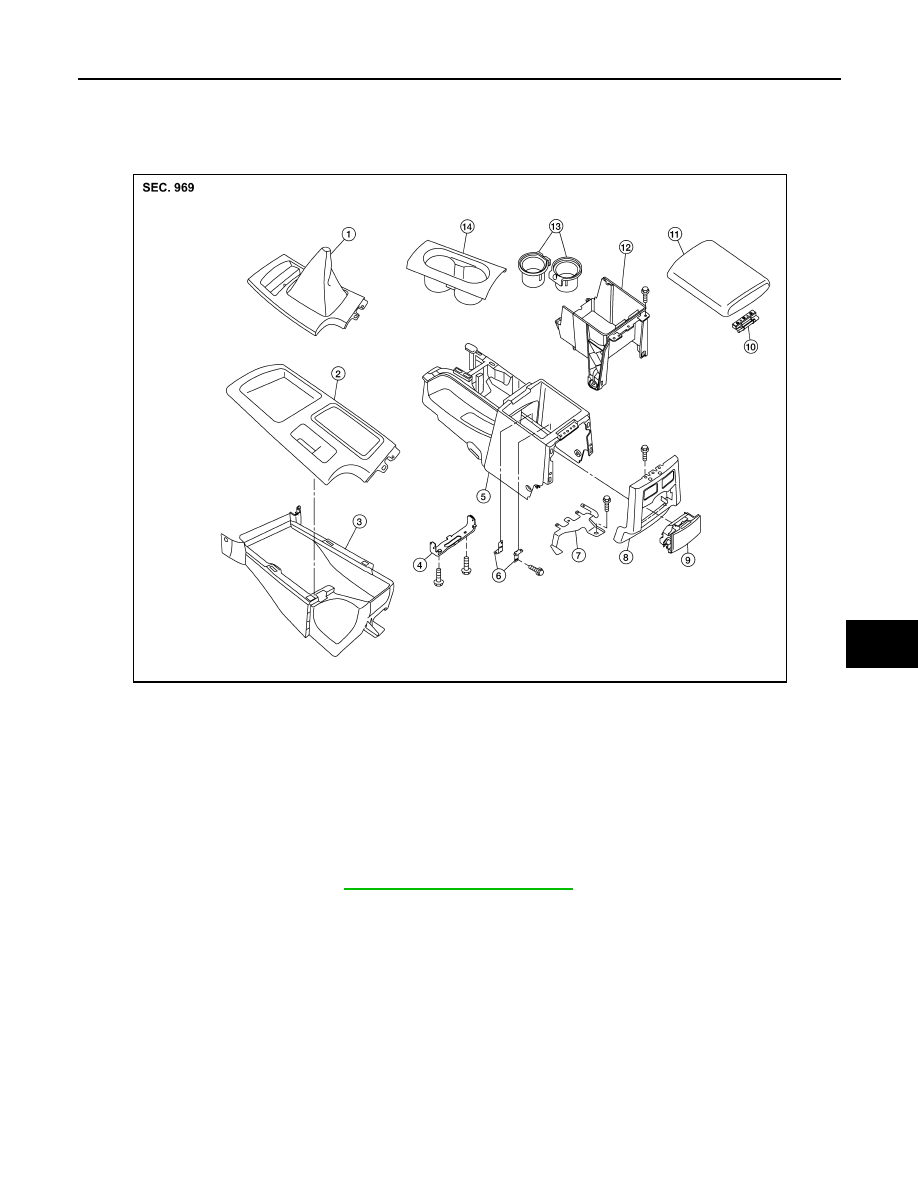

Exploded View

INFOID:0000000009478563

Disassembly and Assembly

INFOID:0000000009478564

DISASSEMBLY

1. Remove center console. Refer to

IP-15, "Removal and Installation"

.

2. Remove center console lid.
3. Remove hinge from center console lid.
4. Remove rear finisher assembly.
5. Remove rear cup holder assembly.
6. Remove brackets.
7. Disconnect harness connectors from center console.
8. Remove cup holder insert and cup holder finisher.
9. Remove center console bin.
10. Remove center console bracket.
11. Remove wire harness bracket.

ASSEMBLY

AWJIA0412ZZ

1.

Shift selector finisher (M/T)

2.

Shift selector finisher (A/T)

3.

Center console front base

4.

Bracket

5.

Center console rear base

6.

Bracket

7.

Wire harness bracket

8.

Rear finisher assembly

9.

Rear cup holder assembly

10.  Center console lid hinge

11. Center console lid

12. Center console bin

13. Cup holder insert

14. Cup holder finisher

A.

Bolt

IP-30

< UNIT DISASSEMBLY AND ASSEMBLY >

CENTER CONSOLE ASSEMBLY

Assembly is in the reverse order of disassembly.

LAN

LAN-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

LAN

A

O

P

N

CONTENTS

LAN SYSTEM

CAN FUNDAMENTAL

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Trouble Diagnosis ..............................

3

Precaution for Harness Repair ..................................

3

SYSTEM DESCRIPTION  ..............................

4

CAN COMMUNICATION SYSTEM  .....................

4

System Description  ...................................................

4

System Diagram ........................................................

4

CAN Communication Control Circuit .........................

5

DIAG ON CAN .....................................................

6

Description ................................................................

6

System Diagram ........................................................

6

TROUBLE DIAGNOSIS  ......................................

7

Condition of Error Detection ......................................

7

Symptom When Error Occurs in CAN Communi-
cation System ............................................................

7

Self-Diagnosis .........................................................

10

CAN Diagnostic Support Monitor  ............................

10

BASIC INSPECTION  ...................................

13

DIAGNOSIS AND REPAIR WORKFLOW  .........

13

Information Needed for Trouble Diagnosis  .............

13

How to Use CAN Communication Signal Chart  ......

13

Trouble Diagnosis Flow Chart .................................

14

Trouble Diagnosis Procedure ..................................

14

CAN

HOW TO USE THIS MANUAL .....................

36

HOW TO USE THIS SECTION ...........................

36

Caution ....................................................................

36

Abbreviation List ......................................................

36

PRECAUTION ..............................................

37

PRECAUTIONS .................................................

37

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

37

Precautions for Trouble Diagnosis  ..........................

37

Precautions for Harness Repair  ..............................

37

BASIC INSPECTION  ...................................

39

DIAGNOSIS AND REPAIR WORKFLOW  ........

39

Interview Sheet ........................................................

39

Diagnosis Sheet (CAN Type 1)  ...............................

40

Diagnosis Sheet (CAN Type 2)  ...............................

41

Diagnosis Sheet (CAN Type 3)  ...............................

42

Diagnosis Sheet (CAN Type 4)  ...............................

43

Diagnosis Sheet (CAN Type 5)  ...............................

44

Diagnosis Sheet (CAN Type 6)  ...............................

45

Diagnosis Sheet (CAN Type 7)  ...............................

46

Diagnosis Sheet (CAN Type 8)  ...............................

47

Diagnosis Sheet (CAN Type 9)  ...............................

48

Diagnosis Sheet (CAN Type 10)  .............................

49

Diagnosis Sheet (CAN Type 11)  .............................

50

Diagnosis Sheet (CAN Type 12)  .............................

51

Diagnosis Sheet (CAN Type 13)  .............................

52

SYSTEM DESCRIPTION  .............................

53

CAN COMMUNICATION SYSTEM ...................

53

CAN System Specification Chart .............................

53

CAN Communication Signal Chart  ..........................

54

TROUBLE DIAGNOSIS  ....................................

56

CAN Diagnostic Support Monitor .............................

56

DTC Index  ...............................................................

60

WIRING DIAGRAM ......................................

61

CAN SYSTEM  ...................................................

61

Wiring Diagram ........................................................

61

DTC/CIRCUIT DIAGNOSIS  .........................

67
