INSTRUMENT LOWER PANEL RH AND GLOVE BOX

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

Removal and Installation

INFOID:0000000009478558

REMOVAL

1. Remove front pillar lower finisher (RH). Refer to

INT-19, "Removal and Installation"

.

2. Remove instrument lower panel RH screws.
3. Remove instrument lower panel RH and lower glove box assembly.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Install upper glove box before installing lower glove box if both have been removed.

SHIFT SELECTOR FINISHER

IP-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

SHIFT SELECTOR FINISHER

Removal and Installation

INFOID:0000000009478559

REMOVAL

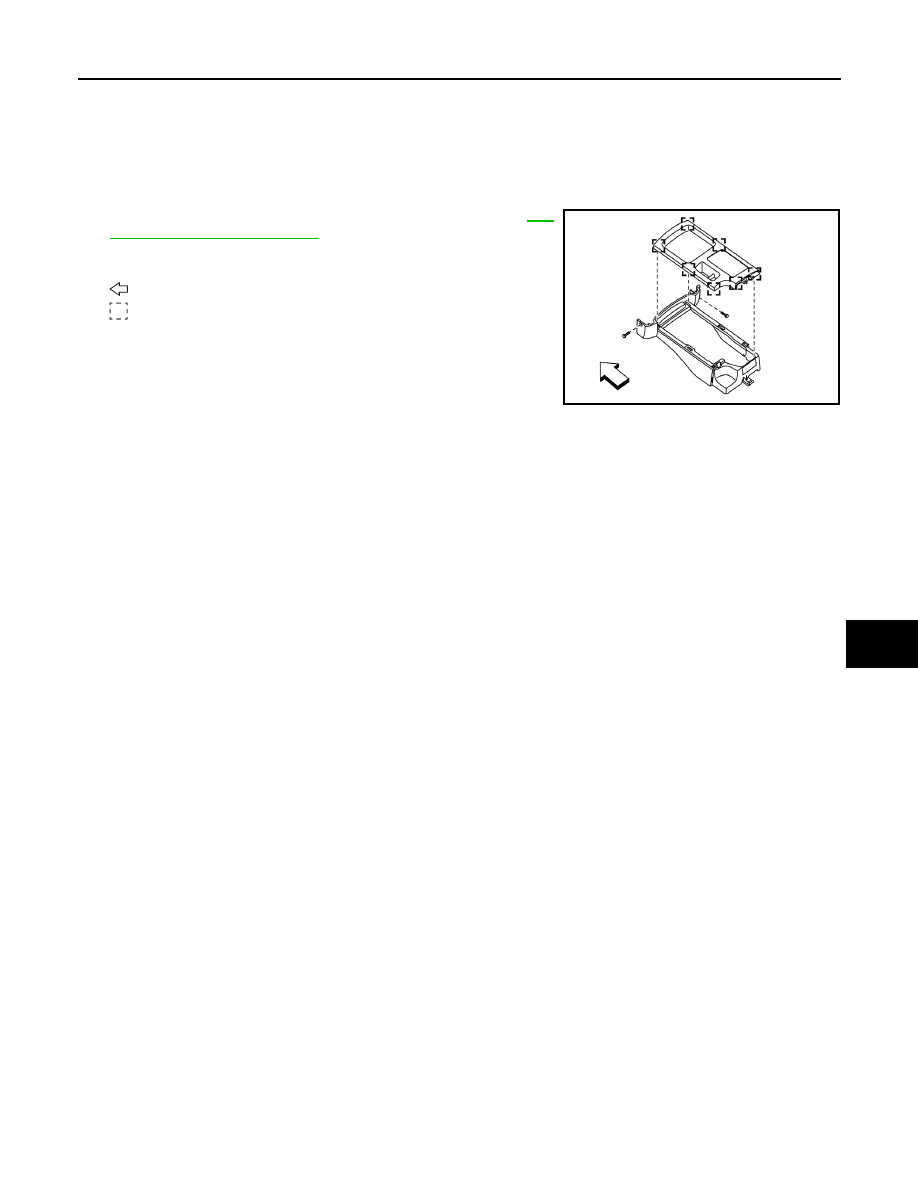

1. Release the cup holder finisher clips using a suitable tool and remove.
2. Remove the shift selector handle (6MT: FS6R31A). Refer to

TM-

69, "Removal and Installation"

.

3. Release the shift slector finisher clips using a suitable tool and

remove.

: Front

: Metal clip

NOTE:

A/T shift selector finisher shown; M/T shift selector finisher simi-

lar.

INSTALLATION

Installation is in the reverse order of removal.

AWJIA0664ZZ

IP-26

< REMOVAL AND INSTALLATION >

CENTER CONSOLE

CENTER CONSOLE

Removal and Installation

INFOID:0000000009478560

CENTER CONSOLE

Removal

1. Remove instrument lower panel RH and lower glove box assembly. Refer to

IP-24, "Removal and Installa-

tion"

.

2. Release the cup holder finisher clips using a suitable tool and remove.
3. Remove the shift selector finisher. Refer to

IP-25, "Removal and Installation"

.

4. Remove center console screws, then lift center console rear base away from center console front base

while disconnecting harness connectors.

5. Disconnect remaining harness connectors from center console front base and remove.

Installation

Installation is in the reverse order of removal.

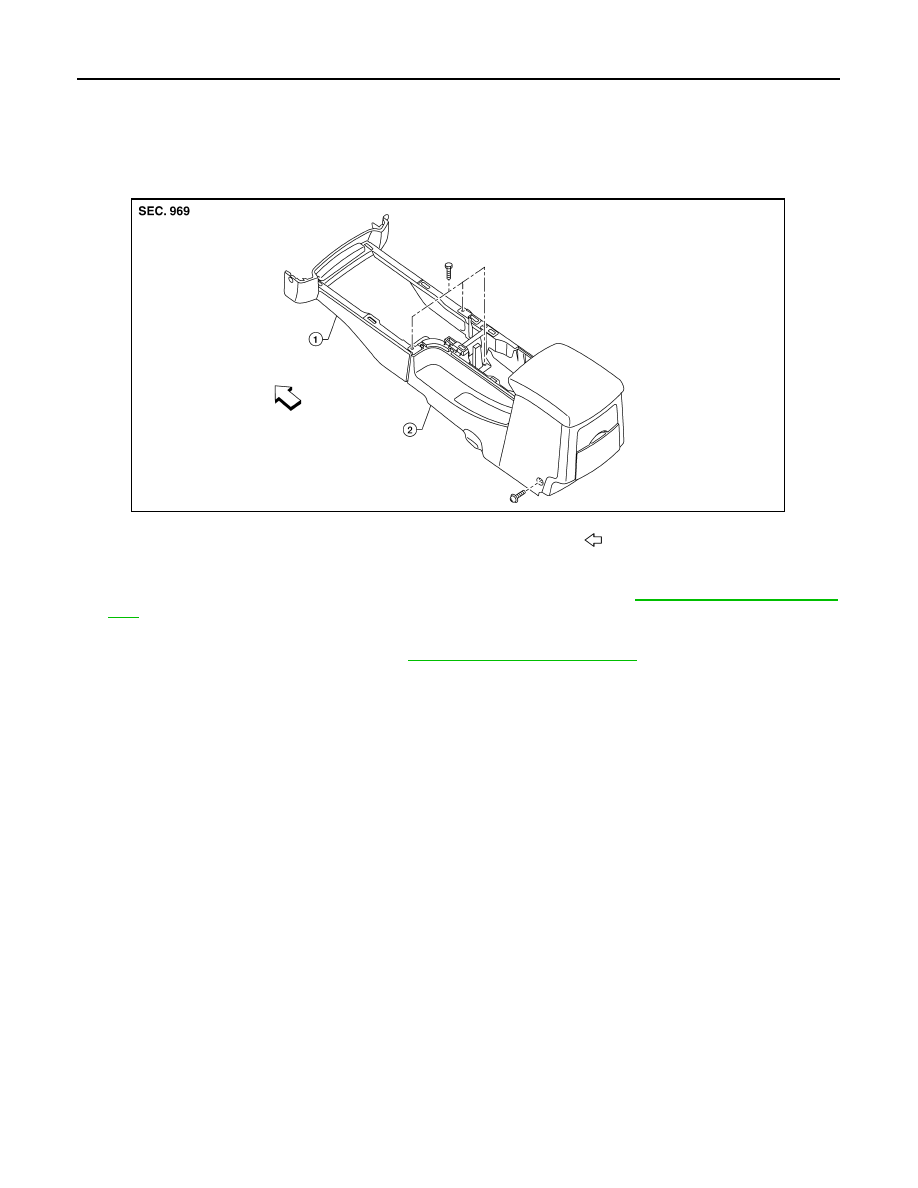

1.

Center console front base

2.

Center console rear base

Front

AWJIA0415ZZ

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

IP-27

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

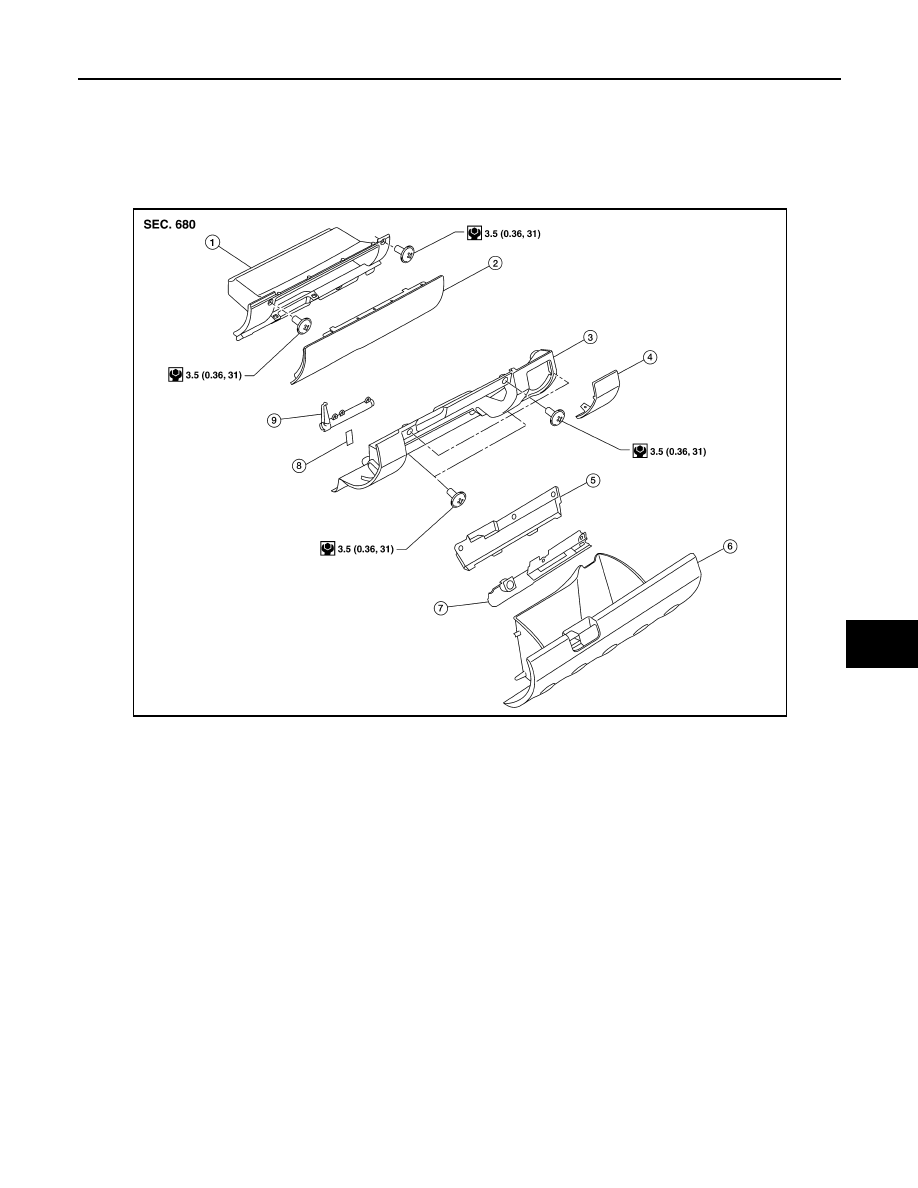

Exploded View

INFOID:0000000009478561

Disassembly and Assembly

INFOID:0000000009478562

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

Disassembly

1. Remove fuse block cover.
2. Remove damper hook.
3. Remove lower glove box latch cover.
4. Remove lower glove box latch assembly.

Assembly

Assembly is in the reverse order of disassembly.

UPPER GLOVE BOX

Disassembly

1. Remove upper glove box lid screws.
2. Remove upper glove box lid.

1.

Upper glove box

2.

Upper glove box lid

3.

Instrument lower panel RH

4.

Fuse block cover

5.

Lower glove box latch assembly cover 6.

Lower glove box

7.

Lower glove box latch assembly

8.

Damper hook

9.

Lower glove box damper

WIIA1049E
