BODY SIDE TRIM

Installation is in the reverse order of removal.

FLOOR TRIM

INT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

FLOOR TRIM

Removal and Installation

INFOID:0000000009480047

Crew Cab and King Cab Floor Carpet

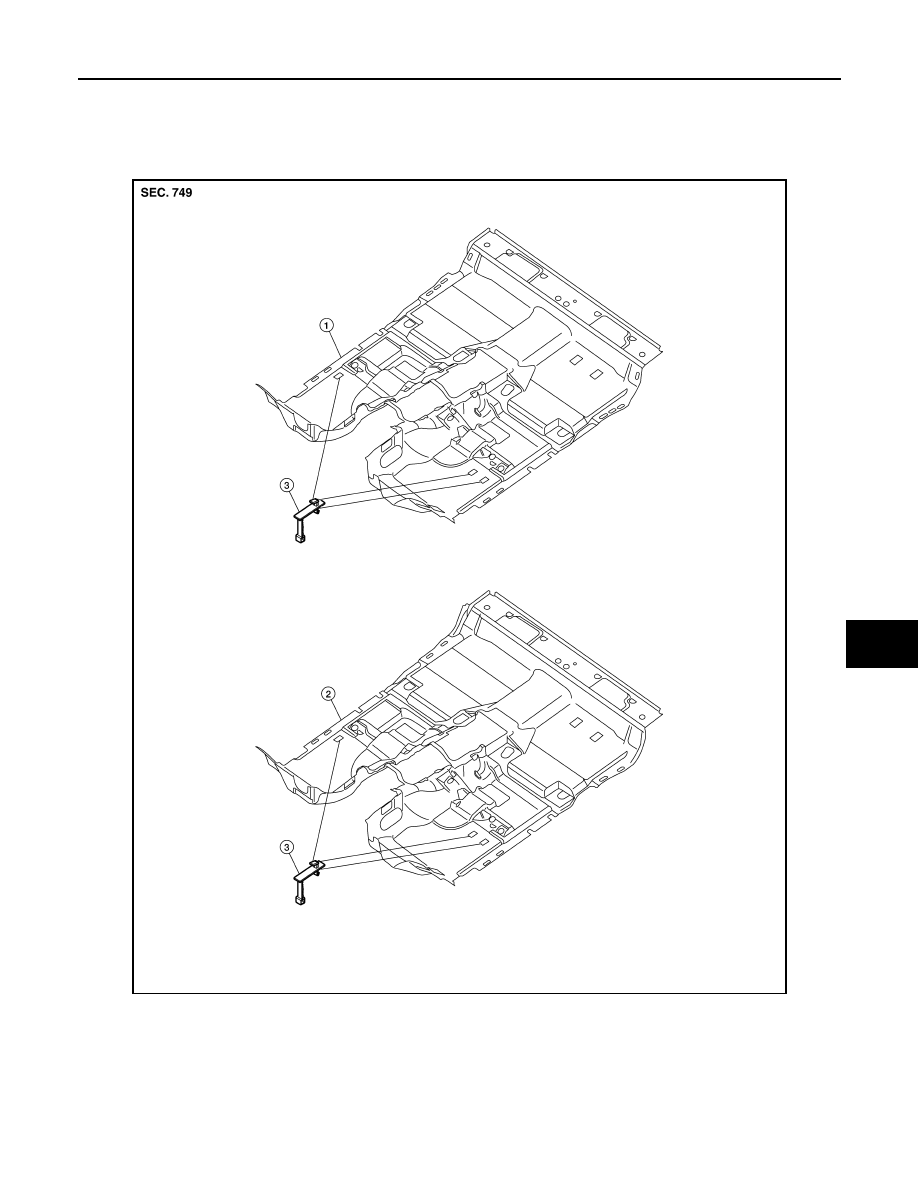

AWJIA0413ZZ

1.

Crew cab carpet

2.

King cab carpet

3.

Floor mat hook

INT-24

< REMOVAL AND INSTALLATION >

FLOOR TRIM

Storage Box

REMOVAL

1. Remove front seats. Refer to

SE-32, "Removal and Installation"

.

2. Remove rear seats. Refer to

SE-33, "Removal and Installation"

.

3. Remove storage boxes (if equipped).
4. Remove lower seat belt anchors (crew cab only). Refer to

SB-13, "Removal and Installation"

.

5. Remove lower body side trim panels. Refer to

INT-19, "Removal and Installation"

.

6. Remove center console. Refer to

IP-26, "Removal and Installation"

.

7. Remove floor mat hooks.
8. Remove carpet.

INSTALLATION

Installation is in the reverse order of removal.

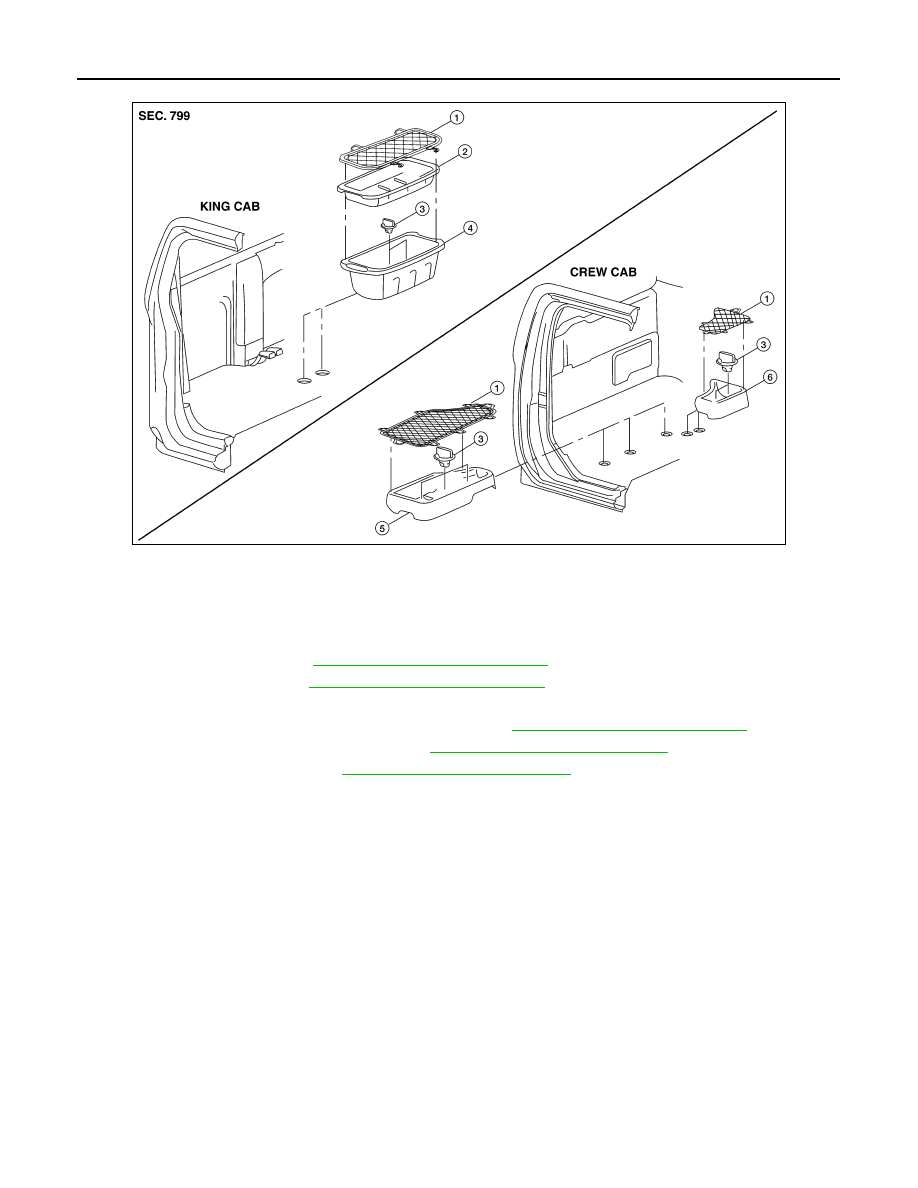

LIIA2078E

1.

Net

2.

Tray (King Cab)

3.

Locking clip

4.

Storage box (King Cab)

5.

Storage box (RH) (Crew Cab)

6.

Storage box (LH) (Crew Cab) (if
equipped)

HEADLINING

INT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

HEADLINING

Removal and Installation

INFOID:0000000009480048

1.

Sunroof shade cover (if equipped)

2.

Sunroof welt (if equipped)

3.

Assist grip

4.

Sun visor assembly (RH)

5.

Sun visor holder (RH/LH)

6.

Sun visor assembly (LH)

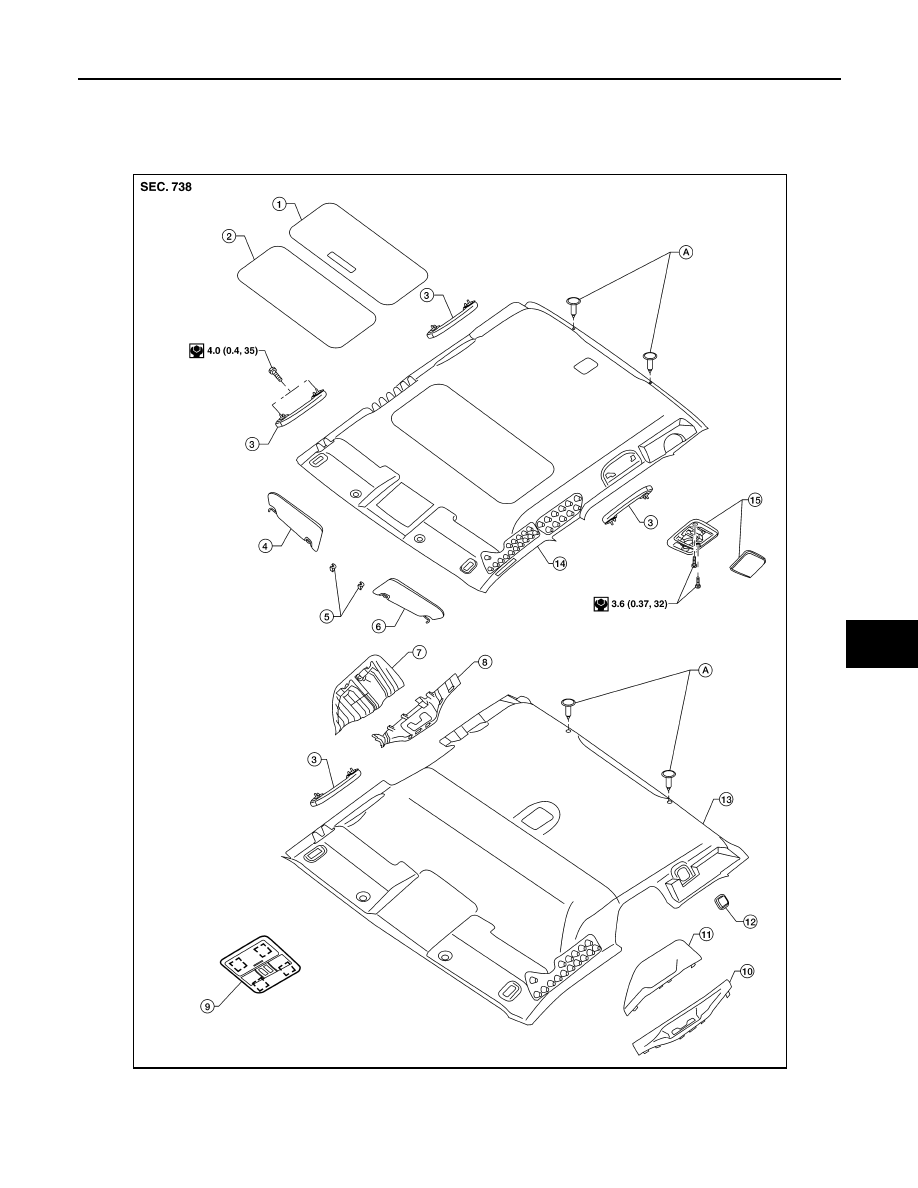

AWJIA1012ZZ
