INT-18

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

BODY SIDE TRIM

Component

INFOID:0000000009480045

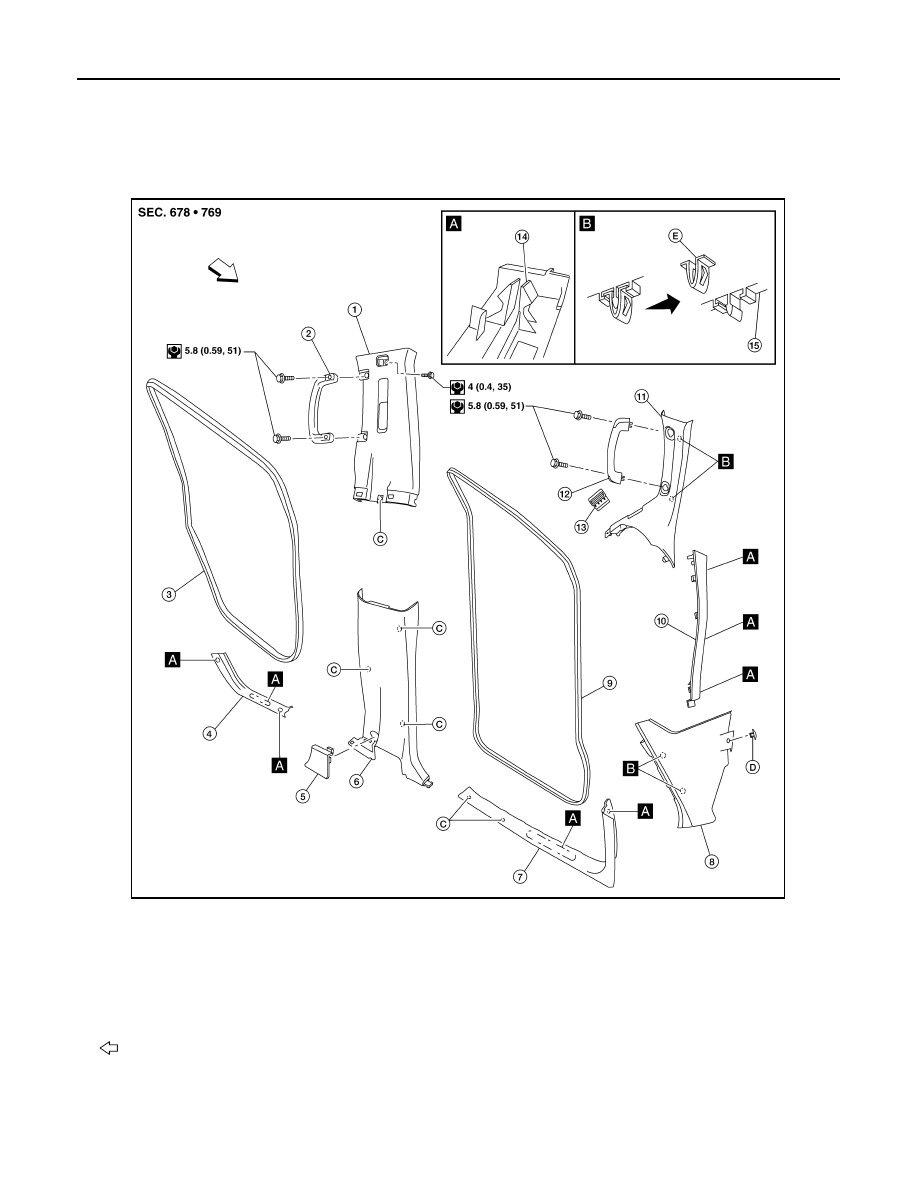

CREW CAB

CAUTION:

• When removing or installing body side welts, do not allow butyl seal to come in contact with pillar

finisher.

• Wrap a cloth around suitable tool when removing metal clips from finishers.

1.

Center pillar upper finisher

2.

Center pillar assist grip

3.

Rear door welt

4.

Rear kick plate

5.

Access cover (RH side only)

6.

Center pillar lower finisher

7.

Front kick plate

8.

Lower dash side finisher

9.

Front door welt

10. Front pillar lower finisher

11. Front pillar upper finisher

12. Front pillar assist grip

13. LH side demister grille

14. Molded plastic clip

15. Finisher

C.

Clip C101

D.

Clip C111

E.

Metal clip

Front

AWJIA0051GB

BODY SIDE TRIM

INT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

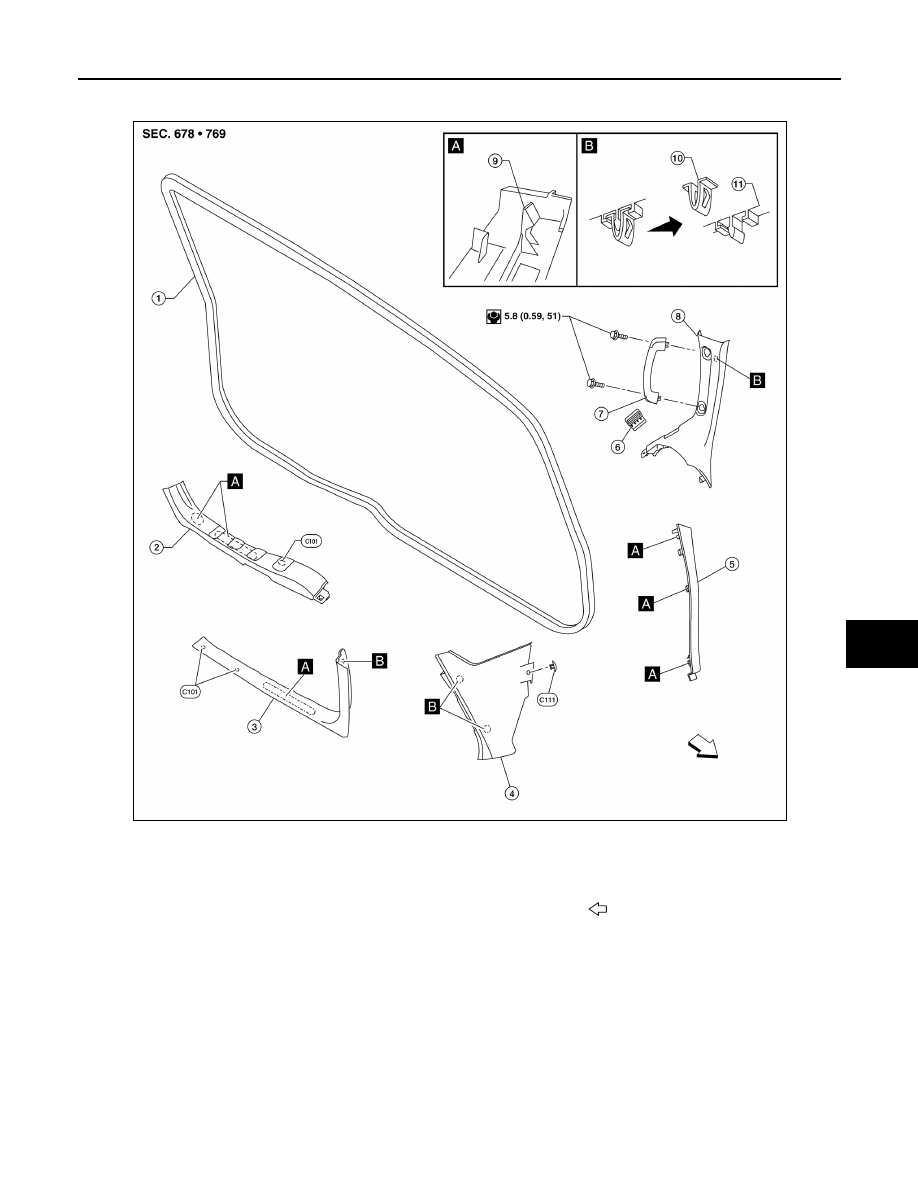

KING CAB

CAUTION:

• When removing or installing body side welts, do not allow butyl seal to come in contact with pillar

finisher.

• Wrap a cloth around suitable tool when removing metal clips from finishers.

Removal and Installation

INFOID:0000000009480046

LOWER DASH SIDE FINISHER

Removal

1. Remove front kick plate. Refer to KICK PLATE REMOVAL AND INSTALLATION procedure in this section.
2. Remove push pin from lower dash side finisher.

1.

Door welt

2.

Rear kick plate

3.

Front kick plate

4.

Lower dash side finisher

5.

Front pillar lower finisher

6.

Side demister grille

7.

Front pillar assist grip

8.

Front pillar upper finisher

9.

Molded plastic clip

10. Metal clip

11. Garnish

Front

AWJIA0554ZZ

INT-20

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

3. Remove lower dash side finisher.

Installation

Installation is in the reverse order of removal.

CENTER PILLAR LOWER FINISHER

Removal

1. Partially remove front and rear door welts as necessary.
2. Remove seat belt anchor. Refer to

SB-13, "Removal and Installation"

.

• On RH side, remove the cover and disconnect seat belt tension sensor.

3. Remove front and rear kick plates. Refer to KICK PLATE REMOVAL AND INSTALLATION procedure in

this section.

4. Release clips and remove center pillar lower finisher.

Installation

Installation is in the reverse order of removal.

CENTER PILLAR UPPER FINISHER

Removal

1. Remove center pillar lower finisher. Refer to CENTER PILLAR LOWER FINISHER REMOVAL AND

INSTALLATION procedure in this section.

2. Remove bolts, then assist grip.
3. Remove clips and bolts, then center pillar upper finisher.

Installation

Installation is in the reverse order of removal.

FRONT PILLAR UPPER FINISHER

Removal

1. Remove front pillar lower finisher. Refer to FRONT PILLAR LOWER FINISHER REMOVAL AND INSTAL-

LATION procedure in this section.

2. Remove bolts, then front pillar assist grip.
3. Remove the front pillar upper finisher bolt.
4. Remove the front pillar upper finisher.

Installation

Installation is in the reverse order of removal.

FRONT PILLAR LOWER FINISHER

Removal

1. Partially remove front door welt as necessary.
2. Release clips and remove front and/or rear kick plates.
3. Release clips and remove the front pillar lower finisher.

Installation

Installation is in the reverse order of removal.

KICK PLATES

Removal

Release clips, then remove front and/or rear kick plates.

Installation

Installation is in the reverse order of removal.

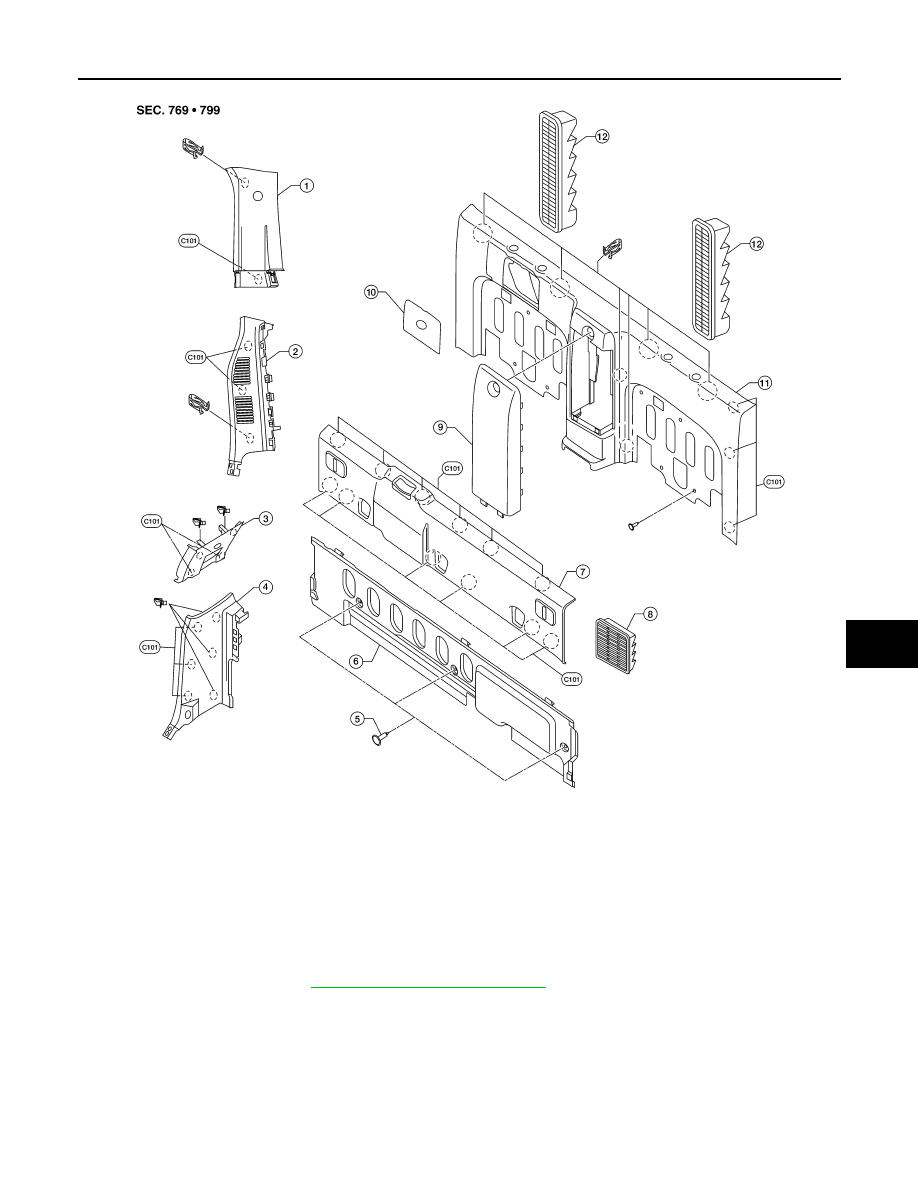

REAR TRIM

BODY SIDE TRIM

INT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

CAUTION:

Wrap a cloth around suitable tool when removing metal clips from finishers.

Removal

1. Remove rear seats. Refer to

SE-33, "Removal and Installation"

.

2. Remove storage boxes (if equipped).
3. Remove rear kick plates (RH/LH) and seat belt anchor bolts.
4. Remove seatback latch strikers (Crew cab models).
5. Remove child seat anchor cover (if equipped) and rear panel(s).
6. Remove first rear lower, then rear upper finishers (RH/LH).
7. Remove drafter duct(s).

Installation

1.

Rear upper finisher (King cab)

2.

Rear lower finisher (King cab)

3.

Rear upper finisher (Crew cab)

4.

Rear lower finisher (Crew cab)

5.

Pushpin

6.

Rear panel lower (Crew cab)

7.

Rear panel upper (Crew cab)

8.

Drafter duct (Crew cab)

9.

Jack storage cover

10. Child seat anchor cover

11. Rear panel (King cab)

12. Drafter ducts (King cab)

LIIA1966E
