INT-14

< SYMPTOM DIAGNOSIS >

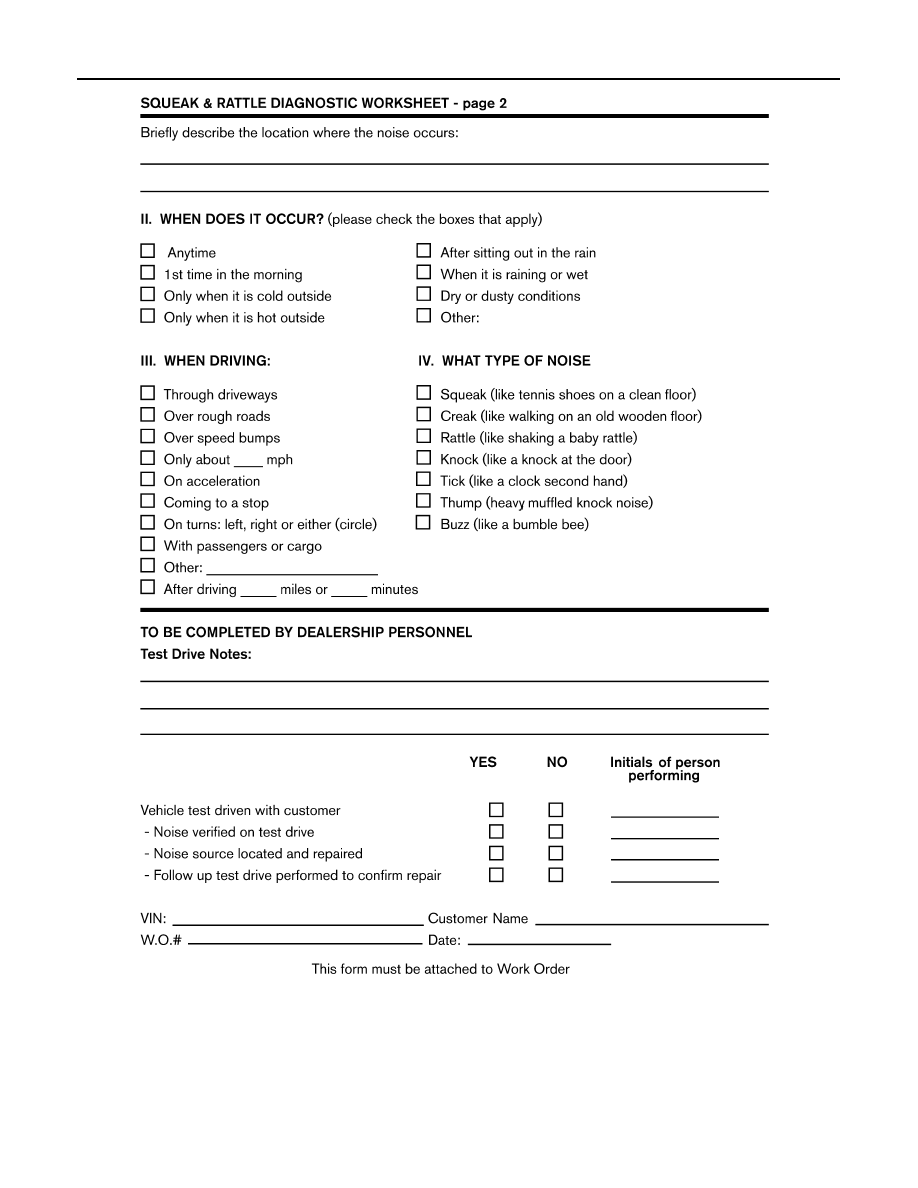

SQUEAK AND RATTLE TROUBLE DIAGNOSES

LAIA0071E

DOOR FINISHER

INT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REMOVAL AND INSTALLATION

DOOR FINISHER

Removal and Installation

INFOID:0000000009480044

FRONT DOOR

Removal

1. Remove window crank handle or power window/door lock switch (if equipped). Refer to

PWC-72,

"Removal and Installation"

 (LH) or

PWC-73, "Removal and Installation"

 (RH).

2. Remove pull handle escutcheon.
3. Remove pull handle cover, then remove door finisher screw.
4. Remove armrest.
a. While pushing on the side of the armrest, pull up on the rear of the armrest releasing the lower fastening

points.

b. With the rear of the armrest pulled upward, pull the front of the armrest toward you and remove.

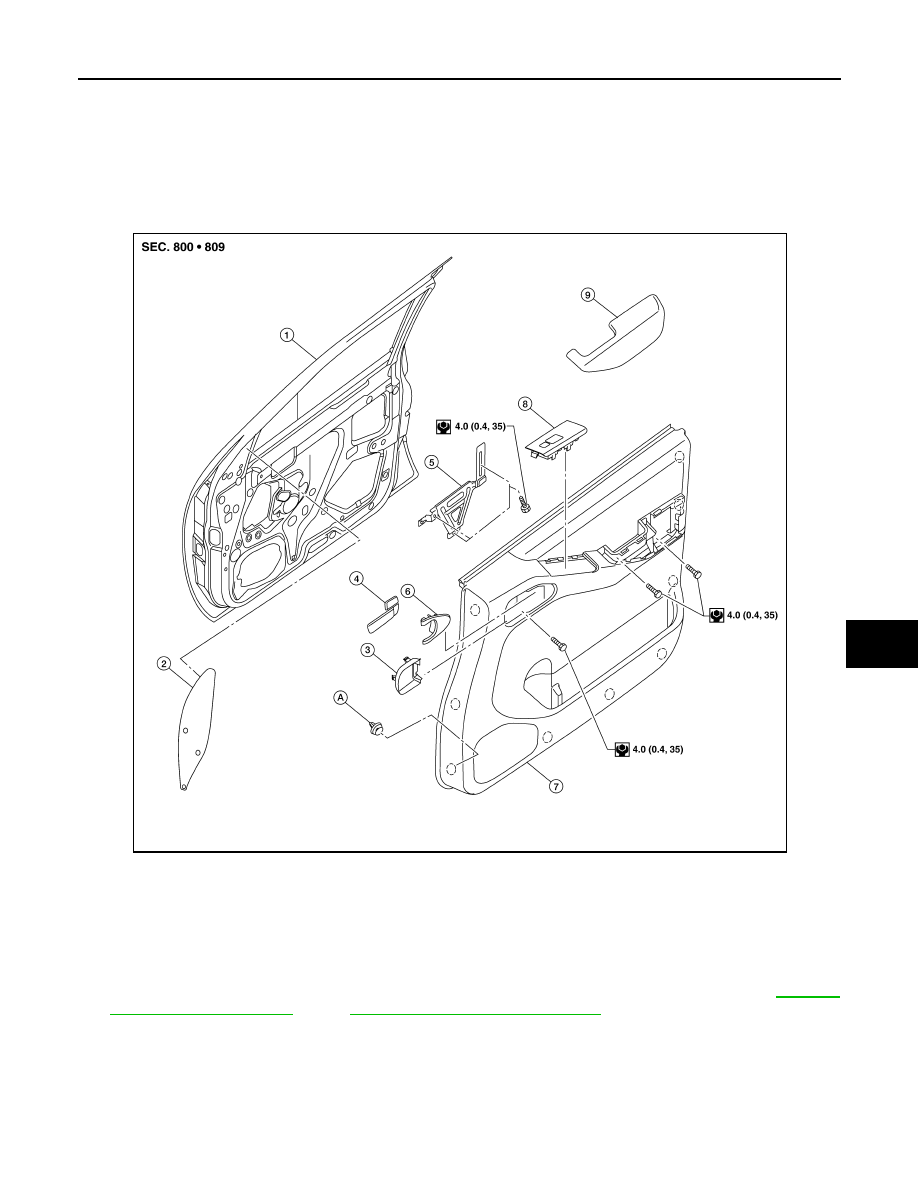

1.

Front door

2.

Mirror bolt cover

3.

Pull handle escutcheon

4.

Pull handle/lock lever assembly

5.

Front door handle bracket

6.

Pull handle cover

7.

Front door finisher (RH shown)

8.

Power window/door lock switch

9.

Armrest

A.

Clip C101

AWJIA0162GB

INT-16

< REMOVAL AND INSTALLATION >

DOOR FINISHER

5. Remove screws behind armrest.
6. Release clips and reposition front door finisher.
7. Remove pull handle/lock lever assembly.
8. Disconnect lock lever cable and pull handle cable from lever assembly. Refer to

DLK-137, "Removal and

Installation"

.

9. Remove front door finisher.

Installation

Installation is in the reverse order of removal.

REAR DOOR - CREW CAB

Removal

1. Remove window crank handle or rear power window switch (if equipped). Refer to

PWC-74, "Removal

and Installation"

.

2. Remove pull handle cover.

• Remove screw behind pull handle cover.

3. Remove pull handle escutcheon.
4. Lift upward to release clips and remove armrest.
5. Remove screws behind armrest.
6. Release the clips and remove rear door finisher.

• Disconnect the harness connector from rear tweeter, then remove the rear tweeter screws and the rear

tweeter.

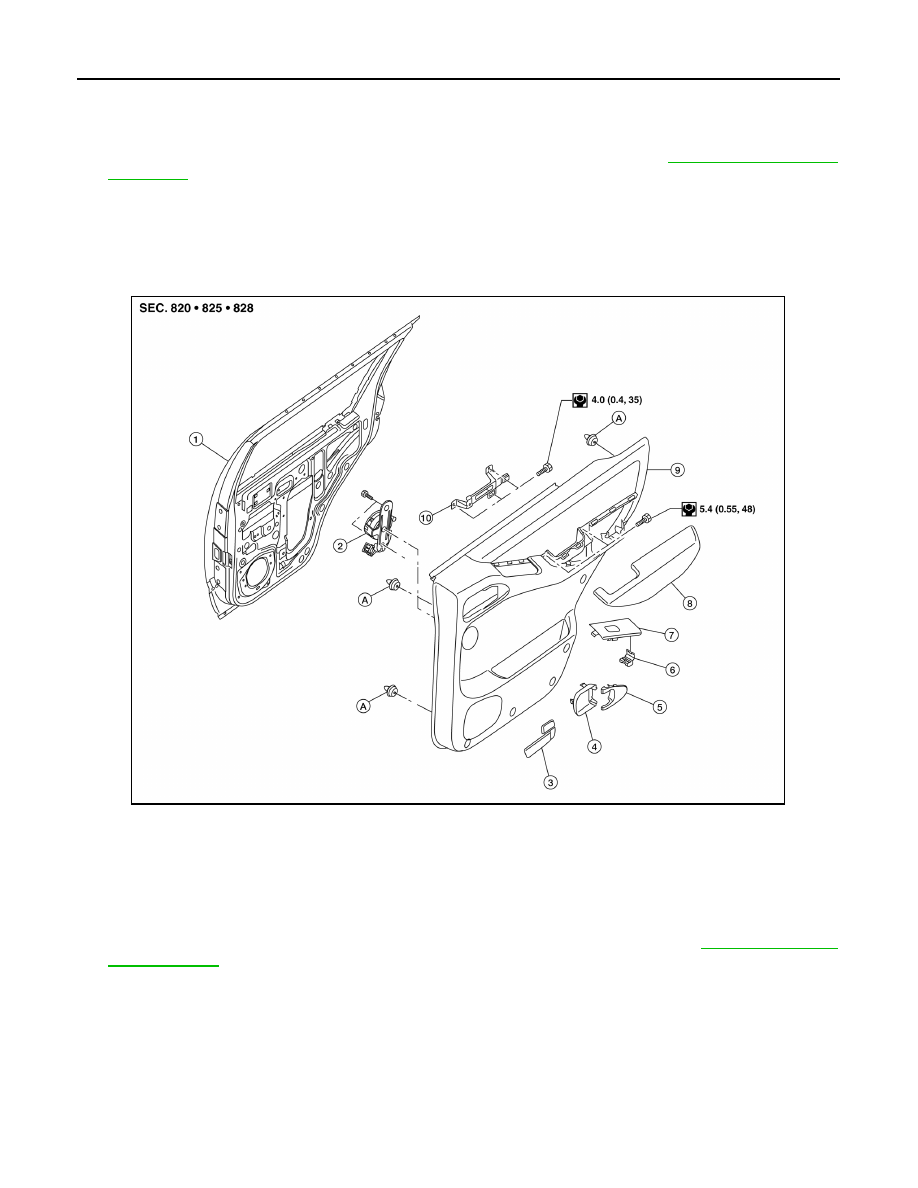

1.

Rear door

2.

Rear tweeter

3.

Pull handle/lock lever assembly

4.

Pull handle escutcheon

5.

Pull handle cover

6.

Metal clip

7.

Power window switch assembly

8.

Armrest

9.

Rear door finisher (RH shown)

10. Rear door handle bracket

A.

Clip C101

ALJIA0644GB

DOOR FINISHER

INT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

7. Remove pull handle/lock lever assembly.

• Disconnect lock lever cable and pull handle cable from lever assembly. Refer to

DLK-137, "Removal

and Installation"

.

Installation

Installation is in the reverse order of removal.

REAR DOOR - KING CAB

Removal

1. Remove lower seat belt anchor bolt. Refer to

SB-13, "Removal and Installation"

.

• Disconnect harness connector for passenger side.

2. Release the clips and remove rear door finisher.
3. Remove lock lever assembly.

• Disconnect lock lever cable and lever assembly. Refer to

DLK-141, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

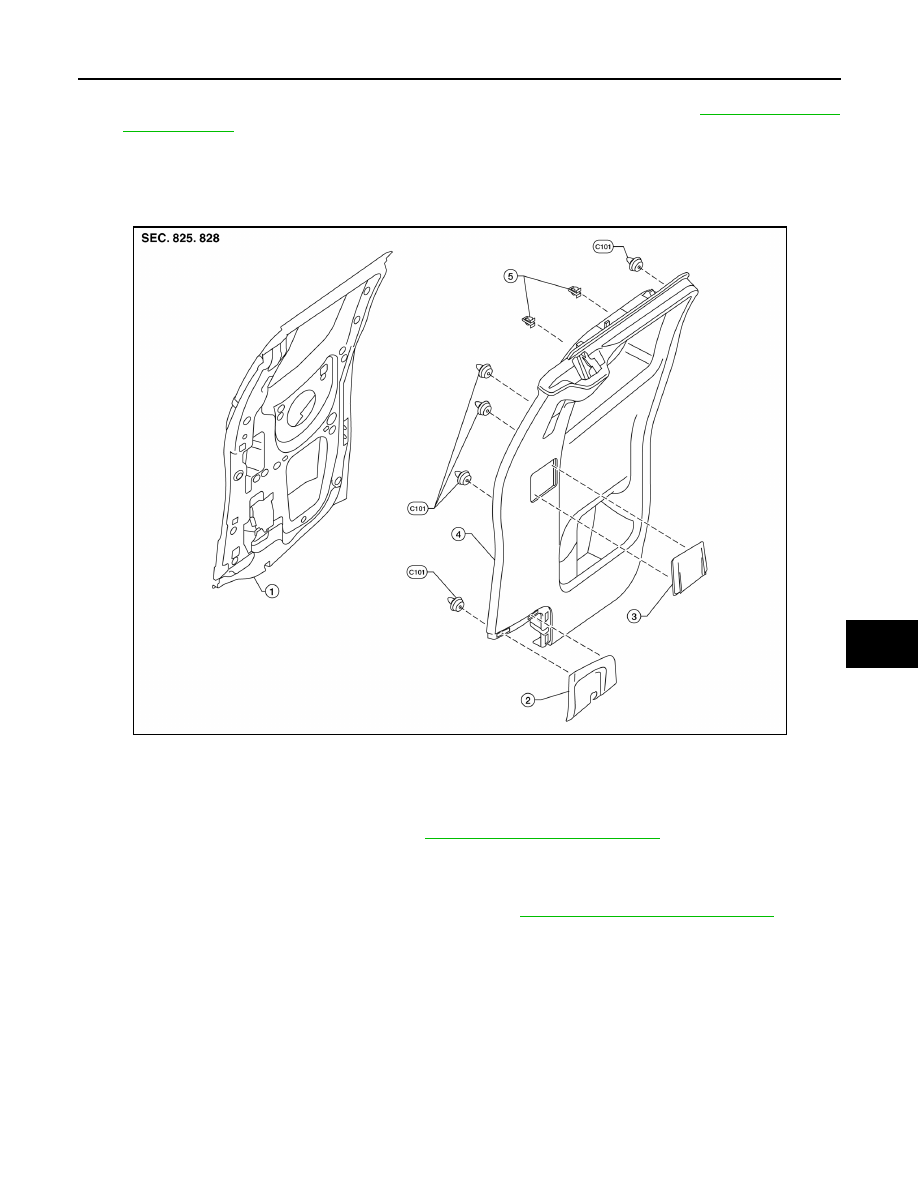

1.

Rear door

2.

Latch cover

3.

Guide

4.

Rear door finisher

5.

Metal clip

ALJIA0649ZZ
