HOW TO READ WIRING DIAGRAMS

Connector symbols

INFOID:0000000009480204

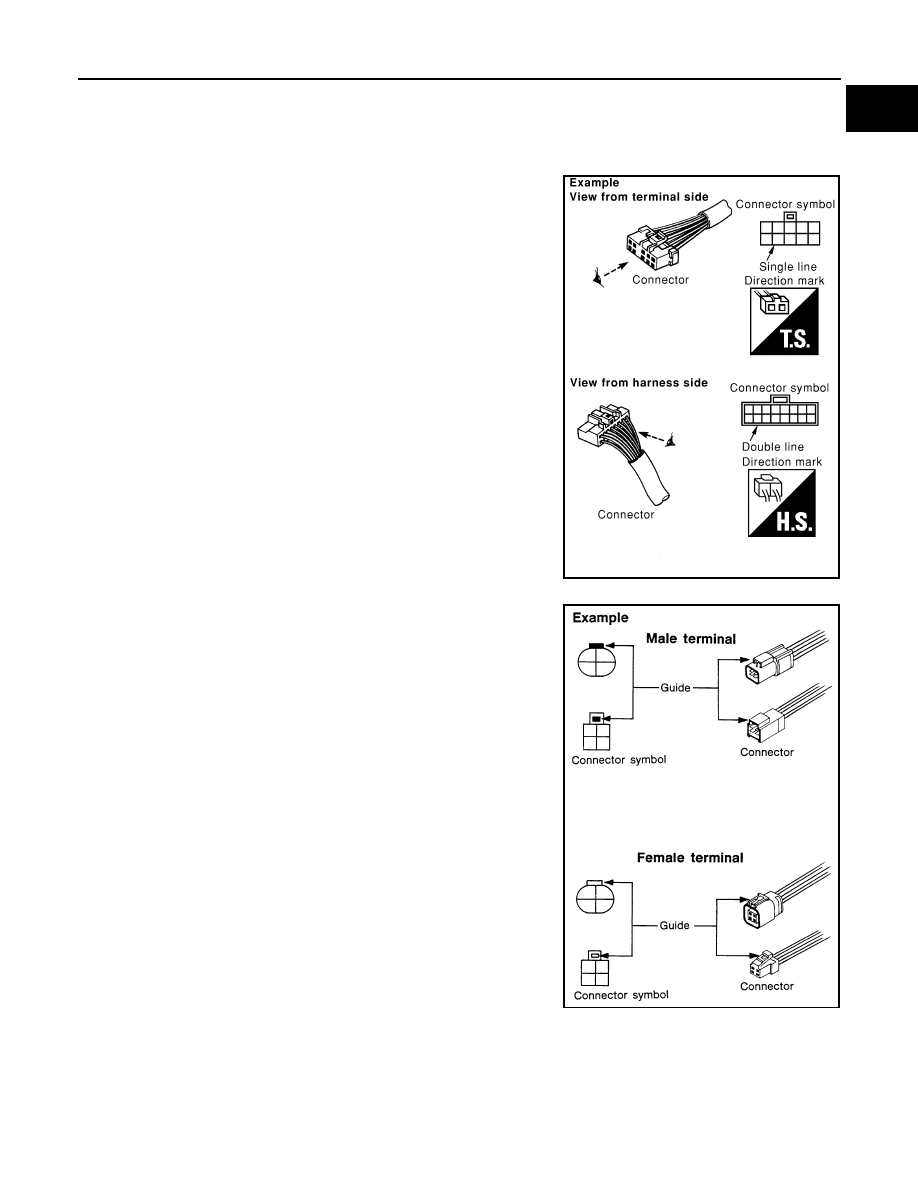

Most of connector symbols in wiring diagrams are shown from the terminal side.

• Connector symbols shown from the terminal side are enclosed by

a single line and followed by the direction mark.

• Connector symbols shown from the harness side are enclosed by

a double line and followed by the direction mark.

• Certain systems and components, especially those related to

OBD, may use a new style slide-locking type harness connector.

For description and how to disconnect, refer to PG section,

“Description”, “HARNESS CONNECTOR”.

• Male and female terminals

Connector guides for male terminals are shown in black and

female terminals in white in wiring diagrams.

SAIA0257E

SGI363

GI-10

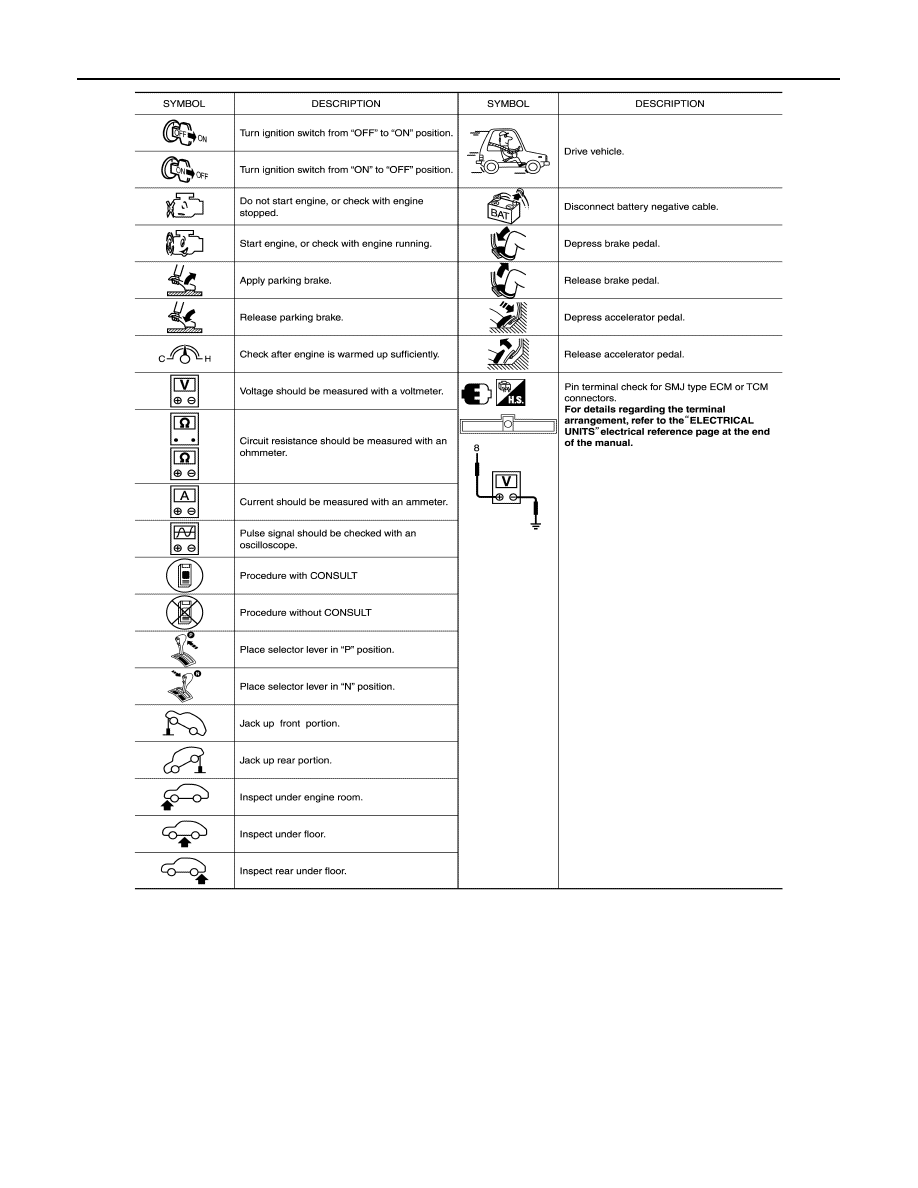

< HOW TO USE THIS MANUAL >

HOW TO READ WIRING DIAGRAMS

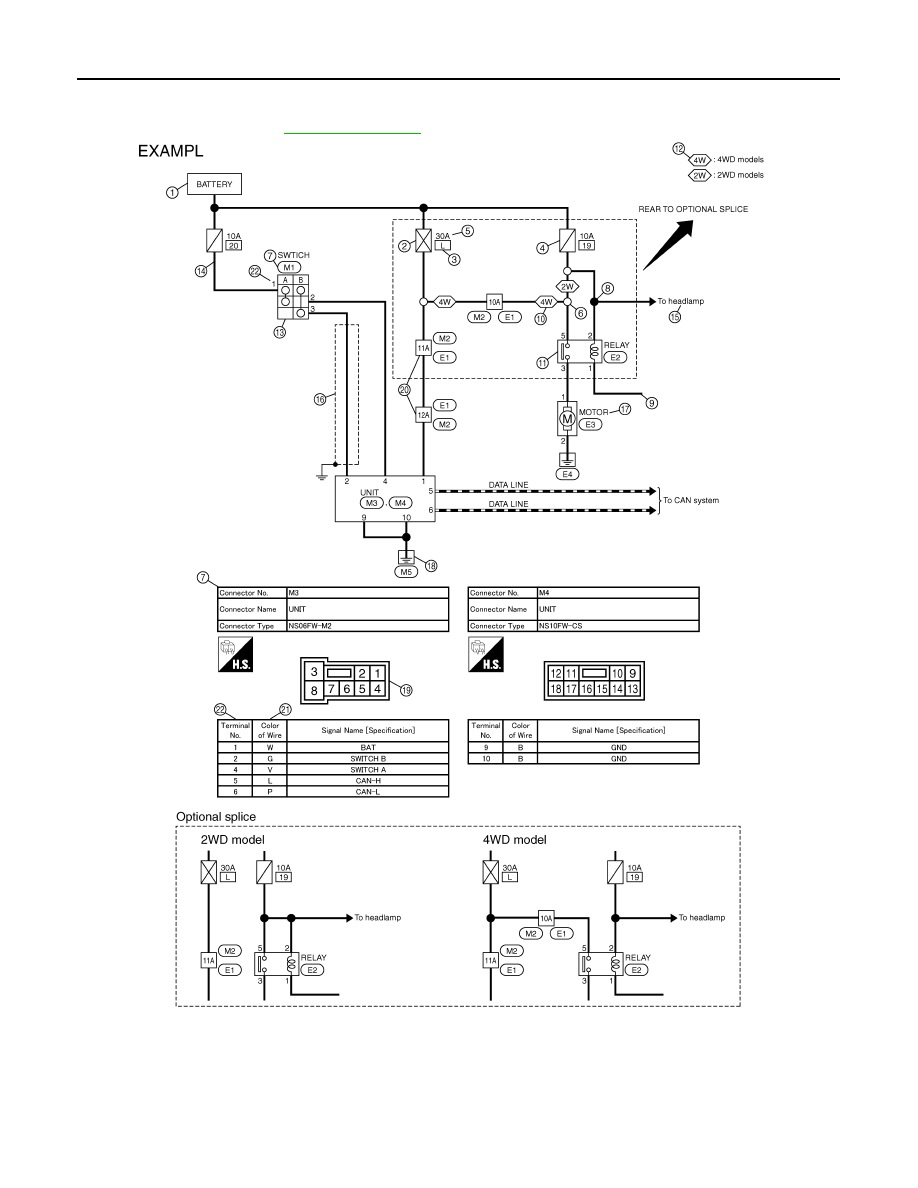

Sample/wiring diagram -example-

INFOID:0000000009480205

• For detail, refer to following

GI-11, "Description"

.

JCAWA0005GB

HOW TO READ WIRING DIAGRAMS

GI-11

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

Description

INFOID:0000000009480206

SWITCH POSITIONS

Switches are shown in wiring diagrams as if the vehicle is in the “normal” condition.

A vehicle is in the “normal” condition when:

Number

Item

Description

1

Power supply

• This means the power supply of fusible link or fuse.

2

Fusible link

• “X” means the fusible link.

3

Number of fusible link/
fuse

• This means the number of fusible link or fuse location.

4

Fuse

• “/” means the fuse.

5

Current rating of fus-
ible link/fuse

• This means the current rating of the fusible link or fuse.

6

Optional splice

• The open circle shows that the splice is optional depending on vehicle application.

7

Connector number

• The letter shows which harness the connector is located in.
• Example “M”: main harness. For detail and to locate the connector, refer to

PG-71, "Elec-

trical Units Location"

PG-39, "Harness Layout"

.

8

Splice

• The shaded circle “

” means the splice.

9

Page crossing

• This circuit continues to an adjacent page.

10

Option abbreviation

• This means the vehicle specifications which layouts the circuit between “ ”.

11

Relay

• This shows an internal representation of the relay.

12

Option description

• This shows a description of the option abbreviation used on the page.

13

Switch

• This shows that continuity exists between terminals 1 and 2 when the switch is in the A

position. Continuity exists between terminals 1 and 3 when the switch is in the B position.

14

Circuit (Wiring)

• This means the wiring.

15

System branch

• This shows that the circuit is branched to other systems.

16

Shielded line

• The line enclosed by broken line circle shows shield wire.

17

Component name

• This shows the name of a component.

18

Ground (GND)

• This shows the ground connection.

19

Connector

• This means the connector information.
• This unit-side is described by the connector symbols.

20

Connectors

• This means that a transmission line bypasses two connectors or more.

21

Wire color

• This shows a code for the color of the wire.

B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light Green
BG = Beige
BR = Brown

LA = Lavender
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green

• When the wire color is striped, the base color is given first, followed by the stripe color as

shown below:
Example: L/W = Blue with White Stripe

22

Terminal number

• This means the terminal number of a connector.
