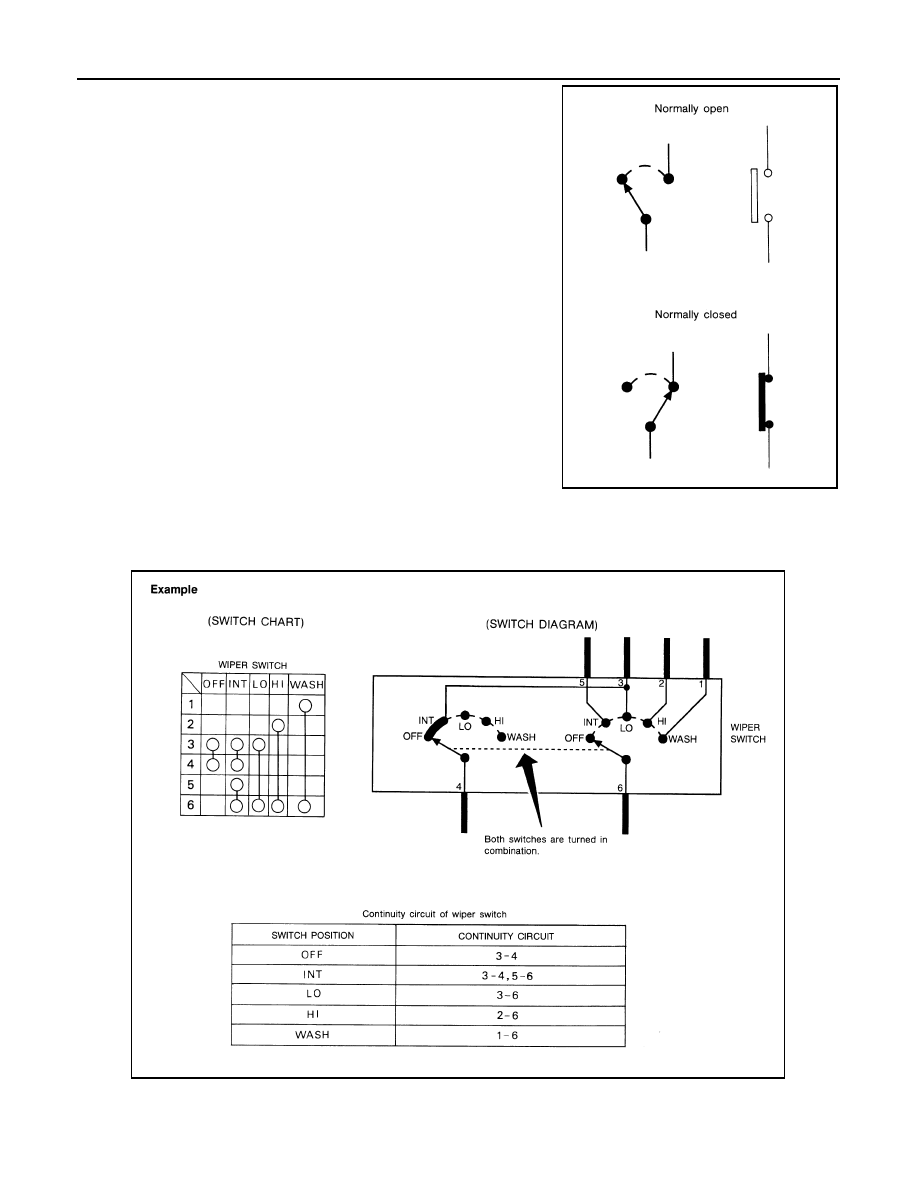

GI-12 < HOW TO USE THIS MANUAL > HOW TO READ WIRING DIAGRAMS • ignition switch is “OFF”, • doors, hood and trunk lid/back door are closed, • pedals are not depressed, and • parking brake is released. MULTIPLE SWITCH The continuity of multiple switch is described in two ways as shown below. • The switch chart is used in schematic diagrams. • The switch diagram is used in wiring diagrams. SGI860 JSAIA0017GB |
