ENGINE CONTROL SYSTEM

EC-971

< SYSTEM DESCRIPTION >

[VQ40DE FOR MEXICO]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

SYSTEM DESCRIPTION

ENGINE CONTROL SYSTEM

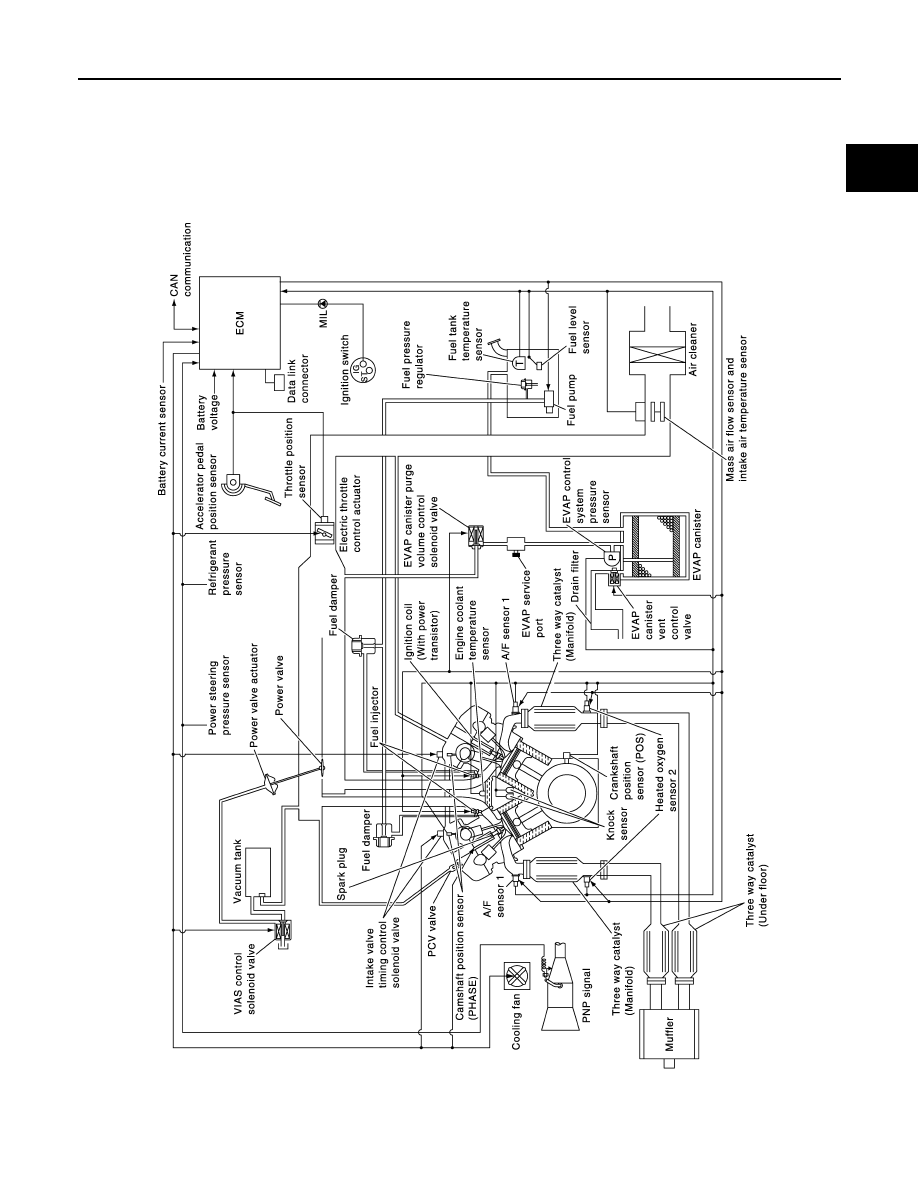

System Diagram

INFOID:0000000009481678

JPBIA3069GB

EC-972

< SYSTEM DESCRIPTION >

[VQ40DE FOR MEXICO]

ENGINE CONTROL SYSTEM

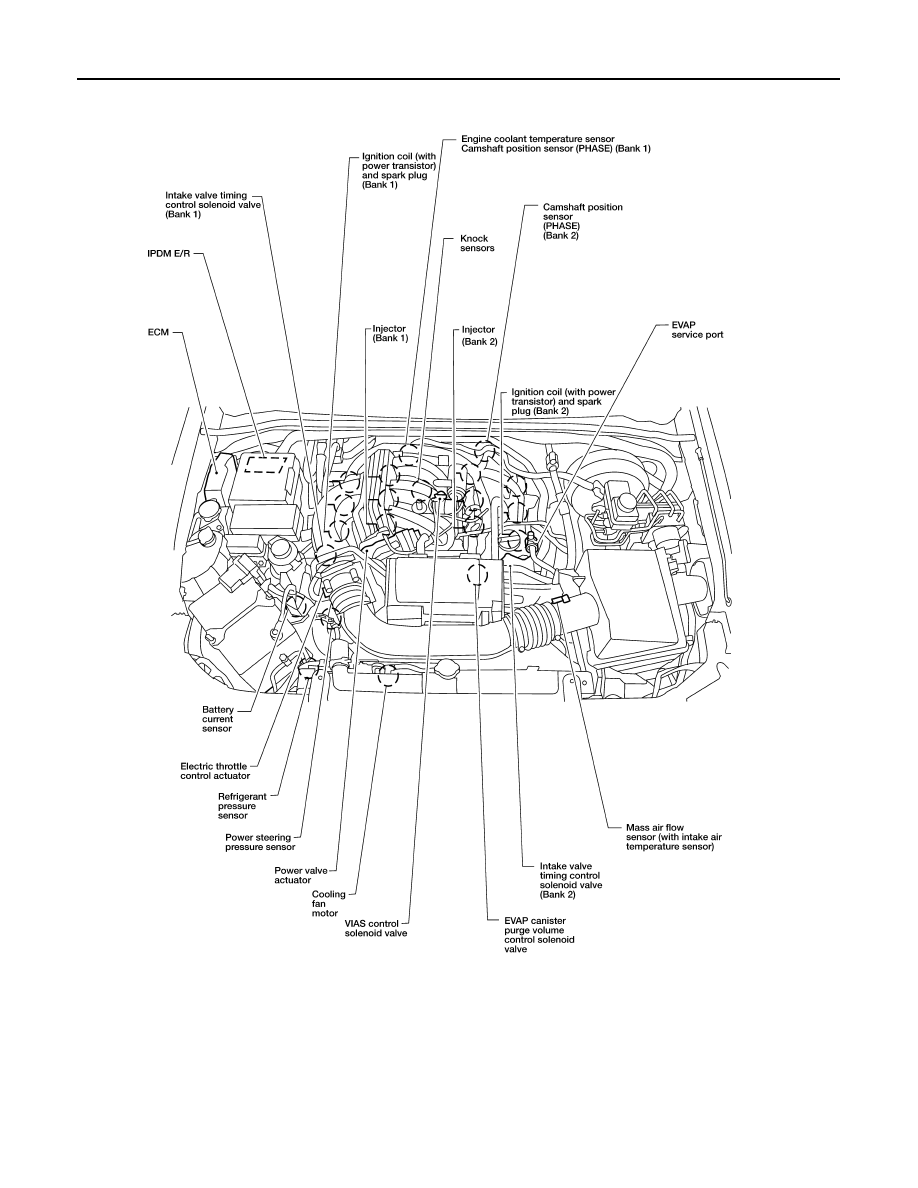

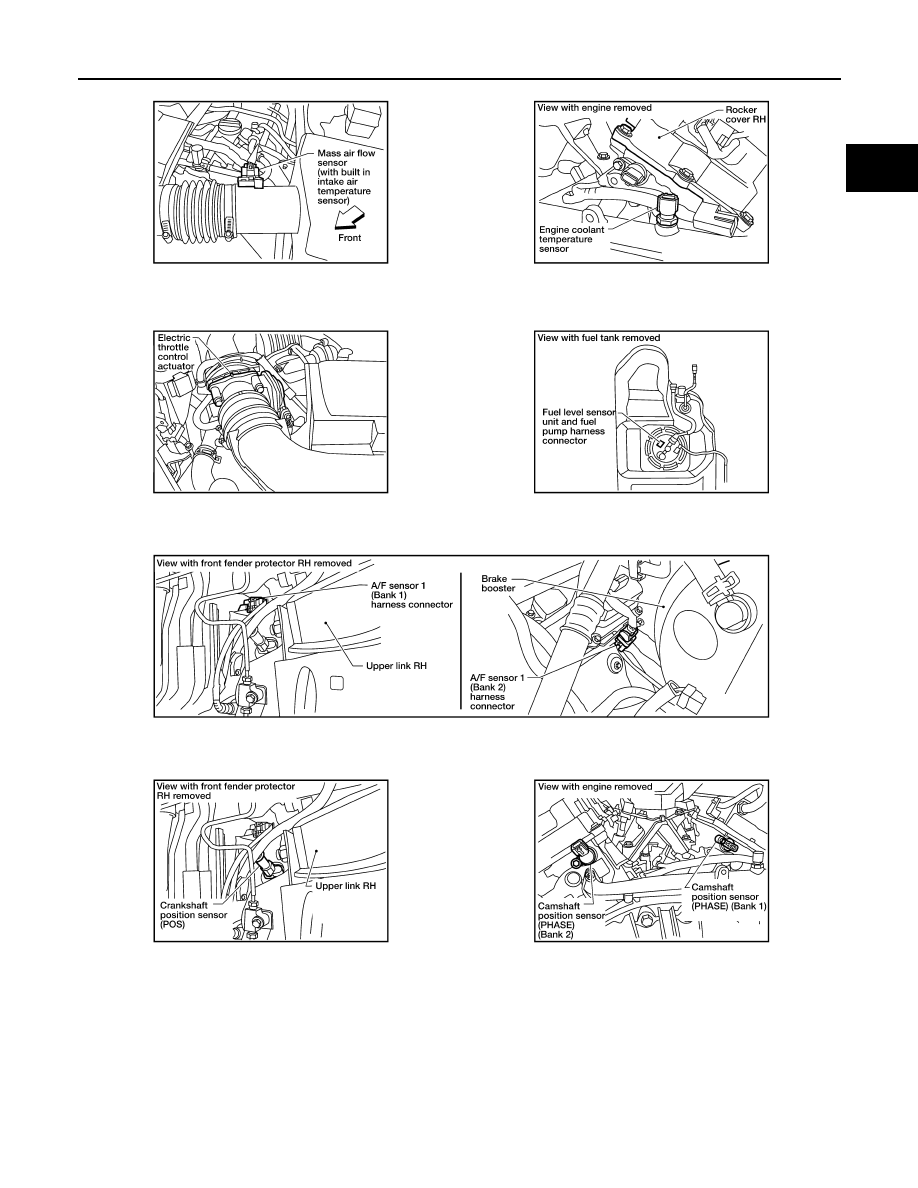

Engine Control Component Parts Location

INFOID:0000000009481679

BBIA0536E

ENGINE CONTROL SYSTEM

EC-973

< SYSTEM DESCRIPTION >

[VQ40DE FOR MEXICO]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

BBIA0578E

EC-974

< SYSTEM DESCRIPTION >

[VQ40DE FOR MEXICO]

ENGINE CONTROL SYSTEM

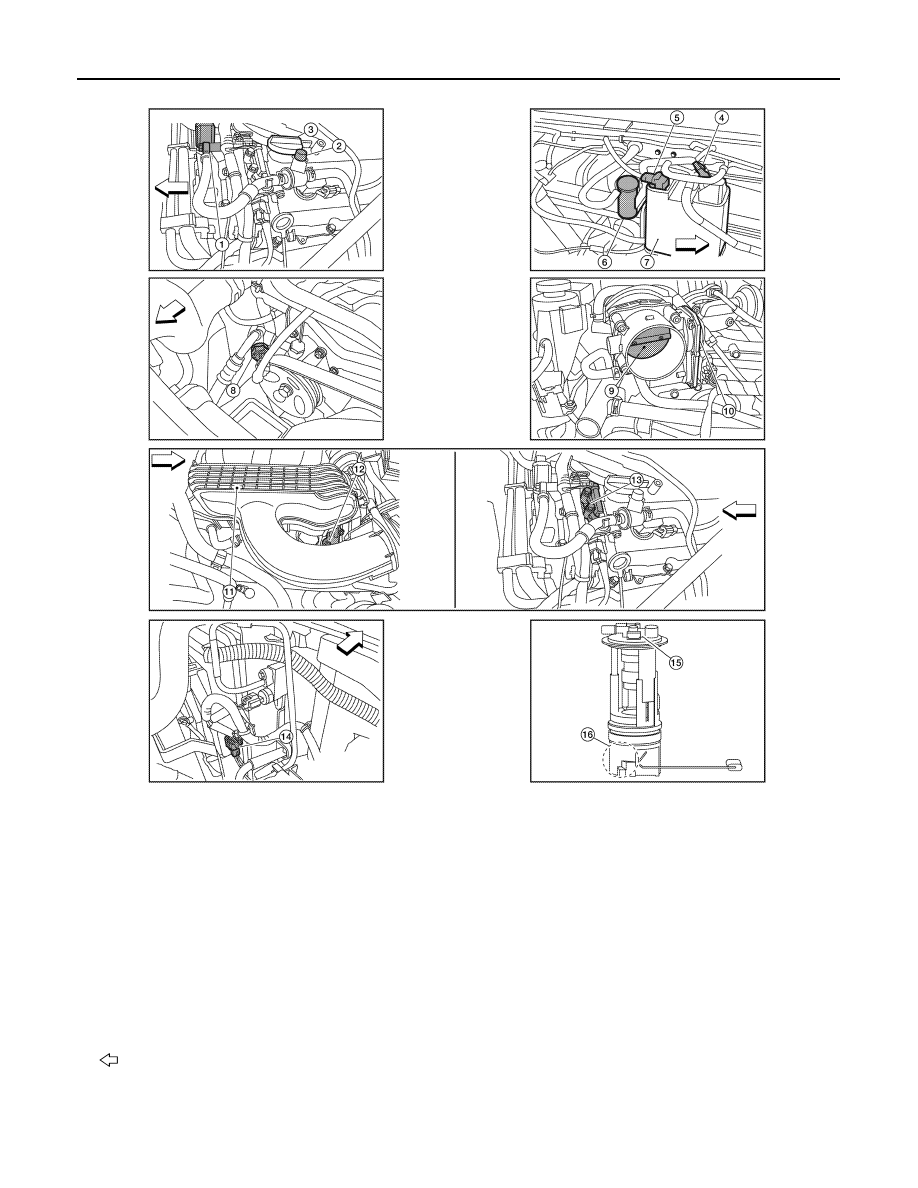

1.

EVAP canister purge volume control
solenoid valve (view with engine
cover removed)

2.

EVAP service port

3.

Oil filler cap

4.

EVAP canister vent control valve
(view with bed removed)

5.

EVAP control system pressure sen-
sor

6.

Drain filter

7.

EVAP canister

8.

Power steering pressure sensor

9.

Throttle valve (view with intake air
duct removed)

10. Electric throttle control actuator

11. Intake manifold collector

12. Intake valve timing control solenoid

valve (bank 1)

13. Intake valve timing control solenoid

valve (bank 2) (view with engine cov-
er and intake air duct removed)

14. Cooling fan motor harness connec-

tor (view with battery removed)

15. Fuel pump, fuel level sensor unit and

fuel filter

16. Fuel pressure regulator

: Front

ALBIA0516ZZ
