SERVICE DATA AND SPECIFICATIONS (SDS)

EC-963

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VQ40DE FOR USA AND CANADA]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Heated Oxygen sensor 2 Heater

INFOID:0000000009481666

Crankshaft Position Sensor (POS)

INFOID:0000000009481667

Refer to

EC-742, "Component Inspection"

.

Camshaft Position Sensor (PHASE)

INFOID:0000000009481668

Refer to

EC-745, "Component Inspection"

.

Throttle Control Motor

INFOID:0000000009481669

Fuel Injector

INFOID:0000000009481670

Fuel Pump

INFOID:0000000009481671

Resistance [at 25

°C (77°F)]

3.4 - 4.4

Ω

Resistance [at 25

°C (77°F)]

Approximately 1 - 15

Ω

Resistance [at 10 - 60

°C (50 - 140°F)]

11.1 - 14.5

Ω

Resistance [at 25

°C (77°F)]

0.2 - 5.0

Ω

EC-964

< PRECAUTION >

[VQ40DE FOR MEXICO]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009481672

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

On Board Diagnosis (OBD) System of Engine and A/T

INFOID:0000000009481674

The ECM has an on board diagnostic system. It will illuminate the malfunction indicator lamp (MIL) to warn the

driver of a malfunction causing emission deterioration.

CAUTION:

• Always turn the ignition switch OFF and disconnect the negative battery cable before any repair or

inspection work. The open/short circuit of related switches, sensors, solenoid valves, etc. will cause

the MIL to illuminate.

• Always connect and lock the connectors securely after work. A loose (unlocked) connector will

cause the MIL to illuminate due to the open circuit. (Be sure the connector is free from water, grease,

dirt, bent terminals, etc.)

• Certain systems and components, especially those related to OBD, may use a new style slide-lock-

ing type harness connector. For description and how to disconnect, refer to

PG-74, "Description"

.

• Always route and secure the harnesses properly after work. The interference of the harness with a

bracket, etc. may cause the MIL to illuminate due to the short circuit.

• Always connect rubber tubes properly after work. A misconnected or disconnected rubber tube may

cause the MIL to illuminate due to the malfunction of the EVAP system or fuel injection system, etc.

• Always erase the unnecessary malfunction information (repairs completed) from the ECM and TCM

(Transmission control module) before returning the vehicle to the customer.

PRECAUTIONS

EC-965

< PRECAUTION >

[VQ40DE FOR MEXICO]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Precaution

INFOID:0000000009481675

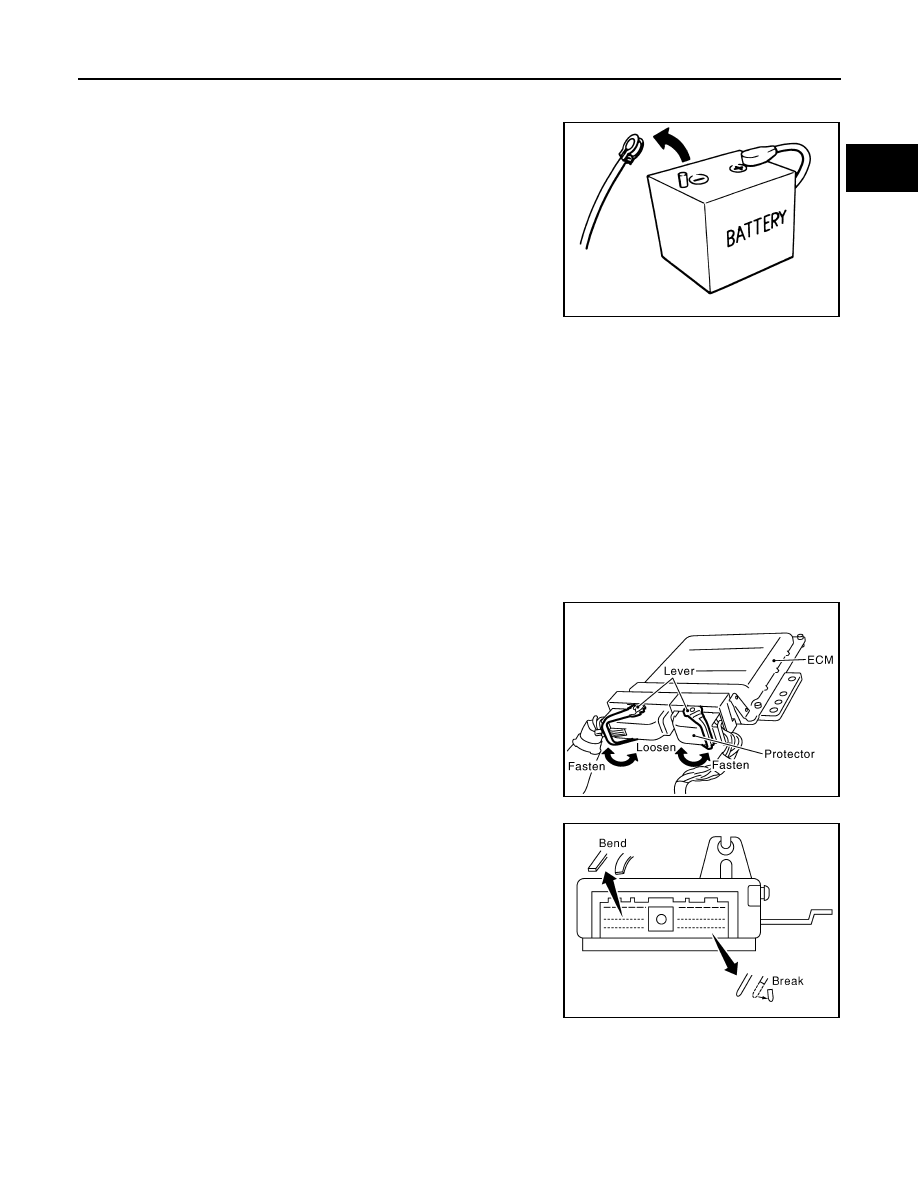

• Always use a 12 volt battery as power source.

• Never attempt to disconnect battery cables while engine is

running.

• Before connecting or disconnecting the ECM harness con-

nector, turn ignition switch OFF and disconnect negative bat-

tery cable. Failure to do so may damage the ECM because

battery voltage is applied to ECM even if ignition switch is

turned OFF.

• Before removing parts, turn ignition switch OFF and then dis-

connect negative battery cable.

• Never disassemble ECM.

• If a battery cable is disconnected, the memory will return to the ECM value.

The ECM will now start to self-control at its initial value. Engine operation can vary slightly when the

terminal is disconnected. However, this is not an indication of a malfunction. Never replace parts

because of a slight variation.

• If the battery is disconnected, the following emission-related diagnostic information will be lost

within 24 hours.

- Diagnostic trouble codes

- 1st trip diagnostic trouble codes

- Freeze frame data

- 1st trip freeze frame data

- System readiness test (SRT) codes

- Test values

- <Frexible Fuel Vehicle>

Presumed ethanol mixture ratio

• When connecting ECM harness connector, fasten it securely

with levers as far as they will go as shown in the figure.

• When connecting or disconnecting pin connectors into or

from ECM, take care not to damage pin terminals (bend or

break).

Check that there are not any bends or breaks on ECM pin ter-

minal, when connecting pin connectors.

• Securely connect ECM harness connectors.

A poor connection can cause an extremely high (surge) volt-

age to develop in coil and condenser, thus resulting in dam-

age to ICs.

• Keep engine control system harness at least 10 cm (4 in) away

from adjacent harness, to prevent engine control system mal-

functions due to receiving external noise, degraded operation

of ICs, etc.

• Keep engine control system parts and harness dry.

SEF289H

PBIB1512E

PBIB0090E

EC-966

< PRECAUTION >

[VQ40DE FOR MEXICO]

PRECAUTIONS

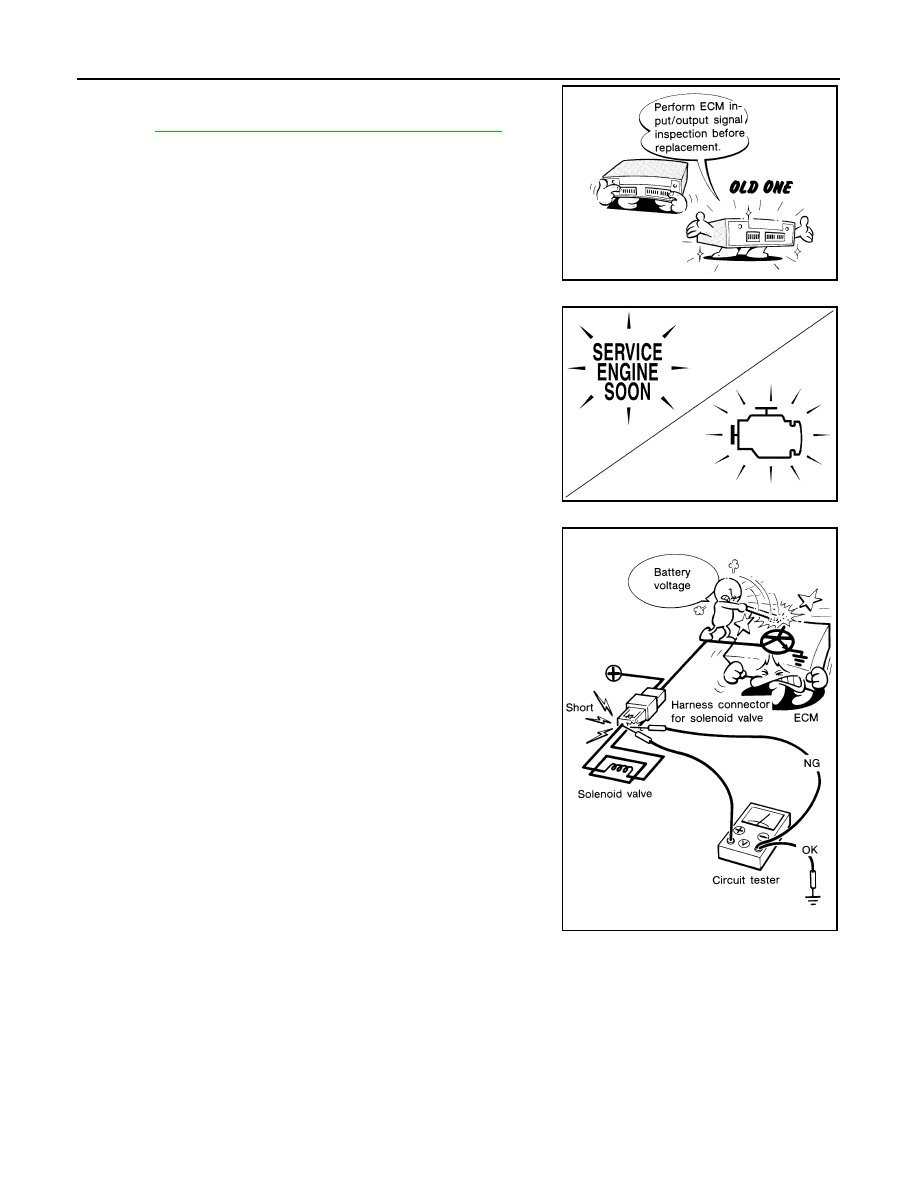

• Before replacing ECM, perform “ECM Terminals and Refer-

ence Value” inspection and check ECM functions properly.

Refer to

EC-1020, "ECM Terminal and Reference Value"

.

• Handle mass air flow sensor carefully to avoid damage.

• Never clean mass air flow sensor with any type of detergent.

• Never disassemble electric throttle control actuator.

• Even a slight leak in the air intake system can cause serious

incidents.

• Never shock or jar the camshaft position sensor (PHASE),

crankshaft position sensor (POS).

• After performing each TROUBLE DIAGNOSIS, perform DTC

Confirmation Procedure or Overall Function Check.

The DTC should not be displayed in the DTC Confirmation

Procedure if the repair is completed. The Overall Function

Check should be a good result if the repair is completed.

• When measuring ECM signals with a circuit tester, never allow

the two tester probes to contact.

Accidental contact of probes will cause a short circuit and

damage the ECM power transistor.

MEF040D

JSBIA1315ZZ

SEF348N
