Nissan Frontier. Manual - part 341

DLN-266

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR FINAL DRIVE: M226 ]

SERVICE DATA AND SPECIFICATIONS (SDS)

Item

Runout limit

Companion flange face

 0.13 (0.0051) or less

Companion flange inner side

DIAGNOSIS AND REPAIR WORKFLOW

DLN-267

< BASIC INSPECTION >

[REAR FINAL DRIVE: M226 (ELD) ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

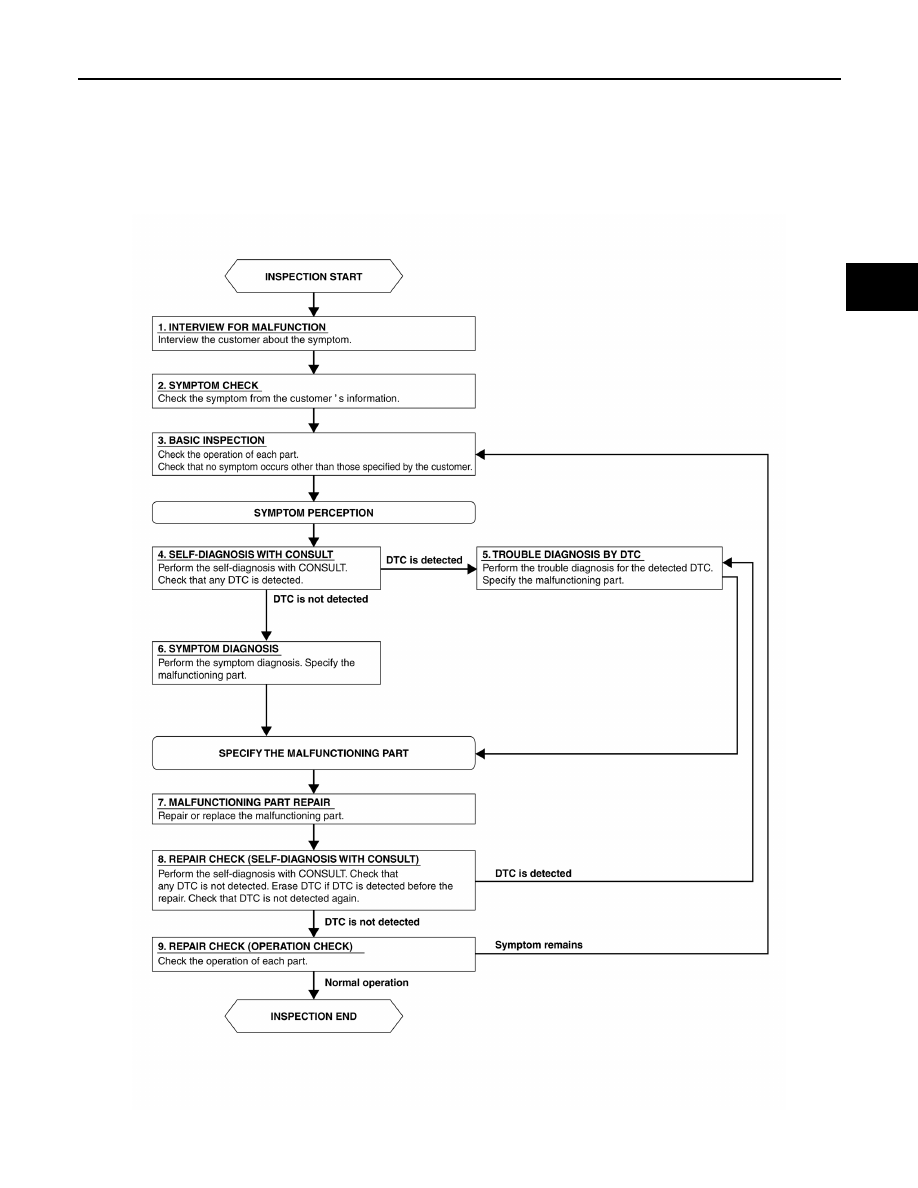

Work Flow

INFOID:0000000009479811

OVERALL SEQUENCE

DETAILED FLOW

AWEIA0214GB

DLN-268

< BASIC INSPECTION >

[REAR FINAL DRIVE: M226 (ELD) ]

DIAGNOSIS AND REPAIR WORKFLOW

1.

INTERVIEW FOR MALFUNCTION

Interview the customer about the symptom.

>> GO TO 2

2.

SYMPTOM CHECK

Verify the symptom from the customer's information.

>> GO TO 3

3.

BASIC INSPECTION

Check the operation of each part. Check that no symptoms occur other than those specified by the customer.

>> GO TO 4

4.

SELF-DIAGNOSIS WITH CONSULT

Perform the self diagnosis with CONSULT. Check that any DTC is detected.
Is any DTC detected?

YES

>> GO TO 5

NO

>> GO TO 6

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 7

6.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 7

7.

MALFUNCTIONING PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 8

8.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT)

Perform the self diagnosis with CONSULT. Verify that no DTCs are detected. Erase all DTCs detected prior to

the repair. Verify that DTC is not detected again.
Is any DTC detected?

YES

>> GO TO 5

NO

>> GO TO 9

9.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.
Does it operate normally?

YES

>> Inspection End.

NO

>> GO TO 3

DIFFERENTIAL LOCK SYSTEM

DLN-269

< SYSTEM DESCRIPTION >

[REAR FINAL DRIVE: M226 (ELD) ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SYSTEM DESCRIPTION

DIFFERENTIAL LOCK SYSTEM

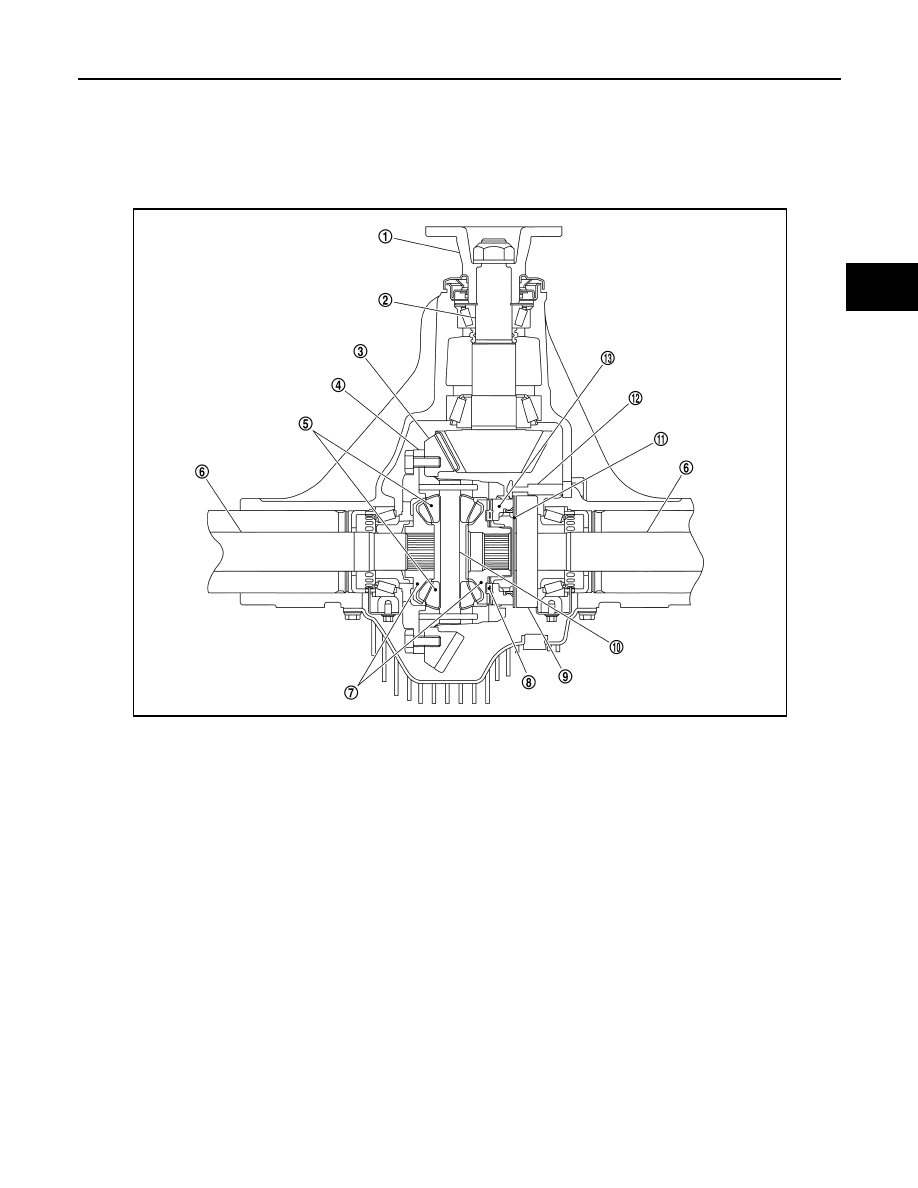

Cross-Sectional View

INFOID:0000000009479812

1.

Companion flange

2.

Drive pinion

3.

Drive gear

4.

Differential case

5.

Pinion mate gear

6.

Axle shaft

7.

Side gear

8.

Spring

9.

Differential lock solenoid

10. Pinion mate shaft

11. Pressure plate

12. Differential lock position switch

13. Cam ring

PDIA1062E
