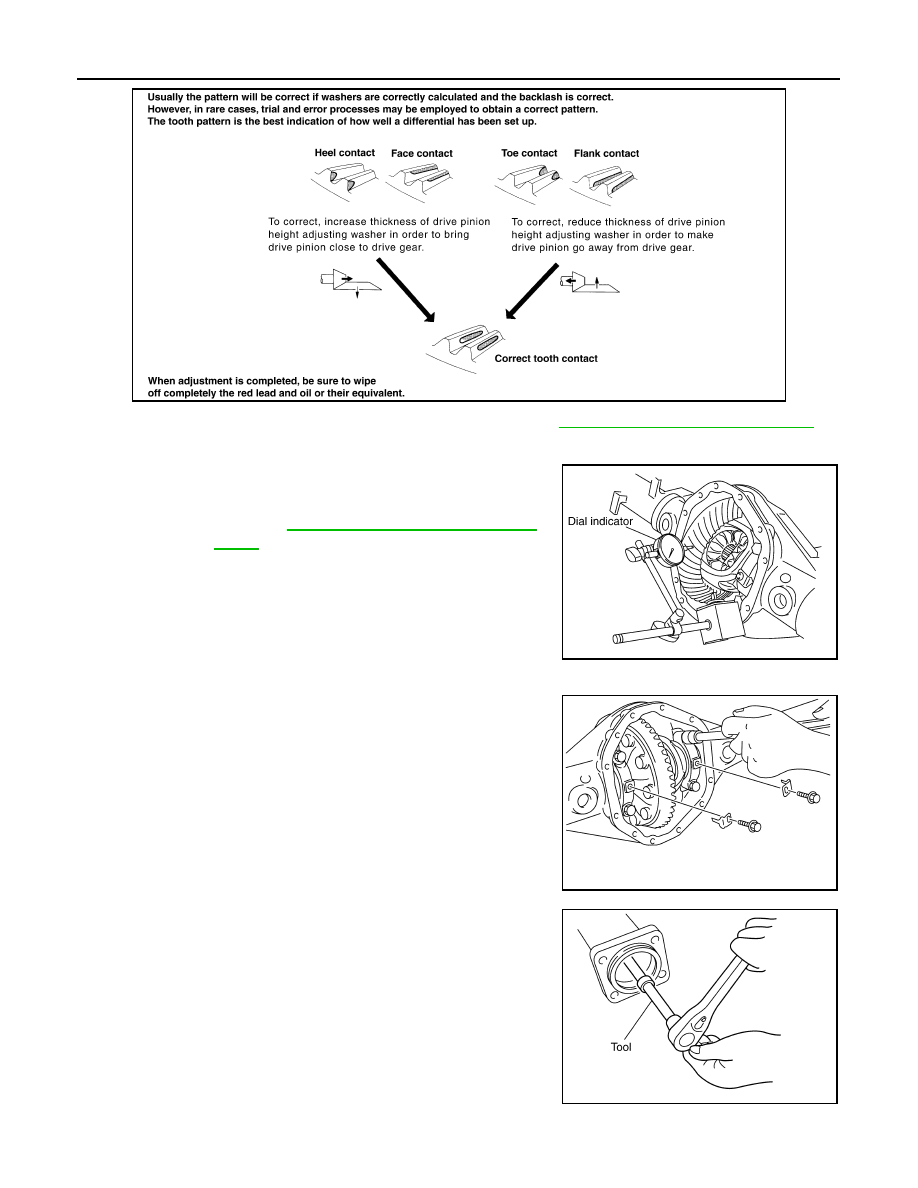

DLN-258 < UNIT DISASSEMBLY AND ASSEMBLY > [REAR FINAL DRIVE: M226 ] REAR FINAL DRIVE ASSEMBLY 4. If outside the standard, replace the final drive assembly. Refer to DLN-255, "Removal and Installation" Backlash 1. Fit a dial indicator to the drive gear face to measure the back- lash. 2. If the backlash is outside of the specification, adjust each side bearing adjuster. c. Tighten or loosen each side bearing adjuster using Tool. SDIA2591E Back- : Refer to DLN-265, "Inspection and Adjust- SDIA2640E PDIA0331E Tool number : — (C - 4164) PDIA0337E |
